PERMANENT MAGNETS LTD. MIDC, Mumbai, Maharashtra

Current-carrying conductors can be the cause, or be affected by, electromagnetic interference. Twisted pair cable has been PML MS widely used and is superior to parallel conductors, but is of limited effectiveness in reducing electromagnetic radiation. INTER-8® Weave Cable provides substantial improvement over the performance of a conventional twisted pair. INTER-8® weave cable consists of four separate conductors braided into interlocking loops and is a field-proven design of Permanent Magnets Limited. Four Types of Cable The basic INTER-8® weave cable is un-shielded. It is available with PVC insulation, or ETFE high temperature insulation. For additional shielding, both are also available with an outer braided shield, made of Permanent Magnets Limited proprietary Co-NETIC® AA high permeability wire, to provide ultimate magnetic shielding. Shielded options are covered with an outer Jacket.

Toucher Magnets are great efficient tools for small scale sheet handling jobs. Toucher Magnets are used to lift and move about small sheets. They add great value to the user and are very easy to operate. Permanent Magnets Limited Toucher Magnets also have release levers. By just pressing the lever, the Toucher Magnet will release its hold on the sheet and hence can easily be removed. No need to pry out the magnet using brute force. This feature saves the users a lot of time and energy.

Permanent Magnets Ltd. (PML) supplies Cut cores in soft magnetic Nickel alloy material to industries requiring High accuracy flux Concentrator used in current sensing application. Depending on the application, customer can select suitable Nickel or Silicon Iron alloy. PML maintains close control of magnetic properties by properly heat treating in a controlled hydrogen atmosphere furnace, which permits the most economical and efficient design for transformers. PML manufactures Cut cores in Toroid and Rectangular shape. The cut cores are made robust by finishing them with varnish coating.

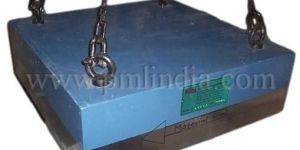

PML Suspended Permanent Magnetic Separators are placed above open conveyors to arrest ferrous objects and fines found in grains, feed stuffs, raw and processed products, dry chemicals, salt, ceramics, Clinkers in Cement Industry, Coal conveying in power plants and many other products. Suspended Permanent Magnets are used for separating big Ferrous particles like lugs, nuts, bolts, rivets, ms plates, angles, channels and tools from moving material on a conveyor belt.

The C-Core is a laminated soft ferromagnetic core featuring superior material characteristics such as high linearity and very low hysteresis. It is available with two different materials: Ni- Fe and Si-Fe. The core is designed for high-speed contactless current sensing in combination with a magnetic field sensor, i.e., Hall sensor, and a current conductor. Furthermore, the core protects the sensor from parasitic magnetic fields caused by nearby conductors or other magnetic field sources.

We offer shunts. Shunts are precision parts commonly used for measuring current in KWH in Electronic meters. Precision shunts are also used in electric vehicles and other applications like invertors, etc.

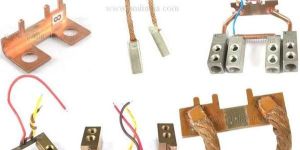

SHUNT is precision element for the energy meter which works in all kinds of electrical meter as power measure. The Manganin Shunt resistor is used as a key part of the measuring device inside the electronic ammeter The EBW type shunt gives precise measurement. It also helps to save cost of the production process and material

Flexible Conduit that provides high permeability magnetic shielding for sensitive cables and conductors. Inter-lock construction, made with our most popular 0.010" thick CO-NETIC®AA Perfection Annealed Foil, provides maximum attenuation, greater than AA Cable Shield. Construction is consistent with commercially available flex-conduit and is corrosion resistant to furnish physical protection. Five stock diameters are available. SPIRA-SHIELD Flexible Conduit meets military specification MIL-N-14411, Comp 1.

Magnet Sheet Transporters are great for lifting and moving sheets one by one from a stack of sheets. Simply place the Magnetic Sheet Transporter on the sheet that needs to be lifted and moved. The ergonomic handle makes it very easy for the user to shift, lift and move the sheets as desired. The Magnetic Sheet Transporter consists of a metal housing inside which strong magnets are assembled. The Sheet Transporter also has a cam shaft operated lever handle which comes in handy to transport the sheet and also to release the hold of the Magnetic Sheet Transporter. Simply push the handle away from the direction of the pull and the magnet will release its hold.

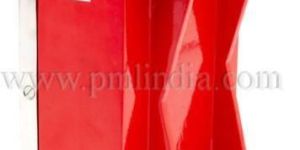

Magnetic Sheet Floaters are great sheet handling tools. By using the Magnetic Sheet Floater, the users can easily separate one sheet from a stack of sheets without getting their hands dirty. Simply place the Magnetic Sheet Floater near the sheet stack and the Magnet will attract the top sheet, making the sheet to appear as it is slightly floating above the stack. This enables the user to get enough grip to hold the sheet. This device will eliminate the pain of picking a sheet from a stack of sheets, no more sliding sheets around to find the perfect grip!

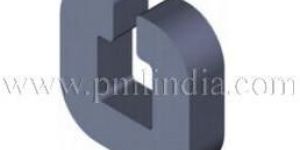

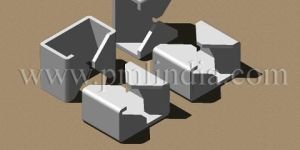

The C-shape is a soft ferromagnetic flux concentrator featuring superior material characteristics such as high linearity and very low hysteresis. The shape is designed for planar current sensing in combination with a magnetic field sensor, i.e., Hall sensor, AMR sensor and a busbar conductor. The C-shape protects the sensor from parasitic magnetic fields caused by nearby conductors or other magnetic field sources while at the same time it enhances sensitivity and signal-to-offset ratio of the sensor.

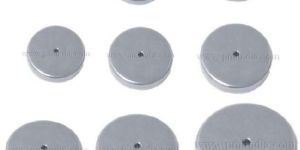

Round base magnets are powerful, low-profile magnets with an attachment hole in the center. Attach hooks or knobs to position or hold inspection equipment, indicator gauges, lamps, signs, antennas and more.   All round base magnets are chrome plated for durability and are magnetic on the flat side only.

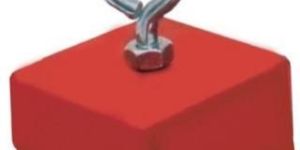

We are offering retrieving magnets.

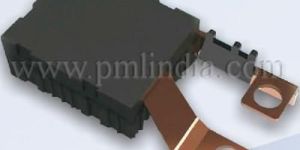

80A switching capability Very small contact resistance, hence negligible temp rise inside relay. Pulse driving, single or double coil Low power consumption- 1W / single coil, 2W / double coil Contact form 1-B Custom assemblies available with braided copper wire and / or copper straps, welded to brass terminals.

Precast Concrete Magnet/ Shuttering Magnet is the new type building material widely used in construction site, High- Developments projects,etc, Railway Infrastructure projects etc. in precast concrete form-work system. There by increasing building stability, while reducing labor costs and cost savings. The precast concrete Form-works are afforded the opportunity to properly cure and be closely monitored by plant employees. Using a precast concrete form-work offers many potential advantages over on-site casting. Precast concrete production performed on ground level, which helps with safety throughout a project. There is greater control over material quality and workmanship in a precast plant compared to a construction site. The forms used in a precast plant can be reused hundreds to thousands of times before they have to be replaced, often making it cheaper than on-site casting when looking at the cost per unit of form-work.

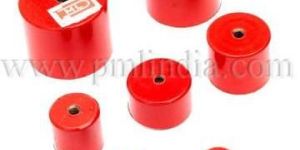

Pot magnet assemblies are generally used for gripping, clamping and fixture applications. Made from either Alnico or Ferrite magnet. The magnet is enclosed within a powder coated mild steel shell and aluminium ring spacer.

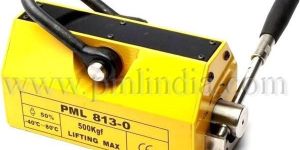

Permanent Magnetic Lifters are mainly used to lift steel plates, blocks, press moulds etc. and load / unload in machines during handling operation. They can hoist moving iron blocks and other magnetic material. They are easy to operation and safe to handle and hence are widely used as lifting devices in factories, docks, warehouses and transportation industries. By using them, you can improve your working condition and increase your working efficiency. Available Models: PML's range of Lifting Devices range from 100kg to 3 ton lifting capacity.

Permanent Magnetic Lifters are mainly used for handling of steel plates, blocks, press moulds and loading / unloading in machines during handling operation. They can hoist moving iron block, and other magnetic material. They are easy for operation, safe in handling. Hence they are widely used as hoisting devices in factories, docks, warehouses and transportation industries. By using them, you can improve your working condition and increase your working efficiency.

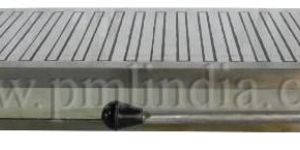

PML offers highly efficient and durable range of Permanent Magnetic Chucks. The ranges of magnetic chucks are of international quality standard to compete with the best magnetic tools in the market. PML gives importance to each component during manufacturing process and delivers them according to customer's individual specifications. PML offers Rectangular as well as Round Magnetic chucks. They are built using high power Ceramic / Alnico V magnets. These are mainly used for surface grinding machines, tool & cutter grinders, spark erosion machines, etc. PML’s Chucks have strong magnetic grip to hold any ferrous material. The top metal plate is extra thick to ensure maximum accuracy after regrinding. Permanent Magnetic Chucks don’t need power supply and hence do not cause any unexpected accident related to power failures. Since the Chucks don’t need power supply, the cost of operation to the user reduces substantially.

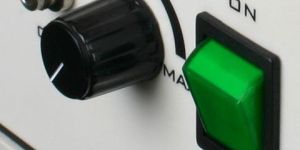

We offer Ophthalmic Endo Light VR. Features: Aura Light source provides long lasting high intensity light which is transmitted to the telescopes through high transmission fibre optic cables. The light sources are rugged and satisfy the most demanding needs of continuous long duration surgeries. The Fibre Optic Cables have been designed to ensure minimum breakage of fibres even during rough handling. Aura is designed for compatibility with power adaptors and fibres cables of other makes.

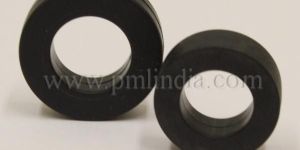

The Nano crystalline Cores For Leakage Circuit Breakers may be provided in the form of toroidal or sports-shaped entangles core. The material for Nano crystalline Cores For Leakage Circuit Breakers is brittle and needs protection to prevent mechanical forces, It is provided by a plastic core or a suitable heat-resistant coating. Once Coated or boxed, the core is very strong, the main magnetic properties Highly linear and less dependent on temperature. In one aspect, the strip material limits the diversity of the shape of the mechanical core, but is limited The geometry of other hand-variable ring cores can be obtained at low processing costs. Of The current core size ranges from about 10 mm to more than 300 mm from the outside diameter diameter. Basically, spaces or cut cores should also be available, however These options are not currently available as a standard on the market.  Features High initial permeability, High output voltage, core size saving. Low core loss, Good tolerance ability for large current impulse, Good protection of tripping of high current High Curie temperature, Good temperature stability（-55℃~130℃) Competitive price Application Electronic Leakage Circuit Breakers Electromagnetic Leakage Circuit Breakers

Nano crystalline soft magnetic material is a new development. The material composition is 82% iron with the remaining balance silicon, boron, niobium, copper, carbon, molybdenum, and nickel. The raw material is manufactured and supplied in an amorphous state. It is recrystallized into a precise mix of amorphous and Nano crystalline phases when annealed, giving the material it's unique magnetic properties. Comparing with the traditional core material, such as silicon steel and perm alloy, Iron based nano crystalline alloy takes the advantage of high permeability and low cost, and is thus more competitive in the application of precise current transformer with 0.2, 0.2s, and 0.1 accuracy class.This material has the best overall performance over a broad range of frequencies when compared to other available materials. It's relatively high saturation flux density, combined with its incredible low loss and high permeability through a wide frequency range, makes it useful in many applications Process Description PML have the facility to make cores of various sizes in nano crystalline and amorphous material with ribbon thickness 25-35 microns. The cores are made on automatic core winding machine to give very high production rate. The cores are finally heat treated in controlled atmosphere in our high tech furnace to achieve optimum material performance. Later cores are then plastic encapsulated or epoxy coated as per the customer requirement and tested 100% for quality performance on core sorting machines and dispatched.
