Pioneer Enterprise Kumbharwada, Mumbai, Maharashtra

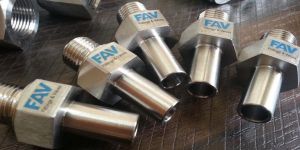

    OUR FAV WELD FITTINGS INCLUDE TUBE BUTT WELD FITTINGS TUBE SOCKET WELD FITTINGS PIPE BUTT WELD FITTINGS TUBE SOCKET WELD FITTINGS WELD ADAPTER PIPE TO WELD FITTINGS

FAV is the manufacturers of Hose Fitting array of durable industrial Stainless Steel 316 hose fittings. This array comprises of pipe fitting Stainless Steel nipples, Stainless Steel pipe fitting caps, SS 316 pipe fitting bend (special bend) and SS 316 industrial nuts. We have Stainless Steel Hose Fittings for 1 Wire Hose( R1, 1SN) ,2 Wire Hose ( R2, 2SN) ,4 Wire Hose (4SP and 4SH) and 6 Wire Hose .We keep quite a few of these fittings in stock. To know the stock status email us on sales@fav.net.in. One Side of the hose fittings will be suitable for Hose and will come with Crimping Ferrule. Crimping Ferrule will be use to attached the fitting body to the hose. The other side of these Stainless Steel Hose Fittings will have NPT Male ,JIC Female Swivel ,NPT Female fixed or swivel, BSP Male, BSP Female Swivel or Fixed . There are other end connections also like SAE, BSPT, NPS ..etc But most common connections  in Stainless Steel Hose Fittings are NPT Male JIC Female Swivel and BSP Female Swivel. Please see photo below for your reference .

FAV range of Sampling Cylinder is designed to provide safe containment for storage, examination and transportation of both liquids and gases. FAV Sampling Cylinder is available in Stainless Steel, Carbon Steel, Monel. We have ability to customize Sampling Cylinders  to suit your exact needs . Features Customize your own Sampling Cylinder that fits best in your process Entire System available which include Pressure Gauges, Needle Valves and Pipe Fittings Sampling cylinders in different capacity of 150 cc, 300 cc, 500 cc, 1000 cc, 1500 cc Variety of end connections includes Male / Female NPT, BSPT, BSPP Dust Cap provided High Pressure Rating upto 10000 PSI   Typical Applications • Sampling hydrocarbons in refineries and petrochemical plants • Gas sampling for chromatographic analysis • Snubbers in reactor feed lines • Surge accumulators in high pressure gas systems • High vacuum systems as experimental chambers and molecular sieves • Chemical reaction vessels

Sampling Can acts as a storing containers that signify the medium. Major objective is storage and safe movement. The medium in the Can are generally taken to test laboratory for analysis. So Sampling Can and Sampling Bottle makes sure it travels without impurity, leakages or deterioration. Sampling is a method of quality analysis through regular assessment of a part of the medium   Materials   Sample Can is usually available in Stainless steel, Brass ,Copper   Features   Single Walled or Double Walled Cork Fitted with SS Disc and Hook SS or Brass Heavy Handle Wire made of SS with Plastic Covering Base level mounting for easier storage Length and Volume customizable Variety Copper Single-Walled Sampling Can Brass Single-Walled Sampling Can Stainless Steel Sampling Can Dual Copper and Brass Double-Walled Sampling Can , Brass Outer and Copper Inner Dual Brass and Copper Double-Walled Sampling Can , Copper Outer and Brass Inner Dual Stainless Steel and Brass Double-Walled Sampling Can , Stainless Steel Outer and Brass Inner   Applications Used in manual sampling of petroleum and petroleum products, sampling of Aviation Fuel Sample Containers for Tests Affected by Trace Contamination, Manual sampling of liquid hydrocarbons, Petroleum liquids – Manual sampling , Vessel and Tank Sampling . Sampler is suitable for the sampling of Oils, Fats, Edible Food Products, Wines, Water, Petroleum Products and Chemicals

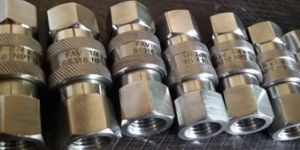

FAV Quick Release Couplings or Quick Disconnect Couplings are the most versatile couplings available and are suitable for use with various liquids, chemicals, steam, gases and vacuum. FAV Quick Disconnect Couplings are based on the industry standard and available in Brass, steel and stainless steel construction available in all sizes. Variety of End connections includes female NPTF, BSPP and SAE o-ring boss. We also Promote Heavy duty steel couplings for use in high impulse service and are available in most sizes.

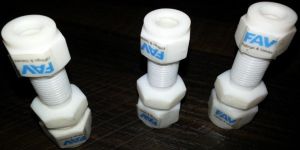

FAV range of PTFE Fittings and PTFE Pipe Fittings are widely used due to unique characteristics of PTFE Material

PTFE coated Fasteners reduces the friction during use and reuse, it has brilliant anti- corrosive properties and increases the usage life of Fasteners. PTFE coated fastener’s provides exceptional corrosion resistance, low coefficient of friction, consistent tensioning and subsequent ease of installation and removal. Extensive testing and field use have proven that the future of coated fastener’s lies with Fluoropolymer coatings. Previously hot dip, galvanized, cadium or zinc plated fastener’s were considered the standard. But these coatings could not stand up to the corrosive atmospheres prevalent in many industries. The most widely used application is on B7 studs with 2H nuts. Dramatic improvements in efficiency, life expectancy and corrosion resistance are claimed to be imparted to Nut and Bolt connectors by the application of a low friction PTFE coating. PTFE coated connectors have out-performed all others in aggressive any noticeable effect. All the material used for Manufacturing is tested for chemical & mechanical properties. The Results are confirmed to meet original material requirement before processing. Application PTFE Coated Fasteners have a well established reputation of doing brilliantly in the corrosive atmospheres prevalent in offshore oil and gas, offshore rigs & platforms, shipping, chemical, pharmaceutical, deep sea drilling, shipping, and marine, and power, and nuclear, electronic petrochemical, fluid.

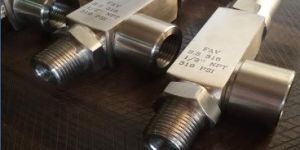

  Pressure Relief Valve : SET AND FORGET! FAV Pressure Relief Valves offer performance, reliability and flexibility of use in one easy to maintain, reliable product design. Our Instrument Safety Relief Valve are available in a variety of materials and end connections. They are highly durable and provide effective performance without any leakage. Safety Relief Valve has come with a wide variety of port sizes, end connections, style, and temperature and pressure tolerance. FAV Pressure Relief  Valves allows you continuous operation at given Set Pressure. We have variety of Material, Sizes and Range of Set Pressure. Contact now! Pre-Calibrated Design or Range Setting We give options of Pre-Calibrated Design or Range Setting In Pre-Calibrated Design the Safety Valves are calibrated as per your required set pressure. Even on continuous usage our Safety Valves opens up at the set pressure. Our high tensile spring specially fabricated ensures this. In Range Setting option we give you a lower limit and upper limit of Pressure. You can manually set at required range using the screw at the top.

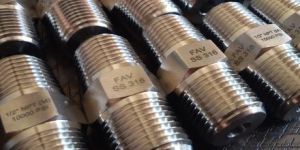

av precision pipe fittings are designed and configured for instrumentation, process and fluid control. precision pipe fittings are available in a variety of configurations, end connections and sizes that fulfill the need for leak-free performance of process system. Main features that call for its use are its simplicity, compactness in design, ease of assembly, high reliability, easy availability & global acceptance. precision instrument pipe fittings are available as standard in brass and 316 stainless steel. Pipe fittings can also be supplied in other materials including monel®, hastelloy® c276, inconel®, incoloy®, duplex, super duplex and titanium, as well and in special shapes. for a glance on our exotic materials fittings range a wide array of configurations are available in instrument pipe fittings such as nipple fittings, adapter fittings, pipe reducer, couplings, and various customized machined components of various styles , shapes and sizes. advantages of fav instrument pipe fittings? 1)variety of styles , shapes and sizes 2)variety of configurations and materials such as s316, brass and carbon steel. 3)sizes available from 1/8” to 2” npt. 4)options of precision thread end connections 5)very effective seal between the fittings and the pipe.

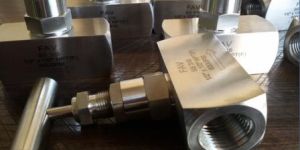

FAV Instrument Needle Valves is designed for leak free closure, regulation and management of fluids in process systems. With a wide variety of port sizes, end connections, style, temperature and pressure tolerance FAV Needle Valves are critical for instrumentation, fluid and process control system.   FAV Needle valves are designed for stringent application in Oil & Gas, Chemical, Petrochemical etc. industries. These Needle valves can be used for throttling and straight isolation in process or flow control applications. These metal seated valves are machined from square bar stock and are available in sizes 1/8” to 2” in various connections. 10000 psi valves are rated upto 1” pipe size.   Rising stem& bar stock body design. Metal-to-Metal seating achieves buddle-tight shut-off, longer stem/seal life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance   Needle valves available in 316 Stainless Steel, Monel, Duplex & other exotic material.   Needle valves in BSPP, BSPT, ISO, Socket & Butt Weld etc. connections available on request.   Temperature range 100°C to 230°C (400°C  Optional )   Needle Valve are designed for Pressure upto 20,000 psi   Spindle is thread rolled and burnished for smooth operation and long life.   All Needle valve are 100% factory tested with Dust and thread caps are provided as standard for Need

FAV Instrument Needle Valve is designed for leak free closure, regulation and management of fluids in process systems. With a wide variety of port sizes, end connections, style, temperature and pressure tolerance FAV Needle Valve are critical for instrumentation, fluid and process control system.

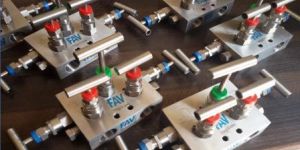

  Introduction A wide array of configurations are available such as 2 Way Manifold Valve, 3 Way Manifold Valve and 5 Way Manifold Valve. We also manufacture customized Manifold Valve in various styles , shapes and sizes.FAV is one of the reputed Manifold Valves manufacturer. Application FAV Instrumentation Manifold Valve is designed for regulation and management of instrumentation, process and control systems. The functions of Manifold Valve include pressure isolation, process equalizing, draining and venting and custody transfer. Manifold Valves – 2 Way 2 way manifold valve combines an isolation valve with a vent valve in one compact unit. Connections are available in a variety of sizes and thread forms including NPT, BSPT & BSPP. Designed to combine isolation, calibration or test with venting of instruments in one compact assembly. The applications for the 2 way manifold valve include pressure gauges, transmitters and switches. The pressure instruments are connected to the manifold valve with 1/2-inch FNPT connections. Manifold Valves – 3 Way   3 way Manifold Valve pipe to pipe (R), pipe to flange (T) and flange to flange (H) designed for connecting system impulse lines & transmitters. These Manifold Valve consist of 1/2″ NPT(F), pipe to flange or flange to flange connections on 54mm (2 1/8″) centers, and of one equalizer valve, two block valves and 2 nos 1/4″ NPT(F) purge (VENT) connections. These Manifold Valve are rugged in construction to withstand high pressures and temperatures. The Manifold Valve are rated for pressures as high as 6000 PSI at 200 o F or 4000 PSI at 500 o F. with PTFE Packing. For a Higher Temperatures Grafoil Packing is used. Manifold Valves – 5 Way   5 way Manifold Valve is a general purpose instrument manifold designed for connecting differential pressure transmitters or flow records to impulse line tubing. Connections are 1/2″ NPT on industry standard 3-2/8″ center-to-center dimensions (models for 2-3/16″ and 2-1/4″ center-to-center dimensions are also available). 5-valve manifold (Double Isolate, Equalize, Double Vent) for an economical way of mounting differential pressure transmitters. 5 way Manifold Valve are designed for remote mounting on instruments using threaded instrument & process connections. These manifold valve are having two isolation, one equilizer & two drain/calibration valves. The standard process & instrument connections are ½” NPT F & the drain connections are ¼” NPT F. The blanking plugs are provided. The instruments connections are positioned at 54 mm center distance but can also be used for other center distances with the help of screwed fittings.

FAV range of JIC Fittings work best on high pressure hydraulic applications. JIC Fittings come in variety of styles, shapes and sizes and work on high pressure hydraulic applications. These Fittings are also known as 37 Degree Flare Fittings or JIC Fitting or Flare Fitting. JIC Fittings comprises of three precision machined components like Body, Sleeve and Nut. Main construction consists of three pieces: the body, sleeve & nut. The tube end is flared to 74 degrees included angle and held in between the main body nose and the sleeve nut which is on top of them, thus resulting in a very effective leakproof joint, full flow connection in process tubing. FAV JIC Fittings are available in Stainless Steel, Brass, Steel, Monel, High Duty Bronze, Hastelloy C, Incoloy, Inconel 600. Features 1)     International Standards 2)     Combine JIC Connection with Variety of end connections of Male / Female NPT, BSPT, BSPP 3)     Very effective seal between the fittings and the flared tube 4)     Good vibration resistance 5)     High Pressure Rating Upto 20000 psi

FAV Instrument Ball Valve have been carefully manufactured and tested for High Pressure Applications. Our Instrument Ball Valve are available in a variety of materials and end connections .They are highly durable and provide effective performance without any leakage. Instrument Ball Valves offered by us, are used primarily on upstream offshore/onshore oil production and initial processing installations. Made from high quality carbon steel and brass these Ball Valves provide speedy one fourth turn shut off. These valves either provides the directional control of fluids consumed in process power and instrumentation function. Our ball valves come at reasonable price and are in great demand due to its high quality and performance End connection options include male / female NPT, Tube OD Ferrule Compression , and ISO threads from 1/8″ to 1″. Configurations include 2-way, 3-way (side / bottom entry) and 4-way valves. Optional features include panel mounting, locking devices and upstream / downstream venting. Instrument Ball Valve manufacturer and Exporter . We make High Pressure Instrument Ball Valves of various type. Standard sizes of Instrument Ball Valve in stock. Instrument Ball Valve has come with a wide variety of port sizes, end connections, style, and temperature and pressure tolerance. FAV Instrument Ball Valve are critical for instrumentation, fluid and process control system. Advantages of Instrument Ball Valve? 1. Low operating Torques 2. Variety of end connections includes Male / Female NPT, BSPT, BSPP 3. Every valve is factory tested 4 .Innovative Compact design 5. Available in variety of material

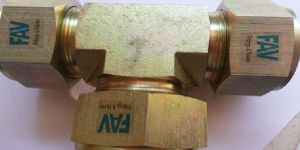

FAV range of Hydraulic Fittings provides secure, tough, and reliable tube connection that with exceptional leak-tight quality. FAV Hydraulic Fittings are available in Stainless Steel, Brass, Steel and Monel. Features 1) International Standards 2) Very effective seal between the fittings and the tubes 3) Good vibration resistance 4) High Pressure Rating Upto 10000 psi

FAV High Pressure Valve is designed for leak free closure, regulation and management of fluids in process systems under High Pressure environment of 10000 PSI. With a wide variety of port sizes, end connections, style, temperature and pressure tolerance FAV High Pressure Valves are critical for instrumentation, fluid and process control system. FAV High Pressure Valves include Needle Valve 15,000 PSI, Ball Valve  15,000 PSI, Check Valves 15,000 PSI. They are available in NPT, BSP, Size  1/4″ to 1″ High Pressure Valves Range Includes 1) Needle Valves, 15000 PSI, 2) Ball Valves, 15000 PSI 3) Manifold Valves, 15000 PSI 4) Check Valves, 15000 PSI Application FAV High Pressure Valves are designed for stringent application in Oil & Gas, Chemical, Petrochemical etc. industries. These can be used for throttling and straight isolation in process or flow control applications. Variety Available in 316 Stainless Steel, Monel, Duplex & other exotic material. BSPP, BSPT, ISO, Socket & Butt Weld etc. connections available on request. Temperature range 100°C to 230°C (400°C  Optional ) High Pressure Valves are designed for Pressure upto 15,000 PSI, Spindle is thread rolled and burnished for smooth operation and long life. All valves are 100% factory tested with Dust and thread caps are provided as standard. End connection options include male / female NPT, Tube OD, and ISO threads from 1/8″ to 1″. Available in stainless steel, carbon steel, brass, and alloy 400. With pressure rating to 15,000 psi and temperatures up to 1,200°F

AV High Pressure Fittings or 10,000 psi Fittings are crafted for High Pressure Systems, with size ranging from 1/8″ to 2″ and varied end connection configuration. High Pressure Pipe fittings with both tube and pipe connections are available. Main features that call for its use are its simplicity, compactness in design, ease of assembly, high reliability, easy availability & global acceptance.High Pressure fittings are manufactured by FAV using tapered threads that are of the highest quality. High Pressure fittings are constructed in a variety of configurations, so they are capable of use in a broad variety of applications. Material FAV High Pressure Fittings are available in Stainless Steel, Brass, Steel, Monel, High Duty Bronze, Hastelloy C, Incoloy, Inconel 600.For details visit here. Variety A wide array of configurations are available in High Pressure Fittings such as Nipple Fittings, Adapter Fittings, Pipe Reducer, Couplings, and various customized machined components of various styles , shapes and sizes. The end connections include BSP, BSPT, NPT, METRIC ,PIPE NB, Socket weld & Screwed . Our product range in brief includes below . ADAPTOR 10000 psi Male X Female CROSS-10000 psi Female X Female ELBOW-10000 psi Female X Female ELBOW-10000 psi Male X Female ELBOW-10000 psi Male X Male HEX COUPLING -10000 psi Female HEX NIPPLES-10000 psi BSPP-BSPP HEX NIPPLES-10000 psi BSPP-NPT HEX NIPPLES-10000 psi JIC-JIC HEX NIPPLES-10000 psi LONG HEX NIPPLES-10000 psi NPT-JIC HEX NIPPLES-10000 psi NPT-NPT HEX PLUG-10000 psi NPT HEX REDUCING COUPLING/10000 psi Female HEX REDUCING NIPPLES -10000 psi BSPP HEX REDUCING NIPPLES -10000 psi NPT PIPE CAP-10000 psi NPT REDUCING ADAPTOR-10000 psi Male X Female TEE-10000 psi Female TEE-10000 psi Male

he gauge valve comes in many configurations, ranging from single isolate valves with a bleed port, to block and bleed valves with varying end configurations. Our gauge valves, Block and Bleed type, as standard, are rated to 413bar (6,000 PSI), but can be rated at 689 Bar (10,000 PSI) and are available in a range of different materials. Materials Gauge Valve is Constructed from 316 stainless steel, carbon steel or alloy 400, each single piece manifold is compact and features locking plates, mounting holes and upstream or downstream ports. Thoroughly tested to withstand up to 1200° F, instrument manifolds perform in many of the most demanding environments We offer a variety of different Gauge valves with Multiport, Vent & Manifold which includes the following Two Valve Manifolds Gauge Bleed Needle Valves Gauge Vent Valves Gauge Multiport Valves   Application FAV Gauge Valve are designed for stringent application in Oil & Gas, Chemical, Petrochemical etc. industries. These gauge valve can be used for throttling and straight isolation in process or flow control applications. These metal seated valves are machined from square bar stock and are available in sizes 1/8” to 2” in various connections. 10000 psi valves are rated upto 1” pipe size.

FAV Flange to tube adapter ensures Direct Connection from flange pipe to Tube ,with One Piece Machining and availability in variety of materials its best to buy from FAV. They are also know Tube Fittings Flange adapters or simple Tube Adapters .We offer full customization to suit exact needs for Clients. Flange End FAV Flange to tube adapter meet ASME, DIN, EN, and JIS standards depending on clients requirement.Range of flange sizes and pressure classes available.Full range of sealing faces for Flanges  including flat face, raised face, RTJ, and tongue-and-groove  .Nominal flange sizes from NPS 1/2 to 2 in.Pressure class ratings from 150 to 2500. Tube End The tube end can be Metric and fractional  from 3 to 50 mm and 1/16 to 2 in . Double Ferrule and Nuts are provided at the Tube end as per standard .Nuts are silver coated . Material FAV Flange to tube adapter is available in Stainless Steel, Brass, Steel, Monel, High Duty Bronze, Hastelloy C, Incoloy, and Inconel 600.

FAV range of Double Ferrule Compression Tube Fittings  work on the proven principle of two ferrules swaging to the tube when tightened. As the nut is tightened the front ferrule swages on to the tube making a prominent leak-proof seal and the back ferrule makes a positive impression on the tube.Outstanding leak-tight connections are consistent as the two-ferrule design compensates for any tolerances in tube outer diameter, wall, thickness, and material hardness. Our stainless steel tube fittings feature low-torque, two-ferrule design provides fast and reliable leak-tight connections, even in systems having high vibration or rapid temperature and pressure fluctuations. Applications FAV Double Ferrule Compression Tube Fittings has been specifically designed for use on instrumentation, process and control systems, together with equipment employed in chemical, chromatography, petroleum, power generation and pulp & paper plants. Materials  FAV Double Ferrule Compression Tube Fittings are available in Stainless Steel, Brass, Steel, Monel, High Duty Bronze, Hastelloy C, Incoloy, Inconel 600. Straight fittings are machined from cold finished bar stock and shaped bodies are machined from close grain forgings. The raw materials used fully conform to the chemical requirements of one or more of the specifications listed Varieties  Different types of Double Ferrule Compression Tube Fittings include Male Connector, Female Connector , Union,Tee,Elbow ,Cross.

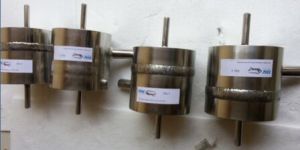

FAV range of Condensate Vessel is designed to trap condensate and foreign matter that may accumulate in gaseous service lines, and purify gas media. They are often classified as condensation, isolation and separation vessels in different applications, widely used in refineries, power plants, petro-chemical and other process industries. FAV Condensate Vessel is available in Stainless Steel, Carbon Steel and Monel Features 1) Customize your own Condensate Vessels that fits best in your process or select from our catalogue 2) Variety of end connections includes Male / Female NPT, BSPT, BSPP 3) Dust Cap provided 4) High Pressure/Temperature Rating Available.

FAV range of Condensate Pot is designed to drain out foreign material from the pipeline thereby guarding critical components of instrumentation system. Generally Steam is passed through Condensation Pots. They are also known as Condensate Chambers, Seal Pots or Condensing Pots. We are reputed manufacturers of Condensate Pots with excellent track record.Do contact us for details. FAV Condensate Pot, Seal Pot is available in Stainless Steel 316, 304, Carbon Steel, Monel. High Pressure Rating upto 10,000 psi. SIzes from 2″ OD to 6″ OD Condensate Pot Sizing, Installation & Design FAV Condensate Pot connection ensures isolation of foreign material. The condensate residue is drained from the bottom valve connection. These valve can be purchased at FAV. Installation can be either vertical or horizontal lines depending on the system requirement. Also condensate pot is used before the pressure transmitters line because temperature of steam is very high so this high temp. Steam directly may damage diaphragm of the pressure transmitter so we use Steam Condensate pots. Correct Condensate Pots Sizing, Condensate pots Installation & Condensate Pot Design is very critical for perfect functioning. Condensate Pot use in Pressure Transmitter, Drum Level transmitter, Boilers. Materials We manufacture and export Condensate Pot in widest range possible .It is available in Stainless Steel 316, Stainless Steel 304, Carbon Steel ASTM A106, Carbon Steel ASTM A105, Alloy Steel ASTM A335 P11, Alloy Steel ASTM A335 P22, Monel 400 ,ASTM A335 P91

AV Instrument Check Valve is designed for leak free closure, regulation and management of fluids in process systems. With a wide variety of port sizes, end connections, style, temperature and pressure tolerance FAV Check Valve are critical for instrumentation, fluid and process control system. They are Instrument Check Valve and non-return valve that permit gases and liquids to flow in only one direction, preventing process flow from reversing. FAV Instrument Check Valve provide unidirectional flow and tight shut-off for liquids and gas with high reliability. When differential drops below cracking pressure (20 psi ±30%), valve shuts off. Ball Check Valve prevents reverse flow where leak-tight shut-off is not mandatory. When differential drops below cracking pressure, valve closes. A wide array of configurations are available such as Female Check Valves ,Male Check Valves, Female to Male Check Valves and Tube End Check Valves (Double Ferrule) We also manufacture customized Instrument Check Valve in various styles , shapes and sizes. We offer Check Valves for low pressure and high pressure applications with selectable crack pressures as well as Check Valves with adjustable crack pressures. Instrument Check Valve are offered with compression and NPT end connections, and a wide variety of Imperial and Metric end connections are available.

Material : Carbon Steel, Stainless Steel, Mild Steel

Application : Fitting Use

Color : Black, Brown, Grey, Silver

Feature : Corrosion Resistant, Fastener, Watertight Joints, Durable,High Quality,Fine Finished
