PIPELINKERS Nagdevi, Mumbai, Maharashtra

H.DP.E. / P.P. 3 Piece Design Ball Valve Ball Valve designed in three piece is made corrosion resistant Polypropylene with PTFE (Teflon) seat and seal are very economical, reliable and ideal for present process Industries. Being 3 piece Ball Valve, it has a definite advantage over the Union type threaded connection valves according to the latest pumping systems. Ball Valves are fitted with M. S. Studs directly moulded with P.P. as a result not a single part which is prone to corrosion is exposed to any Chemicals. Hence they are ideal for Acids, Alkalis, Solvents, Water, Oil and Gases. Ball Valves are full-port type providing 100% flow and are trusted up to 150 lbs/10 Kg. Per sq cm2. They can be used up to 1000c to 1100c for frequent process. It also stands with external and internal loads of the pipe line.   Also Available : Polypropylene Inspection Glass P.P. Non Return Valves, Check Valves and Foot Valves. Polypropylene Diaphragm Valves and ‘Y’ Type valves.

Color : Industrial Gray / Natural

UPVC White Plumbing Pipe & Fittings Systems are the new age solutions to high end requirements, and it come with the credibility inherent to any of our products. These Pipe & Fittings Systems are the answer to the research in advance polymer chemistry to enable products to withstand aggressive weather and usage conditions. The properties of UPVC White Plumbing Pipe & Fittings Systems thus attained clearly scores over copper, galvanized, PPR or alternative plastic plumbing systems.The UPVC White Plumbing Pipe & Fittings Systems, to say the least, is virtually "Install it and Forget it" phenomenon. These systems lasts longer than any other material made for such application. Applications Right from the inherent properties of uPVC to a virtual lifetime of trouble-free performance, UPVC White Plumbing Pipe Systems are far more superior to Galvanized Piping systems. • Strength - UPVC White Plumbing Pipe & Fittings are highly resilient, tough and durable with high tensile and high impact strength. • Easy Installation - UPVC White Plumbing Pipe & Fittings is light in weight (appox. one half the weight of aluminum and one-sixth the weight of steel) reducing transportation, handling and installation cost. It has smooth, seamless interior walls. No special tools are required for cuttings. They can be installed using GI/PVC Fittings also. • Fire Resistant - UPVC White Plumbing Pipe & Fittings are self extinguishing and will not support combustion, therefore these pipes compared to other pipes system is fire resistant. • Durable - UPVC is resistant to weathering, chemical rotting, corrosion, shock and abrasion. It is therefore the preferred choice for a range of customers for many different long-life and outdoor products. In fact, medium and long term applications account for some 85 percent of uPVC production in the building and construction sector. uPVC building products are lighter than those made of concrete, iron or steel. This requires less fuel and generates fewer emissions during transportation. They are also durable, so frequent replacement is not required.  • Cost - Effective - UPVC White Plumbing Pipe & Fittings Systems made from PVC which is very popular material for construction applications for decades due to its physical and technical properties which provide excellent cost-performance advantages. As a material it is very competitive in terms of price, this value is also enhanced by the properties such as its durability, life span and low maintenance. • Good Insulator - UPVC White Plumbing Pipe & Fittings made for PVC, PVC does not conduct electricity and pipes are suitable to work with electrical tools. UPVC white pipes is suitable for potable water and made from non-toxic material.   Moreover UPVC White Plumbing Pipe & Fittings Systems have properties such as, greater heat retention, thereby preventing condensation. Also subdues sound of fluid rush.     Application Areas   Eco-friendly Hotels, Residential complexes, office complexes, light Industrial Complexes

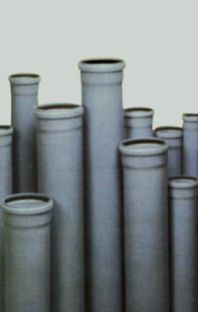

Features: SWR systems are far more superior to conventional cast iron & asbestos cement drainage systems as a uPVC product they provide a valuable life long trouble free (hassle free) performance. • Installation: These PVC pipes are easy to install & less time consuming than cast iron or asbestos cement systems & with rubber rings which ensures a leak proof seal. • Light weight: due light in wt. these pipes are easy to transport & easy in handling & installation. • High impact strength: these pipes have high impact strength & can withstand rough & robust handling & not prone to mechanical damages in handling & transportation.  • High corrosion resistance: These uPVC pipes are non-corrosion in nature & immune to chemical, electrolytic & galvanic corrosion. • High chemical resistance: resistance to acids, alkalis, oils & domestic effluents. • Self-extinguishing properties: PVC is itself extinguishing material therefore it eliminates the need for fire resistant coatings & no special precautions are necessary during installation. • Smoother inner Dia: due to its smooth inside surface it gives better flow characteristics than AC, and CI Pipes. • Maintenance friendly: PVC pipes due to the smooth inside Dia & door caps there to give a ease in inspection & are effectively cleanable. • Economical: PVC pipes are most cost effective as they are cheap than all kinds of pipes. Beside they also offer economy in handling, transportation & installation. • Durable: No scale formation, UV stabilized. No effect of weather & sunrays. Quality standard set for SWR pipes & fittings are enormous as they are designed to withstand all kinds of weather from blaring heat of Thar Desert to freezing cold of Ladakh. •    SWR pipes are also available in 90mm &160mm Dia.

Features:   • Agricultural Suction Hose Features: Plasticised PVC hose with incorporated reinforcement of antishock rigid PVC spiral. Smooth inside surface, light corrugation outside. Easy handling, light and flexible. Resistant to crushing, abrasion, atmospherically agents and to most chemicals. Applications: Irrigation, suction and delivery of fertilizers, insecticidal, acids, solutions, detergents, Coal & Mineral Mines Stone & Lime Quarries Shipping, Sewage disposal, Aqua Culture, Paper mills, Cement conveying Chemical Industries, Petrochemicals & Oil Exploration, Fire Fighting, Equipments, Constructional Engineering, General Industrial service etc. Can be manufactured antistatic and cold resistant upon request. • Non-toxic/Food grade Suction Hose Features: Plasticised PVC hose with incorporated spiral reinforcement of anti-shock rigid PVC. Inside surface smooth, light corrugation outside. Easy handling, light and flexible. Resistant to crushing, abrasion, atmospherically agents and to most chemicals. Weather resistant. Applications: Suction and delivery of mineral waters, fruit juices, wines, liquors up to 25% alcohol contents, vinegar, alimentary liquid, Milk, Beverage, Ice-cream, Chocolates, Peppermint, Aerated drinks, Powdered Cereals etc.   • Oil Suction Hose Features: Plasticised PVC hose with spiral reinforcement of anti-shock rigid PVC. Inside surface perfectly smooth. Very light and flexible, compared to rubber hoses & better life guaranteed. Applications: Suction and discharge of abrasive powders, fumes, shavings, vapours and for heavy duty industrial and abrasive, Diesel fuels, Liquid Petroleum Products, Lubricating Oils, Mineral Oils, Light Oils, Transformer Oil etc. applications

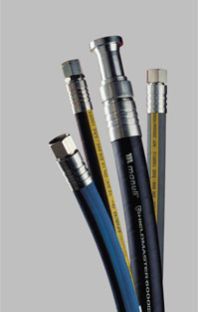

Water Hose : Tube: SBR blended, black, smooth Reinforcement: textile braided high tensile synthetic yarn Cover: EPDM/SBR blended, black, or red, Weather and Abrasion resistant, smooth or fluted Applications: general water service in industry, gardens, garage spray, watering lawns. Temperature: -30¡ãC + 80¡ãC Brading: as request Length: 40,50M Packing: trans. P.V.C. film   Oil Hose Tube: black NITRIL rubber tube, oil and fuel resistant, smooth Reinforcement: textile braided high tensile synthetic yarn Cover: black smooth NEOPRENE rubber, oil, ozone, weather, abrasion resistant Applications: in fuel systems like gasoline, diesel fuel, also suitable for loading and unloading tank cars, automobiles, oil refine and oil related industrials, etc. Temperature: -40??C + 100??C Brading: as request Length: 40, 50M / as request Packing: trans. P.V.C. film   Fire Fighting Hose Tube: black smooth synthetic rubber Reinforcement: textile braided high tensile synthetic yarn Cover: synthetic rubber, Weather and Abrasion resistant, smooth Cover: red or black Applications: for fire fighting vehicles or use on hose reels for fixed installations Temperature: -30¡ãC + 80¡ãC Brading: as request Length: as request Packing: trans. P.V.C. film   Fire Fighting Hose Tube: black smooth synthetic rubber Reinforcement: textile braided high tensile synthetic yarn Cover: synthetic rubber, Weather and Abrasion resistant, smooth Cover: red or black Applications: for fire fighting vehicles or use on hose reels for fixed installations Temperature: -30¡ãC + 80¡ãC Brading: as request Length: as request Packing: trans. P.V.C. film   Welding Hose(oxygen & Acethylene Hose) Tube: EPDM/SBR blended, black, smooth Reinforcement: textile braided high tensile synthetic yarn Cover: EPDM/SBR blended, red and blue, smooth, weather and ozone, abrasion resistant Applications: for conveying welding gases. Temperature: -40??C + 90??C Branding: as request Length: 40, 50M Packing: trans. P.V.C. film   LPG Hose Tube: NBR, black, smooth Reinforcement: textile braided high tensile synthetic yarn Cover: Orange NEOPRENE Blended, ozone and weather-proof, smooth Applications: for conveyance of liquid gas, home burner system, grill, oil-resistant Temperature: -35??C + 90??C Brading: as request Length: as request Packing: trans. P.V.C. film

Advantages of PVC Pipes • PVC due to non-corrosive in nature and unaffected by chemicals, electrolytic and ironic corrosion can stay for very long time than other pipes which impart it with high corrosion resistance. • PVC pipes have a smoother bore than all other pipes (AC, CI, GI pipes) thereby the flow rate in PVC pipes is more than 30% higher than the rest of pipes. • PVC pipes are perfect for transporting potable drinking water as they do not subject to contamination as they are completely odourless and hygienic. • PVC pipes have self-extinguishing properties, which thereby eliminates the need for fire resistant coatings. • PVC pipes require no maintenance such as painting and coating etc. • PVC pipes are having a high chemical resistance therefore they can resist to all kinds of acids, alkalis, oxidizing agents, oils and domestic effluents. • Resistant to rusting, chemical reactions and free from scale formation hence PVC pipes lasts for life time. • PVC pipes are the most cost effective as they are cheap than all other kinds of pipes which make them most economical and light in weight to carry.   Applications of Pipes • Irrigation (Micro & Macro). • Drinking water & water mains supply. • Drainage & sewerage purposes. • Power & Telecom cable ducting. • Tube well casings. • Green house sprinkler & drip irrigation systems. • Brewery pipelines. • Underground or surface drainage. • Industrial & chemical effluent disposal. • Acids & slurries transportation. • Biogas, natural gas & oil distribution.

• Wall thickness is designed to meet required working pressure. • Made to close dimensional tolerance. • Wide range for different applications.   • Higher working pressure rating of 10 kgf/cm2 for 20, 25 & 32mm & 6 kgf/cm2 for 40mm & above sizes.

Polypropylene pipe or fittings are joined to each other by heat fusion or with mechanical fittings. Plastics may be joined to other materials by means of compression fittings, or other qualified types of manufactured transition fittings. There are many types and styles of fittings available from which the user may choose. Each offers it’s particular advantages and limitations for each joining situation the user may encounter. Contact with the various manufacturers is advisable for guidance in proper applications and styles available for joining as described in this document. There will be joining methods discussed in this document covering both large and small diameter pipe.             There are two types of heat fusion joints currently used in the industry   • Butt Fusion • Socket Fusion             Butt Fusion   • Environmental resistance to most organic and inorganic chemicals. • Good material strength and fatigue resistance • Operating temperature range -10 to 110°C (14 to 230°F) • Fusion Welding           Socket Fusion   • Water Treatment • Waste Treatment • Di and Specified Water Applications • Chemical process Industry         Advantages   • Good Corrosion-Resistance • High Impact Strength • High thermal ageing and Thermal forming resistance • Outstanding Weldability

Features: Application • Gardening / Watering • Compressed Air Connection. • Pneumatic Tools & Equipment. • General Water Delivery. • Medium Duty Rockdrill purpose. • Car Washing at service stations. • Pesticide Spraying with power driven pump. • For conveying Chemicals, Acids & Alkalies. Advantages of PVC Braided Hose On Rubber Hose: • Light in weight, so easy to handle. • Does not crack when in use or stored for long time, lasts longer than rubber hose. PVC smooth inner surface permits better flow of fluid. Crystal transparency allows air locks and blockages to be quickly detected and saves costly down time. Approx. 50% cheaper than good quality rubber hose. In PVC same Hose can be used for Air-Pneumatic water & chemical Application. Temperature Range: Recommended working temperature range is between -10° C to + 60°C.

Features:       Applications of MPV :-           Filters   • Downflow Pressure Sand Filters. • Downflow Multigrade Filters. • Downflow Activated Carbon Filter. • Downflow Iron Removal Filter. • Used as 3 Way / Diverter valve. • Suitable for service flow rates upto 80 M3 /hr. and backwash flow rates upto 120 to 130 M3 /hr. • Option of fully automatic filters. • Special programme available for Fully Automatic Swimming Pool filter application.         Softeners   • Upflow Softeners. • Downflow Softeners. • Suitable for service flow rates upto 70 M3 /hr. and resin upto 5,000 ltr.s • Option of Fully Automatic Softener. • Option of Fully Automatic one operating one standby scheme. • Brine tank automation. • Special programme for Domestic Bungalow Softeners.         DM Plants   • Suitable for 2 bed DM plant • Suitable for Mixbed operation. • Suitable for Fully Automatic DM plants with advance regeneration features reducing rinse water quantity. • We can supply Fully Automatic Mix Bed.       We can offer Specialised Automation to your plant requirement

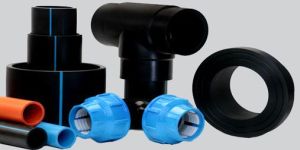

• No joints means no leaks. • HDPE pipe actually gains strength in lower temperatures and will expand at higher temperatures to avoid breaking. • HDPE pipe is designed to bend to a radius of 25 times its diameter. This means fewer 90 degree bends overall, less chance for water hammer, a reduction in leaks and easier installation, ideal for new constructions. • HDPE pipes strength and flexibility allows the pipe to absorb vibrations and stress caused by soil movements. With its ability to be compressed or deformed without permanent damage, pipe has even withstood the destructive forces of earthquakes. • Performs well in rocky conditions. • HDPE pipe can be buried at a shallow depth. • There are no joints to pull apart – a distinct advantage, where ledge rock prohibits excavation and very little cover is available. • Weatherability. • HDPE pipe can withstand long exposure to inclement weather conditions, excessive sunlight and ultraviolet rays, making it an excellent pipe for bridge crossings. • Withstands full vacuum. HDPE pipe will not collapse, even under a full vacuum, when the correct size is used for a required application. This allows for perfect utilization as intake piping at pumps stations.

Global-link half round PVC rainwater system is designed for the efficient disposal of surface water from all low and high rise domestic buildings. The system comprises a wide range of socket fittings for use with plain ended pipe, and socketed gutter fittings for use with plain gutter. The system is the most advanced which can be specified for use in the building industry, combining the best in rainwater drainage design with high quality plastic moulding

Custom made products can be designed and manufactured by us i.e Plastic Corrugated Hose/ Collapsable Corrugated Hoses & Rigid Flexible Pipes and Tubings, Sleeving Rods , Sleeves.

PARTH AT A GLANCE BALL VALVE-FLANGE END & SCREW END Size: ½” to 8” The on/off function accomplished by means of a flow controlling ball located in the centre of the valve body and placed between two teflon valve seats which serve as a "bubble tight" seal off. TECHNICAL DATA: Construction: 3 piece design, Single piece stem (Spindle) Reinforced Ball, Teflon seated, full bore. Design and manufacturing std.: As per Manufacturer's Standard End Connections : Flanged as per ANSI B 16.5 (150 #) & as per BS 10 (Table D/E/F) & DIN STD ENGINEERING OPTIONS: 1. S.S. 304/316 Parts can be supplied 2. Glass-filled PP/PTFE BALL on request AVAILABLE M.O.C.: PP (POLYPROPYLENE) HDPE (HIGH DENSITY POLYETHYLENE) ISOTACTIC PP PVDF (POLYVINYLIDENE FLUORIDE) DIAPHRAGM VALVE-FLANGE END & SCREW END Size: ½” to 4” Diaphragm valves utilise a movable elastomeric membrane on "diaphragm" to constrict the flow. TECHNICAL DATA: Construction: Weir type design, Soft seated, Raising stem Design and manufacturing std.: As per Manufacturer's Standard End Connections: Flanged as per ANSI B 16.5 (150 #) as per BS 10 (Table D/E/F) & DIN STD ENGINEERING OPTIONS: 1. S.S. 304/316 Parts can be supplied 2. Teflon coated Rubber, EPDM Rubber, Viton Rubber on request AVAILABLE M.O.C.: PP (POLYPROPYLENE) HDPE (HIGH DENSITY POLYETHYLENE) ISOTACTIC PP PVDF (POLYVINYLIDENE FLUORIDE) NON RETURN VALVE-FLANGE END & SCREW END Size: 1” to 8” Non-return valves are widely choosen for heavy duty use in Industries, Chemical, Turf and Irrigation application. As the name indicates, valves are used for one way flow. TECHNICAL DATA: Construction: Ball type design, Soft seated Design and manufacturing std.: As per Manufacturer's Standard End Connections: Flanged as per ANSI B 16.5 (150 #) as per BS 10 (Table D/E/F) & DIN STD. ENGINEERING OPTIONS: 1. Teflon coated Rubber, EPDM Rubber, Viton Rubber on request AVAILABLE M.O.C.: PP (POLYPROPYLENE) HDPE (HIGH DENSITY POLYETHYLENE) ISOTACTIC PP PVDF (POLYVINYLIDENE FLUORIDE) Size: 1” to 4” FOOT VALVE-FLANGE END & SCREW END Size: 1” to 8” Foot valves are generally places at the inlet of the suctions pipe of centrifugal pump to prevent priming at the suction pipe. TECHNICAL DATA: Construction: Ball type design, Soft seated Design and manufacturing std.: As per Manufacturer's Standard End Connections: Flanged as per ANSI B 16.5 (150 #) as per BS 10 (Table D/E/F) & DIN STD. ENGINEERING OPTIONS: 1. Teflon coated Rubber, EPDM Rubber, Viton Rubber on request AVAILABLE M.O.C.: PP (POLYPROPYLENE) HDPE (HIGH DENSITY POLYETHYLENE) ISOTACTIC PP PVDF (POLYVINYLIDENE FLUORIDE) Size: 1” to 4” BUTTERFLY VALVE-FLANGE END Size: 4” to 12” Design and manufacturing std.: As per Manufacturer's Standard TECHNICAL DATA: Construction: 1 piece. End Connections: Flanged as per ASA 150. ENGINEERING OPTIONS: 1. Liner EPDM, Nitrile, Vitron, Neoprene stem- SS 316. AVAILABLE M.O.C.: PP (POLYPROPYLENE) ISOTACTIC PP PVDF (POLYVINYLIDENE FLUORIDE) ‘Y’ TYPE STRAINER-FLANGE END & SCREW END Size: ½” to 4” Design and manufacturing std.: As per Manufacturer's Standard End Connections: Flanged as per ANSI B 16.5 (1:50#) as per BS 10 (Table D/E/F) & DIN STD. ENGINEERING OPTIONS: 1. Screen 60 Mesh, 80 Mesh, 100 Mesh, J20 Mesh or special design PP screen. 2. Rubber GasketTefion Coated, EPDMHubber. AVAILABLE M.O.C.: PP (POLYPROPYLENE) Size: ½” to 4” FLOW INDICATOR-FLANGE END Size: 1” to 6” Sight glasses are commonly used for inspection of fluid Passing through particular assembly. TECHNICAL DATA: Construction: 3 piece Design, Full Bore, Borosil Glass, Teflon Seated Design and manufacturing std.: As per Manufacturer's Standard End Connections: Flanged as per ANSI B 16.5 (150 #) as per BS 10 (Table D/E/F) & DIN STD. ENGINEERING OPTIONS: 1. S.S. 304/316 Parts can be supplied 2. Glass length as per your request AVAILABLE M.O.C.: PP (POLYPROPYLENE) HDPE (HIGH DENSITY POLYETHYLENE) ISOTACTIC PP PVDF (POLYVINYLIDENE FLUORIDE) Corrosion is the major problem that every industry now a days facing a lot. Many chemicals aggressively corrode most metal equipments resulting in process leaks, flow restrictions and it decreases the life of a plant Parth Plastic Industries was started with vision of providing a permanent solution to corrosion problems with high quality reliable products that perfectly match with industry standards. Parth Plastic Industries an ISO 9001:2000 company been in operation since 1991 manufacturing products like Polypropylene, High density Polyethylene, Isotactic PP, and Poly Vinylidene Fluoride (PVDF) Ball Valve, Diaphragm Valves, Non-return Valves, Foot Valves, Flow Indicators and PP, HDPE Y-type Strainers and pipe fittings. The company is also involve in manufacturing of specially engineered products like Trays used in Tray Dryers, Scrapers, Shovels, Spades, Scoops that could be employed by the chemical process industry to handle corrosive materials. Features of PP/HDPE/ISOPP/PVDF Valves: Corrosion Resistance: 'Parth' valves & fittings are ideally suitable for aggressive and non-aggressive chemicals, acids, alkalies, salt etc. Sturdy construction: Valve body can withstand pressure upto 15 kg/cm2. Handle, Spindle are PP moulded with metal inserted for sturdiness and long life. Temperature: HDPE valve withstand temperature up to 70ºC, PP valves upto 90ºC, Isotactic PP valves upto 100 ºC and PVDF valves upto 170 ºC for continuous use. Easy to operate: PP valves are easy to operate with low maintenance and gives tight sealing with low torque. Economical: PP/HDPE/ISOPP/PVDF valves are more economical than GI, SS or CS valves. Light weight: Due to light weight valves are easy to handle and to install.

These pipes and fittings are produced from a specialty blend of Chlorinated Polyvinyl Chloride (CPVC) material with unique physical properties desirable for Hot and Cold Water applications. CPVC pipes and fittings meet the requirement of ASTM - D 2846 standards and are available in CTS (Copper Tube Size) 1/2" to 2".   Applications   • Hot and Cold potable water distribution in buildings of all types - residential (low rise & high rise), commercial complexes & institutes • Can be used in fire suppression systems (sprinklers etc.) due to its fire resistance • Corrosive Fluid handling in industries   Advantages   • Hot and Cold water distribution systems made from CPVC pipes and fittings can withstand high temperatures • CPVC pipe systems are resistant to many everyday household chemicals • CPVC piping materials provide long, maintenance free service life due to corrosion resistance • CPVC pipes are available in two pressure classes SDR 11 and SDR 13.5 • CPVC materials do not support combustion; therefore they cannot burn without external fuel source • CPVC piping systems can handle most of the temperature/pressure requirements of today's typical process plants • CPVC pipes and fittings are easy to install using solvent cement • CPVC piping system is economical and long lasting • CPVC pipes and fittings are produced using clean, energy efficient processes; they are light weight and having low friction. Thus, such systems save energy in manufacturing, transportation, installation & during usage

Round Conduits : We bring you tough economical Rigid PVC Round Conduits and Fittings of the best quality. Designed for the toughest all-purpose utility and engineered to last a lifetime to give best quality & value for money.

Features:     RAINTAP TMPOPUP FILTER   Rainwater collected on the roof is very pure and clean. However, there are many substances, which Get mix with this pure water on the roof (leaves, bird dropping, dust etc.). These impurity needs to be Filtered before the rain water is stored. “RAINTAP TMPOPUP Filter” is a simple device, which is very effective and user friendly. This filter is working satisfactorily in many residential and smaller institutional or industrial buildings. These RAINTAP TMPOPUP Filters are simple in design and are very flexible to install in varying field conditions.   An important feature in filtering rainwater is the separation of the first flush of rainwater from the relatively cleaner and purer subsequent rain.     Installation of RAINTAP TMPOPUP FILTER   In a building, rainwater is normally allowed to flow down from the roof through pipes. These pipes may be of PVC, asbestos cement, cast iron, galvanized iron etc. However, PVC is commonly used in the present times. They are cost effective and convenient for installation. Popup filter can be installed to any of the above pipes with suitable inlet and outlet fixture/fittings.     Installation of filter to down water PVC pipe   RAINTAP TMPOPUP FILTER is installed at the bottom end of the down water pipe. The pipe running down on the wall need to be fitted with a 900 elbow or a bend connected to the inlet (rainwater inlet) of the POPUP filter. The connection from the down water pipes to the inlet is through the 110 mm (4”) elbow and a connecting pipe. The filter so installed must have a gap of minimum 3 inches from the floor and 1 inch from the wall. This will facilitate easy operation of the flush cap whenever require and make the cleaning of the filter element easier while retrieving it from its socket. POPUP filter has an outlet (filtered water outflow) through 110mm Tee joint. This Tee joint along with the filter cartridge can be turned in any direction (3600) in its place. This will facilitate positioning of the filter outlet in any direction convenient for installation in the field. This facility is provided in the filter to add flexibility in connecting the outlet of the filter in the required direction.   The out flow of the filter through this outlet is connected to the storage tank. The filter so installed need to be anchored to the wall by using pipe clamps/saddles at minimum 3 locations. The Locations suggested are: - The inlet of rain water The adopter of the flash value The vertical body of the filter     Filter Element   Filter element is made of plastic net and mesh to effectively filter rainwater from the roof of a building. A cap-holder facilitates installation of the filter element inside the filter body and also positions the filter element at appropriate height inside the filter body. While removing the filter element from the filter, gently pull the cap-holder with its handle vertically upwards. Make sure the entire length of the filter element is pulled out of the filter before tilting. While installing the filter element back in to its position, make sure the mesh role enters the barrel without any crinkle.   Gently push the filter element downwards up till the cap-holder suits and positions itself on the vertical column of the filter. The vent hole provide on the cap-holder of the filter element has to face away from the wall. This wall facilitates flow of water from the wall in case the filter is clogged.     Important   • RAINTAP TMPOPUP FILTER must be installed vertically only. • RAINTAP TMPOPUP FILTER 110mm can handle rain water from a maximum of 1000 sq. ft. of roof area respectively .(1000mm annual rainfall)     How RAINTAP TMPOPUP FILTER Works?   The “RAINTAP TMPOPUP FILTER” has three components (rainwater receptor, flush valve and filter element). Rainwater receptor is where the rainwater is allowed to flow from down pipes into the filter and a flush valve is provide to flush the first flow of the rainwater along with leaves, dust etc. water received in the receptor flows upwards against gravity through a filter element to filter must of the floating element and allow water to stabilize in this filtration zone. Rainwater passing through this filter element is relatively cleaner and flows out through an outlet, which can be led to storage device.   Filter element is mounted on a vertical stabilizer barrel with a friction fit. Filter element need to be cleaned periodically during the rainy season to remove the impurities trapped and thereby keep the filtration system clean .In the event where filter is not clean and the filter element is getting clogged, “POPUP Filter” has a safety feature built into it. The water pressure pushes out the clogged filter element from the stabilizer barrel and allows the water to flow out freely. This safety feature will avoid flooding of the rooftop because of the closed feature. The first indication of the filter getting closed is rainwater flowing out of a vent hole provided on the top of the filter element.     Maintenance of Filter   Flush of the first rainwater by opening the flush valve on the filter for few minutes , close the flush valve after all the dirt on the roof is flushed out and when cleaner water starts flowing. When the rain stops , flush the filter and remove the filter cartridge gently from its placed and wash its thoroughly under a running tap by gently tapping the filter.   element with a stick on all sides. The dirt sticking in the filter element get released and washes off. Replace the clean filter element back to its place by gently inserting it in the vertical barrel .Take care not to press it too hard at the end. If pressed too hard, filter element gets locked inside the barrel and may require for subsequent cleaning and also may not POPUP when the filter is clogged or chocked. Allow the filtered water to get stored in tank for future use
