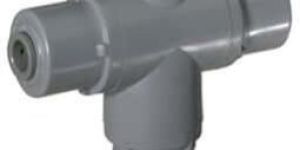

Plastic Ball Valves Dealers in Mumbai

• Size: 1.1/2inch, 1.1/4inch, 1/2inch, 1inch, 2inch, 3/4inch
• Material: Polypropylene
• Certification: ISO 9001:2008 Certified
• Application: Gas Fitting, Oil Fitting
• Feature: Blow-Out-Proof, Casting Approved, Durable
• Color: Multi Colour
• Number Of Way: 2way
• Type: Ball Valve
• Pattern: Plain
• Pressure: High, Low, Medium

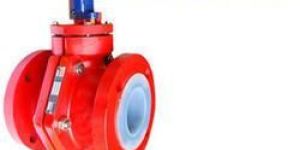

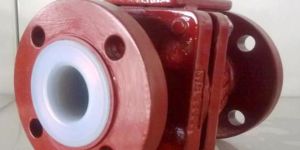

We are ranked among responsive and responsible Manufacturers, Exporters and Suppliers of PFA Lined Ball Valves in Mumbai, Maharashtra, India. Precision engineered using the latest CNC technologies and machinery, our entire range of PFA Lined Ball Valves is high endurance, structurally sound and capable of retaining physical properties during extreme pressure. Interested buyers can purchase PFA Lined Ball Valves from us in bulk and ask for customized solutions as well.

Unlike conventional Ball Valves the ball assembly consists of one solid piece without any looseness so that there is no deterioration of lining in the area of Ball Stem Selding. The thickness of the lining is absolutely constant throughout to avoid any deformation of the ball.The body is a two piece construction and is manufactured out of Ductile Iron Castings. The body is completely lined with FEP PFA for corrosion resistance wherever it contacts corrosive liquid.

• 1.: Sizes: 20mm to 75mm
• 2.: Light Weight & Long Life
• 3.: Compact & Single Piece Body
• 4.: Low Energy Losses
• 5.: Easy To Install And Operate
• 6.: Seats-Teflon(PTFE)/Eplon(EPDM) Etc.

Pvc Ball Valves are made from the highest quality grade of Pvc Resin. Its main function is to control the flow of water.    Applications Used in pipelines for drip/micro irrigation and water pumping system in agriculture For supply of water to buildings, commercial, industrial and public utility places     Features

• Item Code: NP2G8BLV001E
• Size MM: 15
• Size Inch: ½
• Schedule: 80
• Box Qty: 16
• Item Code: NP2G8BLV002E
• Size MM: 20
• Size Inch: ¾
• Schedule: 80
• Box Qty: 16
• Item Code: NP2G8BLV003E
• Size MM: 25
• Size Inch: 1
• Schedule: 80
• Box Qty: 14
• Item Code: NP2G8BLV004E
• Size MM: 32
• Size Inch: 1¼
• Schedule: 80
• Box Qty: 4
• Item Code: NP2G8BLV005E
• Size MM: 40
• Size Inch: 1½
• Schedule: 80
• Box Qty: 4
• Item Code: NP2G8BLV006E
• Size MM: 50
• Size Inch: 2
• Schedule: 80
• Box Qty: 2

• Type : Single Acting: 340X-S/NC or 340X-S/NO

Type 2372K Series are Full Bor , PVC Construction Ball Valves, fitted with 90° turn Pneumatic Rotary Actuator. Valves can be used for Water, Air, Oil, Corrosive Chemicals, Dirty fluids.The ball Valves in 'Closed ' position isolates completely fluid flowing through valve. 'open' assures very high rate of flow. Bodies are available with both ends union connection, which further can be provided with: 2372KXX2-Standard-Solvent Cement Stocket Metric, 2372KXX1- Optional- Screwed end to 'R' (BSP), 2372KXX5- Optional- Flanged, toANSI CI.150 or DIN PIN 16. Max. fluid temp. : See Pressure-Temp. Chart.

  Compact Double Union (DU) design. Manufactured from high performance rigid PVC compound. Designed for added safety. Accidental loosening of the ball is prevented. Excellent chemical & corrosion resistance. Low frictional losses Chemical resistant nitrile rubber-O-rings ensures leak proof operation for longer period. Easy to install and dismantle. Solvent weld, BSP threaded or flanged options. Available in two seat ring options - economical HDPE seat ring for low pressure applications or leak resistance teflon (PTFE) seat ring for high pressure applications. Available in 20 to 90 mm ( ½” to 3”) sizes.

• Material: PVC
• Maximum pressure: 125 psi (8.6 bar)
• Maximum temperature: 140°F (60°C)

• Size: Standard
• Connector Type: Threaded
• Pressure: High Pressure

Polyproplene Ball Valves manufacturers from vargin material. Suitable for handling highly corrosive matrial: Features : Available in screwed and flange connection Size Available: 1/2" to 6" Other Valves available, ball, butterfly, NRV, Foot Valve, Straner, Sight Glass, Diaphragm     Valve, etc

• Material: HDPE
• Temperature Of Media: Normal Temperature
• Pressure: High Pressure
• Brand Name: Kemlite Piping Solution
• Condition: New
• WOG Rating: 150
• Port Size: 20 - 110 mm
• Is It Branded: Branded
• Fire Safe: Yes
• Operating Mode: Manual

• Color: Industrial Gray / Natural
• Body: Polypropylene Teflon and EPDM/VITON rubber gasket.
• End: Flanged End as per BS-10 Table ‘D’ / ‘E’ / ‘F’ or ASA-150 B 16.5, DIN Standard.
• Rating: Pressure 10 kg./Sq. cm2.

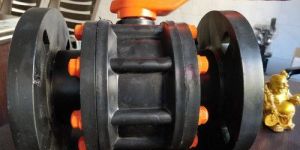

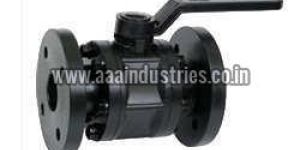

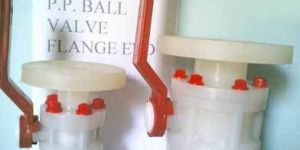

H.DP.E. / P.P. 3 Piece Design Ball Valve Ball Valve designed in three piece is made corrosion resistant Polypropylene with PTFE (Teflon) seat and seal are very economical, reliable and ideal for present process Industries. Being 3 piece Ball Valve, it has a definite advantage over the Union type threaded connection valves according to the latest pumping systems. Ball Valves are fitted with M. S. Studs directly moulded with P.P. as a result not a single part which is prone to corrosion is exposed to any Chemicals. Hence they are ideal for Acids, Alkalis, Solvents, Water, Oil and Gases. Ball Valves are full-port type providing 100% flow and are trusted up to 150 lbs/10 Kg. Per sq cm2. They can be used up to 1000c to 1100c for frequent process. It also stands with external and internal loads of the pipe line.   Also Available : Polypropylene Inspection Glass P.P. Non Return Valves, Check Valves and Foot Valves. Polypropylene Diaphragm Valves and ‘Y’ Type valves.

• temperatures: -50°C to +240°C
• range: 15NB to 100NB.

Lined Ball Valves are widely used throughout harsh chemical, oil & gas, and pharmaceutical factories and plants. The full port design minimized pressure and enhances flow capacity. INSEAL lined valves are specially designed to be resistant to the most aggressive chemicals. The thickness of the lining is calculated to ensure total protection against corrosive chemicals. The valves is designed to withstand temperatures from -50°C to +240°C and is specially lined with an anti-adhesive, self lubricating material with good resistance to abrasion and shocks. Standard sizes range from 15NB to 100NB.

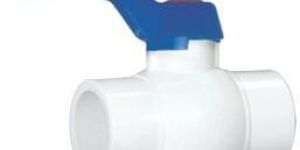

UPVC Ball Valve are manufactured using Lead Free PVC compound. UPVC single moulded Ball Valves are as per ASTM standard. Being UV stabilised, these Ball Valves can be used in sunlight exposed conditions.These ball valves are free from corrosion, chemical action, and negative biological effect, hence absolutely safe for human body.

• Size: 3.8 Inch
• Material: PVC
• Temperature: Less than 80 Degree C
• Length: 6 m
• Thickness: 2 mm
• Density: 1330 Kg/m3

Features and Specifications Compact Double Union (DU) design. Manufactured from high performance rigid PVC compound. Designed for added safety. Accidental loosening of the ball is prevented. Excellent chemical & corrosion resistance. Low frictional losses Chemical resistant nitrile rubber-O-rings ensures leak proof operation for longer period. Easy to install and dismantle. Solvent weld, BSP threaded or flanged options. Available in two seat ring options - economical HDPE seat ring for low pressure applications or leak resistance teflon (PTFE) seat ring for high pressure applications. Available in 20 to 90 mm ( ½” to 3”) sizes. Application Used for flow control in irrigation & water supply lines.
