Plate Bending Machine Dealers in Fort, Mumbai

• Brand Name: MASTER
• Plate Bending Roller Machine: Plate Bending Machine
• Port: Mumbai
• Place of Origin: Maharashtra, India

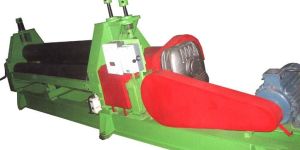

Description: Pyramid type three roll plate bending and rolling machine Hydro-Mechanical operation with Fixed Bottom Rolls and Top Roll rotating by hydraulic system Electric Motor Brake and Independent Control Panel allows user to stop the machine at any point, thus allowing any shape in rolling Double gear box design (worm and spur reduction), prevents fatigue in motion and overload of motor even if the machine is bending at over capacity Housing is made from M.S. Plate of suitable strength and mounted on heavy base frame; Rolls are made from forged steel and perfectly machined for accurate result. Accuracy: As per IS Standard 14878 Applications: Fabrication of Pipes, Tanks, Pressure Vessels, Shipping Industry and Chimneys Cylindrical, Right Angle and Conical Bending  Accessories:Pre-bending, Conical Bending, Digital Readout, PLC Controller

• CAPACITY(MM): 1250 x 3
• DIA.OF TOP ROLL(MM): 100

Longitudal Grooves on Bottom rolls for correct Feeding of Plates. Build in Lubricated Storage. Circumferencial and Axial Grooves on Gun Metal Bearing for even Lubrication. Gun Metal Bush Bearings. Dropend opening system for easy removal of rolled shells. Minimised feeding height for easy operation. Well balanced design. Controlled roll speed for accurate curvature performance. Indicators provided for correct even top roll presure. Mechanical device Mechanism for easy sliding of non drive side top roll housing. Motor of reputed make. Worm Reduction Gear-Box of reputed make. Reverse Forward starter with overload thermal relay of reputed make like SiemensL & TCutler HammerHKS. One piece fabricated heavy duty base frame.

• Dimensions (m):: 5.2 x 1.3 x 1.6
• Bottom Roll Diameter (mm): 270

The machine incorporates a fixed top roll & two independently adjustable bottom rolls.Both edges of the plate can be pre-bent with a single insertion of the plate.Pre-Pinching and Bending are done by clamping the plate between top roll and one bottom roll and bending the clamped portion by another bottom roll to the desired radius by rolling. The same operation is then repeated using the top roll and the opposite bottom roll to pre-pinch the other end of the plate.

The PBM series 3 Roll Pyramid Type Mechanical Plate bending are designed to cater the basic requirements of bending & forming of metal plates. In this machine, the bottom roles are driven by electric motor & gear box. The upper roll is having manual up & down adjustment to achieve desired bending radius. This is a very simple robust design machine suitable for light to medium jobs.

• Sheet Bending Roller: Plate Bending Roller

We can offer you our best quality, heavy duty steel fabricated body three roll pyramid type plate bending machines as per your requirements. We can supply you both mechanical and hand operated plate bending machine. Machine is supplied with centralized lubrication system. Heavy duty steel fabricated housing amply proportioned to withstand maximum strain. Rolls are of forged EN-8 material and run in collar type gun metal bushes. Base is of heavy duty girders. Drive through a series of hob cut steel gears and worm reduction gear box. Screw jack is provided to keep the top roll in horizontal position when trunion is retracted to facilitate removal of formed shells. The photo shows our standard 2500mm x 25mm capacity bending roller fitted with 30.0 HP three phase AC electric motor, Siemens make ONOFF Push Button Starter with Siemens make ReverseForward switch. We can supply you machine to bend sheets upto 32mm Plate. We also offer manually driven plate bending roller machines as well. Kindly ask for more details.

• Max Bending Radius: 0-50 mm
• Material: MS SS
• Brand Name: Stolting Germany
• Power: Hydraulic
• Capacity: 3000 mm x 40 mm
• Roll Material: Steel
• Plate Dimensions: 3000 mm x 40 mm
• Automatic Grade: Automatic
• Diameter Of Bottom Roll: 360 mm
• Product Type: plate bending rolling machine
• Automation Grade: Automatic
• I Deal In: New and Second Hand
• Minimum Order Quantity: 1 Piece
