Plate Bending Machine Dealers in Mumbai

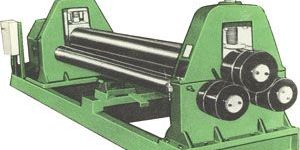

'Tee' Electro Mechanical Pyramid Type Plate Bending Machines Are The Most Popular Plate Bending Machines Working In India With Over A Thousand Machines In Use.   They Are Designed For Production Of Cylindrial Shells Used For Pipes, Storage Tanks, Chimneys, Pressure Vessels, Etc.    These Heavy Duty Plate Bending Machines Employ The Orthodox Three Roller Pyramid Principle. Bottom Rolls Are Fixed And Are Driven By A System Of Gears And Worm Reduction Gear Box Whereas The Top Roll Has A Vertical Up And Down Movement Through   (A) Screws Adjusted Manually In Model Tph.   (B) Separate Motor In Model Tpvp.    The Housings Are Steel Fabricated With Large Bearing Surface Area. The Rolls Are Of Wear Resistant Forged Steel And Are. Amply Dimensioned To Keep The Top Roll Horizontal When The Formrd Shell Is To Be Extracted By Retracting The Trunion. Horizontal Grooves Are Provided Throughout The Length, Of Rolls For Additional Gripping And Correct Feeding. Indicators Are Provided At Both Ends Correct Feeding. Indicators Are Provided At Both Ends For Correct Top Roll Pressure. (For Model Tpvp) For Conical Bending The Top Roll Can Be Inclined Disengaging The Clutch At One End Of The Worm Gears.

We offer the Plate Bending Machine that can perform operations from 6mm to 50mm. We are amongst the reliable Plate Bending Machine Manufacturers, Suppliers and Exporters, located in Mumbai (Maharashtra). We offer these Plate Bending Machines at reasonable rates to the clients. Highlights Easy to useLow maintenance costLong-lifeHassle-free operations

Heavy duty steel fabricated housing amply proportioned to withstand maximum strain. Rollers are of forged EN-8 material and run in collar type gun metal bushes. Base is of heavy duty girders. Centralized lubrication system Drive through a series of hob cut properly hardened steel gears and worm reduction gear box. Screw jack is provided to keep the top roll in horizontal position when trunion is retracted to facilitate removal of formed shells. The machine is supplied complete with : - Elicon Redicon make Reduction gear box - Electric motor 3 phase 440 volts 50 cycles AC - Reversible switch (Upto 5 HP) - Reversible starter (Above 5 HP)

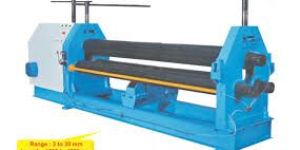

The PBM series 3 Roll Pyramid Type Mechanical Plate bending are designed to cater the basic requirements of bending & forming of metal plates. In this machine, the bottom roles are driven by electric motor & gear box. The upper roll is having manual up & down adjustment to achieve desired bending radius. This is a very simple robust design machine suitable for light to medium jobs.

• Dimensions (m):: 5.2 x 1.3 x 1.6
• Bottom Roll Diameter (mm): 270

The machine incorporates a fixed top roll & two independently adjustable bottom rolls.Both edges of the plate can be pre-bent with a single insertion of the plate.Pre-Pinching and Bending are done by clamping the plate between top roll and one bottom roll and bending the clamped portion by another bottom roll to the desired radius by rolling. The same operation is then repeated using the top roll and the opposite bottom roll to pre-pinch the other end of the plate.

• Sheet Bending Roller: Plate Bending Roller

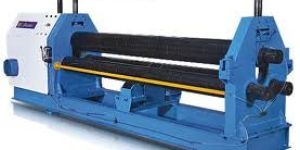

We can offer you our best quality, heavy duty steel fabricated body three roll pyramid type plate bending machines as per your requirements. We can supply you both mechanical and hand operated plate bending machine. Machine is supplied with centralized lubrication system. Heavy duty steel fabricated housing amply proportioned to withstand maximum strain. Rolls are of forged EN-8 material and run in collar type gun metal bushes. Base is of heavy duty girders. Drive through a series of hob cut steel gears and worm reduction gear box. Screw jack is provided to keep the top roll in horizontal position when trunion is retracted to facilitate removal of formed shells. The photo shows our standard 2500mm x 25mm capacity bending roller fitted with 30.0 HP three phase AC electric motor, Siemens make ONOFF Push Button Starter with Siemens make ReverseForward switch. We can supply you machine to bend sheets upto 32mm Plate. We also offer manually driven plate bending roller machines as well. Kindly ask for more details.

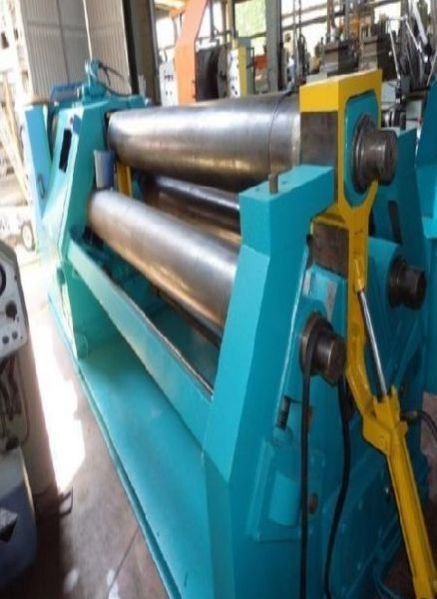

Plate Bending Machine that we provide is easy to operate and is designed to deliver optimum performance. Plate Bending Machine, offered by us, complies with international standards. Being reliable and durable while performing, our Plate Bending Machine is widely demanded throughout the world. We make sure to deliver Plate Bending Machine within specified time frame. Details : Make : BacktemansModel : 3RollLocation : Navi MumbaiStock : STK0001255Origin : Sweden Technical Specifications : Job Capacity : 30mmJob Length : 2500mmUpper Roll Dia : 370mmLower Roll Dia : 370mm

• Max Bending Radius: 50-100 mm
• Material: Mild Steel
• Brand Name: Planet Mechanics
• Warranty: 1 Year
• Automation Grade: Automatic
• Quality: Optimum Quality
• MOQ: As per Client Need

• Certification: Other
• Power: Mechanical Motorised
• Raw Material: Sheet / Plate Rolling
• Port: Mumbai
• Packaging Details: wooden case packing
• Automation: Manual
• Machine Type: Roller-Bending Machine
• Extra Services: Other

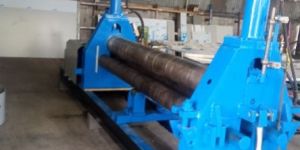

Description: Pyramid type three roll plate bending and rolling machine Hydro-Mechanical operation with Fixed Bottom Rolls and Top Roll rotating by hydraulic system Electric Motor Brake and Independent Control Panel allows user to stop the machine at any point, thus allowing any shape in rolling Double gear box design (worm and spur reduction), prevents fatigue in motion and overload of motor even if the machine is bending at over capacity Housing is made from M.S. Plate of suitable strength and mounted on heavy base frame; Rolls are made from forged steel and perfectly machined for accurate result. Accuracy: As per IS Standard 14878 Applications: Fabrication of Pipes, Tanks, Pressure Vessels, Shipping Industry and Chimneys Cylindrical, Right Angle and Conical Bending  Accessories:Pre-bending, Conical Bending, Digital Readout, PLC Controller

We are offering all sizes of Plate Bending Machine.

• Specialities: superior quality and cost-efficiency.

• CAPACITY(MM): 1250 x 3
• DIA.OF TOP ROLL(MM): 100

Longitudal Grooves on Bottom rolls for correct Feeding of Plates. Build in Lubricated Storage. Circumferencial and Axial Grooves on Gun Metal Bearing for even Lubrication. Gun Metal Bush Bearings. Dropend opening system for easy removal of rolled shells. Minimised feeding height for easy operation. Well balanced design. Controlled roll speed for accurate curvature performance. Indicators provided for correct even top roll presure. Mechanical device Mechanism for easy sliding of non drive side top roll housing. Motor of reputed make. Worm Reduction Gear-Box of reputed make. Reverse Forward starter with overload thermal relay of reputed make like SiemensL & TCutler HammerHKS. One piece fabricated heavy duty base frame.

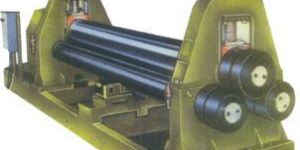

We are into offering best quality Hydraulic Plate Bending Machine, which is the Electro Mechanical Pyramid Type Plate Machines. These machines are widely demanded in domestic as well as international market owing to their high performance and longer service life. We are one of the eminent Manufacturers and Suppliers of Hydraulic Plate Bending Machine from India. Appreciated ForWear resistant natureDurabilityHigh performance Hassle free operationLow maintenance costUsed ForPipesStorage tanksChimneysPressure vessels

• Max Bending Radius: 200-250 mm
• Material: Mild Steel
• Power: Electric
• Usage/Application: Industrial
• Capacity: 1250 x 6mm
• Motor Power: 5.0 hp
• Model Name/Number: PBM-612
• Diameter Of Bottom Roll: 110
• Product Type: Pyramid type Plate Bending Machine / 3 Roll Plate Bending Machine
• Range: 1250 x 0.5mm - 1250 x 6.0 mm
• Raw Material: MS Plates (HR & CRC) , Stainless Steel etc..
• Hydraulic Tank Capacity: 100 Ltrs
• Automation Grade: Semi-Automatic
• I Deal In: New Only

SHEET METAL & FABRICATION MACHINE, PYRAMID TYPE PLATE BENDING MACHINE, CAPACITY THICKNESS X WIDTH : 3 X 1250 IN MM, DIA OF ROLLS: TOP 100, BOTTOM 90, MAIN DRIVE MOTOR : 2 HP, CAPACITY THICKNESS X WIDTH : 16 X 2000 IN MM, MAIN DRIVE MOTOR : 12.5Hp.

• Max Bending Radius: 0-50 mm
• Material: MS SS
• Brand Name: Stolting Germany
• Power: Hydraulic
• Capacity: 3000 mm x 40 mm
• Roll Material: Steel
• Plate Dimensions: 3000 mm x 40 mm
• Automatic Grade: Automatic
• Diameter Of Bottom Roll: 360 mm
• Product Type: plate bending rolling machine
• Automation Grade: Automatic
• I Deal In: New and Second Hand
• Minimum Order Quantity: 1 Piece

Plate Bending Machines are widely used for forming metals such as steel plate, carbon steel plate, stainless plate forming, under the force of 3 or 4 rolls together processing the final product. A Plate Bending Machine includes 3 roll plate bending machines and 4 roll plate bending machines.
