PRATISHNA ENGINEERS LIMITED Saki Vihar, Mumbai, Maharashtra

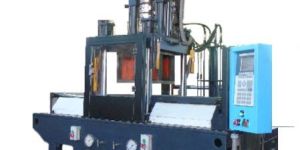

VRT series Plastic Injection Molding Machine specially designed to cater for Plastics components being molded with metal/non Metal Inserts as well as can be used for Over Molding. Available from 50 Ton to 250 Tons locking sizes with the option of Single / Double station slide for higher productivity. Microprocessor controlled coupled with Hydraulic Locking with strong mechanical structure offers long life with trouble free operations. Over Molding possibility make machine ideally suitable in Tooth Brush-Table Ware and Automobile products manufacturin

Raw Material : PE-PVC- HDPE- PP-PC & Engineeering Plastics

Clamping Force : 30 to 130 Ton

Machine Structure : Vertical Locking & Vertical Injection Moulding Machine with sliding station

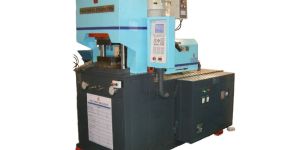

Vertical injection molding with vertical clamping & horizontal injection unit to reduce the height of machine in Higher Tonnage requirement. Insert Molding and Over Molding makes simple to produce with freedom in mold design and less risk of mold damages during production. Continuous automatic insert molding attachment is possible for high productivity

Raw Material : HDPE-PE-PVC- PP- PC

Clamping Force : 30 to 60 Ton

Machine Structure : Vertical Locking & Horizontal Injection Molding Machine

Pet Injection Molding Machine for PET perform featured with specially designed screw and barrel for fast refilling & crystal clear transparency of preforms. Wide Tie bar Distances with more available shot weight make the machine more economical for the running molds with higher number of cavities with fast cycles to stand apart in competitive market. Available in standard sizes of 80 Tons to 250 Tons with Microprocessor Controls and Proportional Flow / Pressure Hydraulics to ensure repeatability with high production rates. With optional feature of Variable Delivery Pump-VDP which enhance the performance of machine for fast cycle with great saving in Electrical Power

Raw Material : PET

Clamping Force : 80 to 250 Ton

Machine Structure : Horizontal Pet Injection Moulding Machine

Description Balance Clamping force, it avoids corner flashes Moving platen on linear motion guide, it avoid guide pin wear Extra-long opening with Easy maintenance Very less requirement of oil handling compare to Ram/ Direct locking machine hence low power consumption Extra-long ejector & force Clamp force can be increase on demand Opening stroke can be increase on demand Low floor space requirement Supports 160T-350T

Brand Name : PRATISHNA ENGINEERS

Driven Type : Hydraulic

Surface Finishing : Perfect

Automatic Grade : Automatic

Power : 38kw-81kw

Type : Plastic Injection Molds

Warranty : 1year

Certifications : ISO 9001:2008

Country of Origin : India

Condiiton : New

Volatage : 415

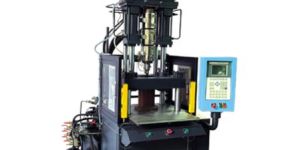

PVDL series Plastic Injection Molding Machine specially designed to cater for Plastics components being molded with metal/non Metal Inserts as well as can be used for Over Molding. Available from 30 Ton to 90 Tons locking sizes with the option of Single / Double station slide for higher productivity. Microprocessor controlled coupled with Hydraulic Locking with strong mechanical structure offers long life with trouble free operations. Over Molding possibility make machine ideally suitable in Tooth Brush-Table Ware and Automobile products manufacturing

Raw Material : PE-PVC- HDPE- PP-PC & Engineeering Plastics

Clamping Force : 30 to 90 Ton

Machine Structure : Vertical Locking & Vertical Injection Moulding Machine

Industrial Locking Injection Molding Machine specially designed for mass production of smaller components with Multi cavities mold and operator less fully automatic manufacturing operations. Machine with Microprocessor and proportional Flow/Pressure Hydraulics to ensure repeatability consistency and high production rate with negligible rejections. Available in sizes PV 30-PV 40 and PV 60 model with Shot capacity of 60 gms to 150 gms.It requires very less floor space with minimum of connected Load makes ideal choice for Factories in Metro cities. All types of materials with Glass filled varieties can be molded on this machine

Raw Material : PVC-PC-Nylon-PE-PP-PS

Clamping Force : 30 to 60 Ton

Machine Structure : Horizontal Locking & Vertical Injection Moulding Machine

Brand Name : PRATISHNA ENGINEERS

Automation Grade : Automatic

Plastic Type : PP, PE, PET, ABS

Style : Horizontal, Vertical

Certification : ISO 9001:2008

Warranty : 1 Year

Clamping Force : 50-400 Ton

Country of Origin : INDIA

Operation Mode : Fully Automatic

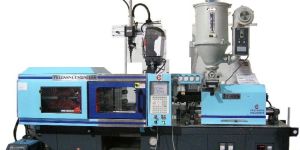

VT series Injection Molding Machines are reliable-Power Efficient-consistent-proven in Indian market for Trouble free long life Operation with minimum Maintenance cost. Available in standard sizes of 50 Tons to 250 Tons with Microprocessor Controls and Proportional Flow / Pressure Hydraulics to ensure repeatability with high production rates. Machine with Thin walled application can be offered on request. With optional feature of Variable Delivery Pump –VDP which enhance the performance of machine for fast cycle with great saving in Electrical Power. Extra wide Tie bar distances coupled with higher shot weight make machine more versatile to accommodate more numbers of mould sizes. Less connected load makes oblivious choice of Pratishna Machine.

Material : PE-PP-PS-PC-ABS-Nylon-Delrin-Teflon & All Commodity & Engineering Plastics

Condition : New

Certification : ISO9001:2008

Type : Horizontal Vertical Rotary Table

Country of Origin : India
