Premier Ltd. Nariman Point, Mumbai, Maharashtra

Precision ballscrews, LM guideways, Pneumatic tool declamping, Mechanical counter balancing for vertical axis, 20 tool ATC, Fully enclosed splash guard, Spindle taper BT 40, Basic coolant system with chip tray, Centralised auto lubrication.

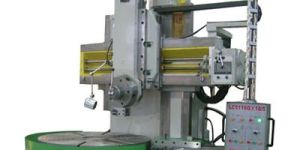

Table Dia. from 1000-5000 mm, Turning hgt. upto 2000 mm, Fixed Moving cross rail, With Without live tool, Turret Ram, Single Double column construction, Grinding attachment (option).

Stainless steel telescopic covers, Two speed table drive, 5 face turret, Manually operated 4 jaw chuck, AC unit for CNC control cabinet, Fully enclosed splash guard, Fixed crossrail, Thermosymmetric machine base.

Stainless steel telescopic covers, Two speed table drive, 5 face turret, Manually operated 4 jaw chuck, AC unit for CNC control cabinet, Fully enclosed splash guard, Thermosymmetric machine base.

Table Dia. from 1000-5000 mm, Turning hgt. upto 2000 mm, Fixed Moving cross rail, With Without live tool, Turret Ram, Single Double column construction, Grinding attachment (option).

Stainless steel telescopic covers, Two speed table drive, 5 face turret, Manually operated 4 jaw chuck, AC unit for CNC control cabinet, Fully enclosed splash guard, Fixed crossrail, Thermosymmetric machine base.

These multi spindle drilling machines are mainly used in automobile industries for drilling holes in crankcase, cylinder head, connecting rod etc. The drill head is supplied with high pressure through coolant or external coolant depending on the application. The drilling feed is provided by a CNC table or a hydraulic table. The drills are guided in a mobile jig plate or a fixed jig plate depending on the application. The drills are mounted on to the spindle using an adjustable adaptor or a stub tool holder.

horizontal machining center, ATC (40 tool stations), Flood coolant system, 1 degree x 360 positions table indexing (for PHM 6308001000),AC for CNC cabinet.

Infinitely variable hob speeds, Infinitely variable axial and radial feed, Programmable automatic hob shifting, Capable of crown hobbing & taper hobbing, Dialogue programme, LM guideways for PHA 250400, Electronic Gear Box (EGB) for PHA 400, Magnetic chip conveyor with chip trolley, Duplex worm and worm wheel for table drive (2 start for PHA 250).

Models available from Dia. 150 mm up to 1200 mm, Gear module up to 12 mm, Internal shaping possible, Universal hobbing machines, Without change gears, Dry cutting with higher speeds, Available with FANUC or Siemens CNC controls.

Multiple-spindle drilling machines are used for mass production. These machines are great time savers where many pieces of jobs having many holes are to be drilled. Multi-spindle head machines are used in mechanical industry in order to increase the productivity of machining systems. The multiple- spindle drilling machine is a production type of machine. It is used to drill several holes in a work piece simultaneously, in a single setting. This machine has many spindles driven by a single motor and all the spindles are fed in to the work piece simultaneously. These machines may be either horizontal or vertical type. The drill heads consists of several spindles mounted on angular contact ball bearings and driven by a set of gears. For spindles wherein the center distance are very close needle roller thrust bearings are used. The drive to the spindle is by AC spindle CNC motor or by AC induction motor. The speed of the spindles driven by induction motor is varied by using variable frequency drive. The drill head is interchangeable.

We are offering horizontal machining centers. Premier machines are built with robust castings, features & world-class components
