Pressure Relief Valves Dealers in Andheri, Mumbai

Auto Re-circulation on a Refueller to control the pumping pressure of Air Crafts. Solenoid Override or Pneumatic Override to safeguard the system. This can be operated remotely to re-circulate full flow. When installed in Main line, it prevents upstream pressure dropping below preset value. When installed on a By-Pass line, it controls main line pressure by relieving excess pressure in By-Pass/sump. Ideal for pump by pass to protect the downstream equipments Relief pilot (PR-610) is normally closed due to spring tension. With increase in upstream pressure above set value, Pilot (PR-610) opens which makes Main Valve to open fully. Spring Range: Standard: 20-200 psig. Optional: 5-30 psig. Size : 25NB - 400NB

Brassomatic Pressure Relief Valves have been designed for installation on pressure vessels containing gas and to provide positive instantaneous action with high volume discharge. All valves reach full volume within 10% of the setting. They are available with standard setting ranging from 100 psi to 650 psi. These valves are also available with special settings. The body is manufactured out of special brass with highly sensitive spring set at the desired pressure and sealed.   Size Available: ¼” to 1”

Amarama Engineers designs & manufactures spring loaded Pressure Safety Relief Valves which are installed to release the excess pressure developed in a system like reactor vessels, pipelines due to a chemical reaction, thermal expansion etc. Our full bore inlet design gives quick release of pressure and faster shut off on the return. Through our years of experience we have categorised our range of springs for different pressure and sizes of valves. The flexibility in our design helps us cater to different applications like corrosive vessels, utility, high pressure, temperature, hydrogenation, reactor jacket, bitumen blending & many more applications. For example, for corrosive we provide PTFE lined inlet nozzle and Hastelloy �C� plug, which ensures leakage class 6. We also assist our customers with the sizing and selection of Pressure Safety Relief Valves according to API 521.

We supply Pressure Relief Valves to our clients which are well in demand and have important application in various fields. It is a kind of safety device that relieves overpressure in a vessel or piping. We have a comprehensive range of these Pressure Relief Valves that are available at reasonable prices and are timely delivered to our clients. Applications : To relieve pressures through pipes, hosing, tubes or entire system

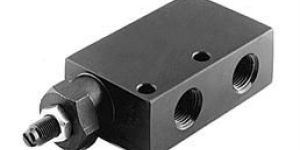

Application: Single or double-acting cylinders. For remote locations in a hydraulic circuit where maximum pressure requirements are less than basic overload valve setting in pump. Operation: Adjustable from 1,000 to 10,000 psi. Valve is spring-loaded and direct-acting.

pressure vacuum relief valves, emergency relief valves, flame arresters

• Brand Name: New Engineering
• Usage: Industrial
• Valve Size: Variable
• Material: Aluminium, Brass/Bronze, Stainless Steel
• Pressure: High Pressure
• Media: Water, Powder/Solids, Air

Application Pressure relief valves are Compatible with all CFC, HCFC and HFC Refrigerants and oils and other Industrial gases and fluids non-corrosive to steel and brass. (With suitable Gland/Seal). Construction Valve Body: Extruded Brass. Valve Cap : Forged Brass Spring: Stainless Steel Seat Material: Neoprene/Teflon. Machined parts: Extruded Brass. Design Pre compressed special grade SS Spring provides unchanged tension for life of Valve. Pre stressed virgin seat material improves accuracy of pressure ratings. Designed for quick Discharge and immediate shut down. Available in pressure Range from 150psig – 450 psig. Pre set on imported accurate pressure gauge. Working Temperature range is -30°C to 100°C. Installation. Inspect valve and Install only if factory seal appears untampered. For leak tight sealing use Torque wrenches set at 30 Lb.Ft and ensure that Female thread is exact match. Shelf life of Valve is 18 months from date of manufacture. Beyond this period if unused return valve to Factory for recalibration. We recommend replacement of the valve after it pops open. It may not open again at preset pressure on account of Debris impregnation in seat and ageing of seat material. Under no circumstances open the seal and try to reset the valve as it needs special tools and trained technicians.

We Present to Customers a Superior Range of Pressure Relief Valves. Pressure Relief Valves are Used as a Safety Device to Avoid Harm or Damages Caused to Equipment, Piping and Its Allied Components Caused By Sudden Increase in Excessive Pressure. These Pressure Relief Valves are Fitted At the Discharge Line. the Pressure Relief Valves are An Adjustable Spring Loaded Valve. the Valve is Factory Adjusted for Set Pressure as Specified Originally or At 15 % Above the Rated Pump Pressure. Depending On Pipe Line Size and Flow Rates and Set Pressure, the Inlet and Outlet Sizes of the Pressure Relief Valves are Designed. features excellent Quality Adjustable Spring Loaded Efficient Working Wide Range applications prevent Equipment Damageas Safety Measures Control and Limit Pressure.
