Pusher Seals Dealers in Mumbai

• Application: Petro chemicals, petroleum refinery, light hydrocarbons and general industrial fluids.

We make sure that our payment procedure is safe and simple. We offer our clients methods like online payment gateway, electronic funds transfer, cash, bank deposits and various others. Our range is manufactured strictly as per the globally accepted norms, thus, you can rely on us completely.   Operating Limits : Pressure  -  30 bars (Max) Temperature  -  (-)20c to (+)220c Speed  -  2900 rpm (Max) Sizes  -  18 mm to 100 mm Material  -  Seal Face  -  Carbon, Silicon, Ceramic, TC Secondary Seals  -  Elastomer / PTFE / GFT Metal Parts  -  SS 316,Hastellcy.904L.Alloy 20

• Country of Origin: India
• Type: Industrial Seals
• Brand Name: Hydro Serve
• Warranty: 1 Year
• Shape: Round
• Material: SS
• Chemical Resistance: Yes
• Condition: New
• Finishing: Polished
• Color: Silver
• Automation Grade: Automatic
• Shaft Diameter: 14 to 150 mm
• Pressure: Up to 10 Bars
• Speed: Up to 25 m
• Temperature: -50 to 280 deg C

• Shaft Diameter: 14 to 120 mm
• Pressure: 8 Bars(max)
• Temperature: -23 to +180°C
• Seal Ring Face: Carbon, SiC & T.C
• Seat Face: Ceramic, SiC & T.C
• Elastomer: Viton, PTFE, TTV, EPDME, NBR
• MOC: SS 316 / SS 304

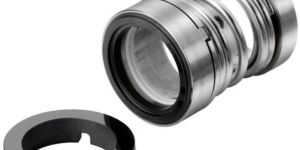

• Product Code: MF-41/42

• Country of Origin: Made in India
• Usage/Application: Industrial
• Brand: Ashish Seals
• Model Name/Number: PS37
• Pressure: 25 bar (max.)
• Temperature: -45 Degree C to 180 Degree C
• Shaft Diameter: 20 mm to 150 mm
• Material Of Construction: Faces : Carbon, Silicon carbide, Tungsten carbide, Ceramic. Elastomers : FKM, FFKM, EPDM, NBR, Aflas, Silicon, TTV, TCV. Metallurgy : SS316, SS316L, SS304, Hastelloy-C, Monel, Alloy-2.

• John Crane: 8, 9, 109, 500
• Burgmann: h7n, m7n
• Flowserve: dura-pt. Rott, bw - u
• AES: sai
• Chesterton: 491
• Colour: Silver

We are the prominent Pusher Seals Manufacturer, Exporter and Supplier located in Mumbai (Maharashtra, India). Our Pusher Seals are applied in corrosive fluid application, i.e., nitric, sulphuric, phosphoric and hydrochloric acid. We offer pusher seals that are widely demanded in industries such as chemical processing, cryogenics, food processing, heat transfer, oil & refinery and pulp & paper. Pusher Seals are available at reasonable price with us.

• Usage: Industrial
• Sealing Type: Pusher Seal
• Material: Stainless Steel
• Pressure: Up to 12 bar
• Shaft Diameter: 25 mm
• Brand: Mexico Engineering

Special to petrol industry heavy duty balanced seal meets requirement for api 682 mounted cartridge less heat generation field repairable.

• Usage/Application: CHEMICAL
• Size: 10 to 100 mm
• Material: SS 316, SS 304, Hastelloy-C, Alloy-20
• Brand Name: SEALDYNE
• Country of Origin: Made in India
• Model Name/Number: 180

• Shaft Diameter: 18...100mm
• Pressure: 25 bar (max)
• Temperature: -20...140OC
• Velocity: 15 m/sec
• Seal Faces: Carbon, Ceramic, SiC, Tung. Carbide
• Metal Parts: SS304, SS316, Special Alloy
• Bellows: Viton, Nitrile

Series AES-015 are Pusher type unbalanced seal used for applications. Chemical pumps for fertilizer & petrochemical industries. These type are designed to handle clear fluid hence easy in installation & maintenance multi spring design ensures uniform pressure on seal under all operating conditions.     SEAL CHARACTERISTICS • Independent on direction of rotation• Unalanced• Multi spring design     APPLICATIONS • General Chemicals• Food Industries• Media Containing Solids

Face Materials:      Stellite, Carbon, Ceramic, Tungsten Carbide, Silicon Carbide, LecrolloyMetal Parts:            SS 316, SS 304Secondary Seal:      Elastomers, PTFE Applications Water PumpsCirculation Pumps for central heatingChemical Process PumpsSewage and Submersible pumps Seal Characteristics: Single actingUnbalancedInside mountedDependent of direction of rotation Operating Limits: Shaft Diameter d1 : 9 ... 100 mmPressure p : 10 bar (max)Temperature t : _20 + 1200 CVelocity v : 20 m/secsingle conical helical spring, unbalanced seal with '0' ring as secondary sealing member. Various seal face materials and elastomers can be offered for wide service application. As the torque transmission is done by conical helical spring these seals are dependent of the direction of rotation. Direction of rotation is seen from the drive end of the shaft. Clockwise rotating shaft requires right handed spring and anticlockwise rotating shaft requires left-handed spring. For easier fitting, the conical helical spring should be pushed on the shaft with a twisting motion in the sense of the spring unwinding. This movement enlarges the diameter of the spring, enabling easy fitment.Face Materials:      Stellite, Carbon, Ceramic, Tungsten Carbide, Silicon Carbide, Lecrolloy Metal Parts:            SS 316, SS 304Secondary Seal:      Elastomers, PTFE Applications Water PumpsCirculation Pumps for central heatingChemical Process PumpsSewage and Submersible pumps Seal Characteristics: Single actingUnbalancedInside mountedDependent of direction of rotation Operating Limits: Shaft Diameter d1 : 9 ... 100 mmPressure p : 10 bar (max)Temperature t : _20 + 1200 CVelocity v : 20 m/secsingle conical helical spring, unbalanced seal with '0' ring as secondary sealing member. Various seal face materials and elastomers can be offered for wide service application. As the torque transmission is done by conical helical spring these seals are dependent of the direction of rotation. Direction of rotation is seen from the drive end of the shaft. Clockwise rotating shaft requires right handed spring and anticlockwise rotating shaft requires left-handed spring. For easier fitting, the conical helical spring should be pushed on the shaft with a twisting motion in the sense of the spring unwinding. This movement enlarges the diameter of the spring, enabling easy fitment.
