Rack Pinions Dealers in Mumbai

• Material: Metal
• Grade: DIN, IS
• Feature: Accuracy Durable, Dimensional, Hardend & Temper, High Quality
• Technics: Black Oxide, White Zinc Plated
• Type: Rack Pinions
• Thickness: 0-5mm
• Country of Origin: India

We are doing customised job also

The rack and pinion is used to convert between rotary and linear motion. The rack is the flat, toothed part, the pinion is the gear. Rack and pinion can convert from rotary to linear of from linear to rotary.The diameter of the gear determines the speed that the rack moves as the pinion turns.Rack and pinions are commonly used in the steering system of cars to convert the rotary motion of the steering wheel to the side to side motion in the wheels.   Rack and pinion gears give a positive motion especially compared to the friction drive of a wheel in tarmac. In the rack and pinion railway a central rack between the two rails engages with a pinion on the engine allowing the train to be pulled up very steep slopes.     A rack and pinion is a pair of gears which convert rotational motion into linear motion. The circular pinion engages teeth on a flat bar – the rack.Rotational motion applied to the pinion will cause the rack to move to the side, up to the limit of its travel. For example, in a rack railway, the rotation of a pinion mounted on a locomotive or a railcar engages a rack between the rails and pulls a train along a steep slope. The rack and pinion arrangement is commonly found in the steering mechanism of cars or other wheel, steered vehicles. This arrangement provides a lesser mechanical advantage than other mechanisms such as recirculating ball, but much less backlash and greater feedback, or steering "feel". The use of a variable rack (still using a normal pinion) was invented by Arthur E Bishop, so as to improve vehicle response and steering "feel" especially at high speeds, and that has been fitted to many new vehicles, after he created a specialised version of a net-shape warm press forging process to manufacture the racks to their final form, thus eliminating any subsequent need to machine the gear teeth.      For every pair of conjugate involute profile, there is a basic rack. This basic rack is the profile of the conjugate gear of infinite pitch radius.A generating rack is a rack outline used to indicate tooth details and dimensions for the design of a generating tool, such as a hob or a gear shaper cutter.

This arrangement is uses for translating rotary motion in to translator motion. Available EX-STOCK.

• Feature: Reasonable prices, Quality approved , Fine finish
• Brand Name: Emco
• Hardness: 444 BHN
• Pitch: 43.98
• Weight: 3kg
• Length Of Gear Racks: 10 mtr
• I Deal In: New Only

We supply a wide array of industrial and engineering products which comprises of sprocket, pulleys, couplets, elevator buckets, cooling towers, hydraulic cylinders and various other types of conveyor belts and Rack and Pinion. We offer a broad range of Rack and Pinion a type of gear that converts rotational motion into linear motion. It is most generally applicable in a steering mechanism of cars or other wheeled vehicles. The arrangement of the rack and pinion eliminates the need to form the gear teeth as well. Offered at very nominal rates, this Rack and Pinion are in huge demand. Features:• Robust • Varied shapes and sizes • Highly reliable • Economical

We offer a wide range of racks & pinion gears, conforming to international quality standards. Our team of experts assists us in providing a superior quality range of racks & pinion gears as per the requirements of our esteem clients. It can increase the power density through higher hardness pinions. To improve service life of pinions, the user can utilize tooth modifications system in gearing.

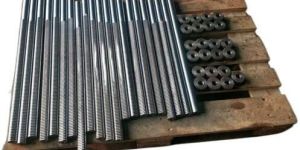

• Material: Stainless Steel
• Surface Finishing: Polished
• Color: Silver
• Shape: Round
• Usage/Application: Automobile Industry
• Diameter: 40mm

RACK & PINION With our expertise, we are engaged in offering exclusive range of Man ad Material Handling Equipment that are designed and developed from high quality materials in sync with latest technology and standards. Our range of products include rack & pinion, Suspended Platform, Suspended Steel Platform etc.

Rack and Pinion, steering racks, Timing Pulleys, Spur Gears

Rack and Pinion, Timing Belt Pulley, Industrial Sprockets
