Radial Drill Machine Dealers in Mumbai

We are offering mecof make radial drill machine. Make: mecof model: 40mm catagory: drill radial location: navi mumbai stock # stk0001627 origin: jermany

• Type: Radial Type
• Certification: ISO Certified
• Voltage: 220V/380V
• Condition: New
• After-Sales Service Provided: Spare Parts
• Warranty: 1 Year

Timely delivery is our forte as we have up-to-date transit facilities and logistic services. In order to ensure product compliance with stated quality norms, we conduct several tests at several stages.

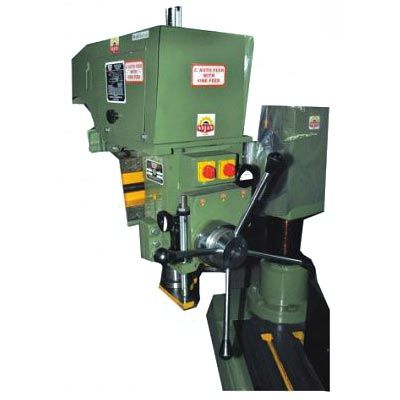

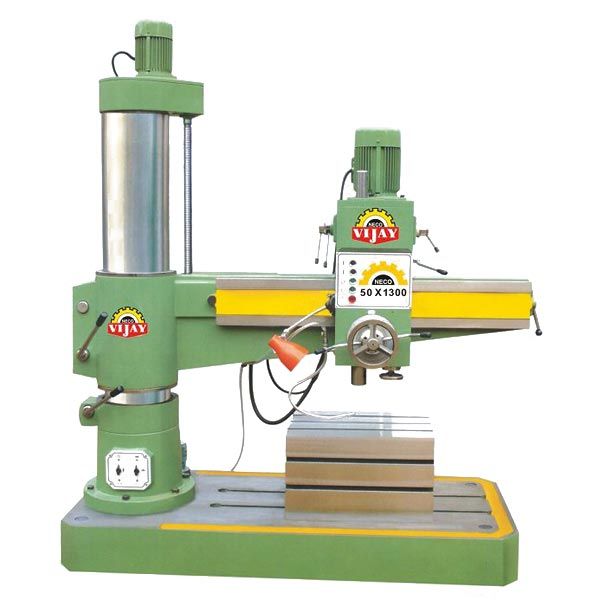

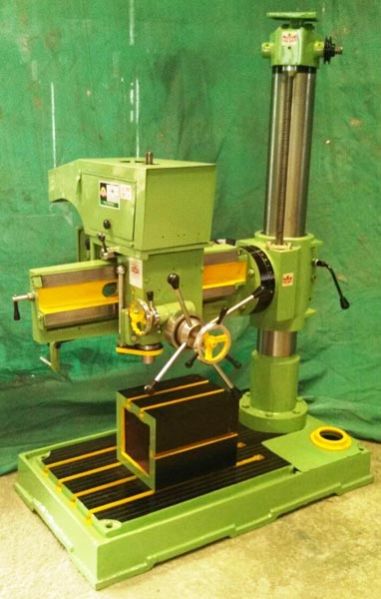

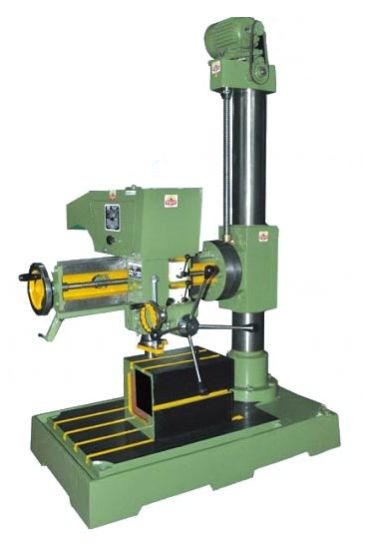

Designed using the cutting-edge technology- these Radial Drill Machines are manufactured in compliance with the set industrial standards. We are among the trustworthy Manufacturers, Suppliers and Exporters of Radial Drill Machines, based in Mumbai (Maharashtra). These Radial Drill Machines are appreciated for making accurate drill holes. Our range of Radial Drill Machines comprises drill holes (40 mm, VRD-38.A, VRD-38.C and50 mm). Why Our Radial Drill Machines? Smooth performanceEase-of-useLow maintenance costCompetitive rates

“Samson” Heavy Duty All Geared Radial Drilling Machines. Salient Features: For Drilling, Reaming And Tapping. High Quality Fine Grain Cast-Iron And Heavy-Duty Ribbing Ensures Low Vibration. Oil Bath Lubricated Gear Box With Hardened Precision Ground Cr-Ni Steel Gears.

• Condition: Good
• Stock No: STK0205
• Make: Csepel Radial Drill
• Module: Csepel Radial Drill
• Year of Manufacture: —
• Origin: —

This is a  precision heavy duty all geared radial drilling machine.The machine is supplied complete with suitable HP 440 volt 3 phase AC electric motors for main spindle, Elevating motor and for Coolant pump with Control panel with limit switches. Heavy Duty Box table  is also supplied as standard accessory.

• Material: Mild steel
• Drilling Diameter: 6 mm
• Warranty: 1 Month
• Hole Diameter: 25 mm
• Number of Shafts: 3.0

Column, Arm, Work Head & Gears are made out of Closed Grain. Parts Properly Balanced. Prior Assembling of Main Gear & Pully. Parts finished on imported Grinding M/c. All Moving Parts Finished to Close Tolerance. Spindle Ram is made out of Alloy Steel. Main Spindle & Pinon are Made out of EN Forged Steel.

This is a  precision heavy duty all geared radial drilling machine. The machine is supplied complete with suitable HP 440 volt 3 phase AC electric motors for main spindle, Elevating motor and for Coolant pump with Control panel with limit switches. Heavy Duty Box table  is also supplied as standard accessory. It is available in three models with drilling capacities of  38mm and 50mm in mild steel and with distance between Spindle centre to Column centre of 1160mm, 1270mm and 1500mm.

• MODEL: AMI-25
• Drilling Capacity in Mild Steel: 25 mm
• Machined Area of Base: 600 x 715 mm
• Dia. of Column: 127 mm
• Spindle Bore: MT3
• Spindle Travel: 225 mm
• Maximum Spindle Centre to Column: 665 mm
• Vertical Adjustment of Arm: 600 mm
• Size of Box Table: 205 x 205 x 285 mm
• Overall Height: 1420 mm
• Floor Space Occupied: 700 x 1100 mm
• No. of Spindle Speeds 8 (4 direct, 4 geared): 120 to 2800
• Spindle Feed by: Star Lever and Worm
• Drill Head Motor: 1 HP 1440 RPM
• Elevating Motor: 0.5 HP 1440 RPM
• Net Weight: 485 Kgs.
• Vee Belt: B40
• Lifting Vee Belt: V-20

• Type of Drilling Machine: Radial
• Machine: HMT Radial Drill Machine
• Service Location: All India
• Service Charge: Varies

We are dealing in all type of drill machine and Radial Drill Machine.

• Type: Milling Machines
• Machine Weight: 100-1000kg, 1000-2000kg, 2000-3000kg, 3000-4000kg, 4000-5000kg
• Color: Brown, Grey, Light White, White
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Operating Mode: Automatic, Fully Automatic, Manual, Semi Automatic
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Warranty: 1year, 2years
• Driven Type: Electric, Hydraulic, Pneumatic
• Type: Milling Machines

Our ‘SAMSON’ Heavy Duty Precision Radial Drilling machine is integrated with latest features that enables in producing impeccable range of products. This machine is made up of high quality fine grain cast iron with heavy duty ribbing to ensure extremely low vibrations. Further, the clients can access the Radial Drilling Machine at market leading prices. FeaturesExtremely low vibrationsHigh performance Hassle free operationLow maintenance costThe Radial Drilling MachineIs Pre Equipped WithHeavy Duty Box TableElectro Coolant Pump and fittings Quartz machine lampSuitable ForDrillingReaming Tapping

Description: Heavy Duty Radial Drilling Machine Large base plate with broad column to withstand heavy load Column sleeve carrying arm rotates on ball bearing at top & bearing rollers at bottom Spindle is made of alloy steel. It moves on taper roller bearing Auto Feed 0.115 mm/rev is standard. Six Feed Range of 0.12- 1.2 mm/rev is optional Optional: Spindle Speed of 50-1600 RPM with Dual Speed Motor Accuracy: As per IS Standard 2199 Movement of drilling head parallel to base plate 0.015mm/ 1000mm of traverse True running of taper in spindle at top position 0.015mm Application: Machining of large components in Workshops and Fabrication Shops Drilling, Tapping, Counter Boring, Reaming, Screwing, Thread Cutting and Counter Sinking Suitable for Steel, Cast Iron, Alloy Steel, Stainless Steel, Medium Carbon Steel, Non-Ferrous Material Accessories:Box Table, Drill Vice, Machine Vice, Coolant System, Tapping Attachment

• Model No. : S.P. 25-8
• Drilling Capacity in Mild Steel : 25 mm
• Machined Area of Base : 600 x 715 mm
• Dia. of Column : 127 mm
• Spindle Bore : M.T.
• Spindle travel : 225 mm
• Max Distance Spindle Nose TO Base : 775 mm
• Max Spindle Center to Column : 665 mm
• Vertical Adjustment of Arm : 600 mm
• Size of Box Table : 205 x 205 x 285
• Overall Height of Machine : 1420 mm
• Floor Space Occupied : 700 x 1100 mm
• No. of Spindle Speed 8 (4 direct, 4 geared) : 120 x 2800
• Spindle Feed by : Star Lever & Worm
• Drill Head Motor : 1 H.P.  1440 RPM
• Elevating Motor : .5 H.P. 1440 RPM
• Net Weight : 485 Kgs.
• Vee Belt : B 40
• Lifting Vee Belt : A 20

Arm & Column rigidly built with reinforcement ribs to reduce distortion, to give high capacity & lasting accuracy Electrical panel mounted at the rear of arm Independent locking of drill head with arm, arm with sleeve and sleeve with column for easy setting Automatic disengagement of power feed at required depth of drilling Central lubrication of spindle head by means of a lubricating pump Use of high grade materials and precision manufacturing guarantee long life of machine

• Brand: Parmar
• Model Name/Number: R-40
• Drill Type: Radial Drill Machine
• Usage/Application: Drilling
• Drilling Diameter: 40 mm
• Over All Height: Overall height with pulley guard 1960 mm
• Machine Type: Radial Drill
• Distance Spindle Axis And Column: Distance from spindle nose to base distance 995 mm Distance from spindle center to pillar surface 79, Distance from spindle nose to establish length 995 mm Distance from spindle center to pillar surface79, Distance from spindle nose to establish length 99
• Max Speed: 1440 RPM
• Maximum Speed: Range of Speed (RPM) 70 to 2000
• Phase: 3 Phase
• Pillar Diameter: 170mm
• Pillar Height: 1490mm
• Drill Depth: 30-40 mm

• Voltage: 220V
• Power: 1-3kw
