Ravi Kiran Industries Marol, Mumbai, Maharashtra

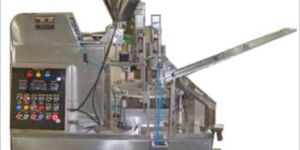

We are one of the pioneer Tube Filling Machine Manufacturers from India, We Manufacture Automatic Tube Filling Machine, for Lami and Aluminum Machine, we also manufacture Semi Automatic and Hand operated machine. We manufacture Tube Filling Machine in Rotary and linear type of machine. We manufacture combi model where you can do Lami and Alluminium tubes by switch of one button. Features The proposed High Speed 12 Stations compact rotary Fully Automatic Lami/Plastic Tube Filling machine. Contact Part -SS-316. Model - GMP Capable to fills from 40-300ml SS-316 Syringe Pump Housing and Rotary Piston Filling Device. With Blow off Device Pneumatic Tail Cut-off System. NO TUBE - NO FILL Device. And Bottom up Filling System. Filling Accuracy +/ - 0.1%. Filling Speed 40 to 50 tubes per min. Tube diameter of 16-60mm and height 60-258mm, Tube holding Cup SS-304. And SS Spring Loaded Change Part 12 nos. Nylon Holders one Tube Size will be provided.   Jacketed Hopper single Head Type of Capacity of 40 liters. Temparetcher Controller With 3 KW SS Tubular Heater.Belt Less Stirrer Device with augur to keep the product in Continuous homogeneous condition. Geared Motor 0.5 HP, RPM-40 REMI make. With Label Sensor and controller.   Manifold cam indexing device Make Camfild.

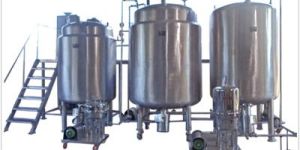

Catering to the requirements of the pharmaceutical industry, we offer Pharmaceutical Liquid Syrup Manufacturing Plant in India Available in various batch capacities from 500 to 10,000 liters. It is extensively used for the preparation of pharmaceutical liquid oral preparation. Sturdy in construction the plant is provided with main syrup manufacturing vessel, sugar preparation vessel and storage vessel. For sugar filtration, it is provided with sparkler housing filter and sparkler filters for final filtration. FEATURES The plant is designed as per the CGMP and FDA guidelines. Completely closed system as per GMP requirements. Process control for individual items at each level of production. Integrated system makes it easy to operate and clean. All vessels are constructed out of S.S. 316 L quality as conforms to the GMP guidelines.

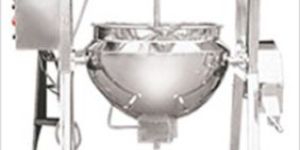

The Starch Processing Kettles we offers are specially designed unit for application in pharmaceutical processing units. It is used for preparation of binder materials. This is also called starch paste kettle and is constructed as a hemispherical kettle with jacket mounted on trunnion that is supported with the help of a shaft. The kettle is provided with an anchor type beater for mixing the binder material and the paste with multiple speed option. Granulation Line:- starch paste kettle is a specially designed unit for preparation of binder material.The kettle is provided with a suitable slow speed stirrer with geared motor mounted on the top. It is available from 50 Ltrs to 500 Ltrs. Capacity. Salient Features: The starch paste kettle is a specially designed unit for preparation of binder material It is a hemispherical kettle with jacket mounted on trunnion supports with the help of shaft. The kettle has a small cylindrical top shell with a spout for pouring out binder mass. The kettle is provided with Anchor type beater for paste mixing with dual speed option. Jacket is provided with steam accessories i.e pressure guage. Safety valve and vent cock. The Kettle is also provided with a lever with hand wheel to accomplish titling manually The kettle is provided with 16 swg thick SS 304 losses lid. Optional: Port of Dispatch: Mumbai Production Capacity: 4Units/Month Delivery Time: 4-6weeks Packaging Details: in wooden cases

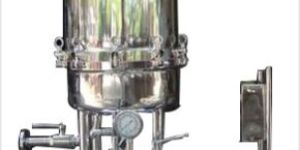

Liquid is pumped through the central channel of the cartridge from the bottom of the body. Suspended particles are retained on the filter media resting on the filter plate. Clean filtrate emerges out from the peripheral holes of the plate, into the tank and comes out from the bottom outlet. Filter tank wall does not come in contact with the un-filtered liquid, hence remains clean. Feature of Reverse Flow Model     Zero Hold Up of filtrate with out scavenging operation.     Tank does not come in contact with unfiltered liquid, hence remains clean.     Fast & easy removal of filter plate cartridge due to top dome design. Hence easy removal of cake.     Uniform filter cake & aid distribution.     Higher working pressure possible.

The vessel is suitable for the preparation of injections, sterile preparations, small volume preparations, inhaler preparations, etc. The Vessel is vertical, cylindrical with a dished bottom and top. The top is provided with flanged ends bolted to the flange of the shell and is provided with silicone gasket.The vessel is provided with a stirrer coupled to a suitable motor, provided with a Variable Frequency Controller (VFD), mounted on the top dish. The stirrer is provided with a single cartridge dry mechanical seal of carbon v/s Sic face Combination.The vessel is mounted on suitable Pipe legs provided with Castors with SS brackets and PU Wheels. The complete vessel is mirror polished from inside and outside Optionally the vessel is available with a bottom entry magnetic stirrer and electropolished from inside. The vessel is provided with a SS jacket with electrical / steam heating and cooling options. It is provided with mineral wool insulation and cladded with S.S. sheets fully welded

Pure Steam Generator is designed to produce sterile, pyrogen free steam conforming to I.P./B.P & LAL TEST specifications. D.M.Feed Water is fed to the 1st & 2nd Pre-Heater where it gets heated nearly to the boiling point. The feed water then passes to the main chamber where it is heated by means of external boiler steam. Due to heat exchange, surface evaporation of the feed water takes place to produce pyrogen free sterile steam. Injectable Section:- Pure Steam Generator is designed to produce sterile, pyrogen free steam conforming to I.P./B.P & LAL TEST specifications.

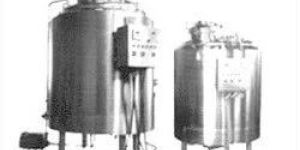

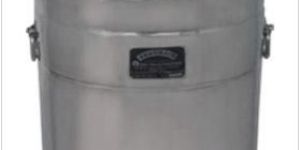

The vessel is made out from S.S. 316 L quality sheets and is suitable for holding of sterile solutions, including injections, small volume parenterals, large volume parenterals, etc.It is cylindrical in shape with a dished bottom and a conical top. The top is fitted with inlet pipe and outlet dip pipe which extends to the bottom of the tank. It is also provided with an air vent and safety valve. The pressure vessel is optionally available with sight and light glass on the conical portion.The complete vessel is mirror polished from inside and outside as per the current CGMP requirements.

Catering to the requirements of the pharmaceutical industry, we offer Pharmaceutical Liquid Syrup Manufacturing Plant in India Available in various batch capacities from 500 to 10,000 liters. It is extensively used for the preparation of pharmaceutical liquid oral preparation. Sturdy in construction the plant is provided with main syrup manufacturing vessel, sugar preparation vessel and storage vessel. For sugar filtration, it is provided with sparkler / housing filter and sparkler filters for final filtration. Liquid Line:- Pharmaceutical Liquid Syrup Manufacturing Plant in India Available in various batch capacities from 500 to 10,000 liters. it is provided with sparkler / housing filter and sparkler filters for final filtration.   Features: Plant is provided with interconnecting piping with pumps and valves The vessels are provided with steam heating / cooling jacket with insulation as per process requirements A top / bottom entry motor of suitable HP is provided with specially designed agitators The complete plant is provided with a S.S. panel for housing the VFD, contactors, indicators, temperature controllers, etc. Completely closed design with spray ball for CIP / SIP as per GMP norms PRIMARY COMPONENTS Sugar / primary syrup manufacturing vessel. Sugar filtration system. Main manufacturing vessel. Final filtration system Inline homogenizer Final product storage vessel Sanitary Inter-connecting piping CIP facility for all vessels Central control panel Integrated working platform for easy access The individual vessels insures proper controls for the sugar syrup preparation, transfer of exact amount of active ingredients and control on the time and temperatures for the processes as per the SOPs for the products. Also the system ensures adaptability for various types of formulations, suspensions and products, thus makes it suitable for future scalability of products, as also additions of products in varied formulations SALIENT FEATURES The plant is designed as per the CGMP and FDA guidelines. Completely closed system as per GMP requirements. Process control for individual items at each level of production. Integrated system makes it easy to operate and clean. All vessels are constructed out of S.S. 316 L quality as conforms to the GMP guidelines. The primary syrup and main manufacturing vessels are provided with jacket for heating/cooling operations. The jackets are provided with mineral wool insulation for preventing heat loss. All three vessels are provided with bottom entry stirrer with mechanical seals. The stirrers are provided with variable frequency drives (vfd) for speed control as per SOP. Internal removable baffles are provided in the vessels for gentle vortex-free agitation. INLINE emulsifier provided for the main preparation vessel for suspension preparation and emulsification of the products. The mechanical seals are provided with “water flow switches” for seal protection The gaskets are food grade silicon, conforming to GMP guidelines. Inbuilt temperature controller for the primary and the main manufacturing vessel for product temperature control. Separate filtration system for the primary syrup and final product ensures two stage filtration. All interconnecting piping is of S.S. 316 quality, and provided with sanitary tri-clover fittings for complete dismantling for cleaning and passivation on product changeover. All valves are tri-clover type ball valves in S.S. 316 quality The pipeline is provided with suitable points for product sampling and inline cleaning. All vessels are provided with “spray ball” for CIP and SIP. Central control panel for controlling all the processes of the plant. A Stainless steel working platform is provided for the length of the plant for easy access to all the vessels and visual control of the entire process. Optional Features Vacuum loading system for the primary (sugar) preparation vessel. Load cells with control unit for the primary syrup and main manufacturing vessel. Lobe pump for transfer of final product to the filling room. Top entry stirrer with mechanical seal. PLC based panel with touch screen MMI and menu options for the panel. Magnetic / Ultrasonic level indicator for all vessels. Additional jacketed vessel with homogenizer for preparation of additives, actives as per requirement. Diaphragm Valves for all the vessels.

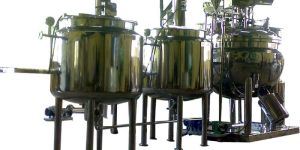

We are amongst the reputed manufacturers and exporters of Ointment Manufacturers Plant in India. Designed to perfection, the plant is extensively used for manufacturing pharmaceutical ointments, cream, sterile preparations, cosmetic, suspensions and gels. For optimum performance, the plant is provided with water phase vessels, main manufacturing vessel and pre-mixing wax. For emulsifying, the main vessel is provided with bottom high-speed homogenizer and slow speed anchor agitator for mixing.  Creams & Ointments:- Ointment Manufacturers Plant in India. Designed to perfection, the plant is extensively used for manufacturing pharmaceutical ointments, cream, sterile preparations, cosmetic, suspensions and gels.   Specification Available in batch capacities from 100 kgs to 3000 kgs Completely untouched process, hence less chance of contamination Jacketed vessels for heating/cooling processes Centrally located control panel for ease of operation by a single operator PRIMARY COMPONENTS A jacketed water heating vessel with direct coupled stirrer. A jacketed oil(wax) preparation vessel with a semi anchor agitator coupled to a suitable geared motor. Mesh filters for the above vessels. A vacuum rated jacketed main manufacturing vessel. The top head of the vessel is sealed with suitable food grade silicon gasket and can be lifted with a hydraulic lifting system. The vessel is “hemispherical” in shape for complete removal of the product from the bottom. The above vessel is provided with a hydraulic lid lifting system for cleaning of the internals as per CGMP requirements. A Semi – Contra type anchor agitator assembly coupled to a suitable “hollow shaft” gear box assembly. The agitator is provided with suitable PTFE scrappers to cover the entire internal surface of the vessel. A dry mechanical seal for the agitator assembly. A bottom entry homogenizer provided at an angle for proper homogenizing of the product. A double cartridge mechanical seal with “water flow switch” for the homogenizer. A vacuum transfer system connected to the main vessel for transferring of the material from the pre-preparation vessel. The system ensures minimum handling and almost zero wastage of the product. Final product storage vessel with castors. Sanitary Inter-connecting piping Lobe pump for final product transfer to the storage vessel. A plunger pump for product transfer from the storage vessel to the filling machine. A central control panel for controlling the various parameters during the manufacturing process. A variable frequency drive (vfd) for both the anchor agitator and the homogenizer for speed control during the manufacturing process as per SOPs. Integrated working platform for easy access   SALIENT FEATURES The plant is designed as per the CGMP and FDA guidelines. Completely closed system as per GMP requirements. Process control for individual items at each level of production. Integrated system makes it easy to operate and clean. All vessels are constructed out of S.S. 316 L quality as conforms to the GMP guidelines. The main manufacturing vessel is hemispherical to aid product removal. All vessels are provided with jacket for heating/cooling operations. The jackets are provided with mineral wool insulation for preventing heat loss. The main manufacturing vessel is vacuum rated and provided with various connections for product addition, hopper for powder addition, a light glass and sight glass are provided on the top dish. The anchor agitator is provided with a dry mechanical seal and the homogenizer is provided with a double cartridge mechanical seal with water cooling system. Both the seals are vacuum rated. A VFD is provided for both the agitator and the homogenizer. The final product storage vessel is provided with conical bottom and castors for movability. Safety interlocks to prevent the anchor and homogenizer from starting when the top lid is lifted for cleaning. The gaskets are food grade silicon, conforming to GMP guidelines. Inbuilt temperature controller for the main manufacturing vessel for product temperature control. All interconnecting piping is of S.S. 316 quality, and provided with sanitary tri-clover fittings for complete dismantling for cleaning and passivation on product changeover. All valves are tri-clover type ball valves in S.S. 316 quality. The pipeline is provided with suitable points for product sampling and inline cleaning. Central control panel for controlling all the processes of the plant. A Stainless steel working platform is provided for the length of the plant for easy access to all the vessels and visual control of the entire process.   Optional Features Load cells with control unit for the main manufacturing vessel. PLC based panel with touch screen MMI and menu options for the panel. Inline homogenizer in place of bottom entry homogenizer. Jacketted Storage vessel for product transfer. Contra mixer with two motors for preparation of foaming products like toothpaste, etc. Perforated anchor agitator for difficult to mix products. Completely closed pre-preparation vessel for manufacture of sterile preparations.

The main drum of the Octagonal Blender is coupled to a suitable motor through an oil filled gear box mounted on a sturdy frame structure. The unit is provided with a butterfly valve at one side and is provided with removable baffles inside the drum. The other side is provided with amanhole for accessibility inside the chamber for cleaning. An electrical panel is provided for housing the motor on-off starter, timer, inching device etc. Granulation Line:- Octagonal Blender is coupled to a suitable motor through an oil filled gear box mounted on a sturdy frame structure. a butterfly valve at one side and is provided with removable baffles inside the drum. Salient Features: Due to its unique design lower power consumption at higher loads is possible. Large capacity models are possible due to its compact design. The inside of the blender is completely cleanable through the man hole provided at one side. Also the baffles are removable and can be easily removed for cleaning. Ease in loading through the loading container or through the over head silo or by vacuum transfer is possible. Due to its compact design, lesser floor space required compared t other blenders.

The Multi Mill is a highly versatile machine suitable for dry pulverizing of lumps to small particles of desired size by high shear action. The design is such that just by changing the screen the output particle size can be easily charged. The machine is provided with a vertical rotor assembly with knife type swinging blades for pulverizing the lumps. The rotor is provided with two bottom scrapper blades for scrapping the material from the bottom plate and pushing it in the upward direction towards the knife blades. It is provided with a circular perforated screen around the blades for better pulverizing action. The main shaft of the rotor assembly is coupled to a step pulley through a bearing housing which in turn is coupled to a suitable motor through a belt assembly. The speed of the rotor can be changed by changing the position of the belt in the step pulley. The speed selection is to be made depending on the material and the final size of the particles. The speed of the rotor can be changed by changing the position of the belt in the step pulley. The speed selection is to be made depending on the material and the final size of the particles. The complete assembly is mounted on a suitable pillar stand with a sturdy base and castors for movability. Multimill / Tray Dryer:-Multi Mill is a highly versatile machine suitable for dry pulverizing of lumps to small particles of desired size by high shear action. Vibro Sifter Manufacturers suitable for the separation of granules. Tray Dryer is a conventional drying machine suitable for drying of powders, granules, and similar other materials Salient Features   Completely enclosed assembly for dust free pulverizing Rugged design for continuous operation Superior blade design for longer life and better cutting action. Speed variation possible for pulverizing different types of materials.

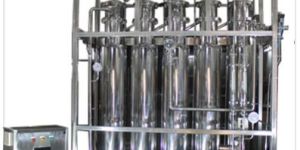

RaviKiran is a renowned Multicolumn Distillation Plant Manufacturers in India that  is designed to produce sterile, pyrogen free distilled water conforming to I.P./B.P./USP & LAL test specifications with conductivity of 0.2 - 0.3 microsemens/cm² suitable for the use in preparation of injections and I.V. Fluids. It is provided with an electronic/PLC based fully automatic panel board and is available in various output capacities from 50 ltrs/hr to 3000 ltrs/hr. Injectable Section:-Manufacturer and Supplier of Multicolumn Distillation Plant that is designed to produce sterile, pyrogen free distilled water conforming to I.P./B.P./USP & LAL test specifications with conductivity of 0.2 - 0.3 microsemens/cm² suitable for the use in preparation of injections and I.V. Fluids. Features It is designed to produce sterile, pyrogen free distilled water conforming to I.P./B.P./USP & LAL test specifications with conductivity of 0.2 - 0.3 microsemens/cm² suitable for the use in preparation of injections, I.V. Fluids, etc. The still is manufactured under stringent conditions to conform to GMP standards. It works on interstage heat exchange principle & thus saving 70 % energy compared to conventional stills. Provided with an electronic/PLC based fully automatic panel board, it is available in various output capacities from 50 ltrs/hr to 3000 ltrs/hr.

It is made out of ss 316 L quality for filteration of sterile solutions. Complete with two silicon ‘O’ rings and support screen with non-sticking mirror polished bolts and wing nuts An air valve is also provided to remove inside air initially. Complete unit rests on suitable legs.It is available in 142mm & 293mm dia sizes SS 316 L Quality Membrane Filter Holder (GMP):- ss 316 L quality for filteration of sterile solutions. Complete with two silicon ‘O’ rings and support screen with non-sticking mirror polished bolts and wing nuts An air valve is also provided to remove inside air initially and available in 142mm & 293mm dia sizes

The Mass Mixer is ideally suitable for mixing of wet mass, dry powders with wet mass, etc. for the preparation of pharmaceutical mass for the preparations of tablets.   Salient Features: The trough design is such as to evenly distribute the material throughout. The unique blade design and placement facilitate in the mass moving completely from top to bottom and laterally from one end to the other without operator interference. The open top design is suitable for addition of material while in operation and also for visual inspection. The complete trough can be tilted for unloading of the material. RaviKiran are Manufacturers of Paddle Mixer, ideally suitable for mixing of wet mass, dry powder, dry powder with wet mass, etc, for the preparation of pharmaceutical mass for preparing tablets and similar other applications. The mass mixer gives through mixing due to its unique blade design and the angle of the blade. Granulation Line:- Mass Mixer and Ribbon Mixere ideally suitable for mixing of wet mass, dry powders with wet mass, etc. for the preparation of pharmaceutical mass for the preparations of tablets. Description: The mixer is provided with a U shaped trough with a centrally mounted shaft passing laterally through the trough. The shaft is provided with a set of blades welded at different angles each blades has a dedicated mixing function. The angle of the blades is such that through, efficient and complete mixing of the material takes place. The material due to the unique blade design is subjected to lateral as well as vertical motion and the complete material is rolled inside out and for bottom to top, due to which complete mixing takes place and a homogenous mass is obtained. The control shaft is provided with gland packing at both ends for complete sealing. The central shaft is coupled to a suitable gear box and a suitably powered motor. The complete assembly is mounted an bearing blacks bolted to the frame of the machine. The machine is provided with a manual tilting mechanism of the side with gear mechanism for unloading the material into the collecting tray (motorized tilting for higher capacity models available as an option). The trough can be tilted in the front up to 90 Degrees by rotating the handle provided at the side. The mixer is provided with a sliding and open able top cover with safety guard so that the operator does not accidentally put the hand inside the trough when the machine is in operation. The top cover is provided with a limit switch to stop the machine as soon as the top cover is opened. Salient Features: The trough design in such as to evenly distribute the material throughout. The unique blade designs and placements facilitate in the mass moving completely from top to bottom and laterally from one end to the other without operator interference. The open top design is such that addition of material while in operation and visual inspection is possible. Limit switch provided for the top cover to stop the machine when the cover is lifted.

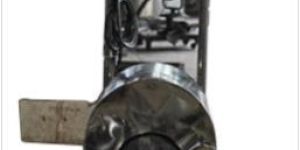

The lobe pump is a specially designed pump suitable for the transfer of highly viscous and semi flowing liquids like ointments, creams, lotions, glycerin, honey, etc. The pump is provided with two tri lobes synchromesh with each other to provide high pressure transfer. The pump is provided with a mechanical seal for leak proof operation.The complete unit is mounted on a base and coupled to a suitable motor with a bearing housing.It is optionally available with a variable frequency drive to adjust the rpm as per product requirement.

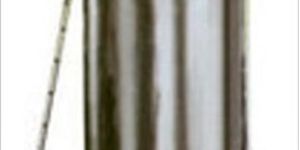

Optimizing the latest technology, we offer an assortment of superior quality LVP Manufacturing Tanks. These tanks are extensively used in pharmaceutical and other industries to process different kinds of materials. Precision engineered to meet industrial requirements, these tanks are available in various holding capacities to meet the varied needs of clients. In addition, these manufacturing tanks can also be customized according to the specifications sent by clients. Pay Mode Terms: L/C (Letter of Credit) Minimum Order Quantity: 1 Piece/Pieces Port of Dispatch: mumbai Production Capacity: 1/month Delivery Time: 6-8weeks

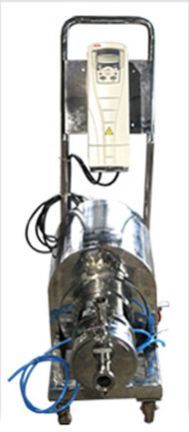

The Ravi Kiran inline works on the rotor/stator principle. The chamber houses a specially designed toothed rotor/stator homogenizing system. This model is suitable for producing emulsions and suspensions within a wide viscosity range. Excellent product quality is assured thanks to the high shear forces exerted on the product in the shearing gap and maximum product movement at the outfeed. When processing emulsions, the machine achieves droplet sizes down to 1 micron, with fine distribution. In the case of suspensions, powders and solids are wetted thoroughly and agglomerations dispersed prior to homogenization. The principal application for this model is as an inline system but it can also be installed beneath vacuum processing units in either horizontal or vertical configuration.       Design Criteria       All product contact parts are easy to access and change over. Design and construction in accordance with current GMP and hygiene standards. Inline cleaning (CIP) possible in most applications.   Liquid Line:- inline works on the rotor/stator principle, a specially designed toothed rotor/stator homogenizing system. the machine achieves droplet sizes down to 1 micron, with fine distribution. ` Specification of Standard Components Mechanical   Single-acting mechanical seal (Cartridge), elastomers Silicon       Additional Options   Variable frequency drive   Explosion proof motors   Discharge and/or supply pump   Hopper

The High Shear Mixer Granulator in India provides a highly versatile machine suitable for dry mixing and wet granulation in the same bowl and in short time cycle. The complete operation is done within 10-30 minutes. The entire operation is performed in a closed dust free environment and the complete operation is automatic, including the discharge. The main assembly consists of a main mixing bowl made out of S.S. 316 quality, highly polished to give a mirror non-stick finish.The bowl is provided with two impellers, the main mixing impeller is mounted vertically with a horizontal rotation and the chopper blade is mounted on the side and rotates in the vertical axis. The main mixing assembly is provided with four blades, two for mixing and two for pushing the material upwards. The complete assembly is mounted on a suitable bearing housing provided beneath the bowl with specially designed seal and air purging arrangement. The complete assembly is coupled to a suitable gear box and motor through a belt assembly. The mixing blade is provided with a dual speed motor for two sets of mixing RPMs and can optionally be provided with VFD for variable frequency. The High Shear Mixer Granulator in India provides chopper blade is a high speed blade with provided with specially designed blades to break the lumps into smaller granules with a short cycle time. The assembly is provided with a suitable bearing housing directly coupled to a suitable motor. The chopper rotation as a standard is at high speed can optionally be provided with VFD for speed variation. The top of the bowl is a dish-end provided with mechanically balanced loads for assisting in opening and closing the top lid. It is provided with standard parts for charging, view and air vent parts. The top can optionally be provided with pneumatic lifting arrangement in place of the mechanical loads. The discharge is provided with a pneumatically operated valve for complete and automatic discharge at the end of the cycle. The valve is provided with suitable 'O' rings for leak proof operation. The complete structure is mounted on a sturdy platform duty cladded with S.S. Dimpled sheets, provided with a stair case with railings. The sides of the platform are cladded with S.S. 304 sheets and mirror polished as per GMP standards. An electrical panel of S.S. With the contactors, relays. Timers on -off push buttons for the main motor, on-off push button for the chopper motor, pneumatic open – close for the discharge valve etc. on the platform for ease in operation. The machine can optionally be provided PLC for fully automatic operation and data logging. ranulation Line :- Rapid Mixer Granulator is a highly versatile machine suitable for dry mixing and wet granulation in the same bowl and in short time cycle. chopper blade is a high speed blade with provided with specially designed blades to break the lumps into smaller granules with a short cycle time. Salient Features: Specially designed bowl ensures constant flow of processing material thereby reducing the process time to have a short batch cycle time. Specially designed mixing blades and the chopper blades gives a uniform and homogenous product of even particle size without lumps. Pneumatic discharge ensures quick and complete discharge of the material fro the container. Charging port provided for charging material during processing. Totally enclosed system and filter bag for the top vent gives a completely dust free environment. All mechanical and electrical components are in assembled condition ready for operation. Dual speed for the main motor depending on the product to be mixe. Various interlocks provided for safety.

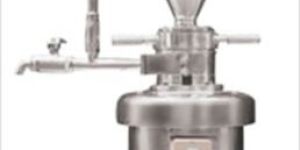

It works on the rotor stator principle. The complete assembly is provided with serrations for better mixing. Better mixing can also be obtained by adjusting the gap between the rotor and the stator by the handle provided. The product is subjected to a high shear action in the rotor stator assembly due to which the particle reduction takes place. The material is then pushed out through the outlet for further process or for recirculation. The mill is optionally provided with a cooling water jacket and a mechanical seal for leak proof operation. Granulation Line:- Colloid Mills is suitable for homogenizing, mixing, emulsification, dispersion of liquids, ointment, creams, and other similar difficult to mix products. mill is optionally provided with a cooling water jacket and a mechanical seal for leak proof operation.

The operation of the fluid bed dryer is very simple whereby the drying of the material takes place by forced air circulation inside the chamber. The atmospheric air is drawn through the air micron filter by a specially designed blower mounted on the top of the dryer. The clean air then passes through the heating elements (electric cheater / steam / thermic fluid radiator) to reach the required temperature. The hot air then passes through the product container and the product gets dries faster by air fludization. The air circulation is controlled by means of dampers. A Filter bag provided inside the drying chamber prevents the finest of particles of the material from entering the air stream. The main chamber is provided with on explosion flap to protect against pressure buildup inside the chamber. Digital temperature controller for the inlet air and temperature indicator for the outlet air comes as a standard. Higher capacity models are provided with automatic operation like automatic bag shaker timer, pneumatic damper (butterfly valve) operation, process timer, sampling valve with bottle, etc is provided as a standard. Fully automatic operation with data logging through a PLC is provided as an option. For higher capacity models, the blower can be detached for mounting in the service area to reduce noise level and isolate maintenance from the production area. Granulation Line:- Fluid Bed Dryer Manufacturer In India with a highly versatile machine for drying of granules, crystalline & coarse powders and similar materials for the pharmaceutical, chemical, food, dyestuff and allied industries. Salient Features: All contact parts are S.S. 316 quality and the bottom chamber, blower chamber explosion chamber, supporting structure, trolley, etc are of S.S. 304 quality. Automatic pneumatic bag shaking with timers and butter fly valve (optional for lower models) Pneumatic discharge ensures quick and complete discharge of the material fro the container. Pneumatic lifting for product container (optional for lower models) Temperature controller for electrical heaters / steam radiator. Quick action butterfly valve ensures that the systems is totally contained and enclosed. Explosion flap with aluminum / calf gasket to protect from pressure building inside the chamber. Optional: PLC automation with printer for data logging. Solid particle detection system or tarn bag detections system. Pneumatic lifting for product container (optional for lower models) Differential pressure gauges to monitor pressure across inlet air filter and filter bags. Positive earthing arrangement with low voltage relay. Inflatable silicon gasket for the filter bag and the product container.

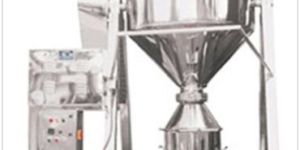

The mixer basically consists of two conical portions and a center cylindrical shell. The cone blenders provided with fixed baffles inside the drum. The double cone blender is an highly efficient machine for powder / powder mixing. The main drum is coupled to suitable motor through a oil filled gear box mounted on a sturdy frame structure. Highest capacity models are provided with butterfly valve on one side. An optional charging hopper of 60 Ltrs capacity is provided with suitable clamping arrangement for charging the material into the drum.The double cone blenders are available from 5 kgs of R&D purposes to 500 Kgs for larger scale productions.   Granulation Line:- Double Cone Blender is a conventional mixer suitable for dry powder mixing. An optional charging hopper of 60 Ltrs capacity is provided .The double cone blenders are available from 5 kgs of R&D purposes to 500 Kgs for larger scale productions. Features: Due to its unique design lower power consumption at higher loads is possible. Large capacity models are possible due to its compact design. The inside of the blender is completely cleanable through the man hole provided at one side. Also the baffles are removable and can be easily removed for cleaning. Ease in loading through the loading container or through the over head silo or by vacuum transfer is possible. Due to its compact design, lesser floor space required compared t other blenders. The blenders are available from 300 Ltrs to 2000 Ltrs Capacity.

Capacity : 0-250 L, 250-500 L, 500-1000 L, 1000-5000 L, 5000-10000 L
