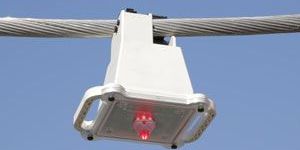

Power networks are subjected to extreme weather events and pollution all-round the year. From lightening to high-speed winds, and from dust storms to environmental pollution; an array of factors could be detrimental to their smooth functioning. The result is the appearance of faults from time to time and disruption in the power supply for long hours, causing huge revenue losses to the utilities. The key to minimizing losses on account of faults lies in identifying the fault locations early and taking timely remedial measures. Raychem Fault Passage Indicators enable utilities to do so with ease. Raychem’s FPIs help electricians attain quick visual or remote indication of the fault occurrence on an overhead electrical system.

Heat-shrinkable terminations for indoor & outdoor applications for polymeric cables up to 33kV. Raychem’s heat-shrinkable terminations have a proven record of stability, durability and reliability over many years. Raychem’s cable accessories have been used by utilities and industrial companies. Designed for both indoor and outdoor use in all climate conditions, the Uniterm range covers applications for polymeric cables up to 33kV. The components combine to provide the important functions such as electrical performance, stress control and moisture sealing, required for all medium voltage products.

Transformer is a vital component of a distribution system. It has to deliver Reliable Power in a safe & efficient manner. However, 8% of the transformers installed worldwide fail on account of improper connector systems. A conventional connector system used for LV cable connection, deploys crimping and tightening of the bolts. Over a period of time, it leads to a loose electrical contacts which causes sparks and hot spots. The contact resistance is high which adds to the losses of ailing utilities. The weight of the connector causes mechanical strains on the bushing of the transformer, leading to oil leakages.

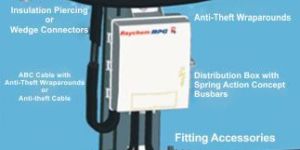

Over 27% of the total electrical energy in India is lost because of Aggregate Technical and commercial (AT&C) losses making a woeful comparison with global standards. If the losses are not kept in check, it is estimated to cost over Rs. 40,000 crores to Indian distribution utilities. The technical losses are primarily because of the type of conductors used, transformer capacity, and other equipments used for transmission and distribution of electricity. The commercial losses are caused mainly due to meter tampering, power theft and collection inefficiency. Raychem understands the problem and offers unique solutions which help Indian utilities to bring down the losses significantly.

Raychem offers surge arresters for medium voltage power distribution systems that are designed to reliably protect your valuable assets from overvoltage. They can withstand severe outdoor exposure over long operating lifetimes and help maintain service reliability in both overhead and underground installations. Raychem arresters have passed the most rigorous tests (IEC 60099-4, ANSI C62.11, IEC 61643).

Stripping tool for extruded and bonded cable screens and primary insulation for cable diameters from 35 to 90 mm.

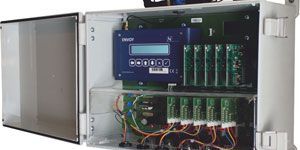

The Substation Total Demand Monitor has been designed to provide an easy to install (30-45 minutes), versatile and configurable metrology system. The total demand of the substation is calculated by the summation of the feeder loads and all loading parameters are measured. The system may be configured to measure transformer output and feeders by using Rogowski coils. Busbar voltage phase to phase angles may also be measured for the 3 phases. Working in conjunction with RTU, which provides RS485 over Modbus; the data is transmitted to a central server over GPRS using DNP3NEXUS protocol. This can also be made available to other manufacturer�s host servers if required. Continual logging of metrology values is done via the Modbus interface and all logs are datetime stamped, with the clock being synchronized with central server. Alarms and alerts relating to a range of measured parameters can be sent out.

Raychem’s connection systems are designed to improve the performance, reliability and economy of electrical network and equipment. Our wide range of reliable connector systems and technologies are not just considered to be the most advanced technology available in the world, but are also way ahead of the conventional system presently available in India for overground and underground applications.

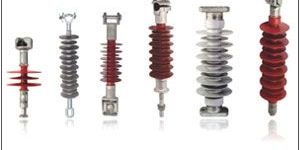

Our competence in materials science is fundamental to our ability to design polymeric insulators that more than meet application requirements even for severe environments. We have worked closely with customers to optimize the design and installation of our products in some of the most challenging environments in the world. Polymeric insulators are based on our 35 years of rich experience in the field of crosslinked polymers for medium- and high-voltage applications. They consist of a polymeric housing over a pultruded fibre glass rod to which galvanized steel or aluminum end fittings are attached.

Elecsafe is a complete source of personnel protective equipments which are built to exceed International as well as Indian standards in electrical safety. Elecsafe range of products & solutions covers Electrical Hazards Safety, Arc Flash Protection & Fall Protection. These solutions are built not only to give you peace of mind protection but also fatigue free & comfortable working experience.

Raychem’s Operating Rods are hollow or solid insulation parts made of fiber-reinforced epoxy resins with metal connection fittings. They can withstand extreme mechanical and electrical loads and are suitable for integration in high voltage equipments where high insulation strength combined with high mechanical strength and low weight is an asset. Operating Rods are used for voltage levels ranging from 50 kV to 800 kV. They are available in various diameters.

Raychem has developed a series of heat-shrinkable components and kits to help seal and insulate electrical connections in nuclear power plants. Made of heavy-wall, flame retardant, cross-linked polyolefin and pre-coated with a nuclear grade adhesive, these products are designed to withstand radiation levels and temperatures attainable inside nuclear stations� containment buildings. Raychem nuclear power products are designed specifically to satisfy the requirements of protecting many of the 200.000 connections made in the construction of these plants. Raychem nuclear accessories have been subjected to very stringent LOCAHELB tests to verify their performance capability in hypothetical nuclear accident scenarios.

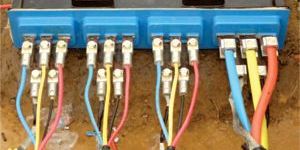

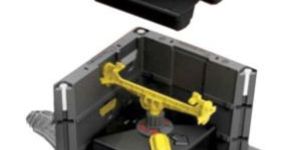

Low voltage underground 2 and 4 way service pillars are used for connecting and switching adjacent sections of low voltage 3 or 4 core cable from 70mm2 to 300mm2. Compact modular concept reduces weight and space required for link box positioning, making installation possible in congested areas whilst reducing excavation and reinstatement costs Retained ABS moulded lid replaces the traditional cast iron diving bell lid, which reduces weight and is non-conductive making operation safer Integrated locking facility combined with the lid retaining system and toolbox, with fail safe positioning and operation Clear vacuum-formed body shell allows both easy cable installation and inspection prior to resin fill. Shell designed for crossing 300mm2 cores with sufficient resin coverage

Low voltage underground 2 and 4 way link boxes are used for connecting and switching adjacent sections of low voltage 3 or 4 core cable from 70mm2 to 300mm2. They are supplied complete with a plastic foundation pad, outer enclosure set and concrete filled manhole cover.Compact modular concept reduces weight and space required for link box positioning, making installation possible in congested areas whilst reducing excavation and reinstatement costs Retained ABS moulded lid replaces the traditional cast iron diving bell lid, which reduces weight and is non-conductive making operation safer,Integrated locking facility combined with the lid retaining system and toolbox, with fail safe positioning and operation Clear vacuum-formed body shell allows both easy cable installation and inspection prior to resin fill. Shell designed for crossing 300mm2 cores with sufficient resin coverage

Our medium-voltage terminations have been used by utilities and industrial organizations worldwide for more than four decades.Heat-shrink and cold applied technologiesProven anti-tracking, erosion- and UV- resistant insulating material for indoor and outdoor applications.Easy and highly reliable installation Range-taking,Suitable for crimp, soldered and mechanical lugs.Resistant to breakage and Solutions for all cable constructions

Heat-shrink and cold-applied systems for switchgear and transformers with standardized bushings for 250A, 400A and 6301250A have been installed by utilities and industrial organizations worldwide for more than 25 years.

Under Ground Multi Transit System (UGMTS), a patented product of Raychem provides complete solutions for Reliably connecting and switching adjacent section of LV cablesPreventing power thefts and pilferages of expensive components Avoiding accidents and right of way issues in narrow and congested lanes,Less outages and immediate restoration of faults

Raychem Wedge Utility Connectors are designed around an engineering principle which we call ‘Wedge Pressure Technology’. Wedge Pressure Technology has formed the basis for a complete family of connectors that outperforms other convectional connector technologies, resulting in ‘lowest life cycle cost’. Wedge Connectors (Boltless Connectors) overcome the physical and electrical limitations of traditional compression or bolted connectors; resulting in low technical losses and efficient, consistent current flow. The Wedge Connectors provide the most cost effective solutions to a wide range of power connections and grounding challenges.

Link boxes are used with cable joints and terminations to provide easy access to shield breaks for test purposes and to limit voltage building up on the sheath. Lightning, fault currents and switching operations can cause over voltages on the cable sheath. The link box optimizes loss management in the cable shield on cables grounded from both sides.

Feature : Compact design Stainless steel 1-phase and 3-phase boxes Sheath voltage limiters (SVL)

nsulation enhancement systems for substations and overhead lines.Designed to prevent unplanned outages due to accidental bridging and to help upgrade insulation levels at critical points in systems. We provide a wide range of LV, MV, and HV products to the world’s electrical utilities, OEM’s, industrial customers and railways. Asset protection solutions help our customers to improve system reliability and prevent costly damage to equipment caused by accidental interphase or phase to ground bridging. Bridging can occur when birds, animals, vegetation, air-bourne debris and even vandalism comes into contact with bare electrical systems in substations, overhead lines and all related equipment. By insulating strategic areas it is possible to eliminate such problems and in areas of growing environmental awareness, such as the protection of endangered species, our insulation products will allow wildlife to come and go without danger of being electrocuted.

Raychem RPG provides one stop, multi-disciplinary solutions to the power industry all over India.Range of Services.Cable route selection and thermal surveys.Cable structure and support system designs.Grounding and sheath bonding designs.EHV cable installation,LV ABC installations,Installation of cable joints and terminations,Cable spiking and hipot testing,Contract maintenance (cable network services)Customized insulation solutions.

Raychem’s range of Hollowcore Bushings is made of glass-fiber reinforced resin tube with silicone rubber housing. The superior material properties are especially adapted for high voltage applications in outdoor service. Composite insulator technology was first introduced more than 30 years ago. Hollow types have been in service for approximately 20 years. The proven advantages of composites over porcelain are well-known and accepted. The relative importance of the technical and logistic advantages will differ depending on the specific application and service conditions

Based on our knowledge and experience in the field of material design, we have pioneered some of the most important technical advances in cable accessory technology. Heat-shrinkable accessories are well accepted for medium-voltage distribution by utilities, equipment manufacturers and industrial users throughout the world. For Twenty-five years, accessories have also been available for 69kV, 72kV, and 84kV transmission-voltages. For higher voltage classes we offer 145 to 170kV prefabricated joints and terminations for indoor and outdoor switchgear and transformers

The High Voltage Installation Tool Box includes all necessary tools for installing Raychem HV cable accessories up to 145kV. With this comprehensive range of tools you will always find the right tool for the job. From simple standard tools to special high voltage tools, the installation tool box offers outstanding quality for a fast and reliable installation. All tools are field tested and chosen by skilled installers.
