The Motwane make XWRM-10 is a dual channel, 10A rated, Transformer Winding Resistance Meter designed and developed after extensive research on challenges and requirements of testing of various Transformer winding resistance. The instrument has One Current channel and two resistance Channels. The instrument provides a large open circuit voltage of 42Volts, for fast charging of the highly inductive windings of transformers, to provide stable resistance values in minimum time. The XWRM-10 is intended to replace complex bridge set up with a single compact instrument. The XWRM-10 is based on 4-wire measurement method to measure low resistance accurately. The instrument is well protected against inductive kickbacks offered by the inductive windings and gives stable reading on various types of transformers. The XWRM-10 is user friendly and easy to operate. The test information is displayed along with real time data on large LCD display with backlit during TEST ON condition. The test cables are provided with specially designed industrial grade heavy duty crocodile clips for better grip and durable performance in harsh conditions. The instrument and the accessories come in trolley mounted heavy duty casings for easy transportation on the fields. Frequent testing of Transformers for winding resistances can yield huge revenue savings, because small increase of winding resistance, leads to huge full load losses.

Feature : Simultaneous display of dual channels for resistance and single channel for current Seven measurement Ranges: 2m Ohm to 2000 Ohm

Material : Fiberglass

Color : Silver , White

Application : Roof , wall covering

Width : 50-100mm , 100- 300mm

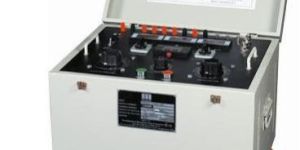

The MOTWANE make secondary injection kit (MOT-SIK) has different models with range of output currents from 25A to 100A. HRC fuse protection is provided for over loads & control circuits. Bright LED indicators are provided for indicating input output status. The SIK comes with adequate air cooling systems. It is having one knob control to select the output current. Separate knob provided for coarse control. The SIK is generally called as Relay test set when used for testing of relays .This can be utilized for current injections during commissioning of protection Relay systems, testing of equipments like Ammeters, voltmeters , transducers, energy meters in power sub stations.25A with 3ph AC output with provision of DC output model is also available.

Feature : Digital meters for display of AC& DC voltage & AC current Digital time interval meter range from 0.0001sec to 9999sec

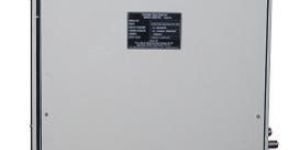

The MOTWANE make primary injection kit (MOT-PIK) has different models with range of output currents from 100A to 3000A.These are well protected with the provision of MCB against OVERLOAD than the rated current. HRC fuse protection is provided for control circuits. Bright LED indicators are provided for indicating input output status. The PIK comes with adequate cooling systems like airoil cooling depending upon the ratings. It is having one knob control to vary output current. The PIK can be utilized for high current injections during commissioning of protection systems, testing after major repairs equipment replacements in power sub stations.

Feature : Digital meters for display of voltage & current Digital time interval meter range from 0.0001 sec to 9999 sec

The Motwane make Contact Resistance Meter (Model:PCRM-200S) is a digital micro-ohmmeter, specially designed to measure extremely low resistances in micro ohm. The Instrument is based on Kelvin 4- wire connection method for measurement of low resistance. The Current injection is 100A200A. Test information like current injected with measured resistance & voltage drop is displayed with real time data on large LCD with backlit. This User friendly Instrument and it's accessories are housed in easy transportation case. Advanced Windows based software is provided for data downloading, analysis and report generation. Internal memory of 99 records is provided for onsite data storage. Thermal printer is the additional feature provided to print the test results.

Feature : Directives for CE Certification: LVD: 2006/95/EC, EMC:2004/104/EC. Relevant Standard Specification (S) : En61010-1,EN61326-1.

The Motwane make Contact Resistance Meter (Model: PCRM-100S) is a digital micro ohm meter, specially designed to measure extremely low resistances in micro ohm. It is having minimum measuring range of 200 µOhm with resolution of 0.1 µOhm. The DC Current injection is fixed at 100A. Test information like current injected with measured resistance & voltage drop in mV is displayed with real time data on large LCD with backlit. Advanced Windows based software is provided for data downloading, analysis and report generation. Internal memory of 99 records is provided for onsite data storage. Thermal printer is the additional feature provided to print the test results. PCRM-100S is specially used to measure static contact resistance of HT circuit breaker contacts, installed in live energised switchyards. High accuracy with Repeatability makes it a reliable tool for Quality Assurance. Typical resistance measurement applications are: Circuit Breaker contact resistance Isolator contacts Bus bar joints Weld joints.

Feature : Tri colour LED for Mains/Battery/LOBAT Date & time display

The MOTWANE make OIL TEST SET (MOT-OTS) are used to verify the quality of the insulation oil used for circuit breakers, transformers. The insulating oil provides the insulation under high voltage potentials. The di-electric strength of insulating oil measures the ability of the oil to withstand the electrical stresses without failures. Any severe reduction in the value of the di-electric, will no longer allow the insulating oil to perform its role & equipment is subjected to failure. We have the different models with range of output voltages from 60KV to 100 KV, as per the requirements.

M65 Dual display Trms white backlit digital multimeter with high accuracy is specially designed in our research laboratory and manufactured under stringent manufacturing processes for R&D and process industries. M65 comes with µA range and DCV accuracy of 0.25% which will help you deal with HVAC and sensor outputs. It comes with CAT III1000V and IP-54 protection.

Feature : Auto ranging, Trms AC voltage and current measurement. Current range from µ A.

M63 is specially designed industrial grade Trms digital multimeter in our research laboratory & manufactured under stringent manufacturing process for wide range of applications like Power generation, Power distribution, Power transmission, Steel Industries, Cement Industries, Mining Industries, Power Electronics Industries, Heavy Engineering Industries, and Defense Sector & Aviation Sector. M63 is a high performance multimeter with high safety, linearity and reliability. Excellent noise immunity to disturbances from energized power lines, with CAT IV & IP-54 protection.

Features : Auto ranging, Trms AC voltage and current measurement. Resistance, Capacitance, Frequency,mV ,mA ,Diode and Continuity measurement facility.

Specially designed in our research laboratory & manufactured under stringent manufacturing processes for Service Industries, SMEs, OEMs and Educational Institutes. M42 is the most reliable & efficient measuring instrument with CE, CAT III & IP54 certification along with a calibration certificate traceable to national standards and a standard warranty.

Feature : Selectable frequency and duty cycle measurement. SELECT, RANGE, HOLD/LIGHT, REL, MAX/MIN measurement facility. 40 position Analog bar graph for trend indication.

Specially designed in our research laboratory and manufactured under stringent manufacturing process for Electrical Contractors , Service Industries , SMEs and Educational Institutions . M41 is the most reliable and efficient measuring instrument with CE , CAT III and IP54 certification along with a calibration certificate traceable to national standards and a standard warranty.

Feature : Temperature measurement facility. Selectable frequency and duty cycle measurement.

pocket-sized, general purpose, handy Digital Multimeter. M21C handy comes with the trustworthy Motwane reliability, 2400 counts, Basic accuracy of 0.5%, Voltage measurement up to 1000V DC750V AC, Current measurement up to 10A ACDC, Resistance measurement up to 24MOhm, CE and CAT II 600V protection. In addition to the standard DMM features such as measurement of basic Power parameters – V, A & R, M21C handy also offers capacitance, frequency, and duty-cycle measurement, Diode & Continuity Testing with audio-visual indication, addressing a wide range of general purpose, low voltage applications. M21C handy is provided with a magnet which enables the user to stick the multimeter on to a metallic surface and perform handsfree operations.

Features : 0.5% basic Accuracy, 2400 Count LCD display with large digits for easy visibility Voltage range up to 1000V DC/750V AC AC/DC current range up to 10A

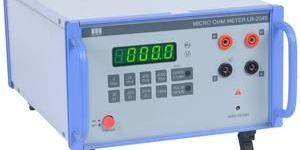

412 digit LED display. Resolution 0.1 micro-ohm on 2 milli-ohm range.Mains cum Battery operated. True 4-wire resistance measuring technique eliminates lead resistance errors inherent in 2 wire systems. Pulse mode operation

412 digit LED display. Resolution 0.1 micro-ohm on 2 milli-ohm range. RS 232 PC Interface. True 4-wire resistance measuring technique eliminates lead resistance errors inherent in 2 wire systems. Pulse mode operation.

Feature : 41/2 digit LED display Resolution 0.1 micro-ohm on 2 milli-ohm range RS 232 PC Interface

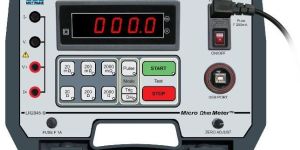

The Motwane LR 2045-S is a 4 ½ digital micro-ohm-meter, capable of measuring low resistance with 1micro-ohm resolution. It employs the proven 4-wire (4W) measurement where fixed DC current is supplied to DUT and voltage drop across the DUT is measured and displayed as proportional resistance reading. The meter is able to deliver guaranteed stable readings on inductive as well as resistive loads.

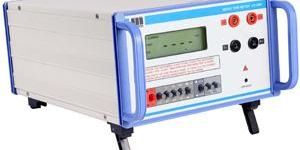

312 Digit LCD Display. Resolution 1 m ohm on 2 ohm range. Battery operated.Ratiometric Measurements. Gold plated terminals for low thermal effect. Fully protected against reversal of battery polarity and over loads. 'PUSH TO READ' Switch for additional safety.

Feature : 31/2 Digit LCD Display Resolution 1 m ohm on 2 ohm range Battery operated.Ratiometric Measurements

The Motwane had been offering comprehensive range of products designed in-house catering multiple segment of power and energy sector. Being pioneer in insulation testing the IT250G SPOT is a 5KV voltage selectable digital insulation tester measures digitally and also in analog. It is a battery operated most compact device made to give stable and reliable performance in energy intensive area. Auto power off enhance battery life and pleasant amber backlit allows user to work in dusk environment also. It is ideally suited for many troubleshooting, installation & commissioning in electrical Substations and preventative maintenance on both domestic & industrial applications. IT250G is an ideal suited for onsite testing.

The Motwane IT-51 is a microprocessor based Digital Insulation tester designed for testing of all types electrical installation like transformers, switchgear, motors, generators and utility substation equipments. The instrument automatically performs Polarization index by selecting PI mode. IT-51 has a large LCD blue backlit display, it shows leakage current in scrolling form along with IR value and PI value. It is rechargeable battery operated and AC mains provision for battery charging.

MOTWANE's Insulation Tester Model i-12 is a compact, light weight, hand held and battery operated digital insulation tester. It is a 1kV insulation tester with maximum range of 2 GOhm for Insulation Resistance Measurement. The i-12 instrument with digital and analog display designed predominantly for low voltage insulation resistance testing in maintenance and servicing. This involves the applications like cables, rotating machines, LT transformers, switchgears and industrial installations. It has selectable range of test voltages of 50V, 100V, 250V, 500V and 1000V. i-12 has store and recall facility for 10 readings. The Insutester is provided with additional low resistance measurement and ACDC voltage measurements also. It is designed to suit the extreme environment conditions.

Features : CE mark conforming to latest EN 61010-1:2010 EN 61326-1:2005, CAT IV 600V, IP54 protection

The High Voltage Detector is a SAFETY DEVICE used to verify that the overhead line is not LIVE prior to earthing. It is suitable for 230V- 440KV supply lines. It is powered by a single 9V battery. The HV Detector is continuous monitoring type i.e. the internal circuit of the equipment is continuously powered by the battery and it keeps monitoring the voltage level at the contact electrode. As soon as the voltage at the contact electrode exceeds minimum user defined voltage level, the HV Detector starts annunciation with flashing Red LED's and buzzer beeps indicating that the line is LIVE and not safe to earth.

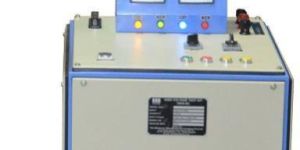

The MOTWANE make HV TEST SET (MOT-HTS) are used to verify the quality of the insulation between the conductor & its insulation or enclosure .we have different models with range of output voltages from 5KV to 70 KV ACDC. The MOT–HTS comes with adequate cooling systems like airoil cooling depending upon the ratings.There is HRC fuse protection is provided for control circuits. Bright LED indicators are provided for indicating input output status. It is having one knob control to vary output VOLTAGE. The mode of operation is manual or motorized The digital analog KV meter, mA meter is provided for proper measurements. Zero interlocking facility is provided for safety Power utilities, motor, generators transformer, cables, bus bars are the application areas of the H.V. testers.

Feature : Digital/ analog meters for display of voltage & current Built in Digital Timer for measurement of tripping time

Material : Fiber yarn

This is 3 ½ digit industrial grade average digital multimeter powered by single 9V battery which is heavy duty shock, dust and drop proof fully protected on all voltage, current and resistance ranges against accidental overload voltages upto 415 V AC with unique basic accuracy of 0.25% on DC voltage.

Feature : 3 ½ digit LCD display Heavy-duty shock, dust and drop proof Overload protection upto 450 V AC on all ranges

This is an economy range general purpose average digital multimeter 3 ¾ digit auto ranging with large LCD display , automatic polarity & low battery indication. It has AC voltage upto 750V & DC voltage upto 1000V with input impedance of 6 M? in manual mode and AC DC current measurement upto 10A with microamperes range present, Resistance measurement upto 32 M?. & Capacitance measurement upto 32?F with continuity and diode measurement functions. It has CE CAT II 600V certified for safety.

Feature : 33 Segment Bar graph display Auto AC/DC Amp.Selection Auto AC/DC Volt selection
