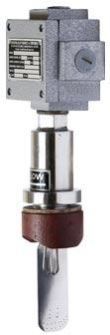

Principle of Operation   Liquid flows in either direction deflects the paddle, which with a pivoting cam moves a permanent magnet equipped Teflon shuttle along the unit stem. The magnet actuates the hermetically sealed switch within the stem to operate remote alarm or indicator.           Material specification   Customized suiting to the service (fluid) and temperature, Available in SS 304/ SS 316 / CS etc

    Principle of Operation These tubular gauge glass valves represent years of experience in the manufacture of gauge valves and offer variety of types of connections to suit all requirements. All have forged bodies with stainless steel trim. All carbon steel parts are rust proofed inside and out. The highest quality borosilicate tubular glass is furnished as original equipment.           Material specification   Customized suiting to the service (fluid) and temperature.Available in SS 304/ SS 316/ pp/ pvc/ hdpe/ pvdf/ ptfe etc.

  Principle of Operation   Here in this case this indicator is used as a direct local level indicator mounted on the top of the vessel or RCC tank. The float is made out of SS304/ SS316/ PP/ PVDF/ PTFE/ PVC etc. As the level inside the tank rises the float, which buoys up, moves the connecting pipe to the region of visibility on top.For Transmitter TypeThe magnet holder attached on top of the connecting stem of the float buoys up along with the level rise and it cuts in or out a series of resistors kept sealed outside the level           Material specification   Customized suiting to the service media and op. conditionsAvailable in SS 304/ SS 316/ PP/ PVC/HDPE/ PVDF/ PTFE etc.

Automatic Grade : Manual

Application : Testing Water Level

Feature : Accuracy, Easy To Fit

Display Type : Analog

Principle of Operation   When the level rises above the actuation point the float buoys up along with the level rise and actuates the magnetic switch which is kept inside the stem. The closure of the switch can operate a contactor orrelay to indicate the level rise or decrease.           Material specification   Customized suiting to the service (fluid) and temperature. Available in SS 304/ SS 316/ pp/ pvc/ hdpe/ pvdf/ ptfe se.

top mounted float operated suspended and tilting float switches   principle of operation   a pear shaped float weighted at its upper end is suspended inside  a vessel on the end of a flexible cable. as the liquid level rises the lower end of the float is supported by the fluid, the float tilts and operates a micro switch inside it (not a mercury switch)   material specification   customized suiting to the service (fluid) and temperature.available in ss 304/ ss 316/ pp/ pvdf

Side Mounted Magnetic Level Switch Linc Type Principle of Operation This system has a side mounted flange. Float is fabricated out of the material suiting the service or fluid in the vessel When the level rises above the actuation point The float buoys up along with the level rise and actuates the magnetic switch which is kept inside the stem. The closure of the switch can operate a contactor or relay to indicate the level rise or decrease.   Material specification Customized suiting to the service (fluid) and temperature. Available in SS 304/ SS 316/ pp/ pvc/ hdpe/ pvdf/ ptfe etc Material of the flange cs/ ss/ pp /pvc/ hdpe/ pvdf/ ptfeAvailable with flameproof and weatherproof enclosure

We offer side mounted level switch magnetic repulsion type. This system has a side mounted flange. Float is fabricated out of the material suiting the service or fluid in the vessel when the level rises above the actuation point the float buoys up along with the level rise and actuates the magnetic switch which is kept inside the stem. The closure of the switch can operate a contactor or relay to indicate the level rise or decrease.

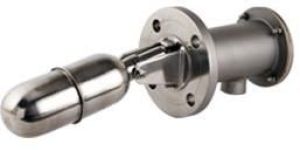

Side Mounted Level Switch Magnetic Repulsion Type Principle of Operation This system has a side mounted flange. Float is fabricated out of the material suiting the service or fluid in the vessel When the level rises above the actuation point The float buoys up along with the level rise and actuates the magnetic switch which is kept inside the stem. The closure of the switch can operate a contactor or relay to indicate the level rise or decrease. Material specification Customized suiting to the service (fluid) and temperature. Available in SS 304/ SS 316/ pp/ pvc/ hdpe/ pvdf/ ptfe etc Material of the flange cs/ ss/ pp /pvc/ hdpe/ pvdf/ ptfeAvailable with flameproof and weatherproof enclosure

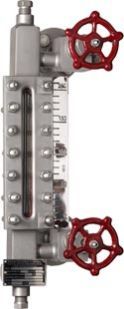

      Principle of Operation The liquid level is distinguished by the different brightness of the reflex glass is the media or in the stream/empty space. In fact where is liquid in contact with the glass, the incidental light is refracted to inside of the gauge and absorbed. Due to the above fact we get a black color indicating the level of liquid. But with the steam space above the liquid media appears very bright indicating the demarcation between liquid and empty space.     Material specification     Customized suiting to the service (fluid) and temperature, Available in SS 304/ SS 316/ pp/ CS etc

  Principle of Operation   The pull cord switch is used as a rope operated safety tripping switch for conveyor belts, i.e. When the rope is pulled the lever of the pc unit is operated which in turn, actuates a switch, thereby the conveyor is stopped. The switch lever will be manual reset type.

Country of Origin : India

Type : Pull Cord Switch

Material : Metal

Shape : Rectangular

Application : Electronic Switching

Color : Grey

Feature : Easy To Fit

Condition : New

Surface Finishing : Coated

Warranty : 1yesr

Puncture Voltage : 5amp

Brand Name : REVATHI

B] Flow Switch Piston Type and Paddle Type       Principle of Operation   These flow switches operate on the principle of flow and they are piston operated. As the flow decreases i.e less than the set value the contact open vice versa to operate an alarm or indicator or to the device           Material specification   Customized suiting to the service (fluid) and temperature,Available in SS 304/ SS 316

External Cage Type Single Stem Or Multipoint Level Switch   Principle of Operation This is a float operated or displacer operated top mounted level switch having a single float for low and high operation enclosed inside a cage having side- side connection to process tank. When the level rises above the actuation point the float buoys up along with the level rise and actuates the magnetic switch which is kept inside the stem. The closure of the switch can operate a contactor or relay to indicate the level rise or decrease.     Material specification Customized suiting to the service (fluid) and temperature.Available in SS 304/ SS 316/ pp/ pvc/ hdpe/ pvdf/ ptfe

Economical Top Mounted Float Operated Level Switch Used By Gen Set Manufacturers   Principle of Operation   When the level rises above the actuation point the float buoys up along with the level rise and actuates the magnetic switch which is kept inside the stem. The closure of the switch can operate a contactor or relay to indicate the level rise or decrease.

Thickness : 6.0mm, central hole- 55 Ø id

A] Sight Flow Indicator       Principle of Operation   The different types are double window full view plain, Flapper, drip tube, rotator type.           Material specification   Customized suiting to the service (fluid) and temperature, Available in SS 304/ SS 316/ pp/ CS etc

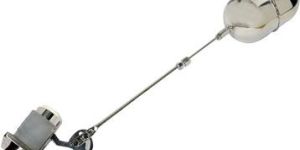

Principle of Operation   Self actuated level control float valve           Material specification   Customized suiting to the service (fluid) and temperature, Available in SS 304/ SS 316/ pp/ CS etc

We offer float type level transmitter. This is a level transmitter – employing magnet embedded float. The magnet embedded floats bouys up alongwith the level rise and it cuts out a series of resistors kept sealed inside a stem. The output which is current signal of 4-20 ma is transmitted to remote area i.e. Say pump room or control room.

External Cage Type Float Operated Magnetic Level Switch Side-Side Connection With Externally Adjustable Switches   Principle of Operation This is a float operated level switch having a single float for high or low operation enclosed inside the cage having side-side connections to process tank. Here the float which carries the magnet moves up and down sensing the level increase or decrease inside the external chamber. These switches are externally fitted i.e. they are clamped outside the chamber pipe. These switches are latching type and they are either reed or micro type. Once the float moves up due to level rise while exceeding the actuation points the float magnet actuates the switch i.e. (nc to no). It remains as no contact because of the latching arrangement inside the switch though the level continues to rise to the maximum. When the level drops lower than the set point the contact changes though the level goes down even to its lowest position such as even to zero position.     Material specification Customized suiting to the service (fluid) and temperature.Available in SS 304/ SS 316/ pp/ pvc/ hdpe/ pvdf/ ptfe etc

Country of Origin : India

Shape : Rounded

Color : Grey

Design : Standard

AC & DC Voltage : 220V

Mechanical Life : 1 Year

No Of Switch : 2 Switch

Switch Operation : ON/OFF

Surface Finishing : Power Coated

Packaging Type : Box

Measuring Range : 0-1000

Float Diameter : 38 DIA

Temperature Range : 100

Electrical Approvals : YES

Operating Temperature : 120

Thickness : 1.2mm

Switch Positions : 2

Working Pressure : 10

Process Temperature : 150

Application : For Water Tanks

Material : Stainless Steel

    Principle of Operation   This is a level transmitter – employing magnet embedded float. The magnet embedded floats bouys up alongwith the level rise and it cuts out a series of resistors kept sealed inside a stem. The output which is current signal of 4-20 mA is transmitted to remote area i.e. say pump room or control room.

Side mounted float type level switch for low oil level measurement equivalent to sika german   Principle of Operation This instrument has a side mounted screwed process connection of 3/4” BSP (m). Float is fabricated in accordance with the service or fluid. When the level rises above the actuation point. The float buoys up along with the level rise and actuates the magnetic switch which is kept inside the stem. The closure of the switch can operate a contactor or relay to indicate the level rise or decrease.     Material specification Available in SS and Brass

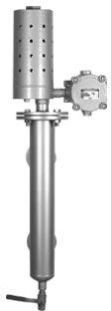

We offer External Cage Type Single Stem. This is a float operated or displacer operated top mounted level switch having a single float for low and high operation enclosed inside a cage having side- side connection to process tank. When the level rises above the actuation point the float buoys up along with the level rise and actuates the magnetic switch which is kept inside the stem. The closure of the switch can operate a contactor or relay to indicate the level rise or decrease.

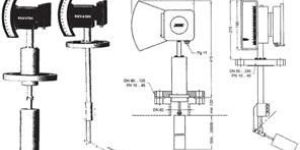

Principle of Operation   Revathi-Helios Level Transmitters are having 2 systems i.e. The immersed body displacer and high grade instrument combination with electronic angle transmitter. The rotation of the extended pointer shafts picked up contactless by a capacitive bridge amplified and converted with an impressed standard signal. In combination with a intrinsically safe power pack the transmitter satisfies the explosion safety regulation may be employed in the rooms. where there is an explosion hazard.       Material specification       Customized suiting to the service (fluid) and temperature, Available in SS 304/ SS 316/ pp/ CS etc

Top Mounted Displacer Type Level Switch With Or Without Guide Pipe   Principle of Operation Operation is based on a buoyancy principle where by a spring is loaded with weighted displacers which are heavier than the liquid under control. Immersion of the displacer in the liquid results in a buoyancy force change, producing a spring load  reduction which moves the spring there by actuating the magnetic switch which is kept inside the stem     Material specification Customized suiting to the service (fluid) and temperature.Available in SS 304/ SS 316/ pp/ pvdf/ hdpe etcAvailable with weatherproof or flameproof enclosure.

We offer conductivity type level switch. The electronic circuit of a level control unit is connected to one electrode and to the wall of metal or steel container. Once the liquid in the container has reached the level of electrode, the control circuit between electrode and container wall is closed via the electrically conductive liquid there by activating the output relay. The control circuit is galvanically isolated from the mains by an isolating transformer and thus the use of an additional electrode is eliminated.
