RIDDHI PHARMA MACHINERY LTD Andheri East, Mumbai, Maharashtra

VOLUMETRIC BOTTLE FILLING MACHINE (DOUBLE HEAD)      Description:      Semi Automatic Volumetric Liquid Filling Machine is precision built on sturdy welded frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Working on volumetric principle. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body   Operation:       Containers have to place manually below the filling nozzle at platform of machine. Where motor operated syringe fill desire pre set volume in container, bottle guide are provide for precisely match for centering of container below nozzle, to avoid spillage of liquid on container. The dosing block with a hexagonal bolt fitted below syringe. This means fill size can be easily set.   Electrical:            Main Machine:- 1 HP Three Phase motor /415 Volts / 50 Hz.   Filling Range:           100 ML -1000 ML    Net Weight:                           120 Kg.   Gross Weight:                       275 Kg.   Machine Dimension:         650mm (L) x 900 mm (W) x 950mm (H)   Salient Features:           Semi-Automatic with filling range. ± 1% Filling accuracy on single dose. Three different speeds depending upon capacity of bottles.                                     Body covered with SS304 sheet. All contact parts SS 316 A unit to fill variety of liquid and can be used for various type of containers. Minimum change over time from one size to another container or fill size.     Optional Features:      Change parts Extra                                    Storage Tank Extra   Utility Requirement:                 Electrical Supply:- Single Phase+Neutral+Earthing

Vibro Sifter Sieves    We manufacture Vibro Sifter and Mechanical Sifter Sieves. We manufacture 1. Lead Free Silicon Moulded Vibro Sifter Sieves 2. Non Lead Free Vibro Sifter Sieves Enquiry

Salient Features Simplified design & construction which is trouble shooting maintenance free. All contact part are from S.S. 316 & rest from S.S. 304. for dust free system, gaskets can be used at in feed mouth & at the out let mouth of this sifter. Vibro motor gives trouble free performance for much longer time & so it is better than mechanical sifters. Removal of sieve is very easy as there are user friendly clamps for change of sieve for chamber. Ease of cleaning. Castor wheel which are PU coated (optional) with S.S. brackets & thrust bearing ensure easy movement of Vibro sift in the production area. Low power consumption compared to other vibrating system.

Weight : 6000kg

Voltage : 220V/380V

Power : 0.75 Kw

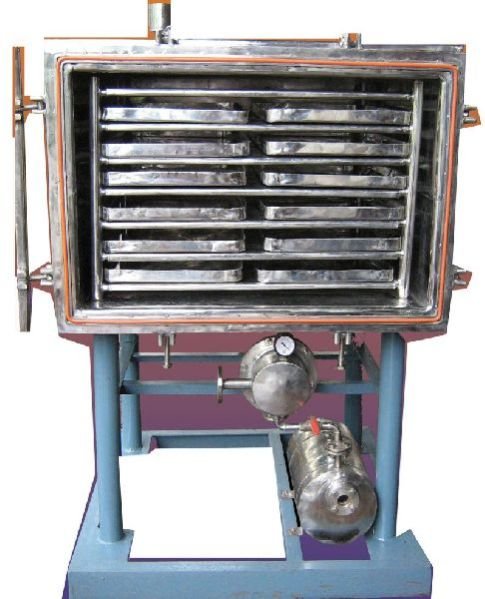

FUNCTIONUsed mainly for drying of high grade, temperature and oxygen sensitive products. Highly suitable for drying hygroscopic substances, which are dried to very low residual moisture, content level. Frequently vacuum drying cabinets are the sole possibility for drying lumpy, glutinous products or products of low pomposity.SALIENT FEATURESBodies may be of cylindrical or rectangular cross section. Both shelves and body are heated (the body to prevent internal condensation) with controlled circulation of hot water, steam or dia thermic fluid. Vacuum is drawn through large diameter ducts to minimize pressure drops and produce minimum working pressures. Both rotary and static dryers can be supplied with the following Optional ancillaries. Heater system for either pressurized hot water or dia thermic fluid. Cyclones and sleeve filters for powder recovery (for rotary dryers) Solvent recovery system with condenser and receiver, vacuum pump and ancillaries, characteristics and dimensions depending on the drying processes. Vacuum Tray dryer is the most commonly used batch dryer. They are box-shaped and loaded and unloaded via a door (two doors on the larger models). Inside are several heating plates mounted one above the other on which the product is placed in trays. The bottoms of both heating plates and trays should be as smooth as possible to permit optimal heat transfer between plates and product. The medium flowing through the heating plates is water, steam or thermal oil.Features All contact parts are made out of SS304 / SS316 / SS316L quality material in GMP models and mild steel externals with stainless steel internals in standard model Hollow pad type heating shelves which are easily removable for maintenance Condenser and condensate receiver fixed on the dryer body or stand alone for remote installation Full welded skirt on vacuum dryer body for flush mounting through the wall. External fluid heating of dryer with protective panels in stainless steel or mild steel powder coated. Dedicated fluid heating and circulating systems. These can be steam or electrically heated. Fluid heating systems are available for water as well as thermic fluid (for temperature requirements above 95 oC) Validation ports and nitrogen purge nozzles Can be designed to customers specification requirements Steam sterilisable models available Double door loading available for large models Halar lined internals for corrosive applications

Application : Industrial, Pharamaceutical

Weight : 100-200kg, 200-300kg, 300-400kg, 400-500kg

Color : Brown, Grey, Light White

Voltage : 110V, 220V, 380V, 440V

Condition : New

Automatic Grade : Automatic, Fully Automatic, Manual, Semi Automatic

Driven Type : Pneumatic, Electric, Hydraulic, Mechanical

Warranty : 1year

Power : 1-5kw, 15-20kw, 5-10kw

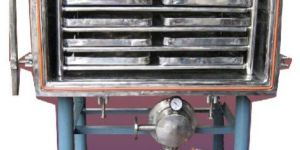

FUNCTION  Used mainly for drying of high grade, temperature and oxygen sensitive products. Highly suitable for drying hygroscopic substances, which are dried to very low residual moisture, content level. Frequently vacuum drying cabinets are the sole possibility for drying lumpy, glutinous products or products of low pomposity. CAPACITY Standard models range from 4 trays to 48 trays. SALIENT FEATURES Bodies may be of cylindrical or rectangular cross section. Both shelves and body are heated (the body to prevent internal condensation) with controlled circulation of hot water, steam or dia thermic fluid. Vacuum is drawn through large diameter ducts to minimize pressure drops and produce minimum working pressures. Both rotary and static dryers can be supplied with the following Optional ancillaries. Heater system for either pressurized hot water or dia thermic fluid. Cyclones and sleeve filters for powder recovery (for rotary dryers) Solvent recovery system with condenser and receiver, vacuum pump and ancillaries, characteristics and dimensions depending on the drying processes. Vacuum Tray dryer is the most commonly used batch dryer. They are box-shaped and loaded and unloaded via a door (two doors on the larger models). Inside are several heating plates mounted one above the other on which the product is placed in trays. The bottoms of both heating plates and trays should be as smooth as possible to permit optimal heat transfer between plates and product. The medium flowing through the heating plates is water, steam or thermal oil.     The distance between the heating plates is determined primarily by the surface loading and the foaming of the product. To void retrograde condensation the cabinet walls are indirectly preheated by the heating plates. Next, the product is introduced and heated at atmospheric pressure. Only after all individual product trays reach the same temperature the cabinet is evacuated and drying can start. The  preheating phase is very important in order that the drying curve and the foaming of the product is identical throughout the cabinet. During the main drying phase the vacuum is in the range of 40 to 80 mbar abs and in the final drying phase vacuums of only few mbar abs are reached. Heating temperatures are normally in the range between 800C and 1100C. Depending on product and surface load, drying takes from a few hours to 1 to 2 days. For some products the vacuum and temperature profiles are automatically controlled in order to prevent a pass over of the critical product temperature. factor in the design of drying cabinet systems. If for example vigorous foaming of the product is desired, evacuation to the operational vacuum level must take place very quickly. Vapors produced during drying are taken out direct, or via a steam jet compressor to a surface condenser in which the vapors condensate. The non-condensable vapors are extracted by the vacuum system. On completion of the drying, the product can be cooled by circulating of cooling water through the heating plates. Features: All contact parts are made out of SS304 / SS316 / SS316L quality material in GMP models and mild steel externals with stainless steel internals in standard model Hollow pad type heating shelves which are easily removable for maintenance Condenser and condensate receiver fixed on the dryer body or stand alone for remote installation Full welded skirt on vacuum dryer body for flush mounting through the wall. External fluid heating of dryer with protective panels in stainless steel or mild steel powder coated. Dedicated fluid heating and circulating systems. These can be steam or electrically heated. Fluid heating systems are available for water as well as thermic fluid (for temperature requirements above 95 oC) Validation ports and nitrogen purge nozzles Can be designed to customers specification requirements Steam sterilisable models available Double door loading available for large models Halar lined internals for corrosive applications

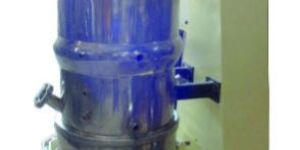

Riddhi Vacuum Batch Cooker is suitable for Candy Batch Manufacturing. Now a days Toffee Batch is also prepared in Vacuum Cookers. The material is cooked in upper pan and after cooking the same is discharged into lower pan for vacuum and remove the moisture from the Batch.

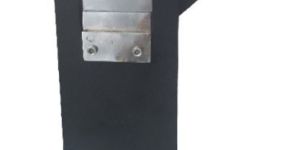

We manufacture Hand Operated tube crimping machine or closing machine. Which is suitable for closing of 3 grams to 25o grams tube. Batch coding is also available in option.

Triple Roller Mill built on M. S. angle frame with S. S. Cladding, Fabricated Gear Housing and reduction gear box with motor for jerk less and noiseless performance.   Triple Roller Mill is useful to insured total synchronization uniform flow of material and to fine the material at required quality.   The machine consists of following sub-assemblies.     Structure: This structure is built on M. S. angle frame and the SS covered. Gear Housing: It is made from S. S. 304 sheet.  It is providing with Hand wheel for adjusting rear and front rollers are conveniently suitable on the bilateral gear housing. Roller: The three horizontal precision ground hard chrome rollers made of S. S. with uniform thickness throughout the entire length of the grinding area. Scraper Blades: The side scrapers are made of Nylo-Cast. The side scrapers are fixed with charging hopper and expediently designed discharge scraper.

Voltage : 440 VOLTS

Weight : 350 KGS

Warranty : 1 YEAR

Riddhi manufactures a various types of transfer pumps like centrifugal and lobe pumps. The centrifugal pump is suitable for transferring free flowing non viscous liquids, while the lobe pump is highly suitable for transferring highly viscous liquids like ointments, creams, glycerin, etc. the pumps are available in various output capacities and heads depending on requirement. The pumps are fitted with mechanical seal to give leak proof and trouble free operation.  Enquiry

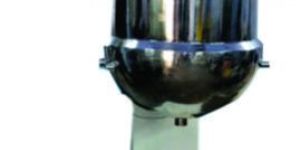

Riddhi toffee plant Cooker which is particularly meant for processing toffee. The material after processing is discharged through a hand wheel. toffee plant is used for making toffee batch. They have a capacity of 100200kg Batch in period of 30-35 minutes. The steam working pressure of our product is 120 Lbs. Sq. In and had a drive Stirrer of 2 H.P. A.C. Our product is available in the dimensions of 1500 mm X 1000 mm X 2200 mm. The net weight of our product is 700kg and Stirrer Speed is45-90 RPM.

Riddhi Toffee Cooker which is particularly meant for processing toffee. The material after processing is discharged through a hand wheel. Toffee cooker is used for making toffee batch. They have a capacity of 100200kg Batch in period of 30-35 minutes. The steam working pressure of our product is 120 Lbs. Sq. In and had a drive Stirrer of 2 H.P. A.C. Our product is available in the dimensions of 1500 mm X 1000 mm X 2200 mm. The net weight of our product is 700kg and Stirrer Speed is45-90 RPM.

Weight : 800 KG. Approx

We are offering tablet press. Riddhi press iv gmp model � 51d/61b/75bb/81 bb stn available models : 45 stn. D - tooling 55 stn. B-tooling 61 stn. Bb-tooling 75 stn. Bb-tooling salient features it is a high speed rotary tablet press for higher table output, suitable for large batch production. Machine is having a square design with total consideration of gmp standards. All the tablet parameters can be fine tuned during the operation of the machine from front side which are at outside the machine, having seiko type dials. The machine is having elegantly designed cabinet top of ss-304. The machine is having round hoppers of ss-304 with butterfly valve. The machine is having pre-compression feature. The machine is equipped with a.c. Variable frequency drive for the main motor. Machine is also having a.c. Variable frequency drive for force feeding motors, which enables operators to synchronize machine�s speed & feed both. The machine is having electromagnetic clutch arrangements. The machine is having one piece turret of special grade casting. However, three piece turret with ss-304/ss-316 middle plate is also available (optionally). Electro less nickel plating can also be available to the turret (optionally). Lower punch seals are provided at lower punch hole in turret (optionally). The machine is having helical gear ring to drive the turret. The machine is having hard chrome plated, ms fabricated upper roll carriers. The machine is having ball bearing type upper & lower pressure rolls. The machine is having specially designed pressure link assly. Which ensures sufficient & equal pressure to the tablets. The machine is having tablet weight consistency. The machine is having sturdy aluminium section framed, polycarbonate guards with ss hinges & handle & are also fitted with gas filled � shock absorbers. The lower guard of the machine are of ss-304 material having excellent matt finish. All guards are interlocked for safety. The machine is having auto lubrication system. There is no colour part in tablet manufacturing zone & all other parts are either of ss-304 material or gunmetal or of hard chrome plated. All hardware are used of ss-304 quality in tablet manufacturing zone. The machine is having box type detachable control panel having all electrical controls on the top. Acrylic cover is also provided to protect the controls from the dust. The machine is having center drive type gear box. The machine is having hydraulic power pack for pressure loading and overload release. A hydraulic gauge is also provided on lower guard for easy view. The machine is having anti vibrating mounts. The machine is having excellent bottom driven force feeding system for material feeding. However, gravity type feeding also can be provided. (optionally) two layer attachment can also be provided. (optionally) the machine is having excellent paint, inside wherever it is required. The machine has been designed as to minimize the change over time. The weight adjustment section is easily removable which provides good access for the removal/replacement of lower punches & dies, away from compression zone. The hand wheel is conveniently located for indexing the turret during tooling change over with single operator. The machine is having specially designed dust extractor nozzle which can be connected with the dust extractor, away from machine. The machine is having elegant look & operator friendly design and is manufactured in such a manner that it gives all satisfaction to the operator while in the production. The machine are backed by excellent after self service. technical specifications : models rdivd-45 rdivb-55 rdivbb-61 rdivbb-75 tooling d b bb bb no . Of stations 45 55 61 75 max . Output(tab/hr) 325,000 396,000 497,000 540,000 max . Oper. Pressure(main) 100 kn 65 kn 65 kn 65 kn max . Operating pressure(pre-comp.) 10 kn 10 kn 10 kn 10 kn max . Tablet dia 25 mm 16 mm 11.1 11.1 max . Depth of fill 20 mm 17.4 mm 17.4 mm 17.4 mm upper punch entry 2 to 8 mm 2 to 8 mm 2 to 8 mm 2 to 8 mm main motor 10 hp / 7.5 kw / 3 phase / a.c. Force feeder motor 0.25 hp / 8.75 kw / 3 phase / a.c. Total power cons. 12 hp / 8.75 kw / 3 phase / a.c. Overall dimensions 172 x 162 x 192(h)(cms.) approx. Net weight 3750 kgs. Approx.

Brand Name : RIDDHI

High-speed visual inspection with high output. Both coated and uncoated tablets & caplets of all sizes can be inspected.Imported endless nylon belt.Magnifying lens provide for better viewing. Angular guieds provided on the edge of the Conveyor make tablets to rotate to inspect the tablet edge.

Machine Weight : 1000-2000kg, 2000-3000kg, 3000-4000kg

Voltage : 110V, 220V, 380V, 440V

Condition : Used

Warranty : 1year

Material : Iron, Stainless Steel., Mild Steel

Usage : Industrial

Specialities : Good Quality

Strip Packing Change Parts    We Manufacture Strip Packing Change Parts for all Model and Make of Machines. Please send us your enquiry with following details 1. Model No. 2. Make of the Machine 3. Image of the machine 4. Year of Manufacture 5. Tablet diameter and hieght with drawing 6. Capsule size 7. how many track Enquiry

Warranty : 1year

Speciality : Easy operation

Driven Type : Electric

Certification : CE Certified

Automation Grade : Fully Automatic

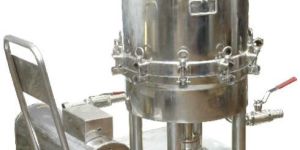

Principle of Operation   Liquid is pumped through the central channel of the cartridge from the bottom of the body. Suspended particles are retained on the filter media resting on the filter plate. Clean filtrate emerges out from the peripheral holes of the plate, into the tank and comes out from the bottom outlet. Filter tank wall does not come in contact with the un-filtered liquid, hence remains clean.     Feature of Reverse Flow Model     Zero Hold Up of filtrate with out scavenging operation. Tank does not come in contact with unfiltered liquid, hence remains clean. Fast & easy removal of filter plate cartridge due to top dome design. Hence easy removal of cake.Uniform filter cake & aid distribution. Higher working pressure possible.     Horizontal Plate Sparkler Filters     The horizontal sparkler type filter is the most versatile filtration system for solid – liquid separation. It can also be used apart from filtration, with the help of filter aids for giving a sparkling effect to the liquids filtered. The filters are most suited for the filtration of products for the pharmaceutical, chemical, distillery, beverage, ink, oil and other allied industries. It is available in different output capacities with a variety of pumps to suit individual requirements. Horizontal Plate Sparkler Filters:- horizontal sparkler type filter is the most versatile filtration system for solid – liquid separation and available in different output capacities.   Horizontal Plate Sparkler Filters   Construction The filters are made out of Stainless steel in S.S. 304, 316 & 316 L qualities. The cartridge assembly consists of a number of disc type filter plates with perforated support screen, filter media and interlocking cups placed one on top of the other and supported at the bottom by a cartridge plate. The entire assembly is held together with the help of side tie rods which are of ‘T’ type construction for longer life. The filter together with the pump and interconnecting piping is mounted on a sturdy base cladded with S.S. sheets and provided with castors for movability. The filter can also be supplied without pump, where external positive pressure is available.     Operation         The liquid to be filtered is passed into the vessel by means of the pump or other external means. The liquid then passes through the top of the filter plates from the holes provided at the side of the plate and onto the filter media. The liquid flows simultaneously and individually through all the member plates. Hence the output of the filter depends on the diameter and the number of plates. The filter media then retains the impurities in the liquid and the filtered liquid passes through the central channel to the outlet at the bottom. The filters are optionally available with steam jacket for filtration of difficult liquids that solidifies at lower temperatures. These types of filters are generally used for obtaining clear filtrate, but it can also be used to obtain the cake that is retained on the filter media, between the plates.   Salient Features     The complete filter plate is manufactured by cold process. The sealing of the filter plate is done by the spinning process for better sealing. The cartridge assembly is provided with ‘T’ type side bolts for longer life. The filters are provided with gear/centrifugal/lobe pumps fitted with mechanical seals as per requirement.  Optionally available with steam jacket for heating of liquids at the time of filtration.       Scavenging Operation   The unfiltered liquid remaining inside the shell at the end of filtration can be filtered by scavenging operation, opening the single plate valve and applying pressure from the vent using compressed air or nitrogen / inert gas, so that even the last drop of unfiltered liquid passes through the bottom plate. It is available in 14” & 18” Dia models as a standard and can be provided in 33” Dia model on request.

Condition : New

Color : Blue

Capacity : 20-40 TABLETS PER MINUTE
