ROBOTIC EQUIPMENTS Jogeshwari West, Mumbai, Maharashtra

  Available in various sizes Made with the best quality babool wood / hard wood. Treated with best preventive processes for maximum life. Suitable for all applications Very high production capacity at our special dedicated plant for pallets at valsad in Gujarat. Reasonable prices with no compromise in quality is our main objective

A 3 wheel drum trolley is a simple shifting equipment for inclined handling of closed top or partially filled open top drums.                 The capacity ranges from minimum to 500 kgs.                A single person can easily load the drum and shift the load with ease.                Rigid in construction.                Spares readily available.                Almost zero maintenance cost.                Low initial cost.

Available in following two standard sizes :           Size 1 :1) length of forks : 1150 mm 2) width across forks : 540 mm 3) lowered height : 85 mm 4) lifted height : 200 mm 5) wheels : nylon / cast iron / poly urethane

  Available in various sizes        Made with high quality stainless steel or else specified by the customer        Light in weight        Maintenance free long life         Generally used in pharmaceutical industry and other such similar applications where corrosion free environment is top priority.

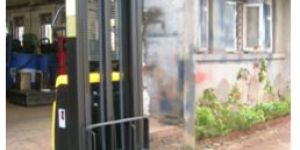

  Capacity upto 2000 kgs.Lifted height up to 4000 mm.Rigid in construction.Easy to use.hydraulically operated. Lifting through d.c. Motor,gear pump and hydraulic cylinder.Battery power is used to operate the system. Hence the stacker can be moved any where without any trailing wires.A battery charger is provided to charge the batteries for the next operating shift.Pushing pulling of the stacker is done manually hence it is called a semi electric stacker.

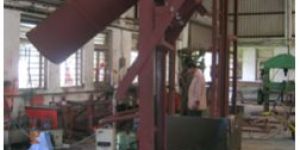

  In this type of dumper the material from the drum is dumped at the rear side.                Available in stationary as well as mobile modes.                The dumping mechanism in this dumper is purely mechanical. The drum carriage is designed in such a manner that as the drum reaches a desired dumping level the drum starts tilting backward to dump the material in the hopper/vessel.                Tilting angle 40 degrees between drum axis and horizontal.                Capacity ranging from minimum to 500 kgs. With lift upto 4 metres.                Stainless steel pouring lip of full stainless steel GMP models available.                Rigid in construction.                Low operating and maintenance cost.

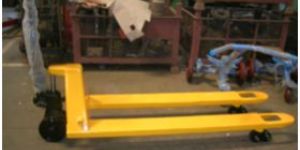

  These are pallet trucks whose standard parameters such as length of forks or width across forks differ from that of a standard pallet truck, to suit some special applications. Manufactured as per customer requirementsMainly required by the packaging and printing industry.Available in mild steel as well as stainless steelSimple & compact design Easy to operateLight in weightSpares readily available Image 1 shown here is of a pallet truck having length of fork longer than a standard pallet truck generally used in packaging industry as the length of corrugated sheets handled is long. Image 2 & 3 shown here is of a pallet truck having length of fork shorter than a standard pallet truck generally used in printing industry where the size of the pallet is small also due to space constraint.

  Available in various sizes, Made with pressed steel or rolled section.Rigidly welded for lifetime maintenance free usage.Can be used for heavy loads.Light in weight.Suitable for placing heavy dies.

Capacity upto 500 kgs.Lifted height up to 2000 mm.Rigid in construction.Easy to use.Pure mechanical operation. Lifting through triple spur gear winch.No hydraulic hence no oil leakages.Zero maintenance stacker.Low initial cost.

Capacity upto 800 kgs.Lifted height up to 2000 mm.Rigid in construction.Easy to use.hydraulically operated. Lifting through hand pump and hydraulic cylinder.Manual hydraulic operation hence no electrical power required.Low operating and maintenance cost.Low initial cost.

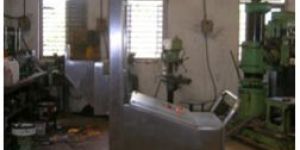

One lifter can serve more than one compression machine in a pharmaceutical industry.                Can be rolled away after completing work for parking in convenient location. Masts and lifting boom in SS304.                Electro-hydraulic power pack and MS Counterweight cladded in SS 304.                UHMW Polymer wheels with ball bearings.

These pallet trucks are different from the standard pallet truck. In a standard pallet truck the lifted height achieved is 200 mm but in high lift pallet truck the lifted height of the pallet is 900 mm.                These are generally used as work tables                 Capacity upto 1000 kgs. Only                Available in mild steel as well as stainless steel.                Available in standard sizes

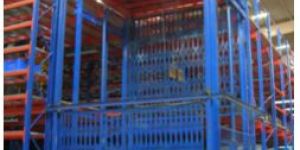

Goods lifts are stationary lifts to carry goods from one level to another level.Construction of this lift is very rigid hence it is very reliable for carrying palletized loads directly with pallet trucks or stackers.Capacity ranges from 1000 kgs. To 5000 kgs.The platform of this lift guided in two vertical guide mast to provide better stability.The platform can be accessed from two opposite sides.The operation is also very simple. Each floor has push button stations and limit switches, which controls the interfloor movement of the lift.Generally used in warehouses and godowns.

Capacity upto 2000 kgs.Lifted height up to 4000 mm.Rigid in construction.Easy to use.hydraulically operated. Lifting through d.c. Motor,gear pump and hydraulic cylinder.Battery power is used to operate the system. Hence the stacker can be moved any where without any trailing wires.A battery charger is provided to charge the batteries for the next operating shift.Pushing pulling of the stacker is done electrically , the operator can stand on foot rest platform and maneuver the stacker through controls provided  hence it is called a full electric stacker.

  Front dumper is a drum lifting and dumping equipment.                Capacity ranges from minimum to 500 kgs.                In this dumper the drum is clamped to the cradle of the dumper at the ground level and can be lifted to a desired level to dump the material in a hopper or a vessel. The dumping in this type is in the front of the operator.                Drum can tilt upside down through 180 degrees and can be held tilted at any angle.                Available in stationary as well as mobile modes.                Rigid in construction.                At any height the material in the drum can be dumped by the operator standing on the ground level.

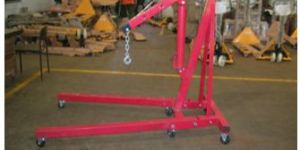

Floor crane is a lifting and shifting equipment like a crane. It consists of a hook to lift the load from the ground and place it in a desired position. It is generally used to replace dies from a machine / press. As the load is suspended it is easy to adjust the load while fitting on a machine or a press.Available in capacity ranging from minimum to 2000 kgs.Floor cranes are available in both manual and electro-hydraulic modes of operation.

  Capacity upto 2000 kgs.Lifted height up to 4000 mm.Rigid in construction.Easy to use.hydraulically operated. Lifting through Electric Motor, gear pump and hydraulic cylinder.Electro hydraulic lifting and lowering through gravity hence electrical power is required only while lifting whereas while lowering electrical power is not required.Low operating and maintenance cost.

In this type of scissors lift the lifting of the platform is electro hydraulic through electric motor, gear pump & hydraulic cylinder & a lever valve. Electrical power is not needed while lowering the platform. Load capacity in this type ranges from minimum to 2500 kgs. As the operation is electro-hydraulic manual effort required is negligible. Also power is saved while lowering; hence the operating cost is very low.

  The drum stacker with auto gripper grips the drum automatically without touching the drum, and stacks the drum at a desired level. While unloading also the drum unlocks automatically from the auto gripper.                 Can be used with both standard M.S. drums and plastic drums.                Rigid in construction.                Low operating and maintenance cost.                Compact design.

Dock leveler is loading and unloading equipment. It is situated at the loading bay of a factory where the material is to be loaded and unloaded. The capacity of the dock leveler ranges from minimum to 9000 kgs. Material to be loaded is lifted by a fork lift or a stacker and is carried in to the container or vehicle directly. The dock of the leveler adjusts its height according to the height of the truck which eases the rolling of the forklift over it with load.

In this type of scissors lift electrical control panels is provided with a push button station having up, down and stop buttons. The lifting and lowering is automatic.

  Special pallets comprises of pallets that are non standard and are made for special applications / purposes.        They are further classified into : A) Composite Pallets                 Composite Pallets are made with a Combination of two materials to increase the strength of the pallet so as to carry heavy loads and for long life.                They are made with a combination of wood and mild steel rods, or plastic and mild steel rods reinforced to give better strength and life. B) PU Coated Wooden Pallets               C) Plastic Pallets                 Material of Construction is plastic.                Moulded to give  strength as good as a wooden pallet.                Corrosion free, hence life is good than a wooden pallet.                Available in various sizes.

Capacity upto 2000 kgs.Lifted height up to 4000 mm.Rigid in construction.Easy to use.hydraulically operated. Lifting through Electric Motor,gear pump and hydraulic cylinder.Electro-hydraulic lifting and lowering through gravity hence electrical power is required only while lifting whereas while lowering electrical power is not required.Low operating and maintenance cost.In this stacker an auxillary hand pump is provided in the power pack so that in case of power failure the material can be lifted through hand pump, so the time is saved and the material is stacked till the power is resumed.

  Available in various sizes, Made with pressed steel or rolled section.Rigidly welded for lifetime maintenance free usage.Can be used for heavy loads.Light in weight.Collapsible / Non Collapsible for storage of small parts and packages. Also can collapse to a fraction
