Rubber Bellow Seals Dealers in Oshiwara, Mumbai

• Diameter: 10 to 100mm
• Temperature: -20 to 150°C
• Speed: 25 m/s

This has a unique rubber bellow secondary seal, which provides a high degree of axial flexibility to compensate for lack of concentricity of the shaft & misalignment & wear due to thrust movement of the shaft.

• Shaft Diameter: 10...100mm
• Pressure: 20 bar (max)
• Metal Parts: SS304, SS316
• Temperature: 20...180OC
• Velocity: 10 m/sec
• Seal Faces: Carbon, Ceramic, SiC, Tung. Carbide
• O-rings: Elastomers, TTV

Series AES-004 is single coil with rubber bellow mainly for use in wast water treatment plants in the sewage applications. The rubber bellow protects the shaft / sleeve from fretting. The bellows is not subjected to any torsonial stress. Torque transmission is through the spring and spring holder. Self aligning features accomodate abnormal shaft runout and primary sealing wear. The single coil spring will avoid effluent particles.     SEAL CHARACTERISTICS • Single Seal• Unbalanced• Conical Spring• Dependent on direction of rotation     APPLICATIONS • Water pumps• Submersible pump• Sewage pump

• OPERATING LIMITS:: Shaft Diameter 'd'
• 15mm to 150mm: Pressure 'p'
• Upto 20 bar: Temperature 't'
• -20 to +150 ºC(max): Shaft speed 'n'

The rubber bellow mechanical seal has been designed for general sealing purpose which includes easy installation of the seal. The Seal has a unique rubber bellow secondary seal, which provides a high degree of axial flexibility to compensate for lack of concentricity of the shaft & misalignment & wear due to thrust movement of the shaft. The seal can be use regardless of direction of rotation since the driving torque is not transmitted through the coil spring, The required driving torque is enhanced through the unique rubber bellow which fits on the shaft through the interference fit between the collar, rubber bellow & the shaft.

• Pressure: 8.0bar (max...)
• Application: Generally Used for Compressor for Refrigeration of Ammonia & Frion Gas. Cold Water Pumps for Non-critical Applications
• Faces: Carbon / Ceramic / Sic.
• Secondary Seals: Viton / Neoprene / Nitrile
• Hardware: SS316
• Shaft Dia: 10.0mm...100.0mm 0.5 Inch...4.0 Inch
• Temprature: -20'C TO 220'C
• Velocity: 20.0m/s

If on a look-out for operational excellence, high degree of axial flexibility and great endurance in the Rubber Bellow Seals, contact us! The Rubber Bellow Seal (LEE-S21) manufactured by us fulfills all the abovementioned needs. Additionally, they are compactly sized. We supply and export them to diverse global destinations at affordable prices. Handling of even bulk orders is timely!   Applications :Generally used in sewage application, waste water pumps & fuel injection pumps.  Operating Limits  Shaft Dia. - 10 to 100mm  Pressure - up to 10 Bars  Temperature - 20 to 150oC

• Pressure: up to 12 bar g
• Temperature: -40°C to +140°C
• Speed: up to 13 m/s

Rubber bellow seal, Mechanical seals are simply another means of controlling leakage of a process where other means are deemed to be less capable of performing the task adequately. Before the advent of mechanical seals, pump users relied primarily on "rope" or braided style packing to achieve a "seal" around the shaft. A series of pieces or "rings" were installed into the pump "stuffing box" and they were compressed tightly so that they created a difficult leak path for the liquid to negotiate in order to leak to atmosphere.

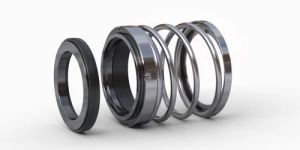

• Brand Name: Hydro Serve
• Material: Single Coil
• Color: Silver
• Type: Mild Steel Springs
• Country of Origin: India

• Application: Generally used in sewage applications/ waste water pumps & fuel injection pumps

Based in Mumbai(India), we have gained wide appreciation owing to our high quality products and client-centric approach. Our quality control strategies are carefully executed. Thus, our whole range of product is amongst the most sought-after in the industry.   Operating Limits : Pressure  -  10 bars (Max) Temperature  -  (-)20c to (+)150c Speed  -  20 m/s Sizes  -  2850 rpm (Max) Material  -  Seal Face  -  Carbon, Ceramic, TC Secondary Seals  -  Viton / Niton Metal Parts  -  SS 316,

• Pressure: Below atmospheric to 75 p.s.i
• Temperature: From Cryogencics to 120o C
• Size: 3/4" to 3"
• Speed: 4000 RPM

All seal components that come in contact with pumped fluid are chemically inert materials like PTFE, GFT and pure Ceramic. The heart of the seal is the flexible PTFE Below made from virgin grade Teflon. Springs and other metal parts are in Haste alloy-C, Alloy-20 etc. The rotary face is of glass filled Teflon. The Stationery face is pureceramic. These seals are always installed externally.

Elastomer bellow seals "rubber bellow mechanical seals" are most commonly used rubber bellow seal, due to its compact design it can be easily mounted. These has a unique rubber bellow secondary seal, which provides a high degree of axialflexibiiity to compensate for lack of concentri city of the shaft & misalignment & wear due to thrust movement of the shaft. application generally used in sewage applications/ waste water pumps & fuel injection pumps. operating limits pressure : 10 bars (max) temperature : (-)20c to (+)150c speed : 20 m/s sizes : 2850 rpm (max) material seal face : carbon, ceramic, tc secondary seals : viton / niton metal parts : ss 316,

• Type: Rubber Bellow Seal
• Pressure: 10 Bars(Max)
• Diameter: 16 mm to 100 mm
• Model No.: RI-111, RI-114
• Temperature range: -20 Degree To +150 Degree C
• Secondary Seals: Viton /EPDM /Nitrile

• Shaft Diameter: 10...100 mm
• Pressure: 22 bar (max
• Metal Parts: SS304, SS316
• Temperature: -20...1400C
• Velocity: 15 m/sec
• Seal Faces: Carbon, Ceramic, SiC, Tung. Carbide
• Bellows: Viton, Nitrile

Type VS - 2 is unbalanced single acting helical coil spring seals independent o1 direction of rotation. The drive ring's notch design eliminates over stressing of the elastomer bellows. Slippages are eliminated, protecting the shaft and sleeve from fretting. Seal can be repaired in field with minimum spares, minimizing the downtime cost.     Seal Characteristics   Single Seal Unbalanced Conical spring Independent of direction of rotation     Application   Water pumps,Oil pumps Blowers Compressors Slurry pumps     Performance Range

Bellows series seals are Single Coil Unbalanced with elastomeric bellows designed Independent of direction of rotation seals. The seals of the series are rotate to bellows tightness on shaft.The series are work in Water, Oil & Light duties, application seal materials can be specific as requirement.

Heavy duty mechanical seal for rotary and centrifugal pump application, single acting and positive drive. Universal seal for general applications. Silicon and tungsten carbide let seal abrasives and slurries

• Type: Rubber Bellow Seal
• Material: Neoprene Rubber, Nitrile Rubber, Rubber, Silicone Rubber
• Shape: Round
• Thickness: 10-20mm, 20-30mm, 30-40mm, 40-50mm
• Condition: New, Used
• Size: 10inch, 2inch, 4inch, 6inch, 8inch
• Application: Connecting Joints, Pipes, Tubes
• Feature: Easy To Install, Fine Finish, Good Quality, Heat Resistant, Unbreakable

The company deals in the finest quality rubber bellow seals in the market. Our enclosed rubber bellows seal is available with bonded joints and all the face substance can be interchanged without actually modifying any dimensions. These rubber bellow seals are commonly used in sewage pumps, waste water pumps and fuel injection pumps. Besides, we are one of the largest rubber bellows component seal manufacturers in the business. Applications: Generally used in sewage applications, waste water pumps, & fuel injection pumps. Material: Seal Faces: Carbon Vs Ceramic/Sic/TC Secondary Seals: Nitrile/ Neoprene/Viton Metal Components: SS-316 Operating Limits: Shaft Dia.: 10 to 100mm Pressure: up to 10 Bars Temp.: -20 to 150°C Speed: up to 25 m/s

Supplier & Distributor of Rubber Bellow Seal. Our product range also comprises of Dry Running Agitator Seal, Multi Spring Unbalanced Seal and Spring Unbalanced Seal. Item Code: LS20 Type LS 20 are most commonly used rubber bellow seal, Due to its compact design it can be easily mounted. TYPE LS 20 has a unique rubber bellow secondary seal, which provides a high degree of axial flexibility to compensate for lack of concentric of the shaft & misalignment & wear due to thrust movement of the shaft.

Operating Limits : Seal size  - 10mm to 100mm Pressure  - 12kg\cm2 Speed - 10m/s Temperature - 10o ..to 220oC Face Material : Rotary Face - Carbon, Sillcon, TC Stationary Seats - Silicon, TC, SS, Ceramic Type - S-6, S-60, S-9, S-4, S-13, S-50 Applications : Chemical Plant Oil Refinary Water
