Sahil International Kandivali, Mumbai, Maharashtra

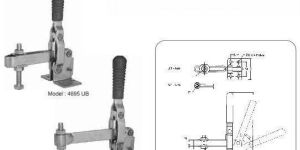

Our company is renowned Supplier of Vertical Flange Base Toggle Clamps in Mumbai. The Vertical Flange Base Toggle Clamps have a flanged base with holes for mounting on the fixture plate Handle remains in vertical position in clamping. We provide high-quality Vertical Flange Base Toggle Clamps to our clientele. Features of Vertical Flange Base Toggle Clamps Standard Hex. Head clamping spindle assembly is provided as standard accessory with all above clampsU-arms models are provided with 2 nos. u-flanged washers also along with clamping spindle assemblyThe SF series have a solid down bar which has fixed guide bush at its end for the spindle assembyThe UB series have a 'U' bar arm which enables one or more spindles to be moved into any desired position along the arm SpecificationsItem CodeModelsABMounting BaseSpindle DiaEGHMounting DimensionsHolding capacityWt. In kgsCDMNØS1260112602PV – 12525 UBPV – 1525 SF15253226M588024154.550 kg.0.0901260312604PV – 2635 UBPV – 2635 SF26354026M61212527135.5100 kg.0.1801260512606PV – 3265 UBPV – 3265 SF32654335M81615532196.5200 kg.0.4501260712608PV – 4695 UBPV – 4695 SF46956245M102020544288.5400 kg.0.6501260912610PV – 52125 UBPV – 52125 SF521257055M12202105336.58.5450 kg.0.7001261112612PV – 86150 UBPV – 86150 SF861509575M163033070508.5600kg.2.100

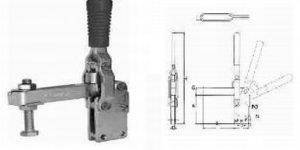

Our company is a prominent Supplier of Vertical Base Straight Toggle Clamps in the market. We provide Vertical Base Straight Toggle Clamps of superior quality. The Vertical Base Straight Toggle Clamps are similar to PV models but with straight base. Straight base design enables mounting on a vertical surface. Standard Accessories provided with Vertical Base Straight Toggle Clamps Vertical Base Straight Toggle ClampsStandard Hex, Head clamping spindle assembly complete with U-Flanged washer and lock nuts is provided as standard accessory with above clamps. SpecificationsItem CodeModelsABMounting BaseEGHHolding CapacityWt. in kgs.CDMNPØ12701PV- 2635 -BS2635430136.55.5M612135100 Kg.0.18012702PV- 3565 -BS32656431976.5M816155200 Kg.0.45012703PV- 4695 -BS469584528108.5M1020235400 Kg.0.65012704PV- 52125 -BS5212585536.5108.5M1220235450 Kg.0.70012705PV- 86150 -BS8615010755017.510.5M1630370600 Kg.2.100

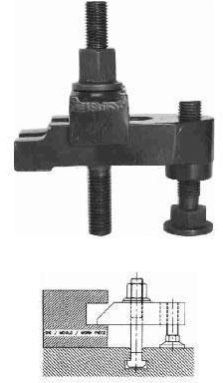

We take pride in introducing ourselves as the leading Suppliers of U Type Special Mould Clamps in Mumbai. We supply the best quality U Type Special Mould Clamps on a timely basis to our clientele. The U Type Special Mould Clamp is used for Plastic Injection Moulding & Pressure Die Casting Machines. Features of U Type Special Mould Clamp Special U-type (open ended) strap clamps having threaded adjustable support at the rear which can be adjusted to required height (as per mould plate thickness).Front portion of the clamp holds the mouldVery convenient for operator as there are no loose parts which tend to fall down during setting hence saves setting timeSpecially designed washer distributes the load and holds the clampSupplied complete with Studs/T-bolts/Special washer/Flanged Nut Uses of U Type Special Mould Clamp : Useful for clamping of moulds on plastic injection moulding machines and pressure die casting machines.

Our company is one of the recognized Suppliers of U Clamps in Mumbai. Our range of U Clamps is known for its finishing as well as quality. Excellent durability of U Clamps further enhances the overall worth of the U Clamps as a product. Features of U Clamp Manufactured as per IS - 4293 - 1964Steel heat treated to 40 to 45 HRCBlackodized finish Applications of U Clamp : Widely used for repetitive clamping applications frequent insertion and removal of part being clamped.

Our company is a well-known Supplier of T-Nuts in Mumbai. We offer T-Nuts of superior quality that provide excellent performance. Our range of T-Nuts is known for its finishing and our T-Nuts are widely popular with our clientele. Features of T-Nuts Manufactured as per IS 2015-1997C45 heard treated to 22 to 28 HRC.Finish - Blackodized Application of T-Nuts : Useful for the machines having 'T' slots jig fixtures hydraulic equipements, assorted setting elements and adopters. SpecificationsItem CodeModeladshk11401PTN 8 68M 61310611402PTN 10 810M 81512611403PTN 12 1012M 101814711404PTN 14 1014M 102216811405PTN 14 1214M 122216811406PTN 16 1216M 122518911407PTN 16 1416M 142518911408PTN 18 1218M 1228201011409PTN 18 1618M 1628201011410PTN 20 1620M 1632241211411PTN 22 1622M 1635281411412PTN 22 2022M 2035281411413PTN 24 1624M 1640321611414PTN 24 2024M 2040321611415PTN 28 1628M 1644361811416PTN 28 2028M 2044361811417PTN 28 2428M 2444361811418PTN 36 2436M 2454442211419PTN 36 3036M 30544422

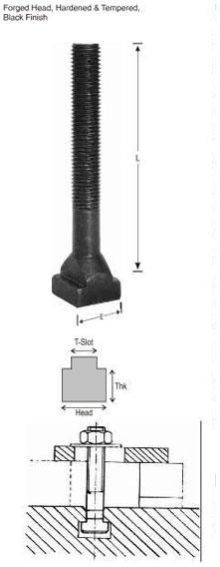

Our company is one of the major Suppliers of T-Bolts in Mumbai. We provide T-Bolts with forged head as well as hardened and tempered black finish. Our range of T-Bolts is high on quality and excellent in performance. Features of T-Bolts Manufactured as per IS 2014 - 1996Toughened C 45 to 220 to 26 HRC.Rolled ThreadsFinish - Blackodized Applications of T-Bolts : Used in jig fixtures and Hydraulic equipments as one of the clamping elements. SpecificationsItem CodeModelThread SizeT-Slot SizeTotal Length LHead ETHK11501PTB - 1212 - 80M - 12128018711502PTB - 1212 - 100M - 121210018711503PTB - 1212 - 125M - 121212518711504PTB - 1212 - 160M - 121216018711505PTB - 1212 - 200M - 121220018711506PTB - 1214 - 80M - 12148022811507PTB - 1214 - 100M - 121410022811508PTB - 1214 - 125M - 121412522811509PTB - 1214 - 160M - 121416022811510PTB - 1214 - 200M - 121420022811511PTB - 1214 - 250M - 121425022811512PTB - 1616 - 80M - 16168025911513PTB - 1616 - 100M - 161610025911514PTB - 1616 - 130M - 161613025911515PTB - 1616 - 160M - 161616025911516PTB - 1616 - 200M - 161620025911517PTB - 1616 - 250M - 161625025911518PTB - 1616 - 290M - 1616290251011519PTB - 1618 - 80M - 161880281011520PTB - 1618 - 100M - 1618100281011521PTB - 1618 - 130M - 1618130281011522PTB - 1618 - 160M - 1618160281011523PTB - 1618 - 200M - 1618200281011524PTB - 1618 - 250M - 1618250281011525PTB - 1618 - 290M - 1618290281011526PTB - 2020 - 110M - 2020110321211527PTB - 2020 - 150M - 2020150321211528PTB - 2020 - 210M - 2020210321211529PTB - 2022 - 110M - 2022110351411530PTB - 2022 - 150M - 2022150351411531PTB - 2022 - 210M - 2022210351411532PTB - 2022 - 110M - 2022285351411533PTB - 2424 - 150M - 2024110401611534PTB - 2424 - 210M - 2024150401611535PTB - 2424 - 285M - 2024210401611536PTB - 2428 - 110M - 2428110441811537PTB - 2428 - 150M - 2428150441811538PTB - 2428 - 210M - 2428210441811539PTB - 2428 - 285M - 2428285441811540PTB - 2428 - 330M - 2428330441811541PTB - 2428 - 350M - 2428350441811542PTB - 3036 - 160M - 3036160542211543PTB - 3036 - 250M - 3036250542211544PTB - 3036 - 320M - 30363205422

We are one of the prominent Suppliers of Strap Clamps in Mumbai. Our range of Strap Clamps is well-known among our clientele for their superior quality as well as efficient operations. We supply the Strap Clamps on a timely basis to make sure that the customer needs are met with maximum efficiency. Features of Strap Clamps Manufactured as per IS - 4292 - 1984Steel heat treated to 40 to 45 HRCFinish Black o dized Applications of Strap Clamps : Widely used on most of machines for clamping work pieces of various sizes.

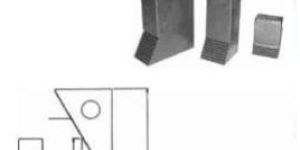

We are one of the well-known Suppliers of Step Blocks in Mumbai. We provide high-quality Step Blocks made from the best-grade raw materials to our clientele. Our company delivers the Step Blocks on time so as to meet the customer demands effectively. Features/Uses of Step Block Used as support blocks at the rear of the clamp while clamping workpieceDifferent heights can be achieved by using combination of two different sizes of step block

We are one of the prominent Suppliers of Steel Parallels. The Steel Parallels are used as precision packing support under jobs or fixtures. The Steel Parallels, provided by us, are made from special alloy steel. The hardened and tempered steel is used for making special Steel Parallels. Clients can avail Steel Parallels from us at affordable rates. Attributes High quality Longer working life Low maintenancePrecision ground in matched pairsAll four sides are chamfered

We are a prominent Supplier of Push Pull Action Toggle Clamp Front Mounting. P-Tech Push Pull Action Toggle Clamp Front Mounting Type is simply flush mounted through a panel or plate by a hexagonal lock nut on the work piece side. The Push Pull Action Toggle Clamp Front Mounting can also be mounted directly into a tapped hole without using the nut. Plunger is hardened & grounded for ensuring the precise dimensions. Attributes Can be used as pull action clampsCan be mount directly into a tapped hole without using the nut Standard Accessories provided with Clamp Standard HexHead clamping spindle assembly SpecificationsItem codeModelsPlunger Travel BCDMounting Tape-SizeEFPlunger Dia GHLPWTapped role TQHolding capacityWt. in Kgs.13201PP-FM-1237168M20 x 1.542121041103033M8 x 1.25100 Kg.0.26013202PP-FM-16402410M24 x 2.0 64161221753047M10 x 1.5350 Kg.0.850

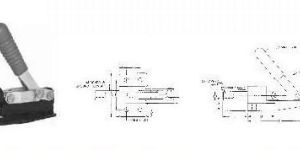

We are a prominent name in the supply of Push Pull Action Toggle Clamp Front Base. 'P-Tech' Push Pull Action Toggle Clamp Front Base has a straight line action as the plunger moves in straight line forward & backward with easy to operate handle. The plunger moves forward and locks as the handle is moved forward and plunger also locks in retracted position when handle is moved backward. Hence these clamps can be used as push as well as pull action clamps. Hardened & ground plunger moves in precision machined bore. This model with Push Pull Action Toggle Clamp Front Base is most popular because of its rigidity, which is due to mounting base just under the load bearing surface of plunger movement. Standard accessories provided with Push Pull Action Toggle Clamp Front Base Standard HexHead clamping spindle assembly SpecificationsItem codeModelsPlunger Ø dØTØAPlunger TravelMounting BaseJ Max.LHolding CapacityCDEFMNØG12901PHTC – 12 - FB 12M-8 x 1.2526306245452310116.8Ø30100600 Kg.12902PHTC -16 - FB16M-10 x 1.530368056602812.5148.5Ø401251000 Kg.12903PHTC -20 - FB20M – 12 x 1.75384411070703517.517.510.5Ø481501500 Kg.

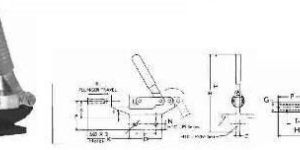

We Supply 'P-Tech' Push Pull Action Toggle Clamp Centre Base, which has its base at the center and the bigger two sizes have more center height than the front base model to accommodate larger work piece. Width of the mounting base is also less in Push Pull Action Toggle Clamp Centre Base, which makes this type of push action clamp more compact. Other features of the Push Pull Action Toggle Clamp Centre Base are same as in case of Push Pull Action Toggle Clamp Front Base model. Standard Accessories Provided With Push Pull Action Toggle Clamp Centre Base Standard hex Head clamping spindle assembly SpecificationsItem CodeModelsAPlunger TravelBMounting BasePlunger DiaGHKLHole depthPTapped HoleTØHolding capacitywt. In Kgs.CDEMNSØ13001PHTC - 253025305555635356.5121006514725M8 x 1.25300 kg.0.40013002PHTC - 364536456067640406.5161158518030M10 x 1.50400 kg.0.88013003PHTC - 4560456075729505010.52016011523030M12 x 1.75700 kg.1.750

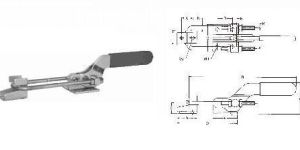

We bring forth a wide range of Pull Action Latch Clamps. The Pull Action Latch Clamps are Latch type clamps used for sealing chambers, lids, vessels etc. Horizontal Pull Action Latch Clamps are also suitable for clamping moulds in industries such as resin, fibre glass, chemicals & food. Our 'P-tech' Pull Action Latch Clamps have a unique design which enables it to use as a horizontal Pull Action Latch Clamps. Uses For sealing chambersFor fastening lidsFor sealing drum containersFor closing doors of moulds SpecificationsItem codeModelsHolding capacityWeight Drawing movement DimensionsQ MinQ Max.ABCDEFGHIKLNO13401PPAC – 4 - H100 kgs0.146291201116202630204.521154124759.413402PPAC – 5 - H200 kgs0.2244451621120323545256.52819515658013403PPAC – 6 - H350 kgs0.3550501901825284045326.53423616.510514013404PPAC – 8 - H950 kgs0.988612402240426060408.24760823.513017013405PPAC – 11 - H3000 kgs2.2589932453557.1557.1585805510.248801131.5143175

Precision Sine Vice Screw Type is a screw type version of precision sine vice screw type design, which is more convenient to use for the operator. A chart is provided by us for setting sine angle with the help of gauge blocks. The Precision Sine Vice Screw Type is sourced from the trusted vendors. Clients can avail the precisely engineered Precision Sine Vice Screw Type from us at market leading prices. Features Hardened & tempered to 52 - 56 HRC.All side Parallelism & Squareness within + 0.005 mmCentre distance of rollers within + 0.005 mmA recess of exactly 2 mm depth is provided on rest plate for setting up of very small angle with standard gauge blocks

Precision Sine Vice is used to obtain precise angles by means of gauge blocks. Precision Sine Vice is mounted with precision Hinged hardened & ground rollers on hardened bottom plate made of tool steel. This Precision Sine Vice can be used as a reference for inspection. We provide a chart for setting sine angles with the help of gauge blocks. Features Hardened & tempered to 52 - 56 HRC.Angle setting accuracy within + 5 secondsAll side parallelism & Squareness within + 0.005 mmCentre distance of rollers within + 0.005 mm.A recess of exactly 2 mm depth is provided on rest plate for setting up of very small angles with standard gauage blocksRust free hardened & ground hinge rollerInspection certificate is furnished

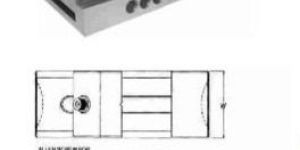

Pin Grinding Vice has body of one-piece construction made of tool steel. The Pin Grinding Vice is hardened, tempered and precision engineered. The Pin Grinding Vice can be used standing on its base, sides, end or top. Pin Grinding Vice has movable jaw, which is spring loaded for positive down hold & quick retreat. Due to downward pressure of jaw, job does not tilt while tightening in this Pin Grinding Vice. This Pin Grinding Vice can be used as a reference for inspection. Features Hardened & Tempered to 52 - 56 HRC.All side parallelism & Squareness within + 0.005 mm.Inspection certificate Is furnishedSteel vice with 45-50 HRC.All sides Parallelism & Squareness + 0.01mm.

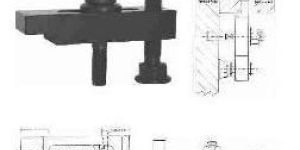

Our company is a reputed Supplier of Mould Clamp With Heavy Support in Mumbai. We provide high-quality Mould Clamp With Heavy Support on a timely basis. This ensures that our company meets the demands of its clients effectively. The Mould Clamp With Heavy Support is used for presses, Plastic Moulding Machines, Milling/Drilling Machines and in the design of Jibs & Fixtures. Features/Uses of Mould Clamp With Heavy Support Ideally suited to hold mould on injection moulding machines & die plates on press platenCounter height adjustment provided by heavy duty support with hex and round base and lock-nutClamp with support screw. Lock Nut-T-Bolt/Stud, Hex hi-nut, washer

With our expertise in the domain, we bring forth a wide assortment of Magnetic V Block. These Magnetic V Blocks are widely used in grinding and drilling jobs. The Magnetic V Blocks are procured from the reliable vendors, who assure the optimum quality raw materials are used in the fabrication of these Magnetic V Blocks. Attributes Having holding 'V' on two sides fitted with hardened steel plates to ensure extra wear resistanceAll the sides are precision groundAvailable in single as well as matched pairsParallelism & squareness of all faces & 'V' within + 0.005 mm
