Saideep Goregaon East, Mumbai, Maharashtra

The wet drum magnetic separator is ideally used to separate ferrous particles from non ferrous particles . They are so made by us to provide ultimate protection to crushers, grinders, pulverizers and allied equipment and is useful for mining and ore dressing industry. It is so made that one side is magnetized and the other side is not. Operating principle : only one side of the magnetic drum is magnetized and the other side is not magnetized. The stainless steel 304 shell which surrounds the magnet rotates freely and the magnet is stagnant. The ferrous particles that get attracted to the magnet are collected separately.

Brand Name : Saideep - Vibro Techniques

Type : Electromagnetic Feeder

Electromagnetic vibrating table consist of solid base plate and a vibrating top. The top platform vibrates at 3000 vibrations per minute through an electromagnet housed inside. Each table is supplied with a control panel, which supplies pulsating current to electromagnet and also controls the amplitude of vibration. Control panel operates on 230 V.A.C. single phase.

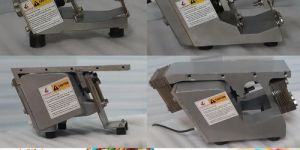

The electromagnetic vibratory feeder consists of a tray made of mild steel and a body housing the electromagnet. The tray which is connected to the armature of the magnet vibrates as the magnet gets energised. The vibration sets the material in motion. Controlling of vibration gives the controlled flow of the material. The body housing the electromagnet is made in totally enclosed design to prevent dusting. useful to any continuous process industry where automatic controlled flow of material is required. application : electromagnetic vibratory feeders are very useful in plastics, rubber, food, pharmaceutical, chemical, fertilizer, glass and other allied industries. Vibratory feeder can be supplied either in floor mounted or suspension mounted design as required. Capacity : electromagnetic vibratory feeders can be supplied from few grams to 100 tons per hour capacity or more.they can also handle slightly wet material. Electromagnetic vibratory feeders can be used for screening by fixing a screen over the tray. These screens have been very successful for screening free flowing material, as the use of moving parts, eccentrics, etc. Have been completely eliminated in this equipment. The vibratory feeders tabled below, operate at 230 volts a.c. Single phase system. The bigger size feeders beyond 100 t.p.h. Operate at 440 volts a.c. Single phase.

“SAIDEEP” has come out with a new range of Unbalanced Vibratory Motor from 0.09 kw to 10 kw and Centrifugal Force up to 1,00,000 N. The Vibrating Motors are manufactured in 2 poles – 4 pole and 6 pole designs. Confirming to I.S. specification. These vibro motors are being manufactured by SAIDEEP and sold all over the globe.

The permanent magnetic suspension magnets are suspended over conveyor line and are used to remove iron impurities mixed with product moving on conveyor belt. It can also be used for any other material feeding system to avoid damage to the crushers, grinders and other material handling equipments. These magnets can be made in self-cleaning design if required (Over band Magnetic Separator). Over band Magnetic Separator are self-cleaning units where the iron pieces attracted are thrown off and collected separately automatically with the help of cross belt. Application : Suspension magnets and Over band Magnetic Separator find wide applications in mining, coalpower generation plant and also in chemical foodplastic ceramics industries.

This dual motor configuration causes the screens frame to vibrate in a linear or straight-line motion perpendicular to the plane of the motors. This result in excellent forward conveyance of oversize particles , even when the screens frame is in an uphill position. Depending upon the application, the rectangular screens frame can be position at various degrees downhill. Maximum capacity is achieved in the uphill position, causing the formation of a pool at the feed end of the machine. The head or pressure from the pool increase fluid throughout. The horizontal vibrating screens of the screens frame efficiently conveys the oversize particles out of the pool area where they are then discharged.

SAIDEEP” has come out with the most powerful range of Magnetic Separators using Rare Earth Magnets. Magnetic Rods have Rare Earth magnets inside with magnetic power up to 11500 gauss. The rods can be manufactured in any length.

Due to their characteristics, many powders inside silos, hoppers, chutes, piping, tanks or any other container will tend to stick to the surface. Any small change in the opening of the outlet, a rough surface, bends, shallow angles, the shape of the container, as well as the particle shape of the material handled might slow down the flow of the product, thus generating waste. SAIDEEP Pneumatic Vibrators are designed to solve issues caused by design errors or by the characteristics of the powder or granules handled. Moreover, they increase process efficiency and improve plant safety.

The motorised vibratory conveyor consists of a horizontal tray made of mild steel or stainless steel. The horizontal tray is fixed to the frame, The vibrations are provided by two special unbalance motors fixed on either sides of the tray. The complete assembly of tray with motors rest on a set of coil springs so that, no vibrations are transmitted to the stand and ground. As the Motor starts, the vibration sets in motion. Controlling of vibrations gives the controlled flow of the material. The housing of the motor is in totally enclosed design to prevent dusting. The motor operates at 400440v 3phase A.C. system at 1440 RPM.

Saideep” manufacture a wide range of rare earth and ferrite magnetic pulleys. These pulleys are widely used to remove tramp iron mixed with the material moving on a conveyor belt. The magnet pulleys are always installed at the discharge point of the conveyor to separate tramp iron from the product moving on the conveyor belt. Applications : the permanent magnetic pulley is dual-purpose equipment used for protection of crusher jaws or other machinery and also for purification and concentration of magnetic material from the mines. It has the widest application in food, chemical, ceramic, paper, coal handling, foundry operation and mining industry.

Magnetic Hump Magnetic Hump is used for removing tramp Iron mixed with powder flowing down the vertical pipe. Magnet consists of two Super Power Rare Earth Magnetic Plates hinged on the zigzag path as shown. The hinged magnetic plate can be opened and cleaned easily. When the material falls it strikes directly on the first magnet plate. Major Iron contamination gets deposited here. The material then flows to the second magnet where escaped Iron particles are removed. This insures a clean Iron free material. Applications : Rare Earth Magnetic Humps are used to remove weak Magnetic and fine iron contamination. The magnetic power of the plate can be kept from medium to high power (12000 gauss) depending on the application. The hump is designed for easy installation in, Ducts, Feed Tables, and also can be at discharge of screens, conveyors etc.

Our Super Power Rare Earth Magnetic Grids are useful for removing very fine weakly magnetic impurities from free flowing powder and granular material. Magnetic Grids are assembled from 1” Dia Rods in SS – 304 o SS – 316 Material having super power Magnetic force on the surface. These grids can be made rectangular, Round and Draw out type grids for easy cleaning to suit customer’s application and are available in single or multiple rows, fitted in housing as shown. Rare Earth magnetic grids are used to purify products such as Food, Chemicals and Minerals. These grids are also used in other Industries such as Foundries, Glass, and Plastic etc. The rods could be given in assembled form Rectangular or Round shape to form grid to suit hopper design. The grid has rare earth magnet rods so designed to arrest even the finest particle going with the product. Drawer Magnet : The Grids can also be given enclosed in housing with number of rows to ensure 100% protection. The drawer design helps in cleaning the grid easily while the system is in operation.

SAIDEEP” Super Power Rare Earth Magnetic Plates are used to purify Foods, Chemical and Pharmaceutical products like powders, granules. Minerals such as talc, silica and slurried products like ceramic slip and glaze etc. Ergonomically designed to the height of perfection, these magnetic chutes plates feature incomparable quality and superior functionality. They are manufactured from premium grade metal to ensure optimum durability. Construction : Saideep Magnetic Plates have raised powerful poles. The tramp iron will accumulate in the gap between the poles. The raised poles holds the attracted tramp iron and prevents it from leaving during the flow of material. Applications : Rare Earth Magnetic Plates are used to remove weak Magnetic and fine iron contamination. The plates can be given up to 12500 gauss power. They are designed for easy installation in Ducts, Feed Tables, and also for suspension over screens, moving conveyors etc

The most distinguishing property of magna roll are used magnets that are an alloy of rare earth elements produced domestically and more powerful. Magnetic system has a number of standard sizes in which the high gradient separators are produced, and all of these sizes only require a low installation height. It is also possible to make a system in accordance with customer specifications. Depending on the requirements made and the application, a choice can be made for a single stage system or for multiple magnet rollers under one another. This results in an even higher degree of iron separation

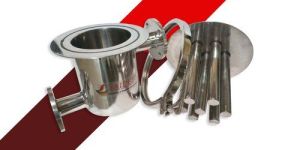

Application : to remove ferrous contaminants from liquid and slurry lines, Efficiently remove tramp iron before maintenance and product contamination problems occur

Brand Name : SAIDEEP

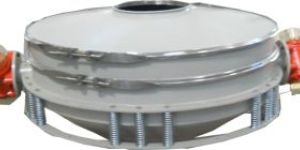

A Low Profile Separator offers high capacities of wet or dry scalping in a low headroom design. The low profile separator has a single vertically mounted motor to generate a sifting motion across the screen plane. These low profile separators fit neatly into production lines, providing considerable screening capacity without requiring excessive headroom. Operating and cleaning is quick and easy, making this range of separators perfect for all processing industries and application like pre-packing screening, bulk bag unloading and screening of raw ingredients.

Saideep had designed Ferro Filters for removing Fine Iron particles from Ceramic slurry. The filtration is done in two stages. The slurry is first pumped to 1st filter and the filtered slurry then passes through the 2nd filter. The filtered slurry is then taken to process line. Each Ferro filter has an electromagnet coil to create strong magnetic force through the entire zone. Special stainless steel grids fabricated from high magnetic permeability with uniform opening are placed through out the magnet area. High magnetic force is induced at all the openings and iron particles within the slurry get arrested at those points the openings get choked and need periodic cleaning
