sanghi overseas Worli, Mumbai, Maharashtra

High Pressure Atmospheric Vaporizer for LOX/LIN Design Operating Pressure & Design Pressure will vary depending upon the users requirement. However, the Vaporizers from operating pressure of 8 Kg/cm2g to 200 Kg/cm2g are available. The Vaporizers are used for converting the liquid form of product (i.e. O2,N2,Argon) to the gaseous form. This transformed gas can be supplied in pipe line through Low Pressure Vaporizer or can be filled in cylinders through High Pressure Vaporizers .

Dial Scale 3205 CLE / COE Capacities: - 100, 200, 300, 500 & 1000 Kg. White pointer with black indicator to give shadowless line-to-line (non-parallax) indication on 584 mm dia. Ready line . Scale mounted on four wheels enclosed in a substantial cast iron frame. Tough, dust proof and moisture proof housing to stand up to any conditions. This ensures no rusting and no deterioration of the mechanism components.

Custom built water softner plants with flow Capacities ranging from 0.7m3 / Hr to 12m3 / hr with an output per regneration ranging from 8.1m3 to 203m3 max. working pressure 3.0kg / cm2.

The centrifugal Monoblock pump is of close grained cast iron construction. A statically balanced impeller is fitted to give maximum output at low running cost. RPM 2880; 3.0 H.P.; Power Supply 3Ph; 50 cys; 400 / 440 Volt; A.C. Supply capacity.

  A battery of cylinder mounted on a trolley with wheels that can be transported and used where the consumption of the gas is more. These mounted cylinders are interconnected with individual isolation valves with pressure gauge. This product will immensely help in saving transportation cost and cylinder handling.

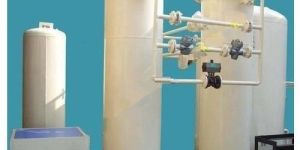

To remove moisture, Carbon-di-oxide & traces of Acetylene and other hydrocarbons consisting of 2 dries filled with molecular sieve along with regenating electric heater. Temperature sensors & control panel with temperature controller. Each vessel of Molecular Battery is filled with molecular sieve of 1.5/3 mm type 13-X. This is regenerative type capacity 400m3/hr to 2000 m3/hr and 12 hour regeneration cycle.

Induced draft Rotary sprinklers in FRP casings with electric motor 3 HP / 960RPM with or without basin in different capacities from 500 LPM to 1000 LPM.

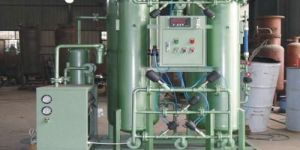

This is used for filling of the cylinders a reciprocating, oil lubricated, multi-stage, water submerged compressor with intercoolers, safety relief valve for each stage, driven by a 15 HP. Flame proof.

It is a geared motor pump coupled with motor by love-joy coupling. The pump has two parts mainly suction port and the discharge port. The suction port is provided with extended pipe and foot value to reach the bottom of the acetone drum.

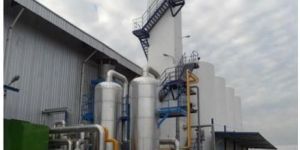

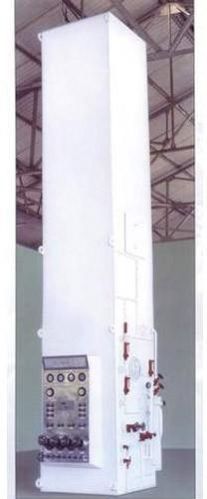

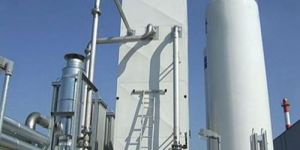

The SANGHI-ORG Oxygen Plant, is safe and economical to operate. It comes with an efficient expansion engine, which lowers the operating pressures remarkably to as low as 32-35 kg/cm2 and also cuts down power consumption. A Molecular sieve Battery drier unit for separation of moisture and carbon dioxide is another money-saving device in the SANGHI-ORG plant. It removes acetylene and other hydro-carbons from the process air, thus eliminating the need for separate acetylene absorbers, and moreover it eliminates recurring caustic soda costs. The SANGHI-ORG Oxygen Plant is capable of simultaneously producing high purity Oxygen Gas andNitrogen Gas. It also has an internal compression Liquid Oxygen Pump to fill dry gaseous oxygen in cylinders. We also undertake supervision of Installation and Commissioning of the SANGHI-ORG Oxygen Plant. Description of SANGHI-ORG Oxygen Plant The free atmospheric air is sucked in by a multi-stage air compressor through a filter and compressed to the working pressure. After each stage, intermediate coolers and water separators are provided. The compressed air then passes through the (evaporation) pre-cooler and then to the molecular sieve battery where the moisture and carbon dioxide are removed from the process air. It then passes through the exchanger No. 1 where it is cooled by the out-going waste nitrogen and product oxygen. A part of this cold air then flows through an expansion machine and the balance through the 2nd heat exchanger. The ratio of the two air streams is controlled by an expansion valve, RI. Both these streams of air then unite in the lower pressure column where it partially liquefies.   The liquid air (rich air) then passes through the expansion valve R2 to the upper column which is at a lower pressure than the lower column. Similarly the liquid nitrogen (poor liquid) travels from the lower column to the upper column through an expansion valve R3 where the separation of oxygen and nitrogen occurs. Nitrogen being more volatile passes out as a gas from the top of the column and this waste nitrogen flows through both the heat exchangers cooling the in-coming air. Similarly product oxygen is also passed through the two heat exchangers to cool the in-coming air and then to the filling manifold via a liquid pump. If a small amount of air is vented out from the upper column, higher purity nitrogen can also be obtained from this plant. R4 Valve is provided in order to fasten cooling during start-up.

Color : Black or as per your preference

Weight : 53.5 kg

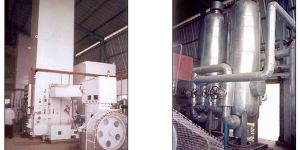

The SANGHI-ORG Oxygen Plant, is safe and economical to operate. It comes with an efficient expansion engine, which lowers the operating pressures remarkably to as low as 32-35 kg/cm2 and also cuts down power consumption. A Molecular sieve Battery drier unit for separation of moisture and carbon dioxide is another money-saving device in the SANGHI-ORG plant. It removes acetylene and other hydro-carbons from the process air, thus eliminating the need for separate acetylene absorbers, and moreover it eliminates recurring caustic soda costs. The SANGHI-ORG Oxygen Plant is capable of simultaneously producing high purity Oxygen Gas and Nitrogen Gas. It also has an internal compression Liquid Oxygen Pump to fill dry gaseous oxygen in cylinders. We also undertake supervision of Installation and Commissioning of the SANGHI-ORG Oxygen Plant. The free atmospheric air is sucked in by a multi-stage air compressor through a filter and compressed to the working pressure. After each stage, intermediate coolers and water separators are provided. The compressed air then passes through the (evaporation) pre-cooler and then to the molecular sieve battery where the moisture and carbon dioxide are removed from the process air. It then passes through the exchanger No. 1 where it is cooled by the out-going waste nitrogen and product oxygen. A part of this cold air then flows through an expansion machine and the balance through the 2nd heat exchanger. The ratio of the two air streams is controlled by an expansion valve, RI. Both these streams of air then unite in the lower pressure column where it partially liquefies. The liquid air (rich air) then passes through the expansion valve R2 to the upper column which is at a lower pressure than the lower column. Similarly the liquid nitrogen (poor liquid) travels from the lower column to the upper column through an expansion valve R3 where the separation of oxygen and nitrogen occurs. Nitrogen being more volatile passes out as a gas from the top of the column and this waste nitrogen flows through both the heat exchangers cooling the in-coming air. Similarly product oxygen is also passed through the two heat exchangers to cool the in-coming air and then to the filling manifold via a liquid pump. If a small amount of air is vented out from the upper column, higher purity nitrogen can also be obtained from this plant. R4 Valve is provided in order to fasten cooling during start-up.

Process Description Nitrous Oxide is produced by heating Ammonium Nitrate to a temperature of 250 Deg.c. Ammonium Nitrate is decomposed in the process to give a mixture of Nitrous Oxide & super heated steam. At the same time impurities are produced including Ammonium Nitrate fumes, Nitrogen & other oxides of Nitrogen. The steam & impurities are removed by scrubbing with water, caustic soda and sulphuric acid in sequence Nitrogen present in traces is removed by bleeding from the top of storage vessels where Nitrous Oxide is stored, after compression by a compressor. Introduction Safe and economical, the Nitrous Oxide plant from SANGHI ORGANIZATION is a plant with an efficient Generation system which reduces power consumption and adds on to safety. A storage battery assembly for separation of Nitrogen is another safety feature with the SANGHI ORG plant. The gas manufactured conforms to Indian Pharmacopia, US & European standards and is stored in liquid state which can be directly filled into cylinders. Production It is produced by heating Ammonium Nitrate to a temperature of approximately 250 C. Heating could be either electrically or by gas. It is then purified in a series of towers before collecting in a gas holder. Gas is then Compressed by a water lubricated compressor, dried and liquefied. Liquid Nitrous oxide is stored in storage vessels where Nitrogen , if present, is removed. Pure liquid Nitrogen oxide is then filled into cylinders by weight. Uses Nitrous oxide gas is mainly used for anesthetic purposes. It is administered with oxygen. It is also used as carrier gas in laboratory Instruments. It also finds application, as a propellant in aerosols and food stuff. Properties of NITROUS OXIDE Nitrous Oxide is a chemical compound of Nitogen and Oxygen. Its Chemical symbol is N20. It is colourless, non flammable and nontoxic gas with a slightly sweetish taste & odour. The most common way of distributing Nitrous oxide is as a compressed liquid in Cylinders of the same kind, as used for oxygen, Nitrogen etc. The pressure in Nitrous oxide cylinders is approximately 50 Bars at 20oC It is stable and comparatively un-reactive chemical compound at ordinary temperatures. At elevated temperatures, however, the gas decomposes to Nitrogen & Oxygen. It supports combustion and hence organic substances particularly oil and greases which are petrochemical in nature must be kept away from the gas.

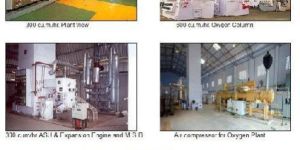

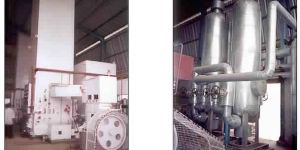

The SANGHI-ORG Nitrogen Plant, is safe and economical to operate. It comes with an efficient expansion engine, which lowers the operating pressures remarkably to as low as 32-35 kg/cm2 and also cuts down power consumption. A Molecular sieve Battery drier unit for separation of moisture and carbon dioxide is another money-saving device in the SANGHI-ORG plant. It removes acetylene and other hydro-carbons from the process air, thus eliminating the need for separate acetylene absorbers, and moreover it eliminates recurring caustic soda costs. The SANGHI-ORG Nitrogen Plant is capable of simultaneously producing high purity nitrogen Gas. It also has internal compression Liquid nitrogen Pump to fill dry gaseous oxygen in cylinders. We also undertake supervision of Installation and Commissioning of the SANGHI-ORG Nitrogen Plant. About 100 CU.M./Hr of Nitrogen will be used for regeneration of driers for SANGHI-ORG 80. * About 150 CU.M./Hr of Nitrogen will be used for regeneration of driers for SANGHI-ORG 100. * About 300 CU.M./Hr of Nitrogen will be used for regeneration of driers for SANGHI-ORG 200. The above product capacities are based on ambient conditions of 15oC temperature 760mm of Hg pressure and 50% relative humidity and 0.03% of Carbon Di-oxide is allowed as impurity. Note: 1) High purity Nitrogen of upto 2 PPM can also be tapped simultaneously with a separate liquid Nitrogen pump in modified plants , at an additional cost. 2) Provisions can also be made for tapping upto 25% liquid oxygen / liquid nitrogen simultaneously with gaseous oxygen, at an additional cost. Note : 1) Electric motors can be supplied to suit specific power ratings in respective countries across the globe, if informed in advance. 2) Specifications of other capacity plants upto 750 Cu.m/hr capacity can be furnished on request. Description of SANGHI-ORG Oxygen Plant The free atmospheric air is sucked in by a multi-stage air compressor through a filter and compressed to the working pressure. After each stage, intermediate coolers and water separators are provided. The compressed air then passes through the (evaporation) pre-cooler and then to the molecular sieve battery where the moisture and carbon dioxide are removed from the process air. It then passes through the exchanger No. 1 where it is cooled by the out-going waste nitrogen and product oxygen. A part of this cold air then flows through an expansion machine and the balance through the 2nd heat exchanger. The ratio of the two air streams is controlled by an expansion valve, RI. Both these streams of air then unite in the lower pressure column where it partially liquefies. The liquid air (rich air) then passes through the expansion valve R2 to the upper column which is at a lower pressure than the lower column. Similarly the liquid nitrogen (poor liquid) travels from the lower column to the upper column through an expansion valve R3 where the separation of oxygen and nitrogen occurs. Nitrogen being more volatile passes out as a gas from the top of the column and this waste nitrogen flows through both the heat exchangers cooling the in-coming air. Similarly product oxygen is also passed through the two heat exchangers to cool the in-coming air and then to the filling manifold via a liquid pump. If a small amount of air is vented out from the upper column, higher purity nitrogen can also be obtained from this plant. R4 Valve is provided in order to fasten cooling during start-up.

The Liquid Oxygen Pump is a single acting piston pump. It is used for filling Oxygen into Cylinders upto a pressure of 165 kgs./cm2. SANGHI - ORG Liquid Oxygen Pump The pump is designed for assembly in air separation unit that works by pumping liquid Oxygen and gasifying the same in Heat Exchangers for final filling as gas in Cylinders. Control of liquid feed is not necessary, because the pump is designed in accordance with the plant size and the liquid produced is constantly pumped off. The drive unit is similar to any reciprocating machine with the Crank Shaft, Flywheel, Connecting Rod, Cross Head, etc. The Liquid Oxygen Pump consists of a stainless steel inside liner with liquid inlet and evaporated gas outlet ports. There are no valves on these ports, which are closed by the piston itself on the pressure stroke. The third outlet is the main discharge outlet with the two non-return ball valves. The two ball valves remain firmly closed during suction stroke, due to high pressure in partly filled cylinders. To ensure that these valves are fully closed, a positive pressure of about 60 kgs/cms2 must be maintained on it. When a fresh batch of cylinders is taken for filling, open the manifold valve slowly or use a spare batch of cylinders to ensure positive pressure on these valves.

Brand Name : Sanghi

LGC's are small liquid cylinders with in built pressure building & evaporating coil to allow both gas as well as liquid withdrawal. It can be transported to & from customers site with liquid filled in just like high pressure gas cylinder. This facilitates larger quantity of product transfer in liquid form than in Gaseous form. It is ideal for Liquid N2, Oxygen, Argon CO2 & N2O.

Application : Industrial

Automatic Grade : Fully-Automatic

Automatic Grade : Fully-Automatic

Application : Industrial/Medical

The Electric Motor is used initially to start the machine. Thereafter the engine is moved by the air pressure itself and during which time, the engine motor retains the speed by acting as a brake. Since work is done by air in rotating the Flywheel, it loses its heat content (enthalpy). Thus the air gets cooled. This cooling is more than that of an expansion in an expansion valve.The Expansion Engine can be considered as three major units:a. The drive unit.b. The Cylinder Unit for air expansion andc. The Hydraulic Systems for operating the Valves.

Application : Industrial / Medical

Application : Industrial/Medical

Brand Name : Sanghi

Automatic Grade : Fully-Automatic
