Sanghvi International Kumbharwada, Mumbai, Maharashtra

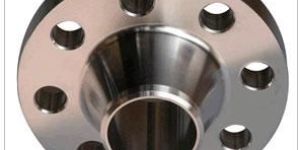

Sanghvi Internationalis acknowledged as a manufacturer, exporter & suppliers of Weld Neck Flange & Stainless steel Flanges (Gr. 304, 304L, 316, 316L) available in a variety or grades, materials, and finishes, in metric and inch sizes. These Weld Neck Flange are manufacture in different Material of Flanges like SORF Flanges, Carbon Steel Weld Neck Flanges, Stainless Steel Weld Neck Flanges, Alloy Steel Weld Neck Flanges, Duplex Steel Weld Neck Flanges, Inconel Weld Neck Flanges, Monel Weld Neck Flanges, Hastelloy Weld Neck Flanges, Copper Nickel Weld Neck Flangesin India & Asia, conform to Slip On specifications. Weld neck pipe flanges are connected to the pipe by welding the pipe to the neck of the pipe flange, which helps to pass on the stress from the weld neck to the pipe itself. This also reduces high stress concentration at the base of the hub of the weld neck pipe flanges. Weld neck pipe flanges are generally used in high pressure applications, where hot or cold temperatures exist. The inside diameter of a weld neck pipe flange is machined to match the inside diameter of the pipe

Form Round, square, rectangular, hydraulic etc. Length Single Random, Double Ranidom & Cut Length End Plain End, Bevelled End, Treaded

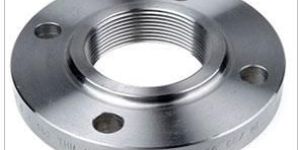

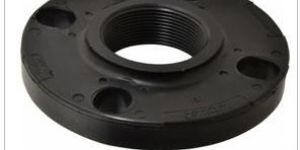

Sanghvi International is acknowledged as a manufacturer, exporter & suppliers of Threaded Flange & Stainless steel Flanges (Gr. 304, 304L, 316, 316L) available in a variety or grades, materials, and finishes, in metric and inch sizes. These Threaded Flange are manufacture in different Material of Flanges like SORF Flanges, Carbon Steel Threaded Flanges, Stainless Steel Threaded Flanges, Alloy Steel Threaded Flanges, Duplex Steel Threaded Flanges, Inconel Threaded Flanges, Monel Threaded Flanges, Hastelloy Threaded Flanges, Copper Nickel Threaded Flanges in India & Asia, conform to Slip On specifications. Threaded flanges are widely used in low pressure piping systems, as no welding is involved while connecting the flanges to pipes or other equipment. However, the flange may be welded around the joint after assembly, but it is not considered a satisfactory method of increasing its applications. Threaded flanges are also known as screwed flanges and are similar to slip-on flanges, but the bore is threaded to enable assembling without welding. Threaded pipe flanges are usually used with pipes that have external threads. Threaded Flange, Threaded Forged Flanges, Screwed Flanges Production Range Size: 1/2″ (15 NB) to 48″ (1200NB) Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings Pressure Ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. Carbon Steel Threaded Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 Stainless Steel Threaded Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L Alloy Steel Threaded Flanges: ASTM A182 F1, F5, F9, F11, F22, F91 Special Alloy Threaded Flanges: Duplex, Super Duplex, Nickel Alloys

MATERIAL：A234-WPB.A420-WPL6.A234-WP12.A234-WP11.A234-WP5.A403-WP304.A403-WP304L.A403-WP316.A403-WP316L.  SIZE：1/2"-48"、DN15-DN1200  PRESSURE：Sch5-Sch160、XXS  STANDARDS： ISO. ANSI. JIS. DIN GB/T12459、GB/T13401、ASME B16.9、SH3408 SH3409、HG/T21635、HG/T21631、

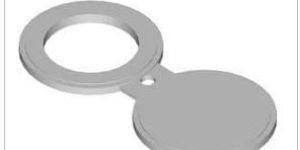

Sanghvi International is acknowledged as a manufacturer, exporter & suppliers of Spectacle Blind Flange & Stainless steel Flanges (Gr. 304, 304L, 316, 316L) available in a variety or grades, materials, and finishes, in metric and inch sizes. These Spectacle Blind Flange are manufacture in different Material of Flanges like SORF Flanges, Carbon Steel Spectacle Blind Flange, Stainless Steel Spectacle Blind Flange, Alloy Steel Spectacle Blind Flange, Duplex Steel Spectacle Blind Flange, Inconel Spectacle Blind Flange, Monel Spectacle Blind Flange, Hastelloy Spectacle Blind Flange, Copper Nickel Spectacle Blind Flange in India & Asia, conform to Slip On specifications. A spectacle blind is a safety device used to isolate a section of line or piece of equipment when the line or equipment needs to be inspected or removed from service. It is different than a valve in that the blind is a permanent or long term isolation device. A spectacle blind is machined from a single piece of metal that is cut to match the pipe size, fit between two pipe flanges and requires an additional gasket when it is installed. Also, the bolts will need to be lengthened depending on what piping class and size blind is used. The thickness of the spectacle blind is specified based on the line pressure and pipe size. pectacle Flanges, Spectacle Blind Flange Production Range Spectacle Flanges Range ½” (15 NB) to 48″ (1200NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. Available with NACE MR 01-75 Stainless Steel Spectacle Flanges Grade : 304, 304L, 304H, 309, 310, 310S, 316, 316Ti, 316 L, 317, 317L, 321, 347, 347 H, 409, 410, 410S, 420, 430L Duplex Steel Spectacle Flanges Grade : 2205 (UNS No. S31803), 2507 (UNS No. S32750) Nickel Alloy Spectacle Flanges Grade : Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II) Copper Alloy Spectacle Flanges Grade : UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C 71500 (Cu -Ni- 70/30) Spectacle Flanges Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 OTHER : PLATE, PLATE BLANK

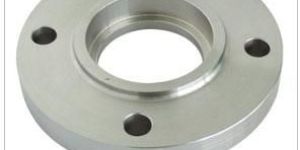

Sanghvi International is acknowledged as a manufacturer, exporter & suppliers of Socket Weld Flange & Stainless steel Flanges (Gr. 304, 304L, 316, 316L) available in a variety or grades, materials, and finishes, in metric and inch sizes. These Socket Weld Flange are manufacture in different Material of Flanges like SORF Flanges, Carbon Steel Socket Weld Flanges, Stainless Steel Socket Weld Flanges, Alloy Steel Socket Weld Flanges, Duplex Steel Socket Weld Flanges, Inconel Socket Weld Flanges, Monel Socket Weld Flanges, Hastelloy Socket Weld Flanges, Copper Nickel Socket Weld Flanges in India & Asia, conform to Slip On specifications. Socket weld flange is similar to the slip-on flange in outline, but the bore is counter-bored to accept pipe. Socket welding pipe flanges are typically used on smaller sizes of high pressure pipes. Socket weld flanges are widely used in high pressure systems such as hydraulic equipment and steam lines. Socket weld pipe flanges are attached by inserting the pipe into the socket end and then applying fillet weld around the hub of the flange. This allows for a smooth bore and better flow of the fluid or gas inside of the pipe. An optional internal weld may be applied in high stress applications

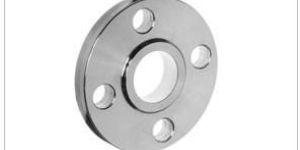

Sanghvi International is acknowledged as a manufacturer, exporter & suppliers of Slip On Flange & Stainless steel Flanges (Gr. 304, 304L, 316, 316L) available in a variety or grades, materials, and finishes, in metric and inch sizes. These Slip On Flange are manufacture in different Material of Flanges like SORF Flanges, Carbon Steel Slip On Flanges, Stainless Steel Slip On Flanges, Alloy Steel Slip On Flanges, Duplex Steel Slip On Flanges, Inconel Slip On Flanges, Monel Slip On Flanges, Hastelloy Slip On Flanges, Copper Nickel Slip On Flanges in India & Asia, conform to Slip On specifications. The flange is slipped over the pipe and then welded both inside and outside to provide sufficient Strength and prevent leakage. This flange is used in preference to weld necks by many users because of its lower cost and the fact that less accuracy is required when cutting pipe to length. SLIP-ON FLANGE, SO FORGED FLANGES PRODUCTION RANGE Size: 1/2″ (15 NB) to 48″ (1200NB) Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings Pressure Ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. Carbon Steel Slip-on Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 Stainless Steel Slip-on Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L Alloy Steel Slip-on Flanges: ASTM A182 F1, F5, F9, F11, F22, F91 Special Alloy Slip-on Flanges: Duplex, Super Duplex, Nickel Alloys Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized Value Added Services: CNC Machining, Customised Flanges Sizes for Slip On Flanges All Slip On Flanges are available available in sizes from 1/4” through to any size. Wall Thickness for Slip On Flanges Schedule 5s through to Schedule XXS and heavier.

Our forged flanges cover the range of Plate/Plain Welding Flanges (PL flange), Slip-on Flanges (SO flange), Welded Neck Flanges (WN flange), Blind Flanges (BL flange), both RF(Raised Face) and FF(Flat Face), also Threaded/screwed Flanges (TH flange), Socket Welding Flanges (SW flange), Ring Type Joint Flanges (RTJ flange), Lap Joint Flanges (LJ flange), etc.

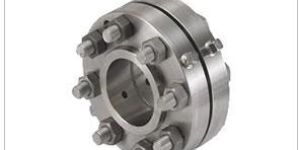

Orifice Flanges are used with orifice meters for the purpose of measuring the flow rate of either liquids or gases in the respective pipeline. Pairs of pressure "Tappings", mostly on 2 sides, directly opposite each other, are machined into the orifice flange. This makes separate orifice carriers or tappings in the pipe wall unnecessary. Orifice Flanges generally come with either Raised Faces or RTJ (Ring Type Joint) facings. They are, for all intensive purposes, the same as weld neck and slip on flanges with extra machining. The image on the right shows a set Orifice Flanges, where a Orifice Plate is mounted and a jack screw is machined. This jack screw is used to facilitate separating the flanges for inspection or replacement of the Orifice Plate and gaskets. The range of orifice flanges covers all standard sizes and ranges, and all common flange materials. Flanges are available in Welding Neck, Slip On, and Threaded form, and are typically supplied with two 1/2" NPT tappings in each flange. ASME B16.36 covers Dimensions and dimensional tolerances from orifice flanges (similar to those covered in ASME B16.5) that have orifice pressure differential connections. Coverage is limited to the following flanges: Welding Neck Classes 300, 400, 600, 900, 1500, 2500 Slip On Class 300 Threaded Class 300

Type : Seamless / Erw / Welded/ Fabricated

Form : Round, Square, Rectangular, Hydraulic etc.

Length : Single Random, Double Random & Cut Length

End: Plain End, Beveled End, Threaded The salient features are as follows : Hot Dipped Galvanizing Epoxy & Fbe Coating Electro Polish Draw & Expansion

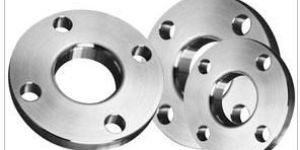

Sanghvi International is acknowledged as a manufacturer, exporter & suppliers of Lapped Joint Flange & Stainless steel Flanges (Gr. 304, 304L, 316, 316L) available in a variety or grades, materials, and finishes, in metric and inch sizes. These Lapped Joint Flange are manufacture in different Material of Flanges like SORF Flanges, Carbon Steel Lapped Joint Flanges, Stainless Steel Lapped Joint Flanges, Alloy Steel Lapped Joint Flanges, Duplex Steel Lapped Joint Flanges, Inconel Lapped Joint Flanges, Monel Lapped Joint Flanges, Hastelloy Lapped Joint Flanges, Copper Nickel Lapped Joint Flanges in India & Asia, conform to Slip On specifications. Lap Joint Flanges are similar to other types of industrial flanges, but it does not have a raised face. Lap joint flanges are used in conjunction with a “Lap Joint Stub End”. The total initial cost of a lap joint flange along with a stub end is around one-third higher than that of comparable welding neck flanges. The pressure holding capacity of lap joint flanges is comparatively lower, and the fatigue life for the assembly is only one tenth that of welding neck flanges.The lap joint flange with the stub end assembly is normally used in piping systems which require regular dismantling for inspection and cleaning. These flanges slip over the pipe, and are not welded or otherwise fastened to it. Bolting pressure is transmitted to the gasket by the pressure of the flange against the back of the pipe lap (Stub End).

Grades : Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 Standard : ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443

Sheet and Plates Grades : Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000 Form: Hastelloy Sheet Hastelloy Coil Hastelloy Strips Hastelloy Plates Hastelloy Circle Hastelloy Ring

Hastelloy ERW Pipe This range is used in : Petrochemicals Plants Oil Refineries Fertilizers Plants Sugar Mills Chemical Plants Pharmaceuticals Textile Machinery

Stainless & Duplex Steel

Range: 3.17 MM TO 350 MM DIA Stainless Steel : ASTM / ASME SA 276 TP 304 , 304L , 309S , 309H, 310S , 316 , 316L , 316 TI , 317 , 321 , 347 , 410 , 420 , 430 ,431 , 440A ,B & C. , 446 ASTM / ASME SA 479 TP 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 321 , 321H , 347 , 347 H , 410, 430 ,431 & 444. Duplex Steel :ASTM / ASME SA 276 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.

Sheet and Plates Range : 5 mm to 100 mm thick in upto 2500 mm width & upto 6000 length available with NACE MR 01-75s. Nickel Alloy : ASTM / ASME SB 162 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 ) ASTM / ASME SB 127UNS 4400 (MONEL 400 ) ASTM / ASME SB 424 UNS 8825 (INCONEL 825) ASTM / ASME SB 168UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 ) ASTM / ASME SB 443 UNS 6625 (INCONEL 625) ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 ) ASTM / ASME SB 462 UNS 8020 ( ALLOY 20 / 20 CB 3 )

ange : 15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS Form : Seamless / Erw / Welded in Round & Square. Nickel Alloy : ASTM / ASME SB 163 UNS 2200 ( NICKEL 200 ) ASTM / ASME SB 163 UNS 2201 (NICKEL 201 ) ASTM / ASME SB 163 / 165 UNS 4400 (MONEL 400 ) ASTM / ASME SB 464 UNS 8020 ( ALLOY 20 / 20 CB 3 ) ASTM / ASME SB 704/705 UNS 8825 INCONEL (825) ASTM / ASME SB 167 / 517 UNS 6600 (INCONEL 600 ) ASTM / ASME SB 167 UNS 6601 ( INCONEL 601 ) ASTM / ASME SB 704 /705 UNS 6625 (INCONEL 625) ASTM / ASME SB 619/622/626 UNS 10276 ( HASTELLOY C 276 ) Copper Alloy : ASTM / ASME SB 111 UNS NO. C 10100 , 10200 , 10300 , 10800 , 12000,12200, 70600 , 71500 . ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy ASTM / ASME SB 160 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 ) ASTM / ASME SB 164 UNS 4400 (MONEL 400 ) ASTM / ASME SB 425 UNS 8825 (INCONEL 825) ASTM / ASME SB 166 UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 ) ASTM / ASME SB 446UNS 6625 (INCONEL 625) ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 ) ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )

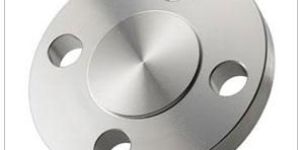

Sanghvi International is acknowledged as a manufacturer, exporter & suppliers of Blind Flange & Stainless steel Flanges (Gr. 304, 304L, 316, 316L) available in a variety or grades, materials, and finishes, in metric and inch sizes. These Blind Flange are manufacture in different Material of Flanges like SORF Flanges, Carbon Steel Blind Flange, Stainless Steel Blind Flange, Alloy Steel Blind Flange, Duplex Steel Blind Flange, Inconel Blind Flange, Monel Blind Flange, Hastelloy Blind Flange, Copper Nickel Blind Flange in India & Asia, conform to Slip On specifications. Blind pipe flanges are used to seal the end of a piping system or pressure vessel openings to prevent flow. Blind pipe flange are mainly used for pressure testing the flow of liquid or gas through a pipe or vessel. Blind pipe flanges also allow easy access to the pipe in the event that work must be done inside the line. Blind pipe flange are also used for high pressure applications   BLIND FLANGES, BL FORGED FLANGES PRODUCTION RANGE Size: 1/2″ (15 NB) to 48″ (1200NB) Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings Pressure Ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. Carbon Steel Blind Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 Stainless Steel Blind Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L Alloy Steel Blind Flanges: ASTM A182 F1, F5, F9, F11, F22, F91 Special Alloy Blind Flanges: Duplex, Super Duplex, Nickel Alloys Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized Value Added Services: CNC Machining, Customised Flanges The tables below show the most common sizes but are not exhaustive.

Range :15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS Form :Seamless / Erw / Welded in Round & Square . Carbon Steel : ASTM / ASME A 53 GR. A , B ASTM / ASME 106 GR. A , B ,C . API 5L GR. B , API 5L X 42 , X 46 , X 52 , X 60 , X 70. ASTM / ASME A 691 GRA , B ,C Alloy Steel: ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91 ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91.
