Sec Machines Mazgaon, Mumbai, Maharashtra

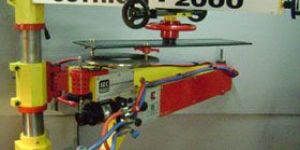

1 Larger Cutting Capacity – Ostrich 2000 can cut any shape upto 2000mm x 2000mm area, Ostrich 1300 can cut only within 1300mm x 1300 mm area. 2 Larger Plate thickness Capacity – can cut up to 250 mm plate thickness, Ostrich 1300’s maximum plate thickness capacity is up to 200 mm only. 3 Larger Template Holding Plate – 900mm x 200mm ….. Ostrich 1300 Template size is only 600mm x 165mm 4 Ostrich 2000 Slide is longer than Ostrich 1300. 5 Ostrich 2000 slide screw is 25mm in diameter and Ostrich 1300 screw diameter is only 19mm. 6 Ostrich 2000 runs on 3 x 3 Ball Bearings while Ostrich 1300 works on 2 x 2 Ball Bearings. 7 Ostrich 2000 gives faster production because you don’t have to shift plate as frequently on Ostrich 2000 than on Ostrich 1300.

Cutting Capacity : Any shape from 20 mm to 2000mm dia.

It can cut mild steel , low alloy carbon steel, stainless steel, aluminum and even brass metal plates.The machine cuts 4 times faster than a template profiler and cuts 10 times faster with Plasma.The Nesting Software converts almost 15 to 20% scrap to production parts and the machine pays off its investment within 12 months.

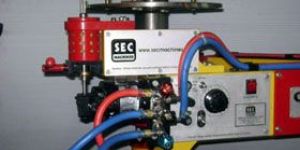

Ostrich 1300 is a Professional , Tough and Durable Profile Cutting Machine . This non tiring machine has to be foundation mounted and can be used in multiple shifts for large Production Application.A Magnetic Racing Roller which moves around a Tin Sheet Template makes the cutting Torch cut the exact shape with perfect accuracy.Ostrich 1300 can cut Mild Steel and Low Alloy Carbon Steel with Oxy Fuel the Machine can also be used for Plasma Application to cut Stainless Steel and Aluminium.

Dimension : 1270mmx1320mmx1830mm

SEC also manufactures Oxy Fuel Cutting Machine 200 , Oxy 300 and Carriage for Plasma Cutting, Easy to use very proven portable straight-line and sheet metal circle cutting machine.For cutting mild steel and low alloy carbon steel , cuts with oxy fuel. …

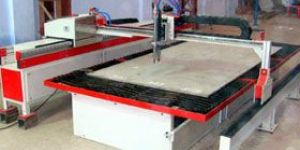

It has a rugged gantry design for optimum performance in a wide range of processes including OxyFuel as well as for Plasma Cutting.SEC provides choice and options that allow you to configure a gantry system with capacity and options you need for your applications.It combines powerful performance with multiple torch carriage flexibility to deliver high productivity of ultra accurate shapes such as circles, rectangles, stars, hexagons or any shape your creativity can conquer.AutoKut’s uses the best and most reliable “SEC” controller and drive system. It comes with state-of-the-art anti surge function. The drives are fitted with DC super Stepper motors with zero backlash drives. It can also be supplied with

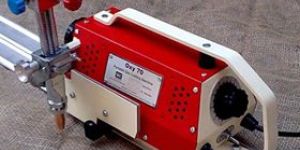

Oxy- 70 is a sturdy yet Portable 0xy Fuel Plates Cutting Machine. It is designed for Clean and Accurate cutting of Mild and Low Alloy Carbon Steel. It is Easy to Operate and is best suited for Straight line, Bevel and Circular Cuttings.Oxy 70 means maximum 70mm thickness capacity, the machine can cut Straight Line cuts upto 1.8 Mtrs length or multiples, can cut Circles from 75mm to 1200mm diameters, Bevels from 0 to 45 degrees.The Machine traverses on an Aluminum Rail for Straight Cutting and cuts circle with a circle cutting attachment.

1 The Machine is the blend of best of PC and PLC Control Technology.The Software Runs on PC and the Machine runs on PLC.The Software generates G Codes which is taken in a USB pen and transferred to Machine where the PLC controller displays the drawing and does the cutting operation…. due to this the machine is always safe from viruses and windows crashes and registry problems…. This is the major issue in a PC based run machine controller. 2 The Machine is blend of World Best technology:Controller : MicroTek …. USALinear Bearings : THK …. JapanNesting Software : IBE ….. GermanyOxy Fuel D7 NM : Koike … JapanPlasma Power Source : Hypertherm …. USAPlasma Power Source : Kjelberg ….. GermanyMachine Structure : SEC Machines … IndiaGuarantees and After Sales : SEC Machines … India 3 Low Power Consumption and very Safe system :The Machine runs on just 1 Phase 230V 50Hzs and consumes hardly 3.5 Amps. It has inbuilt Earth Leakage Circuit Breaker , Overload Circuit Breaker , Voltage Stabilizer , Uninterrupted Power Supply and All Shut Emergency Switch. 4 Unique Start from Same Point Feature :In event of Emergency Shut Off or Power Failure the Machine can start from the same point where it stopped and can even be jogged back and front on the line of cut. 5 Lesser Chance of Breakdown than any other CNC Machine.AutoCut does not run Windows PC , no viruses , no registry errors , no adwares , no malwares , no missing files due to softwares deletion and no pirated softwares problems … major breakdowns of CNC Machines are due to the above mentioned factors only. 6 Higher Accuracy plus minus 0.5mm and ReliabilityAutoCut has inbuilt Electronic Gearing calibration system , this enables any mechanical errors to be corrected digitally . AutoCut is very accurate and gives reliable superior accuracy years after years and this feature is possible due its Unque unmatched Electronic Gearing Technology.  7 Comes with Rock Solid Guarantees15 Months on Site Warranty even for the Electrical Components 3 years Warranty for Hypertherm Plasma Power Source India’s Best Elgi fully Guaranteed Air Compressor. 8 Saves Scrap upto 30%Due to World Renowned Automatic True Shape Nesting Software from Germany. 9 Cuts 26% Faster ………. Saves 25% GasComes with World Famous Japanese Divergent High Speed NM Oxy Fuel Technology Ultra Safe due Nozzle Mix System … no more backfires in Torch and Hoses The Nozzles last 5 times longer and gives very good cut quality.  10 Backed by 20years of your Local Experience and Credibility.SEC is more than 20 years in Cutting Machines Manufacturing and has large List of Satisfied Customers and its list consist of customers like L&T , Thermax . Railways and Govt Departments.

Effective Cutting Width : 1500mm ( also 2000mm , 2500mm , 3000mm, 3500mm )
