External rope lagging can be provided to protect from abrasion as well as acts as natural bending support. The rope also offers good insulation properties, particularly useful in the cryogenic applications.

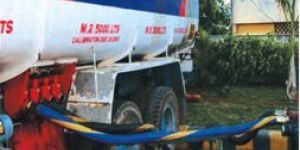

STANDARD DUTY-GPG   Standard Duty Oil Suction and Discharge Composite hoses are designed for handling wide range of fuel, lubricant where light weight and high flexibility is required.   APPLICATION    hoses and hose assemblies are recommended for Rail Tank Wagons, Tank Truck Loading and Unloading, Storage tanks transfers and other standard duty applications.   COMPLIANCE   Standard Duty Multi oil suction and discharge composite hoses and manufactured in accordance to EN 13765 / 2010 Type 2.     PRODUCT HANDLE   Gasoline, high speed diesel, paraffin, kerosene, lubricating oil and 100% aromatics as well as black oils and heavy lubricants and solvents.   FEATURES   Complete product compatibility for safe handling of all types of oil based 100% aromatic content and other non aggressive chemicals. Light Weight & Highly Flexible makes it easy to handle in loading and unloading. Tough PVC outer cover resists to dragging, wear, abrasion, UV and ozone resistance having maximum durability and safety. Double end to end electrical continuity prevents static electricity build up and internal arcing. Suitable for 0.9 Bar Vacuum rating.   CONSTRUCTIONS   INNER WIRE: High tensile strength galvanized steel OUTER WIRE: High tensile strength galvanized steel CARCASS: Multiple layers of polypropylene fabric, film and polyester barrier layers COVER: Abrasion resistant PVC impregnated fabric TEMPERATURE RANGE: -30°C to +80°C FOR CHEMICAL HOSE: Please refer chemical resistance compatibility chart END FITTING: As per client requirement which will be externally crimped or swaged   SAFETY    assemblies are tested at 1.5 times rated W.P for safety & reliability in accordance with BSEN 13765. Manufacturer test certificate will be provided with the supply. Burst pressure Indicated is at ambient temperature. Electrically continuity is achieved by the two wire bonded to the end fitting, this helps dissipate accumulated charge and to avoid static flash.

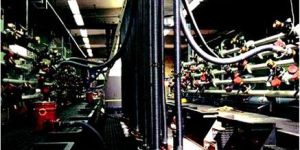

STANDARD DUTY   Multihigh Temp composite hose is designed for handling hot viscous petroleum by products and where high temperature upto +180°C are requirement.   APPLICATION   The  assembly are recommended for handling hot viscous petroleum by products and where high temperature upto +180°C are requirement. The Spiral wound high tensile galvanized iron / Stainless Steel inner wire and outer wire for providing strength & the flexibility to maintain hose integrity under stress and strain.   COMPLIANCE   Multihigh Temperature composite hose are manufactured to suite High Temperature requirement.     PRODUCT HANDLE   Hot viscous petroleum by-product such as Tar and Bitumen.   FEATURES   Complete product compatibility for safe handling of all types Hot viscous petroleum by-products such as Tar and Bitumen. Heat Resistant Fiberglass fabric outer cover. Double end to end electrical continuity prevents static electricity build up and internal arcing. Suitable for 0.9 Bar Vacuum rating.   CONSTRUCTIONS   INNER WIRE : High tensile strength galvanized steel or Stainless Steel OUTER WIRE : High tensile strength galvanized steel or Stainless Steel CARCASS : Multiple layers of polyamide fabric, film COVER : Heat Resistant Fiberglass fabric TEMPERATURE RANGE : -30°C to +180°C (However pressure rating will reduce by 50% when temperature exceed 100°C) END FITTING : As per client requirement which will be externally crimped or swaged   SAFETY    assemblies are tested at 1.5 times rated W.P for safety & reliability in accordance with EN 13765. Manufacturer test certificate will be provided with the supply. Burst pressure Indicated is at ambient temperature. Electrically continuity is achieved by the two wire bonded to the end fitting, this helps dissipate accumulated charge and to avoid static flash.

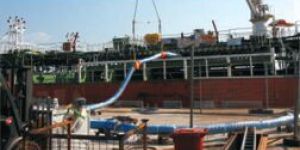

HEAVY DUTY-STG Heavy Duty multichem PTFE dock chemical composite hose are ideal for marine services handling wide range of very aggressive Chemicals where additional chemical resistance is needed with PTFE inner layers.   APPLICATION   The  assembly are recommended for typical loading and unloading barges, ocean tanker and bunkering services also recommended for the other dock side operation at port installation. The spiral wound high tensile Stainless Steel 316 inner wire and Galvanized Iron or Stainless Steel under outer wire for providing strength & flexibility to maintain hose integrity under stress and strain of the ship and barge movement.   COMPLIANCE   Heavy Duty Multichem PTFE Dock Chemical composite hose are manufactured and tested EN13765 Type 3.     PRODUCT HANDLE   Very Aggressive or corrosive acid and alkalis, MTBE, Chlorinated hydrocarbons, aromatic fuels, alcohols where PTFE lining is mandatory. Refer to the chemical compatibility chart for specific recommendations.   FEATURES   Complete product compatibility for safe handling of all types very aggressive Chemicals, solvent, and acids including chloride and fluoride compounds. PTFE Liner with polypropylene and polyester barrier layers for maximum chemical resistance. Tough PVC outer cover resists to dragging, wear, abrasion, UV and ozone resistance having maximum durability and safety. Choice of Galvanized Iron / Stainless Steel 304 / 316 outer wire for maximum durability depending on external environment. Double end to end electrical continuity prevents static electricity build up and internal arcing. Suitable for 0.9 Bar Vacuum rating.   CONSTRUCTIONS   INNER WIRE : Stainless Steel 340 / 316 or PVDF Coated OUTER WIRE : High tensile strength galvanized steel or Stainless Steel 340 / 316 CARCASS : Multiple layers of PTFE, polypropylene fabric, film and polyester barrier layers COVER : Abrasion resistant PVC impregnated fabric TEMPERATURE RANGE : -30°C to +100°C FOR CHEMICAL HOSE : Please refer chemical resistance compatibility chart END FITTING : As per client requirement which will be externally crimped or swaged   SAFETY    assemblies are tested at 1.5 times rated W.P for safety & reliability in accordance with EN 13765 type 3. Manufacturer test certificate will be provided with the supply. Burst pressure Indicated is at ambient temperature. Electrically continuity is achieved by the two wire bonded to the end fitting, this helps dissipate accumulated charge and to avoid static flash.

HEAVY DUTY-STG   Standard Duty Multichem PTFE Chemical hoses are designed for handling wide range of aggressive chemicals, solvents and acids including chloride and fluoride compounds. PTFE inner layers and other special barrier layers assure maximum product life in application and clean transfer are critical. Electrical continuity is achieved by two wires bonded to end fittings, this helps dissipate accumulated charges to avoid static flash.   APPLICATION   The  assembly are recommended and designed for in plant transfers. Tank to process Chemical Handling, Storage tank transfer & Rail Wagon loading and unloading of many Aggressive Chemicals, solvents and acids including chloride and fluoride compounds. The spiral wound Stainless Steel 304 / 316 inner wire and Galvanized iron outer wire for providing strength and the flexibility to maintain hose integrity under stress and strain.     COMPLIANCE   Standard Duty Multichem PTFE Dock Chemical composite hoses are manufactured in accordance to EN13765/2010 Type2.   PRODUCT HANDLE   Very Aggressive or corrosive acid and alkalis, MTBE, Chlorinated hydrocarbons, aromatic fuels, alcohols where PTFE lining is mandatory.   FEATURES   Complete product compatibility for safe handling of all types very aggressive Chemicals, solvent, and acids including chloride and fluoride compounds. PTFE Liner with polypropylene and polyester barrier layers for maximum chemical resistance. Tough PVC outer cover resists to dragging, wear, abrasion, UV and ozone resistance having maximum durability and safety. Choice of Galvanized Iron / Stainless Steel 304 / 316 outer wire for maximum durability depending on external environment. Double end to end electrical continuity prevents static electricity build up and internal arcing. Suitable for 0.9 Bar Vacuum rating.   CONSTRUCTIONS   INNER WIRE : Stainless Steel 304 / 316 or PVDF Coated OUTER WIRE : High tensile strength galvanized steel or Stainless Steel 304 / 316 CARCASS : Multiple layers of PTFE, polypropylene fabric, film and polyester barrier layers COVER : Abrasion resistant PVC impregnated fabric TEMPERATURE RANGE : -30°C to +100°C FOR CHEMICAL HOSE : Please refer chemical resistance compatibility chart END FITTING : As per client requirement which will be externally crimped or swaged   SAFETY    assemblies are tested at 1.5 times rated W.P for safety & reliability in accordance with EN 13765 Manufacturer test certificate will be provided with the supply. Burst pressure Indicated is at ambient temperature. Electrically continuity is achieved by the two wire bonded to the end fitting, this helps dissipate accumulated charge and to avoid static flash.

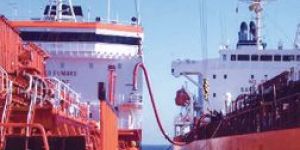

HEAVY DUTY-PPG   Heavy Duty multichem dock chemical composite hose are ideal for marine services handling wide range of Inorganic & Organic liquids, Chemicals & cargo at port installation.   APPLICATION   The  assembly are recommended for loading and unloading barges, ocean tanker and bunkering services also recommended for the other dock side operation at port installation. The spiral wound high tensile polypropylene coated galvanized iron inner wire and Galvanized Iron under outer wire for providing strength & flexibility to maintain hose integrity under stress and strain of the ship and barge movement.   COMPLIANCE   Heavy Duty Multichem Dock Chemical composite hose are manufactured and tested EN13765 Type 3.     PRODUCT HANDLE   Highly corrosive acid and alkalis, aldehydes, amines, aromatic fuels, chlorinated hydrocarbons, alcohols, ketones, lacquers and petroleum products. Not suitable for service for many bromides, chloride or fluoride compounds. Refer to the chemical compatibility chart for specific recommendations.   FEATURES   Complete product compatibility for safe handling of all types of Inorganic / organic liquids & other aggressive chemicals in dockside operations. Tough PVC outer cover resists to dragging, wear, abrasion, UV and ozone resistance having maximum durability and safety. Choice of High tensile strength galvanized steel / Stainless Steel 304 / 316 outer wire for maximum durability depending on external environment. Double end to end electrical continuity prevents static electricity build up and internal arcing. Suitable for 0.9 Bar Vacuum rating.   CONSTRUCTIONS   INNER WIRE : Polypropylene coated galvanized steel or Stainless Steel 304 / 316 OUTER WIRE : High tensile strength galvanized steel or Stainless Steel 304 / 316 CARCASS : Multiple layers of polypropylene fabric, film and polyester barrier layers COVER : Abrasion resistant PVC impregnated fabric TEMPERATURE RANGE : -30°C to +80°C FOR CHEMICAL HOSE : Please refer chemical resistance compatibility chart END FITTING : As per client requirement which will be externally crimped or swaged   SAFETY    assemblies are tested at 1.5 times rated W.P for safety & reliability in accordance with EN 13765. Manufacturer test certificate will be provided with the supply. Burst pressure Indicated is at ambient temperature. Electrically continuity is achieved by the two wire bonded to the end fitting, this helps dissipate accumulated charge and to avoid static flash.

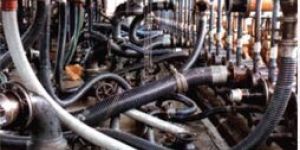

STANDARD DUTY-PPG   Standard Duty multichem chemical composite are designed for handling wide range of very aggressive Chemicals where additional chemical resistance is needed with PTFE inner layers.   APPLICATION   The  assembly are recommended for Tank to process Chemical Handling, Storage tank transfer & Rail wagon loading and unloading of chemicals. The spiral wound Polypropylene coated galvanized iron outer wire for providing strength & the flexibility to maintain hose integrity under stress and strain   COMPLIANCE   Standard Duty Multichem Chemical composite hose are manufactured in accordance to BSE EN 13765/2010 Type2.   PRODUCT HANDLE   Highly corrosive acid and alkalis, aldehydes, amines, aromatic fuels, chlorinated hydrocarbon, alcohols, ketones, lacquers and petroleum products. Not suitable for service for many bromide, chloride or fluoride compounds. Refer to the chemical compatibility chart for specific recommendations.   FEATURES   Polypropylene liner with heavy duty polypropylene carcass for maximum chemical resistance. Tough PVC outer cover resists to dragging wear, abrasion, UV and ozone resistance having maximum durability and safety. Double end to end electrical continuity prevents static electricity build up and internal arcing. Choice of Galvanized Iron / Stainless Steel 304 / 316 outer wire for maximum durability depending on external environment. Suitable for 0.9 Bar Vacuum rating.   CONSTRUCTIONS   INNER WIRE : Stainless Steel 304 / 316 or PVDF Coated OUTER WIRE : High tensile strength galvanized steel or Stainless Steel 304 / 316 CARCASS : Multiple layers of PTFE, polypropylene fabric, film and polyester barrier layers COVER : Abrasion resistant PVC impregnated fabric TEMPERATURE RANGE : -30°C to +80°C FOR CHEMICAL HOSE : Please refer chemical resistance compatibility chart END FITTING : As per client requirement which will be externally crimped or swaged   SAFETY    assemblies are tested at 1.5 times rated W.P for safety & reliability in accordance with EN 13765 Manufacturer test certificate will be provided with the supply. Burst pressure Indicated is at ambient temperature. Electrically continuity is achieved by the two wire bonded to the end fitting, this helps dissipate accumulated charge and to avoid static flash

HEAVY DUTY-GPG   Heavy duty oil marine hose are designed for handling fuel, lubricant and 100% aromatics at required discharge pressure or suction at port installation.   APPLICATION   The  assembly are recommended for loading and unloading barges, ocean tanker and bunkering services also recommended for the other dock side operation at port installation. The spiral woung high tensile galvanized iron inner wire and outer wire for providing strength and the flexibility to maintain hose integrity under stress and strain of the ship and barge movement.   COMPLIANCE   Heavy Duty Marine hoses are manufactured and tested in accordance to EN 13765 type 3   PRODUCT HANDLE   Gasoline, Diesel fuel, paraffin, kerosene, lubricaring oils and 100% aromatics as well as black oils and heavy lubricants and solvents.   FEATURES   Complete product compatibility for safe handling of all types of oil based 100% aeromatic. Tough PVC outer cover resists to dragging wear, abrasion, UV and ozone resistance having maximum durability and safety. Double end to end electrical continuity prevents static electricity build up and internal arcing. Suitable for 0.9 Bar Vacuum rating.   CONSTRUCTIONS   INNER WIRE :High tensile strength galvanized steel OUTER WIRE : High tensile strength galvanized steel CARCASS : Multiple layers of polypropylene fabric, film and polyester barrier layers COVER : Abrasion resistant PVC impregnated fabric TEMPERATURE RANGE : -30°C to +80°C FOR CHEMICAL HOSE : Please refer chemical resistance compatibility chart END FITTING : As per client requirement which will be externally crimped or swaged   SAFETY    assemblies are tested at 1.5 times rated W.P for safety & reliability in accordance with EN 13765 Manufacturer test certificate will be provided with the supply. Burst pressure Indicated is at ambient temperature. Electrically continuity is achieved by the two wire bonded to the end fitting, this helps dissipate accumulated charge and to avoid static flash.

These Polyurethane hose suspension saddles provides perfect hose support during fitting and operations for all types and sizes of hoses from 1″ up to8″

RANGE OF HOSE COUPLINGS   SHARDA INDUSTRIAL CORPORATION offers a complete range of fittings for their hoses. Many of them are specified in the list of this guide, but virtually and type, for any use application can be supplied after consulting with our technical department. Adaptors, accessories, such as blank caps, dust plugs and delivery / filling nozzles are available.   MATERIALS   All the hose fittings may be obtained in a variety of materials according to the compatibility with various media, including Stainless Steel, Brass, Aluminum, Carbon steel, Polypropylene, PTFE, and for special application, metal fittings can be coated with special PTFE coating.   METHOD OF ATTACHMENT    hoses are generally supplied with factory end connections to customer requirements, from our factory. All metal components, including end fitting, are electrically bonded to give full end to end electrical continuity. On Specific request, electrically discontinuous hose assemblies can be provided. For all type of end fitting that enters the hoses and forms the mean by which the fittings is connected to the hose, is provided with scroll on the surface, that correspond to the pitch of the internal helix wire of the hose. Then, the end fittings will be attached to the hose by the use of a special designed lip seal, made from elastomeric materials depending on the chemical resistance to the product conveyed, and a material from elastomeric materials depending on the chemical resistance to the product conveyed, and an metal ferrule which can be externally swaged or crimped. This system guarantees a great safety to the complete assembly.
