Vertical Pressure Leaf Filter
For filtration of liquids with suspended solid contents upto 7%. No filter cloth requirement. Automatic dislodging of filtered cake by pneumatic vibrator or oscillating sluice header. Dry or wet cake discharge is possible. Filtration area upto 120m2. Applications Resins Bleaching earth / activated carbon Crude oil Sulphur Ni-catalyst Brine Filtration Glucose Fatty acid Winterisation Electrolyte Beverage Industry Material of Construction C.S, SS, SS904L, Titanium, Hastelloy, Monel, PolyPropylene / Teflon Coated.
...more

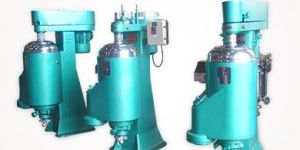

Tubular Centrifuge
High speed separation & clarification. Sharplex Tubular Centrifuge is a high speed solid bowl type machine for continuous separation of two immiscible liquids with density difference. This centrifuge is also used to separate small quantity of impurities from liquids. Applications Pharma Chemical Food Industries Edible Oil Industries Printing Ink Bacteria Cell Separation
...more
rotary brush strainer
Sharplex Rotary Brush Strainers are basically on line filters and can be operated fully automatic. Features Self cleaning continuous separation of solids from liquids Changeable filter elements V-wire element upto 5 micron can be used Applications To reduce load on centrifuges Chemical Edible Pharma Industries Resin Lacquers Toothpaste filtration Printing Ink filtration Palm oil industries for crude oil filtration Miscella filtration Beverage Industry Starch Industry
...more
PULSE JET FILTER
Sharplex Candle Filter consists of candle shaped filter elements made out of Equi-Diameter pipes. Each candle is covered with filter hose in polypropylene, Polyester, Nylon, PVDF and PTFE. These candle are arranged vertically in a pressure vessel. Number of candles depends on filtration area of filter. Filtration & cake formation takes place under the pressure. Wet or dry discharge is possible by means of blow back. For continuous operation two filters are installed.
...more
Pulse Jet Candle Filter
Sharplex Candle Filter consists of candle shaped filter elements made out of Equi-Diameter pipes. Each candle is covered with filter hose in polypropylene, Polyester, Nylon, PVDF and PTFE. These candle are arranged vertically in a pressure vessel. Number of candles depends on filtration area of filter. Filtration & cake formation takes place under the pressure. Wet or dry discharge is possible by means of blow back. For continuous operation two filters are installed. Candle in PP, PVDF also available for corrosive application. Applications Catalyst Filtration Activated carbon filtration Polyols Edible oil Pesticides Biodiesel Beverage Industry Brine Filtration Amine Filtration PTA Filtration
...more

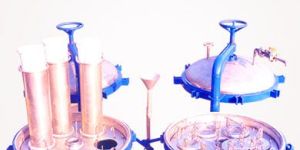

Polishing Filters
Sharplex Single or Multibag Polishing Filters are basically used for post filtration. The baskets are fitted with quick opening type arrangements. Filter bags used are PP, PPS, Polyster Polyamide or special material depending on process conditions. Depending on flow rate single or multibags can be supplied. The Advantages of "Sharplex Pulsejet Candle Filters" are as follows : Automatic back flushing of solids No opening/closing filter every now and then for changing/removing bags Filter cloth used is very durable hence no frequent changing of cloth No consumption of filter bags Compact design The whole process can be automated by PLC
...more

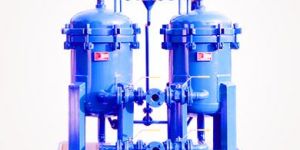

Polishing Filter
Sharplex Single or Multibag Polishing Filters are basically used for post filtration. The baskets are fitted with quick opening type arrangements. Filter bags used are PP, PPS, Polyster Polyamide or special material depending on process conditions. Depending on flow rate single or multibags can be supplied.
...more
pneumatic disc filters
Applications Paint, Varnish, Resins, Printing Inks, Adhesives and all viscous liquids Vegetable oil refineries for filtration of crude oil Filtration of used cooking oils (Fast Food Joints, Hotels) Polymer Filtration Lubricating Oils/Coolant filtration Pharmaceutical Starch Plants Surface treatment chemicals Ethanol plants, bio-diesel Models SFC-400 - Capacity upto - 7 M3/Hr SFC-800 - Capacity upto - 14 M3/Hr SFC-1600 - Capacity upto - 25 M3/Hr Advantages of Self Cleaning Filters Auto-clean online operation & purging time adjustable Highest flow rates with compact design No labour involved No replacement of filter media Very low pressure drop as filter media is always clean No loss of expensive product caused by frequent changing of bags/media When installed before solid bowl centrifuges gives celan oil to centrifuges and hence down time is reduced hence more production
...more

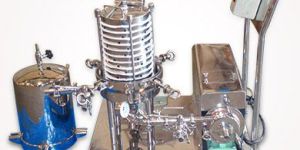

plate filters
Sharplex Horizontal Plate Closed Filter is Used for filtration of small batches in Pharma, Chemical, Edible oil, Food Industries, Complete products recovery is possible with scavenger plate. GMP & ZERO HOLD UP models are available, models are ranging from 8", 14", 18", 24" & 33". Material of construction In SS304, SS316, PP, PVDF, Hastelloy, Monel etc.
...more
Molten Sulphur Filter
Sharplex have supplied several filters for Molten Sulphur Filtration in sulphuric acid & sulphonation plants. Normally 'ASH' is a impurity which needs to be removed from sulphur so that further processing using molten sulphur should be smooth. Sharplex offers horizontal pressure leaf filter for molten sulphur filtration in following two versions - Shell retraction design - In shell retraction design leaf remains steady and shell is retracted to & fro. Bundle retraction design - In bundle Retraction Design Shell is steady and leaf bundle is retracted to and fro. Both the versions are operated (for opening and closing of filter) hydraulically for easy of operation. Filtration area : from 5 m2 to 200 m2. General Process Initially the filter is precoated with filteraid (kieselguhr or perlite). After precoating molten sulphur from sulphur pits is fed to the filter for filtration of ash. After the filtration cake is dreid with steam. After drying is complete filter is opened and cake is removed manually by knocking at leaf bottom by wooden spatula. Material Normally filter vessel is manufactured in carbon steel / boiler quality material and is jacketed. Filter leafs are made of 5 layer design and are in complete stainless steel. Leafs are bolted or rivetted design.
...more
Level Leaf Filter
Sharplex Level Leaf Filters are used for polishing filtration in post filtration stage to trap the fine particles from the filtrate of main filter. The filter elements have filter surface at both the sides and hence this filter becomes very compact even at higher filtration areas. The filter medium can be cloth or paper. The filters are available from 2m2 upto 15m2.
...more

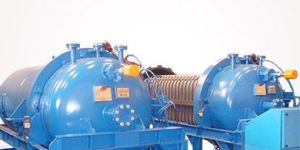

Horizontal Pressure Leaf Filter
Sharplex Horizontal Pressure Leaf Filter (shell retraction or bundle retraction) features horizontal pressure vessel, filter leaves, pneumatic vibrator assembly, bottom structure housing, hydraulic power pack for bonnet ring opening / closing and shell or bundle retraction. Filter leaves are mounted on a central outlet manifold with perfect 'O' ring sealing. Filtration areas from 2m2 to 200m2. Dry cake discharge or wet cake discharge is possible. Filters are also supplied with fix or oscillating sluicing arrangement for wet cake dislodging. Material of construction Stainless steel, Carbon steel with rubber, PP, PVDF lining, Monel, Inconel , etc. 'O' ring sealing are available in BUNA-N, Viton, EPDM, Nitrile, Silicon etc.
...more
Horizontal Plate Closed Filter
Sharplex Horizontal Plate Closed Filter is Used for filtration of small batches in Pharma, Chemical, Edible oil, Food Industries, Complete products recovery is possible with scavenger plate. GMP & ZERO HOLD UP models are available, models are ranging from 8", 14", 18", 24" & 33". Material of construction In SS304, SS316, PP, PVDF, Hastelloy, Monel etc. Applications Pharma & Food Processing Varnish Lacquer Resin Beverage Edible oil Biodiesel
...more

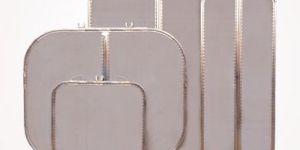

Filter Elements
Sharplex manufactures wide range of Filter Elements for vertical or horizontal pressure leaf filters for any sizes and any makes. Filters elements are manufactured with '5' layer or '3' layer design, riveted or bolted depending on the requirements. With many years of experience in manufacturing the filter elements and with excellent workmanship many European companies are our OEM clients. The filter elements enveloped with filter cloths are also available.
...more

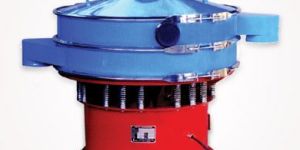

Circular Vibro Screens
Most Efficient Vibrating Screen for Wet & Dry Screening Trouble free operation No Screen Blinding Long life with self Compensating screen tension No transmitted Vibrations Simple & Economical Sizes available 18", 24", 48", 72 Applications Paper & Pulp Chemical Pharmaceutical Grains Sugar Food Ceramic Industries Oil mills Effluents Beverage Industry
...more
Cartridge Filter
Sharplex is supplying Cartridge Filters in various range of Cartridge elements. Housing are made of SS, PP, Hastelloy, Monel. Cartridges are reusable or disposable. PP, Spun, Pleated, Wound Cartridges are available in indisposable type and SS sintered, wire mesh Cartridges are available in reusable type. Complete skid mounted versions are available.
...more
Auto Backwash Filter
Features Process Water Filtration - To remove suspended impurities from river water / process water. Side stream filter for cooling towers - To filter cooling water used in cooling towers to avoid clogging of the heat exchangers. Municipal water filtration Power Plants - To separate scale from water cooling generators. Steel Industry - To protect pumps & nozzles. Paper Industry - To protect clogging of paper machine nozzles. Chemical Plants, Food Industry - To filter process water. Machine Tools - To filter lubricating oils to reuse again.
...more
Ultrafiltration System
Transformer Oil Filtration Plant
Air Filtration Systems
Side stream Filters
Swimming Pool Filtration Plant
