Unbalanced Single Acting Helical Coil Spring Seal
220 Per Piece
51 Piece (MOQ)

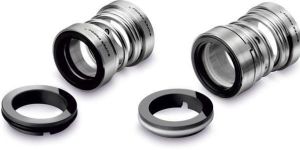

Single Coil Spring Seals
1,000 Per Piece
1 Piece (MOQ)
We avail our clients with our fine and unique range of Single Coil Spring Unbalanced Seal that is manufactured using high grade quality material and is made as per the matching quality standards. TYPE SSI-32C : are single coil unbalanced seal with lugs these seals are simple in design & reliable & rugged enough for the most difficult applications. In SSI-32C’V” packing used as Secondary seals respectively. Special notches enhance the required driving torque & hence the seal is independent of direction of rotation. Non-clogging spring design enables these seals rube reliably used in situations involving abrasive, corrosive & viscous fluids generally handled by high Temperature pumps. Applications : Generally used in refineries, fertilizers, nuclear plants & petroleum pipelines. Material : Seal Faces :Carbon/TC/Sic. Vs Ceramic/RB Sic./Tc Secondary Seals :Viton/PTFE/GFT Metal Components : SS-316 Operating Limits : Shaft Dia :25 to 150mm Pressure :up to 10 Bars Temp. :-50 to 280°C Speed :up to 15 m/s
Best Deals from Single Coil Spring Seals
Single Coil Spring Seals
Get Price Quote
Features : Single Acting Unbalance Pusher type Mechanical Seal. Inside Mounted Mechanical Seal. Spring Design depended on shaft rotation. Type 42 seal having Universal Chemical Compatibility due to design of PTFE Elastomer

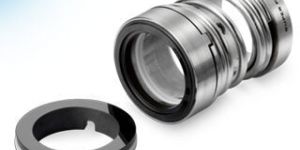

Single Coil Spring Seal
Get Price Quote
We are offering single coil spring seal.b>single coil spring seal that we offer is a product of latest manufacturing technologies and advanced designing expertise. The single coil spring seal is suited for a variety of applications and highly resistant to damaging factors. The single coil spring seals are designed to be fitted in gear pumps, water, and submersible & monoblock pumps & marine products. The quality and reasonable pricing of the range has positioned us as a much sought after single coil spring seal manufacturer and exporter from mumbai, maharashtra. suitable for : waterchemicalfood processingsewagesubmersible pumpssea water applications : water, chemical, food processing, sewage, submersible pumps, sea water. temperature : -500c to +1800cpressure : 10 bar (145 psi)speed : 20 m/ssize : ½" to 3.1/2"
Single Coil Spring Unbalanced Seal
Get Price Quote

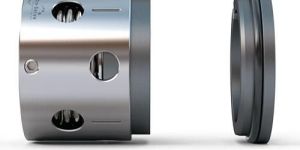

Single Coil Spring Pusher Seal
10,000 Per Piece
1 Piece (MOQ)
Single Coil Spring Unblanced Seal
Get Price Quote
We Bring Forth to Our Customers An Assortment of Single Coil Spring Unbalanced Seal. These Find Wide Application in Fertilizers, Refineries,& Petroleum Pipelines. Also, These are Made Using Top Class Raw Material, Which is Procured from Trusted Vendors. We Can also Custom Design These Seals in Different Sizes and Shapes, as Required By Clients. operating Limits shaft Dia. : 25 to 150min pressure : Up to 10 Bars temperature : -50 to 180 C speed : Up to 15 Ints.
Single Spring Seal (Unbalance)
Get Price Quote
Single Coil Spring Balanced Seals
Get Price Quote
We manufacture, export and supply durable and precisely engineered Single Coil Spring Balanced Seals. These seals are applied in corrosive & viscous fluids application, sulphuric and generally handle by high temperature pumps. We offer Single Coil Spring Balance Seal in different types such as cs11, cs11r, cs11bb, cs11br, and cs4. Our seals are demanded in industries like oil & refinery, fertilizers nuclear plants, and petroleum pipelines. AES : p08, p080, t01, t02

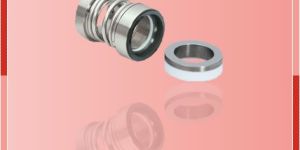

SINGLE COILS SEALS
Get Price Quote
we offer Single coil mechanical seal to suit all pumps seal in available in all faces. all elastomers can fit all pump model
Single Coil Seals (ASC)
Get Price Quote
Single Spring» Rugged design» Bi-directional Applications: Moderate slurries and chemicals. This is simple yet rugged, pusher type seal. Its design compensates for minor misalignment. Torque transmitting drive lugs make the seal bi-directional and also avoid spring distortion.
Single Coil Spring Seal
Get Price Quote
Single Coil Spring Seal is Mainly Designed to Use in Media Containing Solid Particles and Abrasive. These Spring Seals are Suitable for Paper Industry, Petrochemicals, and Petroleum Refinery Applications. the Conical Single Coil Spring Seal is Completely Perfect for Standardization Purposes. Due to These Precise Reasons, We have Managed to Gain the Reputation as One of the Major Spring Seal Exporters from India. salient Features: spring Completely Protected from the Product easily Handle Media containing Abrasive Particles and Solids axial Compensation of Movement 1 Mm perfect For standardization Purposes applications: specially Used in Paper Industries, Petrochemicals, Petroleum Refinery Etc material: seal Faces : Ceramic/sic/carbon Vs Ceramic/rb Sic./tc secondary Seals : Viton/ptfe/gft metal Components : Ss-316 operating Limits : shaft Dia. : 25 to 150mm pressure : Up to 15 Bars temp. : -50 to 180°c speed : Up to 25 M/s
Stationery Mounted Single Coil Spring Seal
Get Price Quote
Supplier & Distributor of Stationery Mounted Single Coil Spring Seal. Our product range also comprises of Dry Running Agitator Seal, Multi Spring Unbalanced Seal and Spring Unbalanced Seal. Item Code: LS15 Type LS15 : Mechanical seal LS15 series are special purpose single coil spring balanced seals designed for use in media containing abrasive or solid particles. Salient features : • Spring completely protected from the product. • Easily handle media containing abrasive particles and solids. • Axial compensation of movement 1mm. • Perfect for standardization purpose

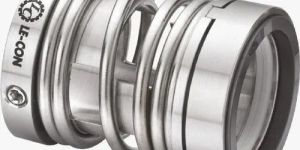

Single Coil Spring Sea
4,000 Per Piece
1 Piece (MOQ)
Single Coil Spring Mechanical Seals
Get Price Quote
General chemical applications, oil refining and petrochemical, Pharmaceutical industries. Suitable for use with abrasive contaminated and corrosive fluids, for slurries, sludges and effluents with solid presence. By choosing suitable component material the seals can be adapted to operate with a wide range of liquid and operating conditions.

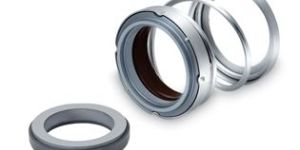

Single Coil Spring Seals with Elastomeric bellow
Get Price Quote
Series 25R are single coil spring seals with elastomeric bellow used for general, non-critical and light applications like water, oil, etc. These seals are not effected with the direction of rotation. Our is manufacturing unit of Single Coil Spring Seals with Elastomeric bellow.
Single Coil Spring Seal
Get Price Quote
Unbalance Pusher Seal. Inside mounted Helical single coil spring mechanical seal. Secondary seal as O' ring (Type - 41) and 'V' packing as (Type 42). Independent direction of rotation. Superproof is the manufacturer of Single Coil Spring Seal in Mumbai.
Single Coil Spring Seals
4,500 Per Set
Single Spring Rugged Design Bi - Directional Application : Moderate Slurries and Chemicals This is simple yet rugged, pusher type seal. Its design compensates for minor misalignment. Torque Transmitting drive lugs make the seal bi-directional and also avoid spring distortion.

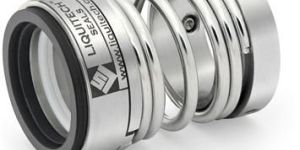

Single Coil Spring Unbalanced Seal
Get Price Quote
TYPE LTS-72HF : are single coil unbalanced seals, these seals are simple in design & reliable & rugged enough for the most difficult applications. In LTS-72HF 'V" packing used as Secondary seals respectively. Special notches enhance the required driving torque & hence the seal is Independent of direction of rotation. Owing to the support of sound infrastructure and dedicated workforce, we are able to manufacture, export and wholesale Single Coil Spring Unbalance Seal. Applications : Materials : Seal Faces : Carbon/TC/Sic. Vs Ceramic/RB Sic./TcSecondary Seals : Viton/PTFE/GFTMetal Components : SS-316

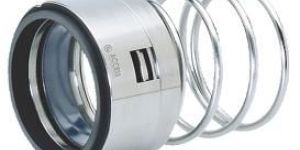

UNBALANCED SINGLE ACTING HELICAL COIL SPRING SEALS
Get Price Quote
Series AES-002 is unbalanced single acting helical coil spring seals independent of direction of rotation. The drive ring's notch design eliminates over stressing of the elastomer bellows. Slippages are eliminated, protecting the shaft and sleeve from fretting. Seal can be repaired in field with minimum spares, minimizing the downtime cost. SEAL CHARACTERISTICS • Single Seal• Unbalanced• Conical Spring• Independent on direction of rotation APPLICATIONS • Water pumps• Mixers and Agitators• Sewage pump• Pulp and papers
Single Coil Spring Seal
Get Price Quote
Type VSS -SPL is single coil spring seal developed for light contamination, dirty media and clogging type application. This type also allows it to fit onto a normal shaft without any balancing step. The mechanical drive of this seal is realised by grub screw which lock onto the shaft. The seal has a limited axial length, compact shape which allows easy mounting. Seal Characteristics Single Seal Unbalanced Helical Coil spring Independent of direction of rotation Application General Chemicals Petrochemicals Light Hydrocarbons
Single Coil Spring Seals
Get Price Quote
We are one of the famous company, who are manufacturer of Single Coil Spring Seals
Single Coil Spring Seal
Get Price Quote
The Seal Type RE-07 with Single Spring design and is depended on the Shaft Rotation. Looking from Sliding Face of the Rotating Seal Ring is designed as right hand Spring for Shaft Rotation and vice-versa. In Seal Type RE07 (‘O’ Ring Type) is designed as Torque Transmission from Drive Collar to Spring and Seal Ring. In Seal Type RE08 (‘V’ Packing Type) is designed as Torque Transmission from Drive Collar to Spring and Seal Ring to be done through Sturdy Drive Lugs. These Seals is cost effective for Basic Application Equipment such as Centrifugal Pump and other Equipment with Rotating Shaft, Handling Crystallizing Slurry, Suspended Solid Slurry, Saturated Chemical Slurry and General Chemical Slurry. Features Single Acting Unbalance Pusher type Mechanical Seal. Inside Mounted Mechanical Seal. Spring Design depended on shaft rotation. Type RE-07 seal having Universal Chemical Compatibility due to design of PTFE Elastomer Materials Seal Ring Faces : Cabon, SiC and TC Seat Faces : Ceramic, SiC and TC Elastomer : Viton, PTFE, GFT, TTV, EPDM, NBR, Buna-N MOC : SS 316 Operating Capabilities Shaft Dia. : 10mm to 100mm Pressure : Up to 10 bar Temperature : -20oC to 150oC Speed:3000 r.p.m.
Single Coil Spring Seal
Get Price Quote
Single Coil Spring Seal, Wave Spring Seal, High Pressure Seals of Reactor
Single Coil Spring Balanced Seal
Get Price Quote
Single Coil Spring Balanced Seal, Dry Running Agitator Seal
