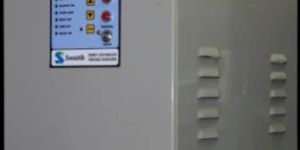

Single Phase Voltage Stabilizer Dealers in Mumbai

• Phase: Single Phase
• Power: 3kw
• Brand Name: Own
• Weight: 18kg
• Automation Grade: Manual
• Output Voltage: 240V
• Input Voltage: 140- 300 V AC
• Mounting Type: Rack 19inch
• Warranty: 1 Year
• Payment Terms: Cheque or Cash, Online
• Shipping Available: Yes I Ship
• Dispatch Time: Immediate
• Return Accepted: Within 10 days
• Dimension: 19 Inch Rack Mount For Flight Case
• Frequency (Hertz): 50-60 Hz
• Cabinet Material: Metal
• Output Cutoff: Yes
• Cooling Type: Fan
• Humidity (%): 98 %
• Transformer Coil: EI
• Suitable For: Outdoor Sound
• Current Type: AC
• Driven Type: Single Phase

ingle Phase   SPECIFICATION : Rating : As Specified Input Voltage Range : As Specified (Eg. 170V-270 V) Input Supply Frequency : 45Hz-55Hz Output Voltage: As specified (Eg. 230V/240V + 1%) Voltage Regulation : + 1% Rate of Correction: Usually 25V/ SEC/Phase but depends on rating Efficiency: Better than 97 % Waveform Distortion : Nil Effect of Load Power Factor : Nil Amibient Tempreture : 0-50°C Max. Type : 1 Phase      FEATURES : Output voltage sensing for voltage correction & for U/V & O/V trip Overvoltage & undervoltage trip by means of contractor / relay's Voltmeter with selector switch to see input & output voltages Short circuit & overload protection by means of MCB/ FUSE MCCB Adjustment : Output voltages adjustment of + 5V/ Phase will be provided by means of potentio meter on front plate. Controls: Auto/Manual incase of auto mode failure you can set output voltage through manual mode.   FEATURES : By pass facilities RFI Filter & Spike suppressor Generator compatible circuit Time delay circuit : output power on with specified time delay Isolation transformer / Ultra isolation transformer at output Ammeter: To see load current's Digital voltmeter & digital ammeter

Servo Stabilizer is an automatic voltage regulator, which primarily consists of the following features : • Linear, plus / minus type vertical rolling contact voltage regulator For making these regulators, we use heavy section of electrolytic grade rectangular copper strip instead of copper wire in order to minimize the losses & increase the efficiency of equipment. We also employ self lubricating Carbon Roller Assemblies instead of ordinary Carbon Brushes that offers more reliability and trouble free performance of the equipment.   • Double wound buck / boost type series transformer In our Buck / Boost transformer, we make use of CRGO lamination to reduce iron losses. The coils of Buck / Boost transformer are wound with heavy section of multi strips electrolytic copper to minimize copper losses to get better efficiency of the equipment. • Electronic control circuit and meter panel

• Condition: New
• Automatic Grade: Automatic

  Range : 3 kvA – 10 kVA    Voltage Rating: Suitable for Single-phase power supply systems. Input Voltage Range: Typically designed to handle variations in input voltage, e.g., 140V-280V. Output Voltage: Provides a stable and regulated output voltage within a narrow range, e.g., +/- 1-3% of the rated output voltage. Capacity (in VA or kVA): Specifies the maximum load it can handle, such as 1 kVA, 2 kVA, 5 kVA, 10 Kva, etc. Topology: Utilizes servo-controlled technology to regulate and stabilize the output voltage. Display: Often equipped with an LED or digital display to show input and output voltage levels. Protection Features: Includes features like over-voltage protection, under-voltage protection, short-circuit protection, and overload protection. Efficiency: Typically designed to be highly efficient, reducing energy consumption. Response Time: Offers rapid response to voltage fluctuations to ensure minimal disruption to connected equipment. Operating Temperature: Specifies the range of temperatures in which it can operate effectively, e.g., 0°C to 50°C. Cooling: have built-in cooling fans or passive cooling mechanisms for temperature control.
