SMART SENSORS AND TRANSDUCERS LTD Wadala, Mumbai, Maharashtra

Microprocessor circuit assures maximum possible accuracy, provides special functions and features. Large LCD with Dual function meter’s display. Metal vane, heavy duty and wide range air flow measurement. Records Maximum and Minimum reading with RECALL. Data Hold. Auto Power OFF. RS-232 Serial Interface.

A prominent supplier of huge range of Torque Wrench.

Technical Specification: 1. Capacity 50N-m, 100N-m, 200N-m, 300N-m, 500N-m 2. Accuracy +- 0.5%, +- 1.0% 3. Mode of testing Clockwise and Anticlockwise 4. Display 2 line LCD module with backlight 5. Unit 5 selectable unit N-m,Kgf-m,Kgf-cm,Lbf-ft,Lbf-in 6. Keyboard Peak hold and track facility, Zero 7. Function Filter degree, Sample etc.. 8. Output Rs232 output optional

  Technical Specification: ·          Rated Capacity : 30 , 50 , 60 , 80 , 100 , 200 , 300 Nm ·          Non – linearity: 0.1-0.3%  FS ·          Hysterisis: 0.1-0.3%  FS ·          Output Sensitivity: 1.5-2.0 mV / V ·          Material: Alloy Steel ·          Power Supply: 9-15 VDC ·          Zero Balance: ≤ ±1 % ·          Temperature Compensated: -10-40°C ·          Operating: -20-65° C ·          Input Resistance: 390(740)±30 ·          Output Resistance: 350(700) ±7 ·          Insulation Resistance: ≥ 1000 MΏ ·          Safe Load: 120 % FS ·          Ultimate Load: 150% FS   Features:              High-grade alloy steel  ·          Highly accurate and reliable ·          Suitable for torque measuring equipment , torque wrench and torsion measurement of shaft .

We deals in supplying of wide range of Tension Load cell.

The XMT*3000 digital temperature controller can replace traditional display meter. It adopts three - positions keys to set freely and single 4 digit LED display. It has 2-on / off control , it is simple digital meter with control capability more reasonable . Range: K (0 to 1300 deg C); E (0 to 800 deg C)                               S (0 to 1600 deg C); J (0 to 1000 deg C)                                            Pt100 (-200.0 to 200.0; 0 to 600 deg C)                                Cu50(-150.0 to 150.0deg C) ·          Display: 4 digit LED display        OUT Indicator Light: When OUT is ON, a green LED light .        Set key (SET): Switches the setting mode and registers the                                     setting value and selected value .              Dec Key : Decreases numeric value of the setting value .               Inc Key : Increases numeric value of the setting value .  ·          Basic Error:  +/- 0.5 % +/- a dot of the total range of the input. ·          Control Output:  Relay contact   AC 250V    7A (impedance)  ·          Control Means: 2 - on / off control  ·          Power AC 220 V   (50/60 Hz )  ·          Work Environment: temperature 0 - 50 deg C, Humidity < 85 % RH, No corrode  ·          Size:  XMTG 48x48x90 mm   Hole 44x44

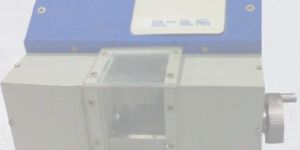

We deals in supplying of wide range of Tablet Hardness Tester.

Unique 4 digits LCD display • Build in DSP microprocessor technology. • Warm up time : less than 20 sec. (typical). • Auto adjust / reset, with reset button • Illumination button for use in dark (Auto shut off after 10 seconds) • Power source : 1.5V Alkaline (“AA” size) x 3. and 12 VDC adapter. • Accuracy : 15% @ 0.01 % BAC • Blowing time : 4 ~ 5 sec. continuously. • Automatic switch off after 30 sec. • Removable mouthpiece, easy to clean and replace. CE approved.

SSNT has recently launched Push Pull Force Gauge. The Push Pull force gauge is a force measuring instrument for push & pull force. Due to gravity the meter when held inclined ( or reverse ) shows reading different than when held vertically. To remove gravity effect, turn zero adjust holding the gauge in measuring mode. Ranges in these gauges are 10kgf, 20kgf, 30kgf, 50kgf and 100kgf. Accuracy is +0.25%, 0.5 % and 1 % F.S. The Digital Push Pull Force Gauge can easily measure tension and compression forces and can display the measuring value in a moment with excellent response function. These gauges mounted on stand will create a high precision load tester for a range of applications. Special features include Handy structure, Programmable set points, Selectable three units, Peak force, Hold facility, Fast conversion display. 1 ) Direct reading of tension & compression 2 ) Complete with hook and other adaptor tips 3 ) Readout in kgf / Newton / pounds 4 ) Works with 9 V Battery 5 ) Tests stands for most application 6 ) Overload capacity 200 % F.S. 7 ) 4 Digit LCD Display 8 ) External switches for hold and clear 9 ) Tare function available 10) Low battery indication 11) Operating Temperature 0 o C to 40 o C APPLICATION 1 ) Switch , Keyboard , Contact Press 2 ) Connector Insertion / Withdrawl force 3 ) Adhesive Bond , Sport welds Strength 4 ) Glass , Ceramics , Pills Crush Strength 5 ) Brake , clutch pedal operating pressure 6 ) Seal, Laminate peel strength 7 ) Motor , Bearing driving force 8 ) Needle penetration 9 ) Spring , Silicon Rubber bending strength 10) Plastic , Cardboard box breaking strength 11) Fastner . Pull top can pull testing 12) Paste materials, Fruit firmness

Smart Sensors And Transducers Limited have launched strain gauge based digital pressure transmitters (SSPX). The product design features include stainless steel design. These are manufactured in four series viz.

Technical Specification: ·          Display Digit: Two Line 6 Digit LCD display ·          Accuracy: 0.1%, 0.25% ·          Case Material: SS ·          Wetted Parts: 17-4 PH stainless steel sensor ·          Connections: Bottom ·          Range: -1 to1000kg/cm2 ·          Battery: 9V PP3 Alkaline Battery /SMPS Adapter ·          Operating Temperature: 0°C to 40°C ·          Storage Temperature: -10°C to 70°C ·          Update rate: 100ms ·          Alphanumeric LCD Display. ·          Used for calibration purpose. ·          Peak hold mode, max/min, Zero reading. ·          Engineering Units: 13 measuring unit Kg/cm2, Psi, bar,mbar,Kpa,Mpa,mm-Hg,cm-Hg,in-Hg,mm-wc,cm-wc,in-wc,ft-wc . ·          Backlight provided. ·          Field Calibration: Zero and span ·          Display Digit: Two Line LCD display module

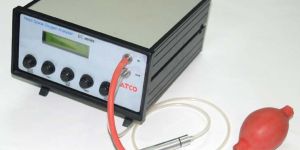

Technical Specification: · Range: 0 to 25% · Resolution: 0.01% · Unit: % and PPM · Display: 2 line LCD module with backlight · Function: Max, Min, Hold · Calibration: Single key calibration · Power: 230VAC with inbuilt battery backup · Enclosure: 192x96 DIN metallic · Limit: 2 set point limit settable over full range.

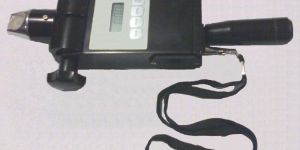

Technical specification: · capacity: 20kn · least count: 0.01 kn · display: 4 digit lcd display · unit: kg, kn, lb · filter: fixed internal · function: peak, zero, clear · moc: enclosure- alu , sensor- ss · power supply: 9v pp3 alkaline battery.

Technical Specification: ·          Capacity: 20 , 50 , 100 , 200 , 300 , 500kg , 1t , 2t , 5t , 10t ·          Non-linearity: 0.03%   ·          Hysterisis: 0.03 % ·          Rated Output: 2mV/V ·          MOC: Aluminum / Alloy Steel / Stainless Steel     Features:  ·          These are compact and reliable. ·          Based upon Bounded foil Strain Gauge. ·          Fully sealed moisture proof. ·          Used in Hanging And Crane Scale Hooper and tank weighing. ·           Non- linearity, Hysterisis, Creep in terms of % of FSO.

Features : · Proven Magnetic Force based Technology · Wind Shield for Stable Reading · Rugged Steel Platform · Multiunit Versatility – up to 11 units · Counting Function · Bright Green Fluorescent Display · External Battery Back Up uninterrupted operation · Approved by Weights & Measures Dept · Proven Magnetic Force based Technology · Wind Shield for Stable Reading

Technical Specification:  ·          Model: ADS-02 ·          Capacity: 2 kg ·          Accuracy: 1 Gm ·          Platform Size: Convenient Detachable Bowl ·          Battery Operated 9 VDC ·          Auto Power Off ·          Approved and stamped by Weights & Measures Dept. Application:  Recipe Cooking / Diet Control / Checking Weight of Food Article

Features:  ·          Bright Green Fluorescent Display ·          Rugged Stainless Steel Platform ·          Battery Back Up ·          “Help” Indication ·          Approved by Weights & Measures Dept.   Application: Platform Weighing Scales for Bulk Weighing of Grains  / Sugar  / Oil  / Steel rod / sheets / Tea  / Coffee  / Spices  / Wool  / Yarn / Textile / Utensils etc…

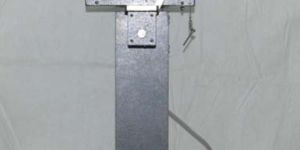

Technical Specification: · Range: 0 to 2.71J , 0 to 5.24J , 0 to 10.84J , 0 to 21.68J · Hammer capacity: 2.71J to 21.6J · Unit: J, Jm, Jcm, ft-lbf, in-lbf, m-kgf, Nm · Display: 2 line LCD display Module with Backlight · Output: Serial Rs232 · Power: 230VAC 50Hz · MOC: SS, MS · Operating Temperature Range: 0 - 50 deg centigrade.

Technical Specification:  ·          Range:  Approx. -1 to 25 Bar ·          Resolution: 0.01 mBar using adjustable vent ·          Operating Temperature: -20 to 50 deg C, humidity within  95%

We are leading supplier of huge range of Electronic Safe.

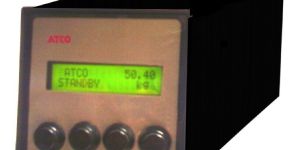

    Technical Specification: ·          Display: 2 Line LCD module with backlights ·          Selectable unit: kg, lb & N  programmable as required ·          Selectable filter: Upto 8 Degree ·          Input:  Full bridge , 4 to 20mA, Voltage upto 10V, Half bridge ·          Function: Mode, Zero, Unit , Max/min, Peak etc ·          Output 1: 2 NO/NC Relay Output ·          Output 2: Rs232 ·          MOC: ABS/ PC ·          Power Supply: 190VAC to 250VAC ·          No. of  Key : 4 No. ·          Enclosure: DIN96 x 96 ·          Firmware: Programmable as required

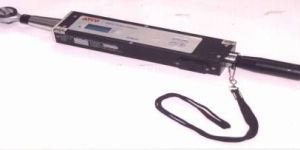

SSNT offers ATCO Digital Torque Wrench as a high accuracy Torque Tool. Torque Wrenches are simple tools for tightening and loosening of bolts and nuts on assembly to a fixed torque value.  We provide high quality electronic Digital Torque Wrench and at very economical prices.     Features:   ·          Ergonomic, lightweight, rugged metal construction. ·          Adjustable Torque Limits with visual and sound (beep) indicators. ·          Interchangeable Head for optimum applications a.   Ratcheting Square Drive for Box Spanners b. Open Jaw Heads for use in bolts in limited space. ·          Both clockwise and counter-clockwise operations possible. ·          Carrying case included in supply. Sockets and Interchangeable     open-jaw Heads available as option. ·          Housing Colors:  Black ·          Display: 4-digit LCD display of 10mm height ·          Standard Units available: N-m, lbf-ft & Kgf-m. Optional unit Lbf-in (Any 3 units pls. specify when ordering) ·          Operates on internal PP3 9 Volts DC battery. ·          Ergonomic, lightweight, rugged metal construction. ·          Adjustable Torque Limits with visual and sound (beep) indicators. ·          Interchangeable Head for optimum applications

We are main supplier of this product.
