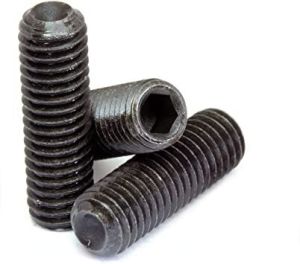

Socket Set Screws Dealers in Mumbai

ISO 9001 : 2008 Certified Manufacturer & Suppliers Of DIN 914 hex socket set screw, set screw with flat head, hex socket small set screw, set screw with soft tip, Din 551 Slotted Set Screw with Flat Point, din 913 din 914 din 915 din 916 set screws, 12.9 brass flat set screws, socket set screws with cone point, brass slotted set screws, torx set screw, hexagon socket head set screws

• Size: Standard
• Material: STAINLESS STEEL
• Brand: ADINATH

• Material: Stainless Steel, Mild Steel
• Diameter: 1-5mm, 10-15mm, 15-20mm
• Thickness: Dacromet, Hot Dip Galvanizing, Phosphated
• Certification: CE Certified, ISO 9001:2008
• Length: 0-25mm, 25-50mm, 50-75mm
• Application: Industrial
• Color: Silver
• Condition: New
• Surface Finishing: Polished
• Country of Origin: India
• Features: High Efficiency, Durability, Optimal Performance
• Colour: Silver & Gray
• Feature: Rust Proof
• Usage: Home, Office, Industrial etc.
• Weight: 100 gm to 2 kg

• Material: Made from alloy steel with a chemical composition of: 0.28 to 0.50% Carbon, 0.040% (max) Phosphorus, and 0.045% (max) Sulfer. Also, chromium, nickel, molybdenum or vanadium should be present in a quantity sufficient to meet the strength requirements outli
•  : Cup Point
• Half-Dog Point: Oval Point
• Flat Point: Cone Point
• Description: Fully threaded, headless screw with a hexagonal drive at one end and a cup-shaped indentation at the other.
• Fully-threaded, headless screw with a hex drive at one end and a protruding tip with a flat surface at the opposing end.: Posseses an oval-shaped point on the end opposing the flush hex drive.
• Posseses a flat surface at the end opposing the hexagoal drive. :  Has a shart conical-shaped point at the opposite end from the hexagonal drive.
• Applications/ Advantages: Most used style Designed for fast, permanent and semi-permanent location of parts on shafts with a hardness differential of 10-15 Rockwell C points and where cutting in of the cup edge on the shaft is acceptable.
•  For permanent setting - often used instead of a dowel pin. The point should closely fit the diameter of the drilled hole, or alternatively, against the flat.: The preferred style for frequent re-set on soft or hard shafts with minimum deforming. Often used for permanent setting on shafts that are spotted, splined or grooved, and for applications where the point meets the shaft on an angle. Sometimes sub
•  Designed for frequent re-setting or re-locating on hard steel shafts and where minimal damage is shafts is essential. Ground flats on the shaft improves the contacts.: Designed for permanent setting on soft or hardened shafts. Deep penetration gives this style of screw the highest torsional and axial holding power. Can be used as a hangar or pivot. For shafts of Rockwell hardness C15 or more, spot point half
• Heat Treatment: Set screws should be heat treated via oil quenching from above the transformation temperature and then tempered at a temperature that is condusive to meeting the hardness requirements.
• Hardness: Rockwell C45 - 53
• Torsional Strength: Socket set screws of sufficient length should be tested to determine if that can withstand the application of the test torque outlined in the above table without evidence of the socket reaming or the screw bursting.
• Finish: Black Thermal Finish

We make available the knurled point socket set screws which are fabricated keeping in view the iso standard guidelines. We specialize in manufacturing knurled point socket set screws with high quality materials which are sourced from reliable vendors. Knurled point socket set screws are obtainable from us at rock bottom prices within a specified duration. appreciated for durabilitycorrosion resistancefine finish precise dimensioncompetitive price specifications product type : grub screwsizes :diameter : m3 to m 12length : 5 mm to 50 mmavailable material grades : b7, b7 m, b8, b16, 4.6, 8.8, 10.9 etc fabricated with alloy steelmild steelbrassstainless steel

• Material: Stainless Steel
• Color: Silver
• Packing Type: Packets, Box
• Head Diameter: Hexagonal
• Material Grade: SS304

We have developed Hex Socket type (with Allen Key Punch) Set/Grub Screws with Flat Point, Cone Point, Plain/Knurled Cup Point, Half/Full Dog Point, Raised/Oval Point, Adusting Srews and Both Side Hex Socket Punch Type. They can be of RH/LH threads, Fine & Coarse Pitch from 3 to 30mm, 1/8" to 1" in BSW, BSF, UNC, UNF, 0 BA to 6 BA, 4 no. to 12 no. NC/NF threads, 1/8" to 2'' BSP/BSPT and 1/16" to 2" in NPT/NPTF threads. STANDARD REFERENCES: IS: 6094 FP-CP-HDP-FDP-TDP & Oval Point type. ISO: 4026, 4027, 4028, 4029. DIN: 913, 914, 915. BS: 2470, 468.

Socket set screws are securing a pulley or gear to a shaft. Set screws are usually headless (also called blind), meaning that the screw is fully threaded and has no head projecting past the major diameter of the screw thread.

Screw Manufacturers offer a wide range of screws which are made up of stainless steel material like alloy steel, carbon steel, aluminum etc. Tekfastners, Screw Manufacturers in India are one of the largest manufacturer and seller of screws as our products follow international quality standards and thus meet the versatile requirements of customers. These are available in various technical specifications. We, Screw Manufacturers in India are amongst the leading names affianced in the domain of providing an unbeatable collection of Screws. Highly recommended amongst our customers for their unbeatable material quality and seamless finish, these are highly demanded by the users. Also, these products are checked by quality analysts on different measures before final delivery. Our company has been widely acclaimed in the field of manufacture and supply of Screws. These are manufactured using best basic material which is procured by our trustworthy vendors. Further these attain to very long exist and require very less effort for fixing. These require very least maintenance and are trusted applications. We, Screw Manufacturers offer these materials at competitive prices.

A set screw is a type of screw generally used to secure an object within or against another object. The most common examples are securing a pulley or gear to a shaft. Set screws are usually headless (also called blind), meaning that the screw is fully threaded and has no head projecting past the major diameter of the screw thread. A blind set screw also known as Grub Screw is almost always driven with an internal-wrenching drive, such as a hex socket , star , square socket or slot. The set screw passes through a threaded hole in the outer object and is tightened against the inner object to prevent it from moving relative to the outer objects.We manufacture these grub Screws/Set Scres in Grade 660, ,stainless steel,copper alloys,high tensile alloy steel,nickel alloys,titanium,Duplex & Super Duplex Stainless Steel etc

For manufacturing and supplying Knurled Cup Point Socket Set Screws we are of the top companies out there. We produce top quality Knurled Cup Point Socket Set Screws that are really tough. This is because we keep our customers’ needs in our mind while manufacturing our products. They are made of a strong material and can be used for a wide variety of applications. It is placed at an affordable rate. For further queries regarding our product please feel free to contact us.
