Solar Boxes Dealers in Mumbai

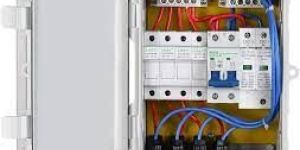

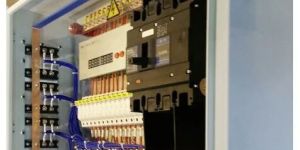

Need of Solar Combiner Boxes In large commercial solar photovoltaic (PV) arrays, multiple solar modules are connected in a string to build the voltage as required by the inverter. Multiple strings of solar modules are then combined in parallel to form the array. A solar combiner box can be thought of as a gate keeper for your solar power solution. Solar Combiner boxes are used to combine the inputs from multiple strings of solar panels into one output circuit for connection to the inverter. Sometimes this is also called as Photovoltaic (PV) Combiner Box. On a single-line diagram, the solar photovoltaic combiner boxes look like a "reverse-fed distribution board". Instead of breaking one feeder into multiple branch circuits, the combiner “combines” multiple branch feeds from solar strings and groups them into one output. This output in turn serves as an input for the inverter. Sunipod’s combiner boxes support from one PV panel to many in series, and ranging from a single low voltage panel to multi-panel high voltage arrays for all systems.

• Frequency: 50Hz
• Material: ABS PLASTIC
• Brand: EPC SOLAR SPACE
• Usage/Application: Solar 10Kw system
• IP Rating: IP65
• MCB Count: SPN
• Number Of Ways: 2
• Capacity: 1 kWp to 20kWp
• Automation Grade: Manual
• No Of Box: 1
• Voltage: 1000 V

• Brand Name: Elcom International
• Type: Junction Box
• Material: Plastic
• Rated Voltage: 60 V
• Rated Current: 8 A
• Specifications: Easily accessible,Simple,fast and cost-effective assembly, Simplifying,low profile design, High current carrying capacity, 2 internal rails.
• Operating Temperature: -40 Deg C to 85 Deg C

• Country of Origin: Made in India
• Voltage: 220 Volt
• Packaging Type: Corrugated Box
• Power: 1 kV
• Features: Rust Proof
• Ambient Temperature: 25 to 50 Degree C

• Rated Voltage: 1000 Volts
• Color: Black
• Brand Name: Raystec
• Material: PPO/ABS
• IP Rating: IP67
• Contact Material: Copper alloy, Tin plated
• Power : 20 Watts
• Temperature Range: -40 degree C to +85 degree C
• Wire Size Range: 2.5mm to 6mm

• Shape: Rectangular
• Voltage: 380 V
• Features: Non-Corrosive, Non-Conductive, Light Weight, Easy to modify
• Brand: chandan
• Mounted Type: Wall Mounted
• Power Source: Solar
• Packaging Type: Box
• Frequency: 50 Hz

The market for photo voltaic industry is increasing continuously. Hence to serve the need of the growing solar market, 3s solar launched its range of photo voltaic components. Out of which the pv junction box is one of the most important component.a pv junction box is a container for electrical connections, usually intended to conceal them from sight and deter tampering. A junction box may form part of solar pv modules which is used in various application to unleash the unlimited source of energy. Pv junction boxes form an integral part of solar pv modules where circuit integrity has to be provided.our new photo voltaic junction box is quick and easy to install. The junction box can be used in mono and poly- crystalline pv solar modules. The stellar™ junction box dawns a compact design and aesthetic looks which sets it apart from the competitors. It is designed for the ease of installation with a unique locking pattern which saves time and gives more efficiency. Its unique material ensures strength and proves to be reliable in most of the harsh situations.

Solar Rooftops, Solar Outdoor Lighting, Solar Off Grid Inverters

Solar Cookers, Solar Geysers, Solar Lawn Light

Designed for harsh electrical and weather environments our PV combiner boxes and can be installed outdoor for rooftop installations. For captive solar customers, it optimizes the power system and based on the number of panels to be installed the combiner box is designed. The combiner boxes use high voltage rated DC fuses to prevent over current protection as well as isolate the solar panels from the batteries and inverters if required.

Solar Combiner boxes are used to combine the inputs from multiple strings of solar panels into one output circuit for connection to the inverter. Sometimes this is also called as Photovoltaic (PV) Combiner Box. On a single-line diagram, the solar photovoltaic combiner boxes look like a "reverse-fed distribution board". Instead of breaking one feeder into multiple branch circuits, the combiner “combines” multiple branch feeds from solar strings and groups them into one output. This output in turn serves as an input for the inverter. Sunipod’s combiner boxes support from one PV panel to many in series, and ranging from a single low voltage panel to multi-panel high voltage arrays for all systems.
