Solar Diamond India Vidya Vihar, Mumbai, Maharashtra

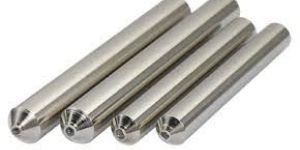

The maximum depth of cut achieved per dressing pass is 0.03 mm or on fine grit wheels, approximately 0.005-0.01 mm. ( Single Point Diamond Dressers ) The cross feed rate is dependent upon grit size and can have a marked influence on the quality of the finish imparted to the grinding wheel surface. The lower the feed rate, the finer the surface finish. We would recommend the following feed rates per revolution of the grinding wheel. An ample supply of coolant should be directed at the diamond point before dressing begins, as the sudden application of coolant to the diamond once it has heated up can cause it to shatter. The diamond holder should not be set directly on the center of the grinding wheel, but at an angle of 5-15 to the direction of rotation of the wheel so that it appears to be "trailing"

We source our Jhansi Red Granite Blocks directly from the best Red Granite Mines and process our Jhansi Red Granite Slabs and Jhansi Red Granite Tiles at our Granite Processing Factory in India. We are an ISO 9001:2008 & NSIC-CRISIL certified & verified company, stringent quality checks and premium grade Indian Red Granite Stone & on demand supplies of it, makes us the first choice for our overseas clients. Besides, our company conforms to CE (Conformité Européenne) mark on its products, as required by European Countries.

A Multi Point Diamond Dresser in which Sharp Natural Diamonds are set in a circular crown at right angle to the operating plane. As soon as the diamonds on the indexed position are completely used up, the crown can be re-indexed on the shank for new points. Shanks for the crown are made to customer's specifications. APPLICATIONS : • All types of large wheels where fine truing is considered important. • Specially recommended for cylindrical grinders. ADVANTAGES : • The diamonds can be completely used up and resetting is redundant. • Since two or more diamonds come in contact with the wheel the work load on the diamonds is divided and the diamonds last longer. • A large area of the wheel is dressed more efficiently in a relatively shorter time than a single point. • As several points are in use simultaneously the feed may be safely increased. • Finer finish is obtained on the wheel due to the crystal shape of the diamonds employed. • Can be used for side dressing.

Diamond Grit Impregnated Dressers have been developed from Multi-Point Dressers. In contrast to the latter they are Manufactured from Diamond Grit rather than a larger number of Small Natural Diamonds. The advantages of the diamond impregnated dresser lie in its exceptional sharpness, which results from sharp edges and points of the diamond grit. Diamond Grit Impregnated Dressers are ideally suited to the following applications, dressing resin, vitreous and rubber bond, fine grit and even "grit free" grinding wheels, as well as boron carbide grinding wheels, dressing single profile threaded and V-profile grinding wheels, for general dressing operations on centreless, cylindrical and surface grinding machines. Diamond grit impregnated dressers are more economical because of their low initial cost and their resistance to shock and impact which prevents shattering. Dressing times are reduced as higher feed rates can be used. There is an unlimited number of sharp pull-out-free cutting edges contained in the crushed diamond grit.

Single point "bruted diamond" dressers are made with selected "Congo Rounds" mounted in a matrix. A Single cutting edge is presented to the grinding wheel. Diamonds for single point dressers are selected in accordance with quality and size. The question of using a superior, average or commercial quality, depends on the grinding finish required and the machines and working parameters.

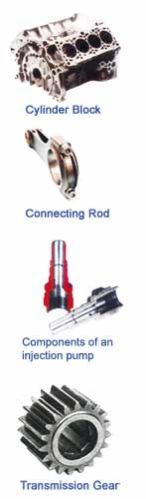

Due to growing ecological requirements, there is a growing demand for bores that can be manufactured in high quantities and with a high precision in terms of surface quality and bore geometry. Faced with today's ecological and economic changes, honing with Diamond or CBN is a must in any modern manufacturing environment. In modern manufacturing, Diamond & CBN honing stones represent the most cost effective and best technological solution. The extreme hardness of Diamond and CBN guarantees long lifetime cycles for the honing stones, a basic requirement for a production facility with a high degree of automation and multi shift operation. On account of the particular hardness of the abrasive material, honing stones of Diamond or CBN stones have an excellent accuracy of form. This has an impact on the process reliability and the precision of the honed bore. The honin

Advanced, high-performance grinding technology is vital to manufacturing industry today. The demands on the grinding process are becoming ever tougher, both in economics and in dimensional and geometrical tolerances and surface quality.
