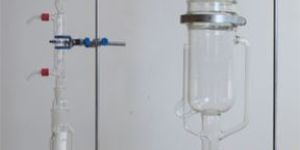

Soxhlet Extraction Apparatus
Get Price Quote
1 Piece (MOQ)
“TEMPO” make soxhlet extraction heaters are designed to use in laboratories for solvent extraction under reflux. Typical applications are the determination of residual oil content in oil cake, assay of crude herbal drug sources etc.Construction“TEMPO” make soxhlet extraction heaters is suitable to heat soxhlet flasks of 100-350 ml capacity. The heating element is attached to knitted fabric to provide flexible support to the bottom of the flask. Glass wool insulation fills the gap between the metal casing and the heater. In event of spillage, the solvent will either evaporate or escape through the draining hole below each element. The housing has two retort rods and a cross bar on which the extraction apparatus is fixed. The apparatus has an inbuild energy regulator which controls all the heaters. The heating elements have individual ON/OFF switch and pilot lamp to indicate working.Technical Specification Controlling System : Energy regulator and pilot lamp Heating System : The heating element is attached to knitted fabric to provide flexible support to the bottom of the flask. Glass wool insulation fills the gap between the metal casing & the heater.
Soxhlet Extraction Unit
6,400 - 9,000 Per Units
1 Piece (MOQ)
SOXHLET EXTRACTION (MANTLE TYPE) with individual regulator (Supplied without glass parts & clamp fitting) Capacity - 250ml, 500ml, 1000ml of ( 3,6) stage.
Best Deals from Soxhlet Extraction Apparatus
Soxhlet Extraction Apparatus
Get Price Quote
Soxhlet Extraction Apparatus
1,200 - 12,000 Per NOS
10 Pair (MOQ)
soxhlet extraction apparatus consist of flask , extractor , condesnor . we can manufacturer as per the client requirement . it capacity are form 100 ml to 10000ml capacity .
Soxhlet Extraction Unit
Get Price Quote
Extraction Apparatus Liquid Solid Extraction involves the elution of a solid sample with pure solvent vapour. The sample is held in the extractor body either directly or in a thimble. The siphoning type of Soxhlet Extractor finds the widest application in laboratory work. BOROSIL® Brand Soxhlet Extraction Apparatus are available in three sizes. The Component parts of the apparatus are provided with interchangeable joints for added flexibility.
soxhlet extraction
Get Price Quote
Description :-Heater Mantle Type : Unit of three or six. Available in different capacities.Hot Plate Type : Tis heater is used to heat soxhlet flasks and it consists of a mild steel housing. Unit of three or six. Three or six hot plates of dia 4 1/2″ are mounted on top of the housing and can be operated by individual a) ON/OFF switch b) Rotary switch c) Energy regulator as per requirements. Mild steel housing has two rods with two adjustable cross rods on which the glass apparatus can be fixed. Electrically operated on 220 / 230 volts AC mains with max. power rating of 900 watts. The apparatus is supplied without glass parts.Glass Parts : Complete with one flask and bulb condenser with interchangeable joints. Different capacities.
Soxhlet Extraction Unit
Get Price Quote
Perform fat determination on two or six food and feed samples simultaneously at the push of a button. As the only automated real Soxhlet instrument the E-812 E-816 SOX is fully in accordance with officially approved methods.
Soxhlet Extraction Unit
Get Price Quote
Soxhlet Extraction Unit, Industrial Heat Exchanger
Soxhlet Extraction Unit
Get Price Quote
Soxhlet Extraction Unit, Receiver Flask, Laboratory Burettes
Soxhlet Hot Plate Type
Get Price Quote
Soxhlet Hot Plate Type, Distilled Water Still, Stability Chamber
Soxhlet Extraction Unit
Get Price Quote
Soxhlet Extraction Unit, welding rod ovens, Hot Air Oven, mother oven
