Spun Filter Cartridge Dealers in Mumbai

• Length: 10, 15 inch
• Filter Medium Material: Cotton
• Usage: Water Filter

The filtration mechanism in depth style filter cartridges depends on cross sectional thickness of cartridge. When the fluid flows across the filter media, the contaminants get trapped within the matrix of the media. The thickness imparts large dirt holding capacity for trapping the contaminants.Extruded from thermally bonded pure polypropylene micro fibers Graded density traps larger particles near the surface & smaller particles within the filter matrix Greater void volume Available in various micron ratings High dirt holding capacity & increased service life Available in standard lengths of 10", 20", 30" & 40" to fit standard filter housings Offers lower pressure drop, reduces replacement time Bonded self formed internal core to prevent fibers from entering filter stream

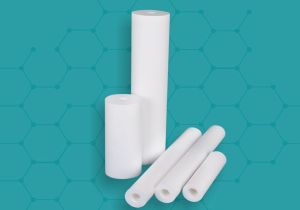

Descriptions   Melt Blown Spun filter cartridges are made from 100% polypropylene fibres. These filters are manufactured through a process that thermally bonds pure Polypropylene microfibers with lower density at the outside surface and progressively higher density toward the centre. Due to its gradient density, filters are excellent depth filters. This fully automated manufacturing process assures consistent quality filter to filter. The uniform space of fibres achieves an excellent filtering effect. As the filter cartridge is only made of polypropylene the resistance to chemical reagents for both organic solvent and inorganic solvent are good.   Features & Benefits Free of surfactants, binders and adhesives. Graded pore density for high dirt holding capacity. Excellent flow with low pressure drop. High strength & pressure resistance. High dirt holding capacity &High Service Life. Wide chemical compatibility. Standard and customized sizes to fit most housing. Available in jumbo size. Technical Specifications Filter Media: Polypropylene Fiber Pore size: 0.5, 1, 3, 5, 10, 20, 50, 75 μm Length: 5", 10", 20". 30", 40" Inside Core: Double Open End (DOE), 222 with O-ring, 226 (Code-7) End Caps: Thermal bonding technique Outer Diameter: Φ 63mm / Φ 110mm Inner Diameter: Φ 28 mm   Applications Pharmaceutics Chemical industry Food and Beverage Paints & Coatings Microelectronics, Prefiltration for RO/UF Cosmetics Oil & Gas, Photographic solutions Plating solutions

• Color: White
• Features: Nominal costs ,Precisely designed
• Usage/Application: water filter
• Usage: Air Filter, Water Filter
• Filter Type: Activated Carbon Filters
• Length (inch): 5-10inch
• Diameter (inch): 1-2inch

• lengths: 10", 20", 30" & 40"

The filtration mechanism in depth style filter cartridges depends on cross sectional thickness of cartridge. When the fluid flows across the filter media, the contaminants get trapped within the matrix of the media. The thickness imparts large dirt holding capacity for trapping the contaminants.

The most common type of depth filters. 100% pure PP fibers Std Size: Dia 2.5” x 10”. 20”, 30” and 40” Jumbo- Dia 4” x 10” & 20” Micron Rating: 0.5,1,5,10,25,50

GROOVED SPUN PP DEPTH FILTER CARTRIDGE, STRING WOUND DEPTH FILTER CARTRIDGE

Spun Filter Cartridge, water purification machine, Diaphragm Sanitary Valve
