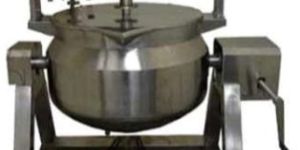

Starch Paste Kettle
625,000 - 815,000 Per Piece
1 Piece(s) (MOQ)
Electric/Steam/Thermic Oil Heated and Jacketed Kettle For Solution Preparation. Description: Design as per stringent cGMP requirements. All contact parts SS 316 electric heated /steam heated / thermic oil heated Tilting unit for unloading Available in 50 Liters, 100 Liters, 150 Liters capacity Option-mixing stirrer and digital temperature control
Starch Paste Kettle
Get Price Quote
Starch Paste Kettle is used for preparation of binder materials which are widely used in medicine and food industries. Fast and even heating along with efficient stirring ensures good quality of starch paste is minimum amount of time. This machine has an electrically heated jacket, thus eliminating the need of providing a steam connection for heating. It also eliminates the need to tilt the vessel to empty it contents by providing an outlet valve at the bottom of the hemispherical vessel which can emptied directly into containers which can be kept beneath it. This makes the handling of the hot starch paste much safer for the operators..Features All contact part made of SS 316 as per GMP standard Hemispherical design for proper mixing of paste Jacket provided with thermic heating – uses electricity, eliminates the need for steam Driven via motor and gear box assembly mounted on top – maximizes usage of floor space Anchor type impeller design for proper mixing of paste Outlet Valve provided at the bottom of the vessel – fast and safe emptying of the vessel without the need to tilt the entire vessel.
Best Deals from Starch Paste Kettle
Starch Paste Kettle
200,000 - 500,000 Per Piece
1 Piece (MOQ)
Pharmachem Cosmetics Industries Binder Preparation Vessel (Starch Paste Preparation Kettle) has been designed uniquely for optimal mixing efficiency so as to ensure a homogeneous mix. The special stirrer in the vessel has been designed to create vortex inside the solvent which enhances the desired solubility of pharmaceutical binder solute into the various solvents.Due to its unique design the binder solution can be directly transferred into the processing equipment such as high shear mixer granulator, planetary mixers or fluid bed processor. FEATURES : Designed uniquely for optimal mixing efficiency Special stirrer included for homogenous mix Controlled temperature exposure with special jacketed bowl Variable rotation rate possible Custom-made capacity Integration of flow rate control assembly into system Direct transfer of binder solution to granulation processing equipment Cleaning & maintenance easy Optimal mixing efficiency to ensure a homogeneous mix Easy handling Easy maintenance (CAPACITY : 50 LTRS TO 500 LTRS)
Starch Paste Kettle
Get Price Quote
The Starch Paste Kettle we fabricate and develop is a specially designed unit for application in pharmaceutical processing units. It is used for preparation of binder materials which are highly used in medicine and food industries.
Starch Paste Kettle
Get Price Quote
cGMP Starch Paste Kettle are generally used in the pharmaceutical industry for paste preparation. It has a universal application which gives uniform melting. Starch Paste Kettle is used in chemicals, Foods, Cosmetics and Pharmaceutical Industry. The basic principle of this kettle is the jacket for passing steam in order to melt down the product to make paste. This kettle has an unique tilting arrangement for discharging the product.Salient features All contact part made of SS 316 as per GMP standard. Hemispherical design for proper mixing paste. Jacket provided with steam/thermic/fluid heating arrangement. Driven via motor and gear box assembly mounted on top. Tilting arrangement for kettle is provided for discharge for starch paste. Heating insulation provided to avoid heat loss. Anchor type impeller design for proper mixing of paste. Safe earthing system. Available in Size from 10 to 500 lts.
Starch Paste Kettle
Get Price Quote
1 Piece(s) (MOQ)
We settle the financial transactions with our customers through the secured payment procedures. We also settle down upon a variety of negotiable instruments. Our range of products is favored by many, as it is quality guaranteed and according to global quality management standards.
Starch Paste Kettle
130,000 Per Unit
1 Unit (MOQ)
Starch Paste Kettle
Get Price Quote
Affordable price and high quality are the major attributes owing to which our Starch Paste Kettle is highly in demand amongst buyers. By following a strict selection process, we source the entire range of raw materials from the certified vendors. Thus, we make sure that our finished goods will be flawless. Features : Hemispherical design for proper mixing past Jacket provided with steam/ thermic/ fluid heating arrangement Anchor type impeller with scrapper design for proper mixing of paste Tilting arrangement for kettle is provided for discharge for paste Safe earthing system Driven via motor and gear box assembly mounted on top with Arm Operating panel provided with vessel Outside surfaces will be insulted with SS304 and surface will be polished to the mirror finished In compliance available -50Ltrs to 300 Ltrs. Bottom discharge with flush bottom ball valve. All contact part made of SS316/SS316L as per CGMP standard. Optional : Flameproof Construction VFD to change the Rpm of Stirrer Digital temperature controller or digital timer. Document - Documentation Like DQ, IQ, OQ, Manual and FAT provided with the machine
Starch Paste Kettle
Get Price Quote
Starch Paste Kettle is designed as per good manufacturing practices in terms of clean ability of components, surface finished, absence of sharp corners, assembling and dissembling of components and control devices. Machine can be design as per jacketed type, electrically or stream heated, thermostatic control with the unit, safety valve, insulated with suitable insulating material, tilting with hand wheel. Easy transfer of paste while tilting, unit will be provided with suitable lid, suitable discharge bottom valve for steam water, which should easily removable and easily cleanable.
Starch Paste Kettle
Get Price Quote
The Starch Processing Kettles we offers are specially designed unit for application in pharmaceutical processing units. It is used for preparation of binder materials. This is also called starch paste kettle and is constructed as a hemispherical kettle with jacket mounted on trunnion that is supported with the help of a shaft. The kettle is provided with an anchor type beater for mixing the binder material and the paste with multiple speed option. Granulation Line:- starch paste kettle is a specially designed unit for preparation of binder material.The kettle is provided with a suitable slow speed stirrer with geared motor mounted on the top. It is available from 50 Ltrs to 500 Ltrs. Capacity. Salient Features: The starch paste kettle is a specially designed unit for preparation of binder material It is a hemispherical kettle with jacket mounted on trunnion supports with the help of shaft. The kettle has a small cylindrical top shell with a spout for pouring out binder mass. The kettle is provided with Anchor type beater for paste mixing with dual speed option. Jacket is provided with steam accessories i.e pressure guage. Safety valve and vent cock. The Kettle is also provided with a lever with hand wheel to accomplish titling manually The kettle is provided with 16 swg thick SS 304 losses lid. Optional: Port of Dispatch: Mumbai Production Capacity: 4Units/Month Delivery Time: 4-6weeks Packaging Details: in wooden cases
Starch Paste Kettle
Get Price Quote
Starch Paste Kettle will be made out of S.S. 304 Rectangular Pipes and will be an independent resting type frame work where no foundation will be required. The Kettle will be a hemispherical type bowl with either steam / Oil / Water heating Jacket will be provided. The Kettle will be manufactured from 2.5 mm thick S.S. 304 Sheet and The Jacket will be of 2.5 mm Mild Steel (In case of steam Jacket the thickness will be 4 mm) There will be oil / water heated fitted at the back bottom side of the Kettle. The Kettle Will be having a worm type arrangement for tilting. A temperature controller & a temp Indicator will be provided for temp control & Indication. The Kettle will be Insulated with 50 Mm thick glass wool
Starch Paste Kettle
Get Price Quote
Starch Paste Kettle
Get Price Quote
• It is Specially Designed for Preparation of Binder Material. • Hemispherical Kettle with Jacket Mounted on Trunion Supports with the Help of Shaft. • The Kettle has a Small Cylndrical top Shell With a Spout for Pouring out Binder Mass. • Jacket is Provided with Steam Accessories, Pressure Gauge , Safety Valve and Vent Cock. • The Kettle is also Provided with a Lever with Hand Wheel to Accomplish Tilting Manually. • The Kettle is Provided with 16 Swg Thick S.S.304 Loses Lid.
Starch Paste Kettle
Get Price Quote
Starch Paste Kettle is designed as per good manufacturing practices in terms of clean ability of components, surface finished, absence of sharp corners, assembling and dissembling of components and control devices. Machine can be design as per jacketed type, electrically or stream heated, thermostatic control with the unit, safety valve, insulated with suitable insulating material, tilting with hand wheel. Easy transfer of paste while tilting, unit will be provided with suitable lid, suitable discharge bottom valve for steam water, which should easily removable and easily cleanable.
Starch Paste Kettle
Get Price Quote
The Starch Processing Kettles we offers are specially designed unit for application in pharmaceutical processing units. It is used for preparation of binder materials. This is also called starch paste kettle and is constructed as a hemispherical kettle with jacket mounted on trunnion that is supported with the help of a shaft. The kettle is provided with an anchor type beater for mixing the binder material and the paste with multiple speed option. Granulation Line:- starch paste kettle is a specially designed unit for preparation of binder material.The kettle is provided with a suitable slow speed stirrer with geared motor mounted on the top. It is available from 50 Ltrs to 500 Ltrs. Capacity. Salient Features: The starch paste kettle is a specially designed unit for preparation of binder material. It is a hemispherical kettle with jacket mounted on trunnion supports with the help of shaft. The kettle has a small cylindrical top shell with a spout for pouring out binder mass. The kettle is provided with Anchor type beater for paste mixing with dual speed option. Jacket is provided with steam accessories i.e pressure gauge. Safety valve and vent cock. The Kettle is also provided with a lever with hand wheel to accomplish titling manually The kettle is provided with 16 swg thick SS 304 losses lid.
Starch Paste Kettle
Get Price Quote
Tablet Making Machines, Wet Mixer, milling Machines, Blender
Starch Paste Kettle
Get Price Quote
Stainless Steel Intermediate Bulk Container, nutsche filter dryer
