Stephenson Pump Malad West, Mumbai, Maharashtra

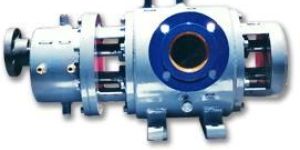

We are offering twin screw pump. • absolutely no metal-to-metal contact between the moving screws as a small positive clearance is maintained between them. This ensures the pump very long operational service, resulting in no wear and tear of pump parts. • pump capable of running dry • screws are mounted on the timing gears and the speed of both the screws are therefore synchronized resulting in pulsation free, turbulent free flow • flow of the liquid is always in the straight path • sealing is situated at the suction pressure • pump requires very low npsh (net positive suction head) • the rotation of screws is perfectly balanced resulting in no vibration and negligible noise.

We are offering Lobe Pump. Design Feature of our Lobe Pump Stephenson Lobe pumps are designed for applications in chemical, personal care products, industrial applications, and food and beverages industries. Salient Features: • Product integrity is maintained as shearing is negligible. • Self-draining casing to enhance CIP SIP. • Specially designed one piece rotor and gear case body for longer bearing and seal life. • The pump and gear box casing is a one piece casting, thereby ensuring precise alignment, enabling accurate and reliable operation. • Precise flow rate and reliable operation • Reverse pumping possible. • Loading and unloading now possible with the same pump. • Hygienic front loading of mechanical seal ensure ease of maintenance. • Sealing with Single Mechanical Seal with or without quench. • Pump with foot mount, option for vertical port or horizontal port possible. • The pump is suitable for CIP (Clean-in-Place), M.I.P (Maintenance-in-Place), and S.I.P (Sterilization-in-Place). • The complete pump is manufactured in stainless steel • Special Rotor Case profile for self-draining • Capacity available from 30 LPM up to 900LPM, Pressure 15kgcm2 , Viscocity-1,50,000cst

We are offering internal gear pump. Rotary internal gear pump has only two moving parts. “a gear within a gear”. The positive displacement of liquid is achieved by the complete filling of the spaces between the teeth of the rotor and idler gear. With every revolution of the pump shaft a definite amount of liquid enters the pump chamber through the suction port. This liquid fills the spaces between the teeth of the rotor and the idler. The crescent on the pump head splits the flow of liquid as it is swiftly moved towards the discharge port. The idler gear moves on hardened and ground eccentric pin. Pump is designed with built-in relief valve. pump capacity available from 10lpm – 1000lpm, pressure 15kgcm2

We are offering basket filter. salient features of stephenson filter: strength and durability the ends of the mesh & back-support are spot weld for durability. Our element is perfectly designed in terms of strength that an average person can stand on it without creating any deformation of the element. Back-support provided is of square perforated sheet. This gives more area for the liquid to pass. Unlike the conventional type where standard round perforation is provided. Giving less area. Also cleaning the element with square perforation is quick and easy. Mesh & back-support after having spotted welded are then fixed inside the groove provided on the top bottom flanges. The assembly is then firmly held perfectly with the tie-rod. Ergonomic design • ordinary method of fixing the elements inside the filter body is with nutsbolts arrangement. Our design totally devoid of such old method. Element is provided with a heavy duty spring on the tie-rod and when the filter cover is closed the spring is compressed by guide-plate forcing the element to rest firmly and evenly on the rest ring. This simple design makes the element to be free when the outer cover is removed thereby saving time & energy. • to save on labour generally the rest ring on which the element in placed are welded on the side where the element is fixed. This therefore doesn't allow the element to seat completely on the rest ring because of the welding butt, resulting in pilferation of the liquid into the system. Nullifying the very purpose of filter. In all our filter, the rest ring is welded from underneath so that the surface is always clean clear for the perfect mating of the element.
