Suni Cranes Controls Vasai, Mumbai, Maharashtra

Color : Blue

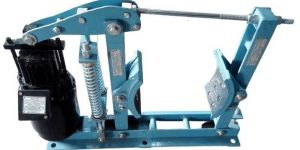

Suni Brand thrustor/ Thruster is electro hydraulic device to apply pressure or actuate lever mechanism of brake arrangement.   An Electro-hydraulic thrustor,Thruster is an independent mechanism which requires neither clutches nor external piping. The thrustor,Thruster cylinder accommodates a centrifugal pump and a piston with two push-rods extending outside through thrustor/Thruster cover and transmitting effort to the brake   The robust design "Suni" Brand Thrustor/Thruster unit is compact and has long life and is easy to maintain.   Main components used are of high quality cast iron and steel.The"Suni" Make Thrustor/Thruster is operated by an integral three phase squirrel cage motor.    The device has the following advantages: Constant Pressure Gentle Application and release of Brake without jerks and shocks. Larger number of switching-in operations per hour (up to 720).   The rated stroke of each type of thrustor/Thruster can be changed, retaining the same attractive force, by means of sleeves fitted on the rods (inside the body) (this arrangement is possible with models from Suni/ ST 535 and above) In cranes / hoisting machinery, brakes are intended for controlling the speed of load, lowering or for holding the suspended load at rest   "Suni" Make Mill duty Thrustor/Thruster Brakes are suitable for 400/440 Volts, 3 Phase A.C.50 C/S supply for a wide range of drum sizes, from 100mm to 600 mm dia. Higher sizes can also be supplied against specific requirements.   The brake is applied by the tension of the compressed springs mounted vertically between the thrustor /Thruster and brake lever. The thrustor/Thruster rods are connected with the brake by means of an angle lever. As the piston travels upwards the angle lever turns, pushes the brake rod and compresses the brake spring. Simultaneously, the brake lever on the other side of the wheel (Brake Drum) is retracted. The brake lever at the thrustor/Thruster begins to move when the first lever reaches the stop on the brake base member   The thrustor/Thruster and the brake are so adjusted as to reserve about 1/3 of the stroke for compensation of the wear of the brake linings.

Type : Thrustor Brake

Material : Metal

Color : Blue

Feature : Easy Installation

Voltage : 400/440 Volts

Frequency : 50Hz

Phase : 3 Phase A.C

Country of Origin : India

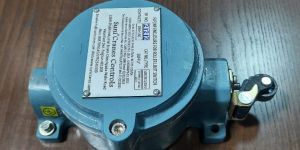

Suni Brand FLP/WP Roller limit switch with 1NO+1NC Contact rated current 10 Amps 230Volts A.C. 50 C/S

Packaging Type : Box

Type : Flameproof Limit Switch

Material : LM6

Shape : Rounded

Certification : ISI Certified

Color : Smoke Grey

Max. Voltage : 240 VAC

Current Rating : 16A

Switch Type : Micro Limit Switch

No Of Switch : 2 Switch

Switch Operation : One Way

Switch Configuration : 1 NO +1NC

Pole Throw : SPST

Degree of Protection : IP66

Frequency (Hertz) : 50

Suni Brand FLP /WP Electro magnetic Disc brake suitable for Gas group II C three phase 415 VAV

Material : LM6

Certification : CE Certified, ISO 9001:2008

Feature : Good Quality, Rust Proof

Condition : New

Warranty : 1year

Brand Name : Suni

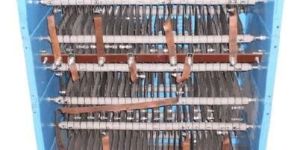

Controlling motors with resistors is a universal method of speed control. The resistors are used to limit the in-rush current and adjust the torque and speed characteristics of an ac and dc motor   By changing the resistant on the rotor (through contactor), you can limit the starting torque and speed of the motor for your specific application.   Suni make Resistance Box /Resistors are designed to meet requirements of A.C & D.C. application for E.O.T. Cranes, Winches, Rubber Mills, Flour Mills, Coal Mines, Cement Mills, Power Plants, Conveyors, Coke Oven, Blowers etc. for Speed control and developing Starting Torque.   ENCLOSURE FEATURES overhung top with canopy to prevent standing water and will support heavy ice and snow. Forged eyebolts are provided in all four corners for easy handling. Removable front and rear louvered covers for easy access for connection and inspection. Corrosion resistant nameplate provides complete ratings and manufacturer's information. Galvanized Iron Sheet provides maximum protection.   ENCLOSURE OPTIONS Aluminum, mill galvanized, stainless steel and hot-dipped galvanized construction. Custom paint finish is also available. Top or side mounted entrance bushing(s). Screened covers for indoor applications. Support stands for elevating the enclosure above ground.   Stainless Steel Punched Grid type Resistors These are designed and manufactured for current ratings form 10 Amps. to 234 Amps. Continuous Resistors of higher ratings are manufactured by using 2 or more parallel paths. Resistors with short time ratings up to 3000 Amps. or even more for neutral grounding are possible which are suitable for system voltage up to 11 KV and above   Resistors can be designed to BSS / VDE/NEMA/IEEE or any other requirement specified by customer. The Temperature rise for stainless steel wire and Punched steel grids is 375*C. Resistors can also be supplied for lower temperature rise such as 220*C etc. by suitably de-rating the grids. Resistors for higher temperature rise can also be designed for short time duty e.g. 760* C for stainless steel which is permitted by IEEE Standard 32

Type : Resistance Box

Material : Metal

Shape : Rectangle

Application : Industrial Use

Feature : Fine Finishing

Country of Origin : India

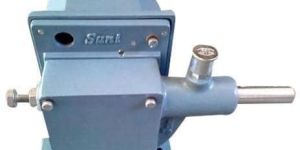

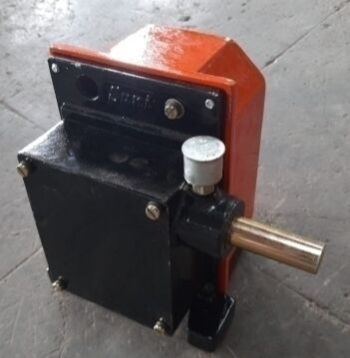

Description Suni Brand Rotary Gear type Limit Switch that is used on Control / Power circuit of reversing drives so as to limit their rotation / movement within a predetermined position. The function of the Limit Switch is to stop the mechanism of drive at the extreme clock wise / anti clock wise position. Suni Brand Rotary Limit Switches are particularly suited for use on reversing drives such as Electric Hoists, Winches, Over Head Cranes, Traversers etc. The contacts of these Limit Switches are rated for 40 amps at 500 Volts A.C. The Limit Switch can be provided with 2NC contacts or (2No + 2NC) contacts as per the requirement. The geared type rotary limit switch basically consists of heavy duty worm gear drive with a ratio of 48:1 The Crane Duty Rotary Geared Limit Switch is made in IP-54 enclosure. in case of IP-54, the cover is of cast Aluminum. Also the Base and cover have machined surface to protect the Limit Switch against dust. The cam shaft which extends from behind the gear into the Aluminium housing accommodates the cams. 2 or 4 cams are used depending upon whether the Rotary Limit Switch is of 2 contacts or 4 contacts operation. The contacts have a maximum continuous Current capacity of 40 amps AC. The contact tips are made of high grade Silver Cadmium Oxide alloy. When used for Series operation [up to 40 Amps maximum], the Contacts are suitable for 720 operations per hour and in case of Shunt operation [ for Control Circuit ] , the Contacts are suitable for 1000 operation per hour. The same Contacts can be used in Series as well as in Shunt configurations The switching capacity of the Contacts when used for Shunt operation is 15 amps at 400 Volts, AC on highly inductive load and 2.5 amps at 220 Volts DC. These switching capacities in fact are far in excess of what is actually required in practice and hence replacement of Contacts for Shunt may not be necessary for a long time. The body of the Contacts is made of high grade Melamine which is specifically suited for heavy duty operation .The material is non – tracking and is capable of with standing heavy arcing.   The Rotary Limit Switch operates in the following manner: The Mechanism or the Drive coupled to the Limit Switch actuates the Contacts through the Worm Gear Drive and the Cams. When the Mechanism or the Drive approaches the pre determined position, the Cam strikes the Contact finger of the corresponding Contact which in normal condition is in a closed position. This immediately opens the Contacts and the Circuit is broken there by disconnecting the respective Motor from the supply and resulting in the stoppage of the Drive or Mechanism. The Actuator or Cam is provided with a maximum follow-through angle of 60 degrees there by ensuring that the normally closed Contact, which has been opened by the Actuator / Cam, shall remain in the open position for at least 8 full additional revolutions of the Input Shaft.   This provision is adequate for most of the Reversing Drives where the Mechanism or Drive comes to a complete stop with in 1/5th of a revolution of the Input Shaft of the limit Switch.   In addition to the adjustment provided for the Actuator/Cam a further fine adjustment knurled Screw is provided for each Contact. This adjustment can be locked in position by locking Screws provided with each Contact fitting.

Application : Power Circuit

Color : Grey

Feature : Easy To Operate

Voltage : 500 Volts

Frequency : 50Hz

Country of Origin : India

Current Type : AC

Description: Suni Lever Limit Switch is used for heavy duty E.O.T. Cranes, Wagon shunting devices etc., to prevent over travelling or over traversing on power and control circuit up to 500 volts A.C. 50 cycles / second and 40 amps current rating. We are counted among the ecstatic Lever Operated Limit Switch Manufacturers in India. Suni makes Lever type Limit Switch normally remains closed and cuts off power to stop the motor of the particulars motion. Suni Make lever Limit switch operates when its lever reaches its pre-determined position and the lever is moved over a projecting member fixed on the Girder. The Limit Switch contacts are automatically reset when the lever returns to zero position due to spring action. The Lever Limit Switch is made in IP-54 enclosure. In case of IP-54, the cover is of Cast Aluminum. Also in this case the base and cover have machined surface to protect the Limit Switch against dust. The cam shaft on which the cams are fitted is mounted in the housing on moulded bushes of synthetic material which are fixed to the front and rear walls by means of screws. The Cams which are fitted on the cam shaft are moulded from the highest quality synthetic material and are accurately cut to correspond to the switching sequence desired. The contacts have a maximum continuous Current capacity of 40 amps AC. The contact tips are made of high grade Silver Cadmium Oxide alloy. When used for Series operation [up to 40 Amps maximum], the Contacts are suitable for 720 operations per hour and in case of Shunt operation [for Control Circuit], the Contacts are suitable for 1000 operation per hour. The same Contacts can be used in Series as well as in Shunt configurations The switching capacity of the Contacts when used for Shunt operation is 15 amps at 400 Volts, AC on highly inductive load and 2.5 amps at 220 Volts DC. These switching capacities in fact are far in excess of what is actually required in practice and hence replacement of Contacts for Shunt may not be necessary for a long time. The body of the Contacts is made of high grade Melamine which is specifically suited for heavy duty operation .The material is non tracking and is capable of with standing heavy arcing.

Max. Voltage : 220 VAC

Packaging Type : Plastic Packet

Country of Origin : India

Rust Proof : Yes

Usage : General

Specialities : Rust Proof, High Quality

Suni Brand Grab differential Limit Switch is driven by holding and closing winches is used in auxiliary circuits for single lever grab control.   It is used for stopping the closing motor after closing or opening, regardless of the height of the grab and starting the holding motor after closing, for transition to the hoisting action as well as for stopping the holding & closing motors at the hoisting & lowest grab position.   Construction : The switch contains six cam operated switch elements which are used as auxiliary circuit limit switches (See switching sequence diagram). The dimension drawing shows that the switch has two shafts which must be driven by the holding and closing winches. The contracts of limit switches are 40 Amps rated at 500 V. A. C.   Mode of operation : The switches N5, N6 are limit switches for the highest and lowest grab positions. The 'Grab closed' and 'Grab open' limit positions are monitored by the switches N1 & N4, whereas N2 & N3 initiate the switching operations for single lever grab control.   Installation : The switch is best arranged to one side of the winch space between the drums where it should be easily accessible. It can be mounted either in a horizontal or a vertical position. However, the former is preferred since the switching equipment and gearing can be reached more easily when the cover has been removed. Auxiliary shafts connected to the winch of the grab hoisting gear are best used for driving the switch. The closing winch is connected to shaft 1 at the differential gear end and the holding which is joined to shaft 2 at the same or opposite end of the switch.   Accessories : A special wrench is needed to release the locking nut when adjusting the cam discs. This wrench is included with the switch.

Packaging Type : Plastic Packet

Specialities : High Tensile, High Quality

Color : Blue

Max. Voltage : 500V

Country of Origin : India

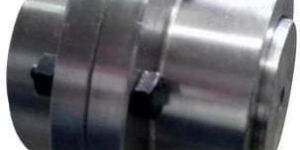

We are highly respected as established manufacturer and exporter of Gear Coupling. These are precision engineered by using high-end technologies in sophisticated facilities.

Material : Metal

Color : Metallic Grey

Finishing : Polished

Country of Origin : India

Speciality : Perfect Shape, High Strength

Corrosion Proof : Yes

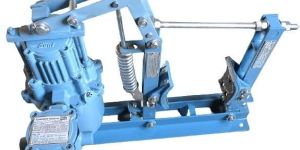

"Suni" Brand FLP/WP Thrustor BrakeTesting As per IS/IEC 60079-1:2014 , IS/IEC 60079-0:2011 & Dust ignition protection as per IS/IEC 60079-31:2008 & Weatherprrof Testing as perIS/IEC 60529:2001 for IP 66 ,Used in Zone 21-22 also Zone 1 - 2 for gas goup-IIA,IIB & IIC atmospheres   "Suni" Brand Flameproof (FLP/WP) thrustor/Thruster is electro hydraulic device to apply pressure or actuate lever mechanism of brake arrangement.   An FLP/WP Electro-hydraulic thrustor is an independent mechanism which requires neither clutches nor external piping. The FLP/WP thrustor cylinder accommodates a centrifugal pump and a piston with two push-rods extending outside through thrustor cover and transmitting effort to the brake   The robust design Thrustor unit is compact and has long life and is easy to maintain.   Main components used are of high quality cast iron and steel.   The Thrustor is operated by an integral three phase squirrel cage motor.   The device has the following advantages: Constant Pressure Gentle Application and release of brake without jerks and shocks. Larger number of switching-in operations per hour (up to 720).   The rated stroke of each type of thrustor can be changed, retaining the same attractive force, by means of sleeves fitted on the rods (inside the body) (this arrangement is possible with models from ST 535 and above)   In cranes / hoisting machinery, brakes are intended for controlling the speed of load, lowering or for holding the suspended load at rest Suni Brand Flameproof (FLP/WP) Mill duty Thrustor/Thruster Brakes are suitable for 415/440 Volts, 3 Phase A.C. supply for a wide range of drum sizes, from 100mm to 400 mm dia. Higher sizes can also be supplied against specific requirements.   The brake is applied by the tension of the compressed springs mounted vertically between the thrustor and brake lever. The thrustor rods are connected with the brake by means.

Type : Thrustor Brake

Material : Metal

Color : Blue

Feature : Easy Installation

Frequency : 50Hz

Country of Origin : India

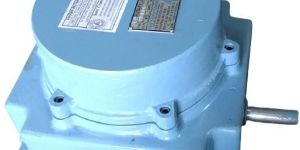

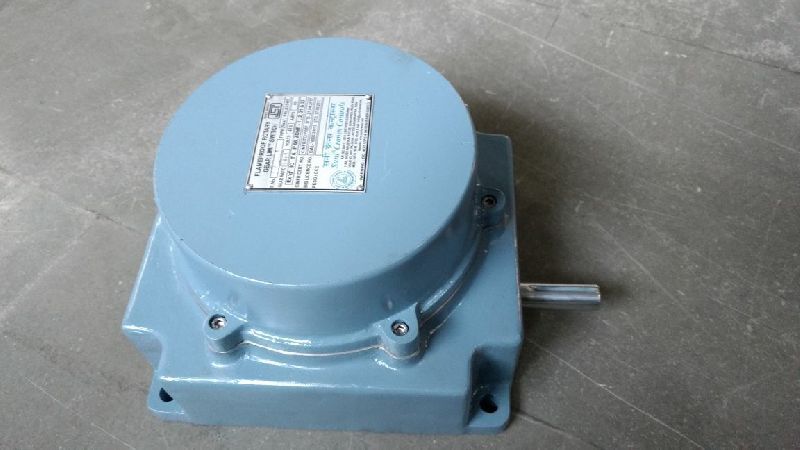

Suni makes Flameproof (FLP/WP )Rotary Gear type Limit Switch that is used on Control / Power circuit of reversing drives so as to limit their rotation / movement within a predetermined position.The Flameproof (FLP/WP) Rotary Limit switch FlameproofTesting as per IS/IEC 60079-1:2007 & Dust ignition protection as per Is/IEC 60079-31:2008 & Weatherproof Testing as per IS/IEC 60529:2001 for IP 66 Enclosue Material is in Die Cast Aluminium Ally LM6 & used in Zone 21, 22 & 1&2, for gas Group-IIA,IIB & IIC atmosphere   The function of the Limit Switch is to stop the mechanism of drive at the extreme clock wise / anti clock wise position. Suni Make Rotary Limit Switches are particularly suited for use on reversing drives such as Electric Hoists, Winches, Over Head Cranes, Traversers etc. The contacts of these Limit Switches are rated for 40 amps at 500 Volts A.C.The Limit Switch can be provided with 2NC contacts or (2No + 2NC) contacts as per the requirement.The geared type rotary limit switch basically consists of heavy duty worm gear drive with a ratio of 48:1 The Crane Duty Rotary Geared Limit Switch is made in IP-66 enclosure.   in case of IP-66, the cover is of cast Aluminum. Also the Base and cover have machined surface to protect the Limit Switch against dust.The cam shaft which extends from behind the gear into the Aluminium housing accommodates the cams.   2 or 4 cams are used depending upon whether the Rotary Limit Switch is of 2 contacts or 4 contacts operation.The contacts have a maximum continuous Current capacity of 40 amps AC.The contact tips are made of high grade Silver Cadmium Oxide alloy.   When used for Series operation [up to 40 Amps maximum], the Contacts are suitable for 720 operations per hour and in case of Shunt operation [ for Control Circuit ] , the Contacts are suitable for 1000 operation per hour.The same Contacts can be used in Series as well as in Shunt configurationsThe switching capacity of the Contacts when used for Shunt operation is 15 amps at 400 Volts, AC on highly inductive load and 2.5 amps at 220 Volts DC.These switching capacities in fact are far in excess of what is actually required in practice and hence replacement of Contacts for Shunt may not be necessary for a long time.The body of the Contacts is made of high grade Melamine which is specifically suited for heavy duty operation .The material is non – tracking and is capable of with standing heavy arcing.The FLP/WP Rotary Limit Switch operates in the following manner:The Mechanism or the Drive coupled to the Limit Switch actuates the Contacts through the Worm Gear Drive and the Cams.When the Mechanism or the Drive approaches the pre determined position, the Cam strikes the Contact finger of the corresponding Contact which in normal condition is in a closed position. This immediately opens the Contacts and the Circuit is broken there by disconnecting the respective Motor from the supply and resulting in the stoppage of the Drive or Mechanism.The Actuator or Cam is provided with a maximum follow-through angle of 60 degrees there by ensuring that the normally closed Contact, which has been opened by the Actuator / Cam, shall remain in the open position for at least 8 full additional revolutions of the Input Shaft.This provision is adequate for most of the Reversing Drives where the Mechanism or Drive comes to a complete stop with in 1/5th of a revolution of the Input Shaft of the limit Switch.In addition to the adjustment provided for the Actuator/Cam a further fine adjustment knurled Screw is provided for each Contact. This adjustment can be locked in position by locking Screws provided with each Contact fitting.

Type : Rotary Gear Limit Switch

Color : Gery, Blue

Feature : Easy To Operate, High Performance

Frequency : 50Hz

Country of Origin : India

Current Type : AC

Description: Suni Make FLP/WP Pull cord switch also known as Rope Operated Emergency switch is used as a safety switch to stop the conveyor belt in case of an emergency. It is also known as pull switch cord. Universal (common) Cast IRON enclosure. Same overall and general mounting dimensions and hence reduction in variety of mounting brackets.Rationalized design and construction allows inter changeability of parts. Special rubber seal (0 ring) on shaft for better protection against ingress of dust, dirt etc. Special Ring & Overlap Fitting to prevent ingress of dust & water.   Standard Specifications: Enclosure: Weatherproof, field mounding type, IP66 Cast Iron, epoxy painted, colour Smoke gray,flameproof (FLP/WP ) enclosure for use in hazardous area, Group lla, llb, llc,Output Contacts: 1NO 1NC/ 2NO 2 NC,Contact Rating for standard models: 40Amp resistive at 440VAC,Standard Operating Position : 1-0 , Reset: Pull Cord Switch: Manual Reset Type   We stand as the most preeminent Limit Switch Manufacturer and one of the supreme Suppliers of the same. Pull Cord type Suni makes FLP/WP Pull Cord Limit Switches are used on Control / Power circuit of reversing drives so as to limit their rotation / movement within a predetermined position. Suni Make FLP/WP Pull Cord Limit switch is Flameproof Testing as per IS/IEC 60079-1:2007 & Dust Ignition protection as per IS/IEC 60079-31:2008 & Weatherproof Testing as per IS/IEC 60529:2001 for IP 66 Enclosue in die cast Aluminium alloy LM6 for used in Zone 21, 22 and 1 & 2 for Gas Group: IIA ,IIB & IIC atmospheres   The function of the Suni make FLP/WP Pull Cord Limit Switch is to stop the mechanism of drive at the extreme The contacts of our FLP/W Pull Cord Limit Switch are rated for 40 amps at 500 Volts A.C. , 50 C/S Continuous,The Crane FLP/WP Pull Cord Limit Switch can be provided with 2 NC contact s or (1No + 1NC) contacts as per The cam shaft on which the cams are fitted is mounted in the housing on moulded bushes of synthetic material which are fixed to the front and rear walls by means of screws.The Cams which are fitted on the cam shaft are moulded from the highest quality synthetic material and are accurately cut to correspond to the switching sequence desired.   The contacts have a maximum continuous Current capacity of 40 amps AC.The contact tips are made of high grade Silver Cadmium Oxide alloy.When used for Series operation [up to 40 Amps maximum], the Contacts are suitable for 720 operations per hour and in case of Shunt operation [for Control Circuit], the Contacts are suitable for 1000 operation per hour. the requirement.This limit switch is some what similar in construction to a Lever Limit Switch except for the Lever. disconnect the motor The Limit Switch contacts are reset when the lever returns to zero position due to Gravitational force.1 or 2 cams are used depending upon whether the Pull Cord Limit Switch is of 1 contact or 2 contacts operation.

Color : Blue

Packaging Type : Plastic Packet

Country of Origin : India

Rust Proof : Yes

Usage : General

Specialities : High Tensile

Suni Make Flameproof cum weatherproof (FLP/WP ) junction box in cast aluminium LM6 with multiple ports and cable glands for intlet and outlet connection of loadcells in compliance with requirements in respect of flameproofness and temperature class suitable for use in Zone 1 & Zone 2 and gas groups IIA & IIB atmospheres. Certified by Central Institute of Mining & Fuel Research (formerly known as Central Mining Research Institute, CMRI, Dhandbad).   Suni Make FLP/WP Junction Box is Flamproof Testing as per IS/IEC 60079-1:2007 & Dust Ignition protection as per IS/IEC 60079-31:2008 & Weatherproof Testing as per IS/IEC 60529:2001 for IP 66 Enclosue in die cast Aluminium alloy LM6 for used in Zone 21, 2e2 and 1 & 2 for Gas Group: IIA ,IIB & IIC atmospheres.

Finishing : Coated

Shape : Round

Color : Grey

Application : Electronics

Feature : Flameproof

Pattern : Plain

Country of Origin : India

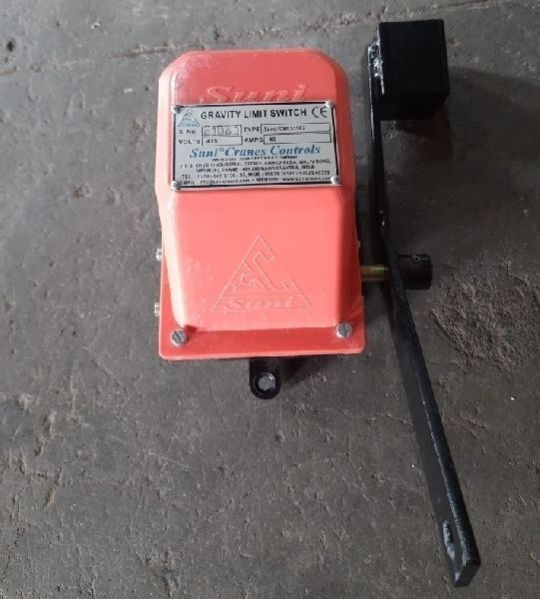

We stand as the most preeminent Limit Switch Manufacturer and one of the supreme Suppliers of the same. Gravity type Suni Brand FLP/WP Gravity Limit Switches are used on Control / Power circuit of reversing drives so as to limit their rotation / movement within a predetermined position. Suni Brand FLP/WP Lever Limit switch is Flameproof Testing as per IS/IEC 60079-1:2014 , IS / IEC60079-0:2011 & Dust Ignition protection as per IS/IEC 60079-31:2008 & Weatherproof Testing as per IS/IEC 60529:2001 for IP 66 Enclosue in die cast Aluminium alloy LM6 for used in Zone 21, 22 and 1 & 2 for Gas Group: IIA ,IIB & IIC atmospheres   The function of the Gravity type Suni Brand FLP/WP Gravity Limit Switch is to stop the mechanism of drive at the extreme top position of the snatch block in a Crane.The contacts of our FLP/WP Gravity Limit Switch are rated for 40 amps at 500 Volts A.C. , 50 C/S Continuous,The Crane FLP/WP Gravity Limit Switch can be provided with 2 NC contact s or (1No + 1NC) contacts as per the requirement.This limit switch is some what similar in construction to a Lever Limit Switch except for the Lever. In this case one side of the Lever has a weight and from the other side a plate is hung which eventually operates when the snatch block reaches its top position,The lever Limit switch operates in the following manner –When the Snatch Block of the Crane reaches its top position the Snatch Block pushes a Plate which is hanging from one end of the Lever of the Limit Switch. Due to the weight placed on the other end of the lever this lever is pushed up.When the lever is pushed up the shaft to which this lever is connected rotates there by rotating the cams which eventually open the contacts and disconnect the motor The Limit Switch contacts are automatically reset when the lever returns to zero position due to Gravitational force.1 or 2 cams are used depending upon whether the Gravity Limit Switch is of 2 contact or 3 contacts operation.   The cam shaft on which the cams are fitted is mounted in the housing on moulded bushes of synthetic material which are fixed to the front and rear walls by means of screws.The Cams which are fitted on the cam shaft are moulded from the highest quality synthetic material and are accurately cut to correspond to the switching sequence desired.   The contacts have a maximum continuous Current capacity of 40 amps AC.The contact tips are made of high grade Silver Cadmium Oxide alloy.When used for Series operation [up to 40 Amps maximum], the Contacts are suitable for 720 operations per hour and in case of Shunt operation [for Control Circuit], the Contacts are suitable for 1000 operation per hour.   The same Contacts can be used in Series as well as in Shunt configurations   The switching capacity of the Contacts when used for Shunt operation is 15 amps at 400 Volts, AC on highly inductive load and 2.5 amps at 220 Volts DC.These switching capacities in fact are far in excess of what is actually required in practice and hence replacement of Contacts for Shunt may not be necessary for a long time.The body of the Contacts is made of high grade Melamine which is specifically suited for heavy duty operation .The material is non – tracking and is capable of with standing heavy arcing.

Type : Flameproof Limit Switch

Color : Grey

Packaging Type : Plastic Packet

Country of Origin : India

Usage : General

Specialities : Rust Proof, Non Breakable

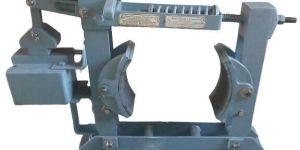

Suni Makes AC Electromagnetic Brakes that are suitable for AC supply up to 400 to 440 volts, and are available for a wide range of Drum sizes from 100 mm to 380mm Dia. We stand in the midst of prominent Electromagnetic Brakes suppliers based in India.   Since these brakes are in normally closed position, the release of the Brake shoes is affected by energizing the Electro Magnetic coil, which overcomes the spring force and the shoes are moved clear off the drum by lever/arm linkage system so that the drum is free to rotate without any friction.   When the power in given to the Electro Magnetic coil the coil gets energized and in turn pulls the plunger down. The plunger in turn operates the arm of the brakes and the brake opens.   The design of the brake is such that as the lining keeps wearing out due to normal operation of the brake, adjusts itself on its own to achieve the rated toque. When specified, brake drum or drum coupling both pin bush type and flexible geared type can be supplied along with the brakes.

Type : Electromagnetic Brake

Application : Manual

Weight : 10-20kg

Color : Grey

Voltage : 400 To 440 Volts

Country of Origin : India

Current Type : AC

Suni Brand Electro Hydraulic Thrustor / Thruster that is a sturdy Electro Hydraulic device for exerting a smooth controlled upward Thrust on any device with rated capacity from the beginning to the end of the full rated stroke. We are well reckoned as the most preeminent Hydraulic Thrustor/Thruster Manufacturer based in India.   Our Crane Electro-Hydraulic Thrustor / Thruster is provided with Clevis-Lug mounting, allowing them to be mounted up to ten degrees either way from the vertical.   All the Rubber surfaces are immersed in Oil, there by requiring very less maintenance.   One outstanding feature of Suni Brand Thrustor, Thruster is that any Mechanical Overloading cannot cause Overloading of the Electric Motor.   If the Load is greater than what the Thrustor Thruster can lift, the Piston will remain at the bottom of the Cylinder and the impeller will rotate harmlessly in Oil.   In the absence of Load the Piston stops at the end of the stroke and the Impeller rotates in the Oil as mentioned above.   Basically Suni� Brand Electro Hydraulic Thrustor Thruster comprises of a Centrifugal Pump Impeller spinning in Oil there by developing a pressure head. Since there is no outlet, delivery port as in case of a Pump, the pressure developed is impressed on the Piston which is directly coupled to the Load to be lifted. Thus a part of the pressure head is expanded in forming a kinetic head required to lift the Load.   At the end of the Lift, either partial or full i e., when the Thrustor,Thruster stalls, it is the full pressure head which is available. Thus the maximum thrust in the stalled position is always higher than the rated thrust.   The Centrifugal Pump Impeller is driven by an Electric Motor the capacity of which depends upon the capacity of the Thrustor,Thruster .For example in case of a 18 kg Thrustor,Thruster the Motor is of 0.1 HP and in case of 34 kg it is 0.17 HP.   The major components of the Suni Brand Electro Hydraulic Thrustor,Thruster are, a Cast Iron cylinder filled with Transformer Oil, with a Aluminum Piston moving freely in it and a Drive Shaft down the center, through the Piston , to the cylinder.   The Impeller draws Oil from above the Piston forcing the Oil beneath the Piston to give it an upward movement in the cylinder with pressure. The pressure is maintained whether the Piston is in motion or has come to a halt at the end of the intermediate position of the upward stroke.   During transportation the Oil is drained out from the Thrustor hence at the time of commissioning the system required quantity of Oil needs to be filled up in the Thrustor. It is advisable to use only fresh Grade transformer Oil.   The quantity of Transformer Oil required to be filled up in the Thrustor,Thruster depends upon the capacity of the Thrustor. Recommended grade of Transformer Oil is BS 148 or equivalent.

Country of Origin : India

Automation Grade : Manual

Driven Type : Hydraulic

Finishing : Color Coated

Feature : Compact Design, Greater Efficiency

Color : Black

Type : Hydraulic Thrusters

Description: We are well reckoned as the most preeminent Master Controller Manufacturer and one of the leading Suppliers of the same. Suni Master / Cam controllers are made in IP 54 enclosures. the cover is of cast Aluminum. Also the base and cover of Crane Master Controller have machined surface to protect the controller against dust. The Master / Cam Controllers are provided with an easily removable cover having ample area for easy maintenance. The cam shaft on which the cams are fitted is mounted in the housing on moulded bushes of synthetic material which are fixed to the front and rear walls by means of screws. The cams which are fitted on the cam shaft are moulded from the highest quality synthetic material and are accurately cut to correspond to the switching sequence and number of steps required by the customer. The controller is operated by means of a joystick handle which rotates the shaft on which the cams are fixed. These cams which are cut as per the sequence required open and close the fixed and moving contacts which in turn operate the required Contactors in the panel provided by the customer. Contact body of Mill Duty Master Controller is made of high grade melamine which is capable of one auxiliary contact of two contact block (1 No. + 1 NC) operated through a spring loaded push button provided on joy stick handle. The Master / Cam Controllers can be provided with spring return arrangement whereby handle returns to be neutral position when it is released. The contacts have a maximum continuous Current capacity of 40 amps AC. The contact tips are made of high grade Silver Cadmium Oxide alloy.

Type : Master Controller

Application : Crane

Color : Blue

Feature : Durable

Finishing : Powder Coated

Country of Origin : India

Type : Brake Drum

Material : Metal

Shape : Round

Feature : Fine Finishing

Size : 410 mm

Material : HT250, HT350, QT235

As a trustworthy organization of this domain, we are committed to offering our clients a superior quality assortment of Brake Drum Coupling.

Material : Metal

Shape : Round

Color : Golden

Finishing : Polished

Country of Origin : India

Speciality : High Strength, Fine Finished, Excellent Quality

Usage : Hydraulic Pipe, Structure Pipe
