Venturi Meter
We are offering venturi meter, orifice meter. Calibration of venturi meter & orifice meter for different flow rates complete re - circulation type equipment compact setup as compared to conventional setup consists of a sump tank, measuring tank & mono-block pump etc. Suitably mounted on a sturdy base frame to prevent rusting, tanks are made up of m.s. Sheet with powder coating.
Brand Name : TAGLab
...more
Universal Motor
We are offering universal motor. Universal motor 1f, 750 watts, 230 v ac, 50 hz 1500 rpm (o.l.) meters & accessories are fitted inside instrument panel.
Brand Name : TAGLab
...more

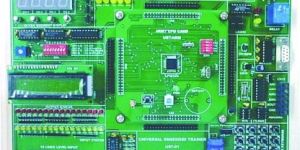

Universal Embedded Trainer
We are offering universal embedded trainer. Single board embedded kit based on arm, avr, 89cxx, pic microcontrollers daughter cpu boards for 89c61x2, pic 16f877a, pic 18f452, arm lpc 2148 & atmega32 microcontroller isp programming facility for all microcontrollers 16 led’s to display digital output 16 switches to give digital input indicated by led’s 16 x 2 alphanumeric lcd backlit display 4 x 4 matrix keyboard, miniature buzzer, 12v spdt relay 4 digit seven segment display, 24 i/o lines provided 24c512 eeprom (64kb) ds1307 rtc with suitable battery 4 channel 8bit adc & 8 bit dac using pcf8591 temperature sensor interface lm35 & ds18b20 on board supply +12v, 5v, 3.3v, 2.5v, 1.5v & 1.2v.
Brand Name : TAGLab
...more
Time Response Analysis
We are offering time response analysis for step, ramp & parabolic signal external step, ramp & parabolic signal connectivity calculation of error signal time vs input & time vs output graphs for step & ramp error signals.
Brand Name : TAGLab
...more

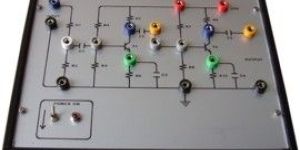

Rc Coupled Amplifier
We are offering rc coupled amplifier. construction & study of a two stage rc coupled amplifier study of frequency response of individual (single stage) as well as the cascade (two stages) amplifier study of its various parameters, advantages, disadvantages & applications
Brand Name : TAGLab
...more
Transmission Line Trainer
We are offering transmission line trainer (simulated line) tlb012 attenuation : delay using a pulse input reactive termination : matching using a pulse input noise in communication systems : ac coupling of pulse input matching & frequency response : standing waves transformer matching : low pass filter effect transmission line oscillator : time domain reflectometry (tdr).
...more

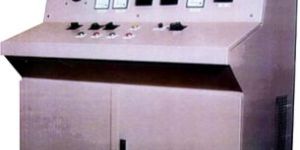

Transmission Line Simulator
We are offering Transmission Line Simulator. Complete System with Auto Transformers, ON OFF Contactors, Voltmeters, Ammeters & Wattmeters along with Load for Panel Performance of Transmission Line for 1f under various conditions Miniature Transmission Line arranged to represent 3f AC long Transmission Line with ACSR Conductors 37 0.146 of spacing 6.7 m to transmit the Power of 90 MW at 0.9 pf Transmission Line is arranged in 3 Phases separately to represent a Line, 80 km to 400 km long with R, L & C divided in 5 sections with Short Circuit Switch or Solid Plug Key for each section Suitable Tap Points are provided with Fault Creating ON OFF Switches for study of Protection Schemes arranged.
Brand Name : TAGLab
...more
Transistor Biasing Methods
We are offering transistor biasing methods. Construction & study of transistor amplifier using different biasing techniques such as : base resistance method voltage divider bias biasing with feedback resistor study of the q point verification due to transistor replacement (hfe variation) on the different biasing circuits.
Brand Name : TAGLab
...more
Transistor Amplifier
We are offering transistor amplifier. Construction & study operation of : common base amplifier ( cb ) common emitter amplifier ( ce ) common collector amplifier ( cc ) study & determine the voltage & current gain, saturation, frequency response, input & output impedance of each amplifier.
Brand Name : TAGLab
...more
Thermal Conductivity
We are offering thermal conductivity. Determination of thermal conductivity of insulating material in the form of slab variation of thermal conductivity of the material with temperature comparison of thermal conductivity of various insulating material complete panelized electrical controls & measurement digital temperature indicator.
Brand Name : TAGLab
...more

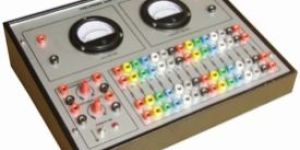

Theorems, Laws Trainer
We are offering theorems, laws trainer. Thevenin's theorem norton's theorem super position theorem reciprocity theorem maximum power transfer theorem kirchoff's laws : voltage law & current law ohm's law.
Brand Name : TAGLab
...more
K Type Thermocouple
We are offering k type thermocouple. K-type thermocouple used thermometer for temperature measurement upto 100ºc water heater with ac mains cord provided on - board digital panel meter on - board instrumentation amplifier facility to interface with pc.
...more

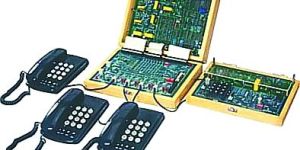

Telephone Trainer
We are offering telephone trainer. Study of telephone study of pulse dialing, tone dialing study of speech circuit study of switching mechanism between subscribers incoming call outgoing call study of ringer study of telephone features effect of switch faults.
...more

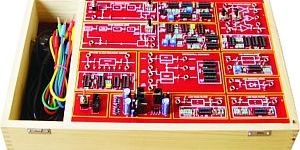

Tdm Pulse Code Modulation Transmitter Trainer
We are offering tdm pulse code modulation transmitter trainer. Internal 500hz & 1khz sinewave generator variable amplitude dc level 2 nos. Of analog input channels error check code option (none, even, odd, hamming) none, even, odd, hamming parity selections pseudo random sync. Code generation 2 modes of operation fast (240 khz / channel approx) & slow (1hz / channel approx).
Brand Name : TAGLab
...more

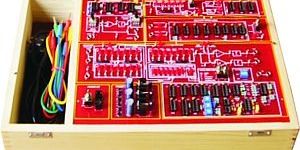

Tdm Pulse Code Demodulation Receiver Trainer
We are offering tdm pulse code demodulation receiver trainer. Two channel tdm pcm receiver on - board 4th order butteworth lpf on - board pll technique for regeneration error check code (none, even, odd, hamming) none, even, odd, hamming parity selections pseudo random sync code generation.
Brand Name : TAGLab
...more

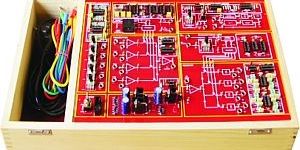

Tdm Pulse Amplitude Mod, Demod Trainer
We are offering tdm pulse amplitude mod, demod trainer. On - board sinewave generator 4 analog input channels for mux / demux clock regeneration at receiver using pll study time division multiplexing & demultiplexing : using pulse amplitude modulation & demodulation with channel identification information using pll method.
Brand Name : TAGLab
...more

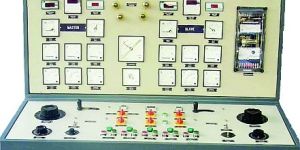

Operation Control Panel
We are offering operation control panel. Various experiments on sub - station operation & protection can be performed this is a simulator based system for study of a sub - station having short medium long transmission line as incoming line to the sub - station separate fault simulation circuit different protection schemes available.
Brand Name : TAGLab
...more

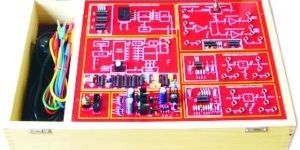

Signal Sampling, Reconstruction Trainer
We are offering signal sampling, reconstruction trainer. On - board synchronized sinewave generator sampling frequency 2,4,8,16,32 khz sampling duty cycle of 0 - 90 % in steps on - board separate sample and sample & hold circuit on - board 2nd & 4th order butterworth filters aliasing & effect on reconstructed signal effect on amplitude of reconstructed signal switch faults.
Brand Name : TAGLab
...more

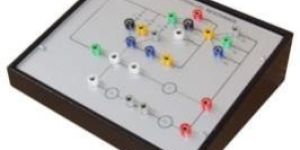

Parallel Resonance
We are offering parallel resonance. Verification of series & parallel resonance circuit built - in bank of resistors, capacitors & coils various combinations of rlc in series & parallel.
Brand Name : TAGLab
...more

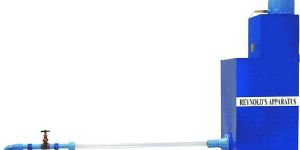

Reynold Apparatus
We are offering reynold apparatus. Open circuit type set - up reynolds's upper & lower critical numbers, velocities & to know the type of flow laminar turbulent simple in construction; storage tank with flow steadying arrangement dye bottle & capillary tube arrangement provided proper base frame is provided to mount the perspex tube to prevent rusting, tanks are made up of m.s. Sheet with powder coating.
...more

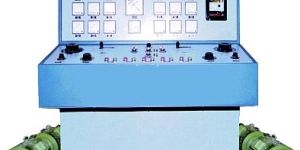

reverse power relay
Power ( Load ) sharing between two Alternators in Parallel Operation condition Transfer of Power from one Alternator to other Alternator in Parallel operation Power sharing between one Alternator & Infinite Bus (3Ø mains) in Parallel Operation condition.
...more
Relay Control System
We are offering relay control system. Simulated electronic relay using high speed ic's simulated 2nd order linear plant. Facility for displaying x & x signaling dead zone variable from 0 - 600 mv hysteresis variable from 0 - 500 m built-in signal source sine & square amplitude : 0 - 1 v (min) variable frequency : 10, 20, 40, 80, 100, 200, 400, 800 & 1000 hz ic regulated internal power supplies.
...more

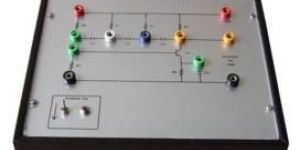

Rc Phase Shift Oscillator
We are offering rc phase shift oscillator. Construction and working of phase shift oscillator determine frequency of an r - c phase shift oscillator comparison of the phase of output across each element of phase shift network in the oscillator.
...more

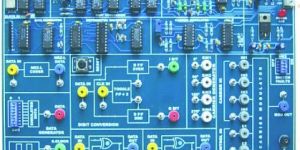

Dqpsk Modulation Trainer
We are offering qpsk, dqpsk modulation trainer. On - board synchronized 500 khz sinewave generator dibit pair, differential encoding type data format on - board crystal controlled pulse generator on - board 8 bit variable nrz-l pattern data simulator block description screen printed on pcb switch faults.
Brand Name : TAGLab
...more
Compensation Designer
We are offering compensation designer. Simulated 'uncompensated' system having adj. Damping lag lead compensation in the frequency domain lag lead compensation in the s-plane.
Brand Name : TAGLab
...more
