Techno Engineers Kandivali, Mumbai, Maharashtra

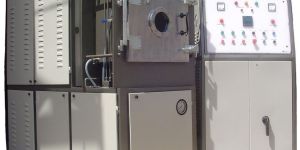

We are offering vacuum hot press. technical specifications fully automatic 3 phase dc vacuum hot sintering press model : hsp-75kd30tvd. supply voltage : 440 v., 3 ph., 50 hz. transformer rating : 75 kva., 3 phase, water cooled. voltage tapping : 3 to 6 volts in 4 steps. max. Pri. Current : 120 amps. (d.c. Heating system) temperature reading : 200 to 1300°c, measured with tc. controller : advanced imported programmable p.i.d. Controller with 20 programs. vacuum system : vacuum chamber with water cooling. press structure : in four pillar type, double compaction. compression force : 5 to 30 tons, infinitely variable. max. System pressure : 170 kgsq.cm. platen size : 150 x 150 mm. sintering area : 75 sq.cm. At 350 kgsq.cm. over-all dimensions : 1600(w) x 2000(d) x 2200(h). ã��ã�â· weight of the mc. : 3,000 kgs. production capacity : approximately one gang saw set of 2400 segments of size 20 x 9.5 mm can be produced in two shift. this production capacity is based on the cold pressed segments.

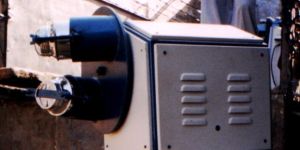

We are offering mixing machine.rotary mixing machine model : mm-51acv · mixing capacity : 2.5 kgs x 2 bottles. · motor power : 1 hp, ac variable speed motor. · supply voltage : 220 volts, single phase. · mixing time : up to 4 hrs (manual). · forwardreverse : 2 min to 20 min (settable). · mixing r.p.m. : 5 to 50 rpm (infinitely variable). · over-all dimension : 800(w) x 800(d) x 1300(h). · weight of machine : approx. 250 kgs.

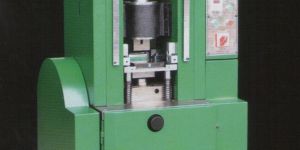

We are offering mechanical automatic cold press.this chinese product belongs to mechanical press. Wheel drive by inertia, the pendulum motion produces pressure then form the powder, demoulded by cam. Characteristics of this press are fast, high production efficiency, 35 times suppress number minute, could be double-hole mold or single-hole according to customer’s requirements. Currently with 1.5 kw electrical power flow, produced more than 20 tons of cold-pressing function, can suppress various metal powder (including various alloy)

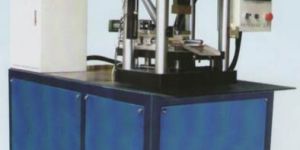

This Chinese organization hold expertise in providing superior grade Hydraulic Volumetric Automatic Cold Compaction Press to our precious customers. Our offered Hydraulic Volumetric Automatic Cold Compaction Press is widely appreciated by our customers, which are situated all round the nation. Known for its best quality, clients can avail this Hydraulic Volumetric Automatic Cold Compaction Press at industry leading prices from us.

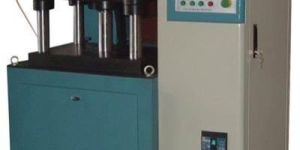

We are offering hot sintering press. This chinese hot sintering press ryj series is controlled by plc and can save 100 groups preset pressure and temperature curves. It is widely applied for various diamond product sintering. With the latest update, ryj series have better performance on saving power (25% decrease)

We are offering hot sintering press machine. our range of hot sintering press machine hsp-75k30t will sinter metal powder along with the synthetic industrial diamond to make diamond tools, which are used for various stone cuttings like - marble, granite, limestones, etc. These hot sintering press machine hsp-75k30t are available at most competitive prices.

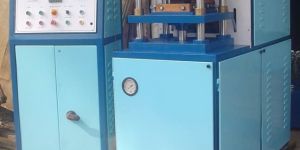

We are offering hot sintering press. technical specifications fully automatic electro-hydraulic hot sintering press model : hsp-75k20t(e). · supply voltage : 440 v., 3 ph., 50 hz. · transformer rating : 75 kva., 2 phase, water cooled. · voltage tapping : 4 to 8 volts in 4 steps. · max. Pri. Current : 120 amps. · temperature reading : 200 to 1200°c, measured with tc. · controller : micro-processor based programmable p.i.d. With 4 programs of 16 steps. · press structure : in four pillar type construction. · compression force : 5 to 20 tons in three steps. · max. System pressure : 140 kgsq.cm. · platen size : 125 x 125 mm. · sintering area : 50 sq.cm. · over-all dimensions : 1350(w) x 1500(d) x 1600(h). · weight of the mc. : approx. 2,000 kgs. production capacity: approx 800 gang saw segments of size 20 x 9.5 mm can be produced in 8 hrs shift. this production capacity is based on the cold pressed segments.

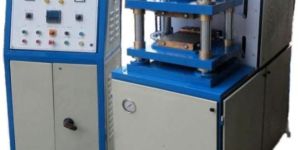

We are offering double compaction hot sintering press. double compaction hot sintering press specially for double mould mounting system. can produce segments with double mould system with uniform pressure on both moulds.

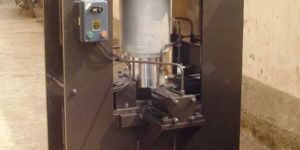

We are offering cold compaction press.hydraulic cold press in frame structure model: cp-150t · platen size : 500 x 500 mm. · cold pressing area : 30 sq. Cm. · powder filling : manual in steel moulds. · maximum day-light : 200 mm. · main cylinder size : 10” cyl x 7” ram x 4” stroke. · maximum tonnage : 100 tons. · clamp cylinder : 4” dia x 5” stroke, 2 nos, 25 tons (e). · hydraulic motor : 7.5 hp., 1500 rpm. · over-all dimension : 1200(w) x 1400(d) x 1800(h). · weight of the machine : approx. 2200 kgs.

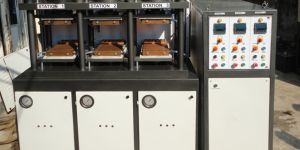

We provide our customers a huge range of 3 stn hot sintering press. Three station, balanced load a.c. Heating, double compaction hot sintering press for very high production out-put with power saving (30% less power required). These machines can be availed at most competitive price.
