Tenoning Machine Dealers in Mumbai

• Table size: 27" x 12"
• Table movement: 12"
• 2 Nos. cutter blocks size: 7" dia. x 2" width
• Cutter block adjustment: 0 to 4"
• Blades in each cutter block: 2 Nos. X 2
• Max. length of tenon: 6.1/2"
• Max. depth of cut on both side: 2"
• Power required: 2 motors of 2 HP

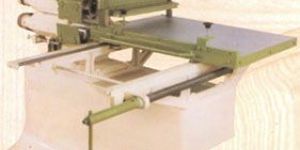

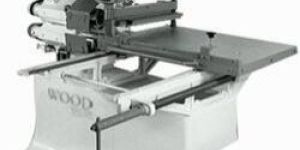

Motorised tenoning machine specially designed to make accurate and true tenons, double of single as required. The tenon heads are easily adjustable having max. length of tenons at one stroke 5" top or bottom tenon head will rise above table 4" dia. of tenon spindle 1.1/4" size of table 35" x 12.1/2" max. depth to cut 1.1/2", complete with 5 HP, AC 440/3/50 electric motor and starter. Standard accessories :4 blades fitted in the cutter block, 2 motor of 2 HP, 3 phase, 2800 RPM.

• Table size: 27
• 2 Nos. cutter blocks size: 7
• Power required: 2 motors of 2 HP , 3 phase, 2800 RPM
• Table size: 27" x 12"
• Table movement: 12"
• 2 Nos. cutter blocks size: 7" dia. x 2" width
• Cutter block adjustment: 0 to 4"
• Blades in each cutter block: 2 Nos. X 2
• Max. length of tenon: 6.1/2"
• Max. depth of cut on both side: 2"
• Power required: 2 motors of 2 HP 3 phase, 2800 RPM
