Test Block Dealers in Mumbai

These blocks are used for measuring, control, regulatory circuits and for current transformer connection application. They provide a clear functional advantage for devices having utility instruments and associated transformers. Circuit disconnection is achieved by opening the central slide link. The barrel nuts provide test sockets for inserting test plugs and for carrying out current and voltage injection protocols. Cross connection is possible with the aid of external shorting links. CA515 & CA514 switchable link assembly can be used for current transformer shorting application.

• Brand Name: CANDS
• Material: Bakelite
• Power Source: Electric
• Voltage: 220V

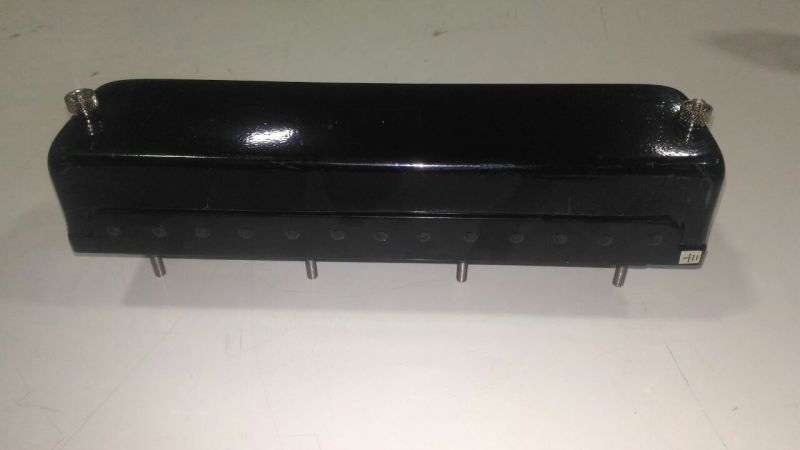

CANDS test terminal blocks 3pahse 4 wire back connection

• Voltage: 600 V max.
• Housing & Top Cover: Phenolic moulding,Black
• Terminals, screws & links: Brass, Nickel plated
• Rated current: 20 A max.

      Facilitate easy testing   Rugged construction   High electrical strength   Extended top cover-optional   Transparent top cover-optional

• Type: Test Terminal Blocks,Test Terminal Blocks
• Material: Ceramic,Steel
• Application: Electronic Connectors
• Color: Brown, Dark Brown
• Power Source: Electric
• Feature: Easy To Connect, Four Times Stronger
• Phase: Single Phase
• Certifications: CE Certified
• Color: Black
• Brand Name: SLBI
• Uniformity: ≤9HLD
• Model Number: NWKB/FC-01

• Voltage: 1100V
• Current Rating: 50Amps continuous at 50 degree Centigrade
• Diameter of entries: 4 mm

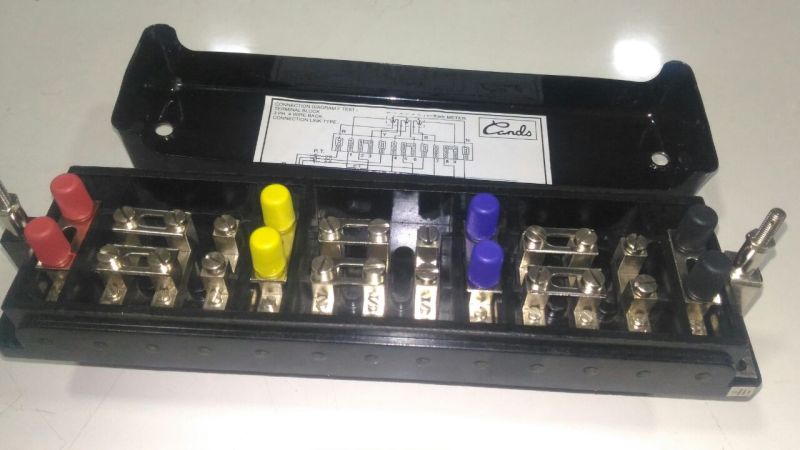

The basic terminal arrangement consists of three voltage terminals and a neutral terminal together with 3 sets of current terminals. The voltage in neutral terminals and movable links which allow the meter or relay to disconnect from their normal supply voltage. The links are connected to the terminals by means of screws and knobs. When several meters are tested their current circuits should be connected in series. If meter are to be tested individually, separate test terminal blocks are required for each meter.

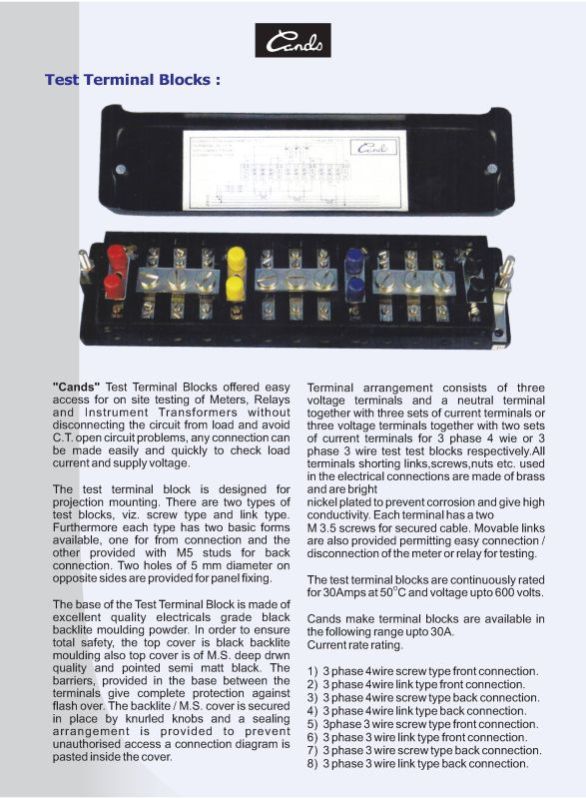

The test terminal blocks are used for easy access during on site testing of Ammeters, KWH Meters, Maximum Demand Indicators, Trivector Meters, Relays and Instrument Transformers without disconnecting from load and avoid CT open circuit problems. Connections for testing can be easily made. The Test Terminal Block therefore becomes an important element of the Metering Solution. The Test Terminals Blocks are designed for projection mounting with either front or back connection possibilities, designated with FC or BC. The Test Terminal Blocks are for 3 phase, 3 wire or 3 phase 4 wire application for up to 50 A continuous rating at 600 V.

• Termination Method: AC
• Mounting Type: Panel Mounting
• Maximum Operating Temperature: 65 Degree C
• Current Rating: 30 Amp
• Contact Material: Brass
• Pin Type: 6 Pin
