Workshop Microscope
Camera-based acquisition of measurement data Precise edge detection in transmitted and incident light thanks to intelligent image analysis algorithm Available in various stage sizes from 200x100x100 mm to 500x 3-axis CNC control Needle-bearing supported precision measuring stage for axes X and Y Diode laser indicating of camera position Readout options include multicount 3000 M3 software SAPHIR measuring and Analysis software.
...more
video measuring systems
Shreeji Video Measuring systems provide an economical solution for precision Non-Contact measurement of complex parts. They are available in 2 or 3 dimensional options alongwith didicated software which allows data to be transferred to excel, word or auto-cad files. The machines are constructed using a very precis and stable granite base and column making them very rugged and accurate. The large work table has adequate travel which enables inspection of large components and increased the operational efficiency of the machine.
...more

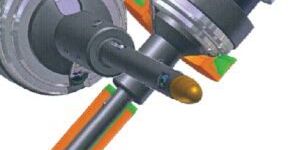

VALVE SEAT MEASUREMENT GAUGE (VSM)
Knabel VSM Gauge evaluates dynamical roundness of Valve Seat and Run out between seat and valve guide. It is available in both manual and motorized options and suitable for all kind of valve diameters above 21.5 mm. The roundness and Run out deviation is measured with 0.2µm resolution. The Software guides the operator.
...more
TESA ELECTRONIC PROBES
Tesa offer a complete family of value sensox –Half Bridge Probes, LVDT Probes,USB probes & DC probes. Tesa also supplies the analogue & Digital Display units TESARONICS & software tools for Data capture & Data Analysis. Interface boxes for connecting upto 64 probes also available.
...more

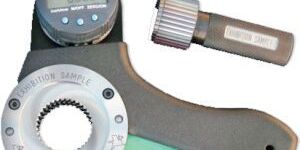

SPLINE VARIABLE gauge
Variable Gauging is designed to accurately measure the effective or actual tooth thickness or space width within 0.0025 mm. The 0.001 mm resolution indicator displays variation in size due to heat treatment distortion. Gauge is set to a master plug or ring gauge.
...more

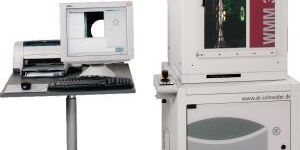

SHAFT MEASURING MACHINES
The WMM Series of Machine can measure accurate and precisely lengths, diameters, radii, angles, chamfers, as well as of their pertinent geometric and dimensional tolerances – for reduced cycle time on workpieces of upto 1200 in length. Incident illunination helps in measurement of Grooves, Oil Gallery bores, blind holes and milling contours. Touch Trigger or Scanning Probe allows Measurement of special shapes such as gear_teeth, impeller wheels, non-cylindrically symmetric contours.
...more
Profile Projector
It can effectively test various work places with complex shapes, such as templates, punching pieces, cams, gears, thread profile by comparative and coordinates measuring ways.
Feature : two Levels of contour Illumination – High and Low levels. Non – Spherical surface Illumination, which makes view field Symmetrical and clear to guarantee high accrracy.
...more

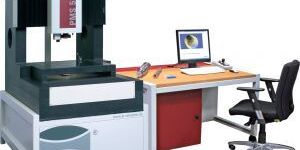

MULTI-SENSOR PORTAL MEASURING MACHINE
PMS Series machines features a highly Flexible design – Ideal for measuring workpieces of up to 2000 mm in size. It offers a wide variety of Sensor configuration – Incident Light, Transmitted Light, Touch trigger Measuring Probe, Scanning Probe, Conoscopic Measuring Laser etc. Temperature stability is ensured thanks to the Solid Sturdy Granite Construction and optionally temperature compensation function for both the workpiece and the machine. Measurement of Rotationally Symmetric or amorphous objects can be easily performed by Rotating Spindle Support.
...more
MECHANICAL CMM
SHEFFIELD DISCOVERY III Series CMM are suitable for both Shop Floor and Inspection laboratory. It is equipped with HEIDENHAIN HIGH RESOLUTION SCALE, Precision Drive system, Light Weight Bellow and covers, Elastomeric Dampers. Machine has Advanced Geometric Thermal Compensation and Advanced Material minimizes environmental effects on Measurement. No Air supply needed.
...more

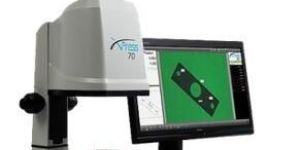

MAKROLITE digital video inspection system
Inspection and Measurement in full HD. Exceptional digital video inspection system designed for effortless image capture, documentatin and measurement 20 : 1 Zoom Ratio, with Magnification Options from 2x to 250x
...more
LVDT Measurement Probes
10,000 - 15,000 Per Piece

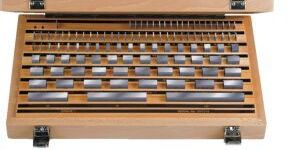

Gauge Block
TESA GAUGE BLOCKS sets are available in steel, tungsten, carbide and ceramic. Appropriate heat treatment guarantees a durable ,low deviations in flatness and parallelism of the measuring faces and its unique flat lapping polish as well as edge rounding techniques leads to superior wringability and quality sets are available in Gr, K,O,1 and 2 and are supplied with DKDUKAS certificate.
...more
DIGITAL PROJECTOR DP
For fast and easy Measurement and comparison of 2D Workpiece Contours. The new digital projector developed by schneider Messtechnik combines the many advantages of the proven projector with the digital image processing and analysis. All you have to do is load your DXF Drawing on to the screen and position is accurately over the image of your workpiece. Once the drawing is aligned with the workpiece, it will move in sychrony with table motion so that the user always have in focus the relevant section of the drawing. Another key feature allows the user to define circles, lines and angles directly at the device, which ensure high quality measurement at top speed.
...more
CORDIVIT
The CORDIVIT 5930 Thread Testing hand Machine is used for testing external & internal threads upto diameter 30 mm. They are equipped with patented screw-in-assistance, torque control and a dirt groove can be added for cleaning the threads. Thread Depth measurement is possible by using a Dial Gauge with CORDIVIT 590. Automatic thread testing unit for threds is also available as an option.
...more
CORDITEST Measuring Instruments
Measuring Instruments are designed to check Internal threads, recesses and internal distances. Ball bearing measuring slides guarantees a precise and secure travel. Available for nominal diameter 3~560 mm with adjustable force with interchangeable measuring elements.
...more

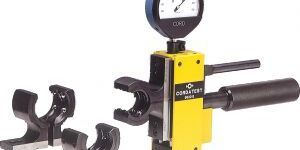

CORDISPHERE CORDASPHERE
Combined with Corditest Cordatest Tread Instrument, the Cordisphere cordasphere measuring Jaws, measures the diameter of the Balls Centre Circle of Ball screw Spindles. The measuring jaws carry 5 ball which guarantees a good centering at the workpiece.
...more
CORDIPAR Universal Instrument
Universal Instrument to measure external and internal diamensions, differntial measurement, bore and groove distances and to measure flank diameter of large threads.
...more
CORDATEST External Thread Measuring Instruments
External Thread Measuring Instruments are designed to measure Virtual Pitch, Effective Pitch, Minor or Major diameter of external threads. The three point measuring rollers are arranged to enclose the test piece to secure position during the measurement. Form errors like orbiform and oval can be detected.
...more
CORDAMETER
Its a high Precision Comparator with plane-parallel measuring surfaces made out of ceramic or tungsten carbide. It covers range of 0 ~ 400 in various steps with measuring span of 1030mm.
...more
Concentricity Gauges
Concentricity Gauges are used to assit in assuring that certain diameters are concentric or a face is square to the spline pitch diameter. Western Pegasus manufactures concentricity gauges to the same tolerance of profiling, spacing and runout as those applied to our composite gauges.
...more
Chamfer Gauge

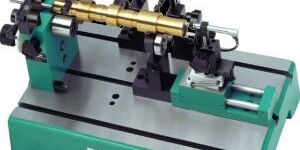

Hand held Axicord
For measurement of radial and axial runout with reference to thread axis of components for external and internal threads from 3 mm nominal diameter. Hand held Axicord is available for unhandy & big workpieces with internal thread. Being a modular system with few changes, new workpieces can be checked for runout.
...more
2D Optical Measuring device
2D Optical Measuring device performs accurate measurement of two dimensional geometrics in matter of Seconds with 2D digitization and Best fit. The brand new V-CAD rapid devise features a compact and mobile design that combines high precision measurement technology with M3 Measuring Software – reliable measurement at your finger tips, fast-straighforward – reproducible
Feature : 5 – megapixel CCD B/W camera.,4 different field of view for spot on measurement
...more
Polishing Machine Precipolish Series

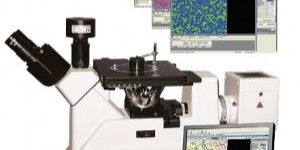

Image Analysis Software
The Biovis Material Plus software uses a high resolution camera which captures and previews Live Image. The software comes standard with tools which can be used to extract size, shape and streological information from the sample. Functions include image transformation, image operations, pixel operatons, image arithmetic, image processing (Binary, gray scale, color), background subtractions, shading correction, image filtering, image enhancements, image segmentation etc. Binary masks bit plane support with 16 Bit panes. Complies with ASTM, DIN, JIS and GOST standards.
...more
3G diacator
