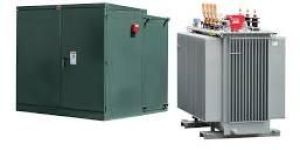

Distribution Transformers Dealers in Mumbai

• Application: Control Panels
• Frequency: 0-50Hz
• Tensile Strength: 0-5Mpa
• Phase: Three Phase
• Cooling Type: Dry type/Air cooled
• Automation Grade: Semi Automatic
• Voltage rating: 11 kV/ 22 kV /33 kV

• Country of Origin: India
• Certification: ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D
• Application: Industrial Use
• Feature: Easy To Install, Electrical Porcelain, Sturdy Construction, Superior Finish
• Condition: New
• Frequency: 50hz
• Warranty: 1year
• Production Power: 100-250kw

Toroidal Transformer offer many advantages over a conventional laminated transformer.Toroidal has a round shape with no air gaps,and with the primary and secondary windings uniformly ditributed around the core,"locks in" the magnetic field and makes the toroidal transformer very quiet and efficient.Toroidal Transformer,by meeting today’s requirements for smaller,more efficient,quieter and safer products,are being accepted in an increasing range of electronic and electrical equipment.With toroidal transformer smaller dimensions, lighter weight and low stray magnetic fields,you can build more compact,lower cost quality products without sacrificing performance.The main purpose of these transformers is used in energy saving technology which in turn enhances the performance and saving the energy.We have both in single phase and cascaded in three phase as per the utility by the customer.

• Weight: 100-1000kg
• Frequency: 50hz
• Warranty: 1 year
• Material: Metal
• Application: Industrial Use
• Certfication: ISI Certified
• Phase: Three Phase

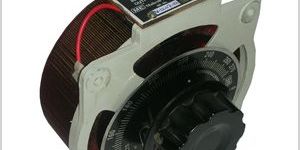

ME manufacture L.T Transformers in different types and capabilities to suit individual requirements.    These are manufactured both in natural air cooled construction and natural oil cooled construction. In addition to the above other types of transformers are i) Voltage Auto Transformers ii) Current Transformers.These are described in our various leaflets. Special Enquiries will always be entertained with promptness,by our Engineering and sales staff. The transformers described in this catalogue are made in natural air cooled and oil cooled construction, suitable for indoor use in a maximum ambient temperature of 45oC. The electrical performance of these transformers generally confirms to the requirements of I.S. specification No. I.S. 2026 for power Transformers. Natural Air Transformers are supplied in sheet steel ventilated case with screwed top cover. Input and output terminals are provided on the top of the transformer, inside the casing. The transformers are suitable for floor mounting and are also supplied with M.S. rollers for easy portability. Natural oil cooled transformers are supplied in M.S. Tanks. As a standard practice the tank is provided with oil filling hole with cap, oil level indicator drain plug and earthing terminal. Input and Output terminals are brought out generally on the top side of the tank. Extra off-load taps can be provided on request. The capacity of the transformer at the tap will be proportionately low corresponding to the tap voltage. The declared capacity will hold good only for the highest voltages on both input and output, unless the taps are specified as full capacity taps.   Three Phase Double Wound Transformers.These generally are manufactured in Delta/Star or Star/Delta connections. Extra off-loads can be provided on request. A typical vector with winding connections is as shown below.

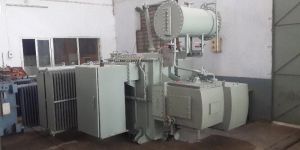

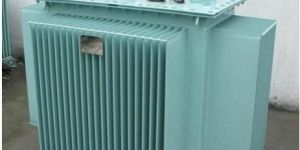

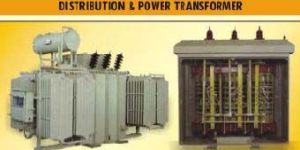

We are reckoned as a dependable Power Distribution Transformer Manufacturer, Exporter and Supplier in the national as well as international markets. The Power Distribution Transformer we provide carries electricity from transmission system and delivers it to the consumers. We provide Power Distribution Transformers up to 5000 KVA at class 33 KV, 22 KV and 11 KV and as per the requirements of the clients. Attributes : Robust construction Efficient working Saves power Durable Reliable performance Trouble free working Accurate functioning Used In : Electricity board Domestic and consumer transformers Wind mill power transmission

• Country of Origin: India
• Weight: 10-20kg
• Voltage: 110V
• Power: 1-3kw
• Power: Ac , DC
• Material: Copper
• Phase: Single , Three
• Brand Name: AEL
• Secondary Voltage: Na

Following are main factors for selecting Voltage Transformer. Service Voltage:System Voltage in which V.T is to be installed e.g. 11kv, 22kv, 33kv etc. Installation:Whether OUTDOOR or INDOOR Atmospheric Conditions:Such as condition of Pollution, Altitude, Ambient Temperature etc. Insulation Level:If insulation level other than associated with service voltage is required, it should be specifically mentioned. Rated Primary Voltage:Rated primary voltage is generally rated system voltage for unearthed type V.Ts. and rated system voltage divided by square root of three for earthed type V.Ts. The V.Ts. can be manufactured suitable for more than one system voltage. In such cases, different primary voltages required may be indicated. Rated Secondary Voltage:Standard Values of Secondary voltages are 110v or 110v/\13 depending on application of the secondary winding. V.Ts. with different secondary voltages other than those mentioned above can be manufactured and supplied. Voltage Factor:All V.Ts, are manufactured suitable for continuous voltage factor of 1.2. As per I.S. / L.E.C. Specifications, short time voltage factor is different for different earthing systems. Therefore appropriate system earthing conditions may be specified. Number of secondary windings. Their burdens & accuracy classes:Number of secondary windings, their burdens and accuracy classes are selected on the basis of application. Two types of classes are available, one for metering and other for protection. Unlike current transformers, accuracy of one winding is influenced by loading of other winding. Due to this reason burden of each winding should be correctly mentioned. Accuracy of V.T. is guaranteed at the secondary terminals of the V.T. The impedance of cable connecting secondary terminal to load (Relay or Meter) offers series drop in output voltage. This causes additional errors in secondary winding at the measuring end of cable and is proportional to the load on the secondary. Therefore, it is advisable to select separate metering and protection winding. Alternatively, single winding can be used for metering and protection if separate cables are used for connections. (Cable of 4 sq. mm. cross section offer 2% voltage drop at 100 metres distance will 100 VA burden for secondary voltage of 110v/A).

We are a reckoned Exporter and Supplier of Power Distribution Transformer from Maharashtra, India. We have tie-ups with the brands manufacturing the Transformer and bring to you a collection that is superb on counts of construction, longevity and performance. In order to meet urgent and bulk demands of the buyers, we maintain a huge stock of Power Distribution Transformer in our state-of-the-art warehouse. For price quotes, it is offered by us at the modest prices.

We are one of the key manufacturers and suppliers of 3 Phase Resin Cast Current Transformers (CTS) in Dombivli, Maharashtra. These machines summate currents in different feeders and core balance CTS (CBCTS or zero sequence CTS) which are used along with earth fault and earth leakage relays such as cag 12 c and CTU 15 m of gec alsthom (alstom) make. Precision grade current transformers for laboratory use are also produced by us, along with furnace CTS, split core (clip-on) CTS and interposing CTS. Measurement and protection VTS are manufactured in tape wound and resin cast construction, single phase and three phase constructions. Typical primary voltage is 415 v and 440 v and typical secondary voltage is 110 v. Burdens range from 50 va to 200 va for class 0. 5 and class 1 accuracy.
