Tray Dryer Dealers in Vasai East, Mumbai

• MOC: SS 304, SS 316 & SS 316L
• Size: 6 trays to 96 trays

* Electric / steam heating can be provided * Easy accessible to impellers for cleaning * Uniform and quick drying * Explosion flap provide

• Warranty: 1 year
• Features: Thermostatic controller, Motor control push buttons, On - off heater switch, Easy to see pilot lights.

SADHI PHARMA EQUIPMENT We Manufacturing,Supplying & Exporter Pharmaceutical,Food Product,Chemicals,Ayurvedic,Formulations,Bulk Drugs,Cosmetic,Granulation's Machinery SADHI PHARMA EQUIPMENT Mfg & Exports :- Pharmaceuticals,Chemicals,Food Product,Bulk Drugs, Cosmetics ,Herbals Products Machinery & Equipment

• Certification: CE Certified, ISO 9001:2008
• Application: Pharamaceutical
• Color: Silver
• Voltage: 380V
• Warranty: 2years
• Country of Origin: India
• Size Available: 6 Trays Up to 48 Trays.

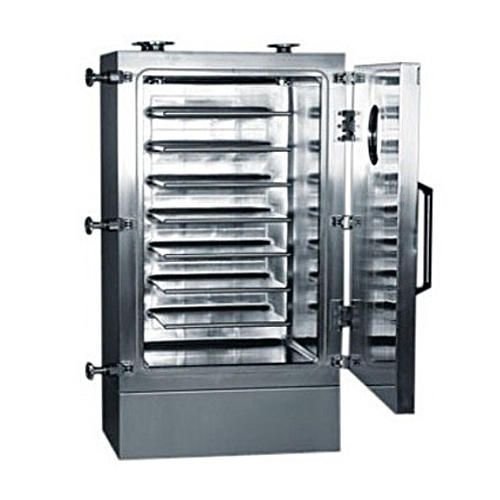

Vacuum Tray Dryer comprises a precision designed and highly functional range of Vacuum Tray Dryer (VTD) that find suitability in the drying of thermal sensitive materials under higher temperature. Coming with the possibility of sterilization prior to the drying process, these static vacuum dryer eliminates configuration damages of drying materials and is suitable for use in industry sectors like pharmaceutical, chemicals, and foodstuff.

  Double Walled Construction- Exterior made of mild steel powder coated (STD Model) & Interior made of stainless steel 304. Heating: Three sides uniform heating through forced air heaters made up of High grade. Air Circulation: Fan arrangement for uniform air circulation. Temp. Range: 5ºC above ambient to 250°C Resolution : ± 2°C Temperature Controller: Digital temperature controller. High grade glass wool insulation Aluminum Trays. A cabinet tray dryer is an enclosed insulated chamber in which trays are placed on top of each other in trolleys. Tray Dryer are used where heating and drying are essential parts of manufacturing process in industries such as Chemicals, Dye stuff, Pharmaceutical, Food Products, Colors etc.

• Application: Industrial, Pharamaceutical
• Material: Stainless Steel
• Voltage: 220 V
• Automation Grade: Automatic
• Power Source: Electric
• Frequency: 50 Hz
• Surface Treatment: Powder Coated

• Type: Tray Dryer
• Weight: 100-200kg, 200-300kg, 300-400kg, 400-500kg
• Condition: New
• Warranty: 1year
• Application: Industrial, Pharamaceutical
• Automatic Grade: Semi Automatic

Manufacturer of standard & custom tray dryers suitable for drying chilies, spices, papads, potato chips, onions, fish, garlic, grapes, cashew nuts, confectionery, macaroni, wood etc. It is also for used for drying pharmaceuticals, chemicals, powders, granules, plastic granules etc. Heating is either by electric or steam or both combined. We offer a precision engineered range of tray dryer specially designed for uniform circulation of hot air in the drying chamber. The sturdily built unit is fitted with thermostatic temperature control up-to 100 degree. Oven is equipped with dry air inlet and wet air exhaust. Available in different models with options for 12, 24, 48 and 96 trays.

Vacuum Tray dryer is the most commonly used batch dryer. They are box-shaped and loaded and unloaded via a door (two doors on the larger models). Inside are several heating plates mounted one above the other on which the product is placed in trays. The bottoms of both heating plates and trays should be as smooth as possible to permit optimal heat transfer between plates and product. The medium flowing through the heating plates is water, steam or thermal oil. The distance between the heating plates is determined primarily by the surface loading and the foaming of the product. To void retrograde condensation the cabinet walls are indirectly preheated by the heating plates. Next, the product is introduced and heated at atmospheric pressure. Only after all individual product trays reach the same temperature the cabinet is evacuated and drying can start. The preheating phase is very important in order that the drying curve and the foaming of the product is identical throughout the cabinet. During the main drying phase the vacuum is in the range of 40 to 80 mbar abs and in the final drying phase vacuums of only few mbar abs are reached. Heating temperatures are normally in the range between 800C and 1100C. Depending on product and surface load, drying takes from a few hours to 1 to 2 days. For some products the vacuum and temperature profiles are automatically controlled in order to prevent a pass over of the critical product temperature. The dimensioning of the vacuum system is an important factor in the design of drying cabinet systems. If for example vigorous foaming of the product is desired, evacuation to the operational vacuum level must take place very quickly. Vapors produced during drying are taken out direct, or via a steam jet compressor to a surface condenser in which the vapors condensate. The non-condensable vapors are extracted by the vacuum system. On completion of the drying, the product can be cooled by circulating of cooling water through the heating plates. Features: All contact parts are made out of SS304 / SS316 / SS316L quality material in GMP models and mild steel externals with stainless steel internals in standard model Hollow pad type heating shelves which are easily removable for maintenance Condenser and condensate receiver fixed on the dryer body or stand alone for remote installation Full welded skirt on vacuum dryer body for flush mounting through the wall. External fluid heating of dryer with protective panels in stainless steel or mild steel powder coated Dedicated fluid heating and circulating systems. These can be steam or electrically heated. Fluid heating systems are available for water as well as thermic fluid (for temperature requirements above 95 oC) Validation ports and nitrogen purge nozzles Can be designed to customers specification requirements Steam sterilisable models available Double door loading available for large models Halar lined internals for corrosive applications

• Material: Stainless Steel
• Phase: 3 Phase
• Minimum Order Quantity: 1 Unit
• Capacity: 2-3 kg in one tray
• Automatic Grade: Automatic
• Voltage (V): 440V

We are committed to offer a quality range of Tray Dryer, Vibrating Screen in mild steel, stainless steel construction. The Tray Dryers offered by us are basically enclosed insulated chamber in which trays are placed on top of each other in trolleys. The solid or liquid material to be dried is placed on the trays placed in the dryer. For maximum output and efficiency, these dryers are fitted with high performing components like electric heaters or steam in radiator coils that facilitates heat transfer by circulation of hot air. Further, efficient blower fans are installed in the dryer that ensures proper circulation and transfer of heat. In addition to these components, our range of Tray Dryers is equipped with control panels that controls and monitors the temperature and other parameters. Features: Easy to use Less power consumption Shock proof

• Capacity Size: 12 Trays, 24 Trays, 48 Trays, 96 Trays

Tray Dryer is robust in construction built with Stainless Steel sheets and internally angles are used to reinforced the whole sheet body. The external sheet of tray dryer will be of S.S. 304 and internal chamber will be of S.S. 304 S.S. 316. The internal structure is fully welded and grounded to smooth surfaces. The same will be insulated with minimum 50mm thick Glasswool insulation and cladded with S.S. sheets. The dryer is having a fresh air inlet through 20 Micron PP cloth filters and an adjustable air outlet flap. The door provided at front is explosion proof and is locked with the help of spring loaded ball latches and Neoprene rubber gasket to prevent leakages with suitable pressure. The maximum temperature attained inside the tray dryer will be 100°C and will be indicated and controlled through DTIC.

• Power Source: Electricity
• Finishing: Polished
• Material: Stainless Steel
• Phase: Single Phase
• Voltage (V): 220-240 V
• Weight (Kg): 100-500 Kg
• Electricity Supply (kW): 3-75 KW
• Frequency (Hz): 50 Hz

• Condition: New
• Capacity: 6, 12, 24, 48, 96, 192 trays
• Size: 12 , 24 , 48, 96 & 192 Trays
• Packaging: As per client requirement

Being a quality-centralized firm, we have hired a group of quality auditors who work in adherence with the defined norms and deliver the best products to the clients. We are acknowledged for providing only damage-free products to the clients. For this, we make use of quality and tamper-free packing materials along with sophisticated packing machines.

We are offering tray dryer. • all contact parts made of ss 316 as cgmp standard • design for uniform circulation of hot air in the drying chamber • heating cold and fan motor having electrical inter locking for safety of heating elements • electric/steam/thermic fluid heating system • fresh air inlet and outlet air flow can be adjusted with damper control valve • capacity: 12 trays to 96 trays.
