Trimurti Engineering Works Vikhroli, Mumbai, Maharashtra

TRIMURTI EXPELLERS are the result of many years of experience in the manufacturing of Oil Expellers. The expellers can be used in crushing Cashew Nut Shell, Copra, Cotton Seed, Ground Nut, Sun Flower, Soya Bean, and Palm-Kernels.   GEARBOX All gears are made out of steel, are hardened, and are enclosed in an oil bath to prevent wear & tear. Gears are mounted on ball bearings. Hence ensuring smooth functioning.   HEATING KETTLE Expellers can be provided with single, double, or three-stage heating kettles. The kettle jackets are made out of 12 mm (½”) thick plate and the outer shell is out of 6 mm. (¼”) thick plate. The kettle has four bearings.   CHAMBER Made of M.S. Plates of 32 mm (1 ¼”) and 25″ mm (1″) plates to ensure better fitting of the cage bar, hence better crushing and a maximum output of oil. The chamber is hinged in the machine in such a manner that it opens like a book and worms and other spares can be inspected and changed without removing the chamber on the ground thus saving lots of time in the opening and restarting of the expellers.   The expeller body is very sturdy, fitted with heavy-duty bearings which help in the smooth running of the machine. There are nine bearings in the expeller and four in the kettle. Total 13 bearing base of the explorer is fabricated out of channels, plates and flats give stability and sturdiness to the expeller. We can provide the independent self-drive for the kettle, both independent gearbox and motor at an extra cost.

Material : Mild Steel

Shape : Rectangular

Specialities : Easy To Operate

Packaging Type : Wooden Box

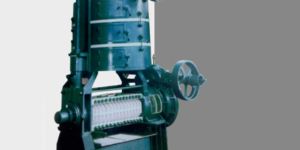

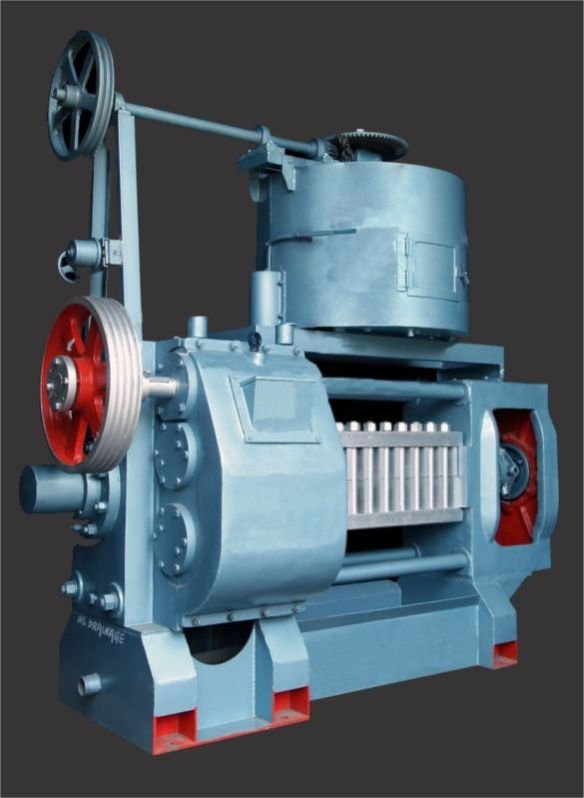

Trimurti oil machinery is being used in oil mills in India and may overseas countries for over 37 years. We have always offered expellers with latest features of efficient working and labor-saving devices. The latest demand of high capacity, high yield, and sturdy expellers being met with our offer of TRIMURTI SUPER 20 AUTOMATIC EXPELLER. SUPER 20 expeller is in a class by itself with its unique feature. Our experienced personnel in manufacturing and sales divisions have spared no effort to design this expeller to possess study built, easy installation, operation, smooth working and also satisfying the specific requirements of oil millers.   SUPER 20 possesses the following features. CONSTRUCTION: The sturdy close grain first grade cast iron frame is fitted on one piece fabricated oil tray. The frame is machined throughout in one selting to give perfect alignment of bearings, shafts and other parts. This reduces Static and Dynamic friction and saves greatly on power consumption   CHAMBER BOX: it is vertically hinged and opens like a book and spares the trouble of removing it from expeller during a change of cage bars and worms. This is a great time and labor-saving improvement.   SUPER 20 Expeller is offered in two models : SINGLE PRESS DOUBLE CHAMBER EXPELLER: This model has two independent chamber 1st chamber length 22” X9” diameter and 2nd chamber is having a length of 27″X7″ diameter with a center body ring of 3″ width. This is a very high-pressure machine and leaves 6% to 7% oil in a cake in a single pressing   FIRST PRESSING SINGLE CHAMBER EXPELLER: Having a length 52″X9″ diameter. This is used as a 1st pressing machine to feed other Expeller for 2nd pressing.   COOKING KETTLE: The Expeller is fitted with a THREE STAGE cooking kettle. It is compact in design and is fitted with a self-controlled meal inlet to prevent overflowing. It is also fitted with a safety valve, pressure, gauge, steam traps, steam valve, and steam damping apparatus. The steam is welded and riveted and listed jackets to 100lbs. Pressure per square inch. The kettle requires 100-120 lbs. of process steam per hour at a pressure of 60 lbs. per square inch to be supplied from a separate boiler.   POWER: The power required depends upon the material being crushed and how well it has been cooked. The normal requirement for usual seeds is 70-75 BHP   LUBRICATION: The expeller is fitted with a self-lubricating reduction Gear Box. Main gears are steel fabricated and tempered, they also run in their own oil bath thus ensuring long life to all these gears. Stuffer lubricators are fitted on other bearings as standard fittings. High-pressure grease gun lubrication can be fitted if desired at an extra cost.   CAPACITY: It varies from seed and also whether the expeller is being used for first or second crushing. The efficient cooking, preliminary crushing, and large capacity chamber box in thus expeller give the following crushing capacity of 24 hour working. Copra first crushing : 25 – 30 tons Copra second crushing : 20 – 22 tons Ground nut : 18 – 20 tons Cottonseed: 18 – 20 tons The oil left in the final cake is about 6-7%   MOTOR DRIVE ARRANGEMENT : This expeller is usually supplied with a belt drive arrangement. If the motorized unit is desired, the same can be supplied at an extra cost.   DURABILITY : All parts subject to heavy wear and tear such as worms cage bars cone points are made from case hardening steel (special alloy steel) and properly heat treated to give long life, high capacity, and low maintenance cost. Standard Equipment includes spanners, pressure gauges, steam traps, etc., etc. We reserve the right to alter the design and dimension without any prior notice at any time if the necessity arises.   Note: We reserve the right to make alterations to the machine from time to time as required.

Material : Mild Steel

Operating Type : Manual

Specialities : Easy To Operate

Packaging Type : Wooden Box

Usage : Soybean Oil, Peanut Oil, Sunflower Oil

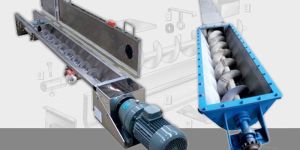

The manual handling of Oil Seeds and cakes is gradually and more frequently being replaced by mechanical handling with bucket Elevators and screw conveyors. The Elevators & Conveyors can feed the Oil Mill continuously from the godown to the Oil Mills. The chain bucket elevators and screw conveyors are commonly used in oil mills and we can supply the complete scheme of Elevators and Conveyors for mechanical handling throughout the oil mill. Screw Conveyor is used for moving material like oilseed, pulverized meal, and oil in the horizontal direction or through a slightly inclined plane. The screw conveyor consists of the trough of a Mild steel plate with an angle welded along the edges and is fitted with the spiral mounted shaft. The feed is from the top at one end and discharge generally, from an opening at the bottom on the other end of the trough. The shaft is supported at both ends by bearings and also an intermediate position in long conveyors. The shaft is extended from one end for drive purposes. Screw Conveyors are available in 8″, 9″ & 10″ Screw diameters sizes.

Material : Metal

Packaging Type : Open / Wooden Crate OR Case

Machine Weight : 100-200 Kg

Application : To Convey Seeds / Cakes In Oil Mills

TRIMURTI FILTER PRESSES are well known for their up-to-date design, sturdy construction, and easy operation. These are largely used by chemical and Sugar factories and especially by OIL MILLING INDUSTRY for producing a first-class filtered oil and also saves an enormous loss of time and space required for the oil to settle down in tanks.   These are prepared in two types :(1) Recessed Types(2) Flush Plate and Distance Frame Type.   RECESSED TYPE The plates in this type are recessed so that when two plates are closed together, a chamber is formed. Each plate has a center feed hole and the faces are cast with pyramid type indentations to increase the filtering area. Filter cloth is placed on each plate and fastened back to the plate with hollow clips. When the press is closed, the cloth forms a tight joint between the machined edges of the plates. The liquid to be filtered is pumped into the press to fill up the chamber formed by the plates. The liquid is then forced out through the cloth, to the passage at the base of the plate, and hence to a trough through bib cocks.   FLUSH PLATE AND DISTANCE FRAME TYPE In this type, the machined edges are almost at level with the indentation surface. A separate form is used between them to form the chamber. The cloths are not fastened in any way to the plate, but only hang over the frame and nipped between the edges of the plates and distance frames, when these are closed together. The filter cloth is thus easily renewed for cleaning. The thickness of the frame determines the depth of the chambers. The type is recommended for filtering oils with the use of filter aids, such as fullers earth, Kieselguhr, or activated carbon.   STANDARD EQUIPMENT These are supplied with suitable belt-driven on motorized pumps. Standard equipment also includes the necessary safety valve air vessel, pressure gauge, out, et cocks trough, etc. Filter cloth bags are supplied at extra cost.

Automatic Grade : Automatic

Voltage : 220V

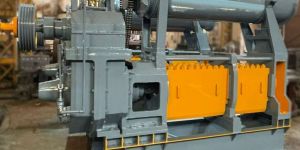

TRIMURTI OIL MACHINERY is being used satisfactorily in India and many overseas countries for over 40 years. Our models incorporate the latest international design specifications and technological developments. The enhanced efficiency thus obtained gives you savings in terms of time, money, and labor. TRIMURTIMARK 20 OIL EXPELLER and TRIMURTIMARK 30 OIL EXPELLER, our 2 recent models, meet the demand of high capacity high yield expellers. Our designers have spared no effort to make these models strong and sturdy. TRIMURTIOIL MACHINERY is easy to install and gives you long trouble-free service. 20, MARK 30 OIL EXPELLERS Crushes in a single pressing operation approximately 20 tons to 30 tons oil seeds in 24 hours and leaves behind 5% to 6% oil in the cake.   CHAMBER BOX Being vertically hinged it opens like a book and saves the trouble of removing it from expeller during a change of worms. This is a great time and labor-saving improvement.   COOLING OF CHAMBER Oil from the oil settling tank is pumped and sprayed by a special motorized pump which is part of the standard equipment. Oil thus flushed on the chamber removes the feet and also cools the chambers. As a consequence, the life of the spare parts is enhanced.   GEARBOX The gearbox is robust and of close-grained C.I. Casting fitted with heavy bearings and tempered helical steel gears that run in an oil bath. These hobbing cut teeth gears run silently and have a long life.   BODY AND CENTER BODIES These are fabricated from tested steel plates.   PRELIMINARY COMPRESSION The cooked meal from the kettle is compressed and consolidated by a packing worm before entering the chamber box, where oil extraction starts immediately. The packing worm is driven by an automatic tension belt which stops whenever the feed is excessive and starts again as the accumulated material has been taken over the feed worm.   MAIN WORM SHAFT WITH WATER COOLING ARRANGEMENT The worm shaft is of special alloy steel of high tensile strength to withstanding shock and strain. It is stepped in design to assist the easy withdrawal of worms and collars. The shaft can be removed without disturbing the main thrust bearing and main gears. It is equipped with the necessary motorized pump for water cooling arrangement.   COOKING KETTLE MARK – 30 The expeller is fitted with a FIVE stage cooking kettle. It is compact in design and is fitted with a self-controlled meal inlet to prevent overfeeding. It also fitted with a safety valve, a pressure gauge, steam traps, a steam valve, and a steam damping apparatus. It is independently driven by a 20 HP motor through a reduction gearbox.   FLOW OF OIL AND FOOTS FROM EXPELLER A conveyor is provided in the oil tray of the expeller which conveys oil and feet to oil storage tanks.   POWER The power required depends upon the material being crushed and how well it has been cooked. The normal requirement for usual seeds is MARK – 20 75HP 1000 RPM MARK – 30 125HP 1000 RPM   CAKE The thickness of the cake at the discharge is controlled by an automatic mechanism that can be operated to increase or decrease the cake thickness even while the expeller is in motion.   DURABILITY All those parts of which are subject to heavy wear and tear such as worms, cage bars, cone points, etc. made from special alloy steel, are properly hardened and tempered (heat-treated) to give them a long life and a low maintenance cost.   Note: We reserve the right to make alterations to the machine from time to time as required.

Specialities : Easy To Operate

Power : 125 HP 1000 RPM

TRIMURTI OIL MACHINERY is being used satisfactorily in India and many overseas countries for over 40 years. Our models incorporate the latest international design specifications and technological developments. The enhanced efficiency thus obtained gives you savings in terms of time, money, and labor. TRIMURTIMARK 20 OIL EXPELLER and TRIMURTIMARK 30 OIL EXPELLER, our 2 recent models, meet the demand of high capacity high yield expellers. Our designers have spared no effort to make these models strong and sturdy. TRIMURTIOIL MACHINERY is easy to install and gives you long trouble-free service. 20, MARK 30 OIL EXPELLERS Crushes in a single pressing operation approximately 20 tons to 30 tons oil seeds in 24 hours and leaves behind 5% to 6% oil in the cake.   CHAMBER BOX Being vertically hinged it opens like a book and saves the trouble of removing it from expeller during a change of worms. This is a great time and labor-saving improvement.   COOLING OF CHAMBER Oil from the oil settling tank is pumped and sprayed by a special motorized pump which is part of the standard equipment. Oil thus flushed on the chamber removes the feet and also cools the chambers. As a consequence, the life of the spare parts is enhanced.   GEARBOX The gearbox is robust and of close-grained C.I. Casting fitted with heavy bearings and tempered helical steel gears that run in an oil bath. These hobbing cut teeth gears run silently and have a long life.   BODY AND CENTER BODIES These are fabricated from tested steel plates.   PRELIMINARY COMPRESSION The cooked meal from the kettle is compressed and consolidated by a packing worm before entering the chamber box, where oil extraction starts immediately. The packing worm is driven by an automatic tension belt which stops whenever the feed is excessive and starts again as the accumulated material has been taken over the feed worm.   MAIN WORM SHAFT WITH WATER COOLING ARRANGEMENT The worm shaft is of special alloy steel of high tensile strength to withstanding shock and strain. It is stepped in design to assist the easy withdrawal of worms and collars. The shaft can be removed without disturbing the main thrust bearing and main gears. It is equipped with the necessary motorized pump for water cooling arrangement.   COOKING KETTLE MARK – 20 The expeller is fitted with a FOUR stage cooking kettle. it is compact in design and is fitted with a self-controlled meal inlet to prevent overfeeding. It also fitted with a safety valve, a pressure gauge, steam traps, a steam valve, and a steam damping apparatus. It is independently driven by a 20 HP motor through a reduction gearbox.   FLOW OF OIL AND FOOTS FROM EXPELLER A conveyor is provided in the oil tray of the expeller which conveys oil and feet to oil storage tanks.   POWER The power required depends upon the material being crushed and how well it has been cooked. The normal requirement for usual seeds is MARK – 20 75HP 1000 RPM MARK – 30 125HP 1000 RPM   CAKE The thickness of the cake at the discharge is controlled by an automatic mechanism that can be operated to increase or decrease the cake thickness even while the expeller is in motion.   DURABILITY All those parts of which are subject to heavy wear and tear such as worms, cage bars, cone points, etc. made from special alloy steel, are properly hardened and tempered (heat-treated) to give them a long life and a low maintenance cost.   Note: We reserve the right to make alterations to the machine from time to time as required.

Specialities : Easy To Operate

Finishing : Polished

Permanent Magnetic Plates are used for the separation of tramp iron found in tea, tobacco, coffee, cocoa, milk powder, chemicals etc.   CONSTRUCTION AND WORKING They are available in both flat and curved shapes and can be installed either above or along the passage of the flow of materials. They are provided with clamps and can be located on the conveyor of carrying such materials. Ideally, they are located 30 mm above the layer of material flow. These plates are constructed with high energy permanent magnets plated in a magnetic circuit. They are extensively used in CTS tea machinery and in biscuit stacking machines. They are available in various sizes as per the requirement.

Material : Metal

Surface Finishing : Polished

Grade : AISI, ASTM, BS, DIN

Feature : High Quality, Rust Proof

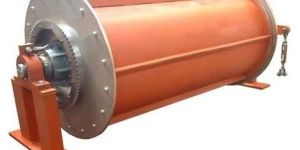

These are used by most of the mineral manufacturers for getting total iron free material. Extra high power magnetic plate at the material outlet side can also be provided. Models are available in any drum size as per the requirements   SIZE RANGE The permanent Drum Separators are available in standard drum diameters of 300 mm, 400 mm, and 450 mm. Drum length ranges from 300 mm to 1200 mm. Other sizes can be made as per the requirements. The larger diameter and length of the drum the greater is the volume of material that can be handled.

Size : Standard

Material : Metal

Diameter : 100-150mm

Shape : Round Shape

Thickness : 10-20mm

Feature : Durable, Robust Construction, Rust Proof

Finishing : Non Polished

‘Trimurti’ Permanent Drum Type Magnetic Separator is the most useful nonelectric separator for separating tramp iron from nonmagnetic material processed in bulk quantity for the purity of end products, recovery of metals having a commercial value, and protection of processing plant and machinery. These are widely used in all processing industries for the separation of iron contamination from minerals, chemicals, food, flour, plastics, grains, sand, cement, fertilizers, abrasives, glass slag, ores, rock, and many other products. WORKING PRINCIPLE & MAGNETIC SYSTEM The Permanent Magnetic Drum consists of a stationary permanent magnetic assembly having uniform and everlasting magnetic field across the entire width of the drum, which is effective over approximately half the drum circumference. Drum shell made of non magnetic stainless steel revolves around the magnetic field. As the material fed evenly from the chute falls over the drum, powerful magnetic field attracts and holds ferrous particles to the revolving shell. As the revolving shell carries the iron particles through the stationary magnetic field the nonmagnetic material falls freely from the shell while ferrous particles are firmly held until carried beyond divider and out of the magnetic field. The strength of the permanent magnetic drum is guaranteed to be greater than the corresponding electromagnetic drum. The Permanent Magnets used are everlasting magnets and their strength does not diminish during normal use. Note: We reserve the right to make alteration in the machine from time to time as required.

Usage : Industrial

Specialities : Rust Proof, Easy To Operate

Weight : 100-1000kg

Packaging Type : Carton Box

TRIMURTI STEAM GENERATORS  are three-stage Boilers. They have a number of vertically placed straight tubes that can tolerate a higher degree of hardness. The hot gases generated by combustion flow upwards through the steam almost instantly. The simplicity in design of TRIMURTI STEAM GENERATORS provides maximum accessibility for maintenance and cleaning. TRIMURTI STEAM GENERATORS are compactly mounted and can be easily placed near the corresponding processing facility plant.   Hot gases escaping to the atmosphere contain heat, which can be advantageously utilized. TRIMURTI STEAM GENERATORS have an outstanding design to utilize this heat, which is absorbed by the incoming water flowing up through specially designed water heater tubes and having a large heating surface. The water feeder above the steam-generating portion enables hot water to be fed into the lower steam-generating portion, resulting in increased overall efficiency   TRIMURTI STEAM GENERATORS do not come under the Indian Boilers Regulation Act. This means no separate boiler house or registered boiler attendant required. No IBR piping necessary and no annual shutdown on account of any statutory inspection:   TRIMURTI STEAM GENERATORS are available in the following types : Coal-Fired Oil Fired Coal Cum Oil Fired   TRIMURTI STEAM GENERATORS can be easily converted from oil-fired to coal firing.   TRIMURTI STEAM GENERATORS are provided with the following standard supply: Water level gauge glass cock with glass tube Pressure gauge with siphon Safety valves and Steam-stop valve Test cocks Blow-off gland cock Feed pump – Hand-operated / Motorized Low air pressure burner with motorized blower complete – For oil Fired Boilers Fire bars and fire doors – For Coal Fired Boilers

Operating Type : Semi Automatic

Machine Structure : Vertical

Material : Metal

Specialities : Durable, Esay To Use

Weight : 100-1000kg

Finishing : Polished

TRIMURTI EXPELLERS are the result of many years of experience in manu acturing of oil Expellers. The expellers can be used in crushing Cashew Nut Shell, Copra, Cotton Seed, Ground Nut, Sun Flower, Soya Bean and Palm-Kernels.    GEAR BOX  All gears are made out of steel, are hardened and are enclosed in an oil bath to prevent wear & tear. Gears are mounted on ball bearings. Hence ensuring smooth functioning.    HEATING KETTLE  Expellers can be provided with single, double or three stage heating kettles. The kettle jackets are made o of 12 mm (1/2") thick plate and outer shell is out of 6 mm. (1/4") thick plate. Kettle has four bearings.    CHAMBER  Made of M.S. Plates of 32 mm (1 1/4") and 25" mm (1") plates to ensure better fitting of the cage bar, hence better crushing and maximum output of oil. The chamber is hinged in the machine in such a manner that it opens like a book and worms and other spares can be inspected and changed without removing the chamber on the ground thus saving lots of time in the opening and restarting of the expellers.    Expeller body is very sturdy, fitted with heavy duty bearings which help in the smooth running of the machine. There are nine bearings in the expeller and four in the kettle. Total 13 bearing base of the explorer is fabricated out of channels, plates and flats give stability and sturdiness to the expeller. We can provide independent self drive for the kettle, both independent gear box and motor at an extra cost.

Material : Metal

Warranty : 1 Year

Specialities : Easy To Operate

Usage : Peanut Oil

This is a simple machine and its working is easy and trouble free. This is suitable for small units and has the capacity of 800 lbs of decorticating seed in an hour   This unit employs friction rolling method to break open the shell with minimum break-age of seeds.   The construction is simple, it has a steel frame, adjustable hopper and sieve is of strong section bars to allow adjustments for different size of seeds to fall through.   The main shaft has moving wheel on side and fly wheel on the other side. The shaft is supported on ball bearings and heavy fly Wheel ensures the smooth and free movements. The fan bearings are ordinary or self oiling . All the parts are made out of selected materials and are properly machined to give smooth service.   This machine can also run on power of 11/2 to 2 H. P.   POWER DECORTICATOR These are available in two sizes, each unit has strong Steel Body and is of simple constructions. It is easy to handle and has low maintenance cost. The hoppers fitted to the upper part of the frame and seed passes through the opening chamber, where the shell is broken and separated from the kernel. The kernel and the shells fall through the sieve to the slide board, where the fan blower further clean the kernel before they fall out of machine.   THE STONE SEPARATOR is provided with power decorticators only.Two pullies are provided one of beater size   Note: We reserve the right to make alteration in the machine from time to time as required.

Weight : 100-1000kg

Voltage : 220V

Driven Type : Electric

TRIMURTI COPRA CUTTER is used to cut the copra into small pieces before the same is sieved in preparation to the breaking mill or to feed the same to Oil Expeller for crushing. The cutting of copra is done by a number of beaters. The beaters are mounted on a shaft supported by two self-aligning ball bearings. The shaft has at one end a flat or “V” Pulley. The cut pieces fall through the perforated mild steel plate sieve. The beaters are case hardened to give life. The Copra Cutter is fabricated out of mild steel angels and plates and is simple in construction and easy to handle. The working is very simple and beater replacement requires minimum skill. This can also be used to disintegrate any other material like oil cake, groundnut, etc.   Note: We reserve the right to make alterations to the machine from time to time as required.

Material : Metal

Application : Copra Cutting

Grade : Mild Steel

Capacity : 2 Tons Per Hour

Cold Press Oil Extraction Machine A cold press oil machine works by crushing/pressing the oil materials at low temperature via screw device, without pre-treating the materials. We manufacture Cold press oil machinery for organic oil extraction from all kind of oil bearing seeds like groundnut oil (peanut oil ), sesame oil, coconut oil, mustard oil.etc., Cold press oil extraction is like the Traditional oil extraction technology widely used in India. Benefits of Cold pressed oil: It produces cholesterol-free oil Oils are not refined, processed or deodorized in any way, thus producing pure oil No harmful solvent residues No added preservatives or chemicals House natural antioxidants like phosphatides (e.g. lecithin) & tocopherols (e.g. vitamin E) It retains natural odour & flavour Small load, energy saving and low noise

Type : Portable

Material : Metal

Usage : Industrial

Trimurti centrifugal discharge vertical elevators are used in lifting the material vertically. They are available in any height complete with top, bottom, and intermediate casing. The frame is made of Mild Steel sheet made rigid by angle iron, fitted with seamless pressed steel Buckets and Elevator Chains, Cast Iron sprocket wheels are mounted on a shaft supported by double row Self-aligning Ball Bearings. The take–up arrangement is at the bottom for easy erection and corrects tensioning of the chain. The buckets are spaced at a suitable distance. The top shaft is extended for drive purposes. Chain-Bucket elevators are available in the following sizes   Chain No. - Bucket Size 57- 6″ x 4″ x 3.25″ 578 - 8″ x 4″ x 3.25″   The above Elevators can transport 1.25″ tons to 4 tons of material per hour depending upon the size of buckets, speed of the elevator, and the type of material being handled. Belt bucket elevators can also be supplied.

Application : Industrial

Feature : Best Quality, Smooth Function

Voltage : 220V

Automatic Grade : Semi Automatic

Lift Weight : 100-200kg

Trimurti Baby Oil Expellers are economical as compared with rotary Ghani as the capacity Is about 5-6 times that of a power-driven Ghani. The oil left in the cake when crushed by TRIMURTI BABY OIL EXPELLERis about 7-8% whereas Ghani cake seldom contains less than 13% depreciation value of TRIMURTI BABY OIL EXPELLER is very low as compared to Ghani, where the pestle and mortal require frequent replacements   OUTSTANDING FEATURES OF THE TRIMURTI BABY OIL EXPELLER ARE : GEARS : All the gears are made of high-grade material and milling cut teeth.   BEARING : Ball bearings are fitted to this machine in order to consume less horsepower.   MAIN WORM SHAFT SNARES : The wear and tear parts are made out of case hardening steel to ensure carefree and long service. All these parts are case hardened in an up to date electric case hardening furnace.   THRUST FRAME : The thrust frame is fitted with a simple and rigid arrangement to withstand the backpressure of the main worm shaft.   CONE POINT : The size of the cake to be discharged is regulated by a simple gear arrangement that moves the cone in and out.   SIDE BELT DRIVE : The expeller is fitted with loose and fast pulleys.   HORSEPOWER : The TRIMURTI BABY OIL EXPELLER requires 7 to 8 B.H.P.   CRUSHING CAPACITY : The TRIMURTI BABY OIL EXPELLER can crush over 4 tons of seed in 24 working hours under normal conditions. Depending upon the nature, kind, and quality of the seeds. If it is to extract oil from oil cake, the capacity to crush oil cakes is 3 Tons.   WEIGHT : Approx 2 tons   SPACE : The space required for the erection is 8′ x 4′   Note: We reserve the right to make alterations to the machine from time to time as required.

Specialities : Easy To Operate
