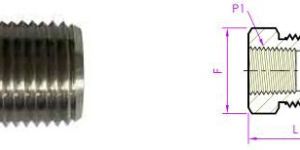

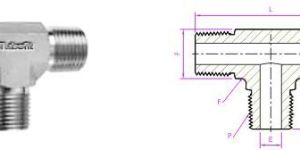

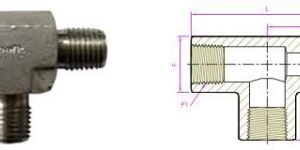

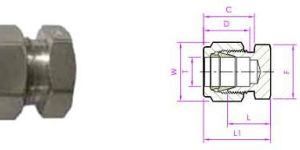

Note : The dimension is the minimum opening & fitting of this group may be back drilling to larger id at pipe thread or straight thread end. Dimensions are for reference only and subject to change.

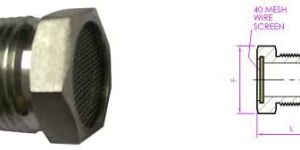

  TUBEFIT vent protectors, or more commonly known as the mud dauber fittings, protect open ends of instruments, tubing, outlet vents and bleed-off lines.The mesh wire screen prevents foreign particles such as mud dauber insects from entering and clogging various systems and causing damage. Standard materials are brass and stainless steel. Additional materials, sizes and fitting configurations are available on request.   Note : The E Dimension is the minimum opening. Dimensions are for reference only and are subject to change. NPT thread as per ANSI B 1.20.1

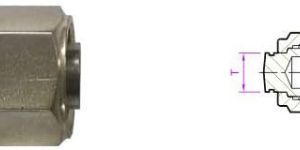

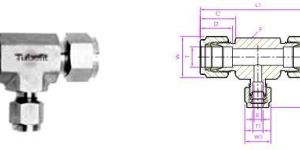

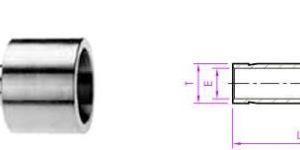

Tubefit tube fittings with weld ends allow you to make tube-to-weld connections. The fittings provide leak-proof seals at the tubing connections. They also eliminate costly, hazardous leaks in instrumentation and process tubing. They permit disassembly in otherwise permanently welded tubing systems.materials include 316/316l stainless steel, steel, brass and aluminium.   Note : The E dimension is the minimum opening & fittings of this group may be back drilling to lager id at pipe thread or straight thread end.   Dimension l, c, d is shown in the finger-tight position.   Dimensions are for reference only and are subject to change.

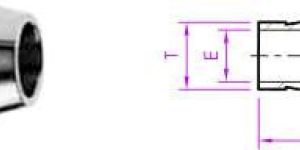

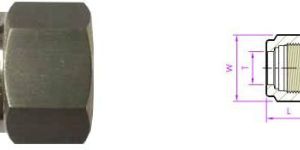

Note : Dimension l1,c,d  is shown in the finger-tight position. Dimensions are for reference only and are subject to change.

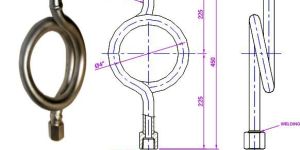

  Syphons should be used in all steam applictions.pigtail steam syphons protect the instrument from damaging effects of direct exposure to high temperature steam. To properly install and use a syphon with water and install the pressure gauge. The water will fill the lower half of the coil and will act as a protective barrier between the high temperature steam and the pressure gauge. Optional IBR approval is offered, depending upon customer requirement   Features : Syphons are available with butt weld,socket and threaded end connections.   Material : SS 304, SS 316, C.S, Monel (Seamless Pipe)   Note : All syphons are 100% factory tested prior to shipment.

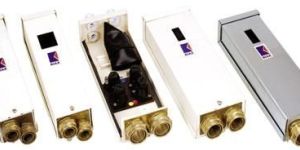

Description : TUBEFIT street lightning cut – outs in Sheet Steel construction have been specially designed, keeping in view the application & climatic conditions in the Gulf region.   Features : Street lightning cut – outs are manufactured with precision, out of extra thick, best quality CRCA steel sheets, galvanised & powder coated for smooth finish and protection against all types of atmosphere. The CUT – OUTS are tested & approved as per IP 44 & IP 54. Specially small size cut – outs are made for 4.5 mtr earth pole.

Instruction for Setting Pressure : Rotate the locknut-2 (part # 4) in clockwise direction & let it come down till available thread. Now tighten the cap (part # 3) in clockwise direction till the discharge at the outlet stops. Rotate the locknut-2 (part # 4) in anticlockwise direction & hold the cap in another spanner & tighten the locknut   Features : Oprating Temperature : 10°c to 25° c Orifice size : 6mm 100% valve are factory tested prior to despatch. Pressure can be set as per requirement.

Tubefit plug valves provide postive leak tight shut-off , high flow capacity, and quick quarter-turn operation in acompact attractive design.   Features: Pressures up to 3,000 psig (207 bar) cwp Quarter-turn operation Reliable simple one pices design. Stright-through flow. Nitrile, ethylene prophylene. PTFE back-up rings on atmospheric seals Low operating torque. Minimum pressure drop. Colour coded fracture resistant nylone handles with directional flow indication Eassy to service 100% factory tested

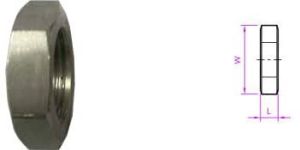

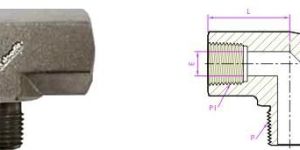

Note : Dimensions are for reference only and are subject to change. Sae/ms(unef)thread as per asme b1.1

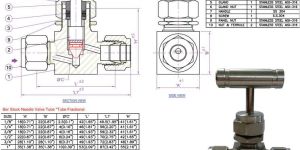

Above part nos are only for SS 316 material of construction. In case of any other material of construction kindly mention in the order details.   Features: One piece body, no weld joints. Stem tip 17-4ph for long life.   Testing : standard test: each valves is tested with nitrogen at 1,000 psi for seat & packing leakage, with  a max. Allowable leak rate of 0.1 std.cm3/min. Hydro test: performed with pure water at 1-1/2 times of the working pressure.   Lubrication : Dye molly sulphide   Notes : Optimal graphoil packing available for high temperature application panel nuts optional. End connections available in male or female bspp,bspt & npt threads Dimensions are for reference only. Dimensions are for reference only.Subject to change. Valve can be supplied to meet current revision of nace mr-01-75.(sourgas service)

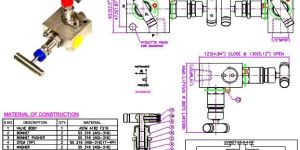

features : 2 valve manifolds are designed for remote or separate mounting. connecting from process side 1/2" npt(f) and instrument side 1/2" npt(f)  connecting system impulse lines and transmitters, having simple two  valves configuration which allows for easy block or isolate, bleed  or vent valve callbration of a static pressure transmitter or gauge.   bonnet assembly : bonnet : back seated blow out proof. spindle : ground and thread rolled. Packing below thread.  spindle tip : non-rotating tip shut-off type & soft seated. dust cap : dust cap protects stem threads from external contamination heat code traceability.   technical specifications : size : 1/4" & 1/2" end connection : npt, bspt, bsp & socket weld. working pressure : 6000 psi (413 bar) temperature rating : ptfe 450° f(232°c) grafoil 700° f (371°c") material of construction : ss 316l, ss 316, ss 304, c.s, f11,hastelloy,monel optional sour gas service valves are available confirming to nace mr-01-75 stem packing : ptfe, grafoil. orifice : ø4.7 all valves are 100% factory tested prior to shipment.   testing : pneumatic seat test is performed at 1/4 of working pressure. Hydrostatic shell test is performed at 1.5 times the working pressure optional test are available upon request.   lubrication : molybdenum disulphide (mo s2)
