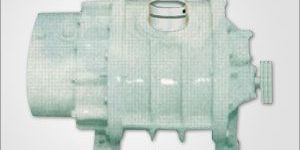

Twin Lobe Blowers Dealers in Mumbai

• Warranty: 1year
• Brand Name: Modern General Sales
• Color: Customized
• Rated Power: Electric
• Usage/Application: Industrial
• Pack Type: Carton Box

Optional Accessories: Base Frame Belt Guard V Belts Pressure Gauge NRV Safety Air Release Valve Silencer Motor Pulley Air Filter Etc

Backed by the rich experience of this industry, we are offering a wide range of Twin Lobe Roots Blower or Twin Lobe Blower. Our adept professionals use quality assured components and ultra-modern techniques to manufacture this blower in line with international quality norms. Our offered blower has its wide range of applications in water treatment plants, aquaculture, and other processing industries. In addition to this, this blower is available in technical specifications to cater the various requirements of the clients.

• Capacity: 100 to 4000m3/hr
• Pressure [Operation]: 0.5 Kg/cm2
• Suction [Mode: 30 M bar

Modular designs for maximum flexibility. Always allows to meet customers requirements, positive displacement. High operating speed due to dynamically balanced rotors. Entirely mechanical & light weight. Relatively low power consumption.APPLICATION : Cement, Effluent treatment, Pollution Control Plant, Ferilizer, Textile, Glass / Tube Industries, Pharma & Chemical.

Turbo twin lobe rotary positive displacement compressors come in two models twin lobe. They are engineered and manufactured by capable and experienced personnel in a modern plant with the latest machines and also with latest tooling. Production is controlled by close inspection, tests and attention to the smallest detail. Reliable field service is maintained by factory trained personnel twin lobe compressors range in capacity up to 50, 000 m3hr. The rotary positive displacement compressor twin lobe model has two figures eight impellers rotating in opposite directions and twine lobe model has three impellers in each shaft rotating in opposite direction. As each lobe of an impeller passes the compressor inlet, it traps a quantity of air equal to exactly one-fourth the displacement of the compressor. This entrapment occurs four times per revolution, moving the entrained air around the case to the compressor outlet. Ground helical timing gears accurately position the impellers in relation to each other, maintaining the minute clearances so vital to the high volumetric efficiency of the rotary positive compressor. Because the compressor operates with very close internal tolerances, a slight amount of air escapes past the operating clearances back to the suction side of the compressor. This leakage, defined as 'slip' is a predictable constant volume for any given compressor at any given pressure. For ease in calculation, this leakage is expressed in compressor rpm. A standard slip, based on handling air at standard condition, has been established for each compressor size. For gases having a specific gravity other than 1.0, the slip will vary and this must be taken into consideration when calculating total operating speed of the unit. The twin lobe compressor is built with the closest possible tolerances to give highest volumetric efficiency. Every twin lobe compressor is tested before shipment. We are a reliable Manufacturer, Exporter and Supplier of Twin Lobe Rotary Blower in India.

Turbo twin lobe rotary positive displacement compressors come in two models twin lobe. They are engineered and manufactured by capable and experienced personnel in a modern plant with the latest machines and also with latest tooling. Production is controlled by close inspection, tests and attention to the smallest detail. Reliable field service is maintained by factory trained personnel twin lobe compressors range in capacity up to 50, 000 m3hr. The rotary positive displacement compressor twin lobe model has two figures eight impellers rotating in opposite directions and twine lobe model has three impellers in each shaft rotating in opposite direction. As each lobe of an impeller passes the compressor inlet, it traps a quantity of air equal to exactly one-fourth the displacement of the compressor. This entrapment occurs four times per revolution, moving the entrained air around the case to the compressor outlet. Ground helical timing gears accurately position the impellers in relation to each other, maintaining the minute clearances so vital to the high volumetric efficiency of the rotary positive compressor. Because the compressor operates with very close internal tolerances, a slight amount of air escapes past the operating clearances back to the suction side of the compressor. This leakage, defined as 'slip' is a predictable constant volume for any given compressor at any given pressure. For ease in calculation, this leakage is expressed in compressor rpm. A standard slip, based on handling air at standard condition, has been established for each compressor size. For gases having a specific gravity other than 1.0, the slip will vary and this must be taken into consideration when calculating total operating speed of the unit. The twin lobe compressor is built with the closest possible tolerances to give highest volumetric efficiency. Every twin lobe compressor is tested before shipment. We are a reliable Manufacturer, Exporter and Supplier of Twin Lobe Rotary Blower in India.

        These blowers are available in two lobe or tri version. Air Cooled water cooled version available Oil Splash, Grease, external cooled force lubrication as per requirement. Choice of Different material of construction or coating available. Flow range available upto 24,000 m3/hr and max pressure 1 bar Special packages can be designed for higher differential pressure. Can be used as vacuum application Some blower are having screw type rotors can be used for higher pressure of 2.5 bar flow range to 10,000 m3/hr

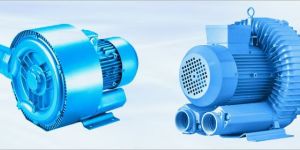

This turbine blower is a non-positive displacement, high volume, pressure, blower that can operate as either a compressor or a vaccum pump. It is also known as other names such as regenerative blower, vortex blower and side channel blower. All of the names describe the basic principle of operation of the blower. The blower consist of an impeller mounted directly on a motor shaft and is rotated at a high speed of about 2900 R.P.M. On the periphery of the impeller are a large number of radial blades. The impeller is positioned between 2 end plates with the blades located with a channel on either side.

• Power: 0.5 - 1.0 HP
• Body Material: Mild Steel
• Pressure: 830 Bar
• Blade Material: Cast Iron
• Automation Grade: Automatic
• Brand: Turbo Blower
• Capacity: 50,000 M3/hr
• Max. Speed: 4000 rpm

• capacity: 50,000 M3/hr.

Turbo Twin/Tri Lobe Rotary positive displacement compressors come in two models Twin lobe and Tri lobe type. They are engineered and manufactured by capable and experienced personnel in a modern plant with the latest Machines and also with latest tooling. Production is controlled by close inspection, tests and attention to the smallest detail. Reliable field service is maintained by factory trained personnel Twin lobe Compressors Range in capacity up to 50,000 M3/hr. You are invited to request information on sizes not covered in this Brochure. The Rotary Positive displacement compressor twin lobe model has two figures eight impellers rotating in opposite directions and tri lobe model has three impellers in each shaft rotating in opposite direction.Turbo blower is one of the leading manufacture and supplier of twin lobe roots blowers and blower systems. Turbo blowers have unmatched quality and performance. They have been specially designed to deliver 100% Oil free air varying discharge pressures for application such as Oil free converying of gases and bulk materials, sewage treatment, liquid homogenization and for combustion equipment. Our In-house casting production and technical expertise enables us to custom manufacture blowers to suit individual requirements of various applications. A complete range of twin lobe root blowers is available in capacity ranging from 10m3/hr to 30,000m3/hr and pressure up ti 0.6kg/cm2 in single stage or any capacity with parallel configuration, Compact design, heavy duty bearings enables continuous operation. Turbo blowers are also available as special units with all necessary accessories.DESIGN FEATURES100% Oil free air.Generously sized bearing to handle dynamic load.Rotary Oil sealing.Alloy steel hardened and ground timing gears for better life.Rigid one piece graded cast iron casing for vibration free operation. Easy rotor timing setting through taper mount procedure.Improved, efficient rotor design and precision synchronization for lesser slip and higher volumetric efficiency.Alloy steel shaft ground to close tolerances for better fitment.Simple, easy and low cost maintenance.Better volumetric efficiency results in low operation cost. APPLICATIONSIndustrial: Steam Compression, Oil free handling of industrial gases, Non Combustion ProcessHeating, Pulp and Paper Processing, Fluid Bed Combustion.Pnematic Conveying: Pressure conveying of heat sensitive material, Fluidization and agitation ofdense powders and liquids.Food Processing: Conveying grains, Dehydration, Vacuum Packing etc... Chemical / Gas Processing : Handing corrosive gases, non sparking applications, distillationof vapour gas.Environmental: Soil Vapor extraction, Air sparging, compost aeration, smoke stack filtration,dust collection, gas disposal, mobile vacuum waste water treatment, effluent water treatment, Sand filter backwash, Sludge conditioning, Digester gas processing.Other process Like : aeration in hatcheries, fisheries, fisheries, GLS Lamp industries, air knife and manyother applications...

• Application: They are extensively used in cement plants, pneumatic conveying systems, effluent treatment plants
• Features: 100% oil free air delivery, Anti-friction bearings, Rotary Oil Sealing, Rigid one piece CI casing & end plates, Easy rotor timing setting, Air Cooled & Water Cooled design available, Fail safe labyrinth sealing, Extended shaft design for cool running
