Ultrasonic Thickness Gauge Dealers in Mumbai

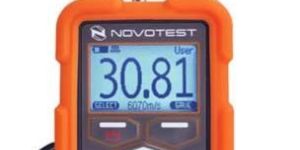

• Country of Origin: India
• Features: Wide range of measuring thicknesses, Convenience and ease in operation, Minimum number of controls, Select the type of probe through single button, Preset velocity of ultrasound
• Color: Orange

The device complies with ASTM E797 Standard Practice for Measuring Thickness by Manual Ultrasonic Pulse-Echo Contact Method.

The usage of an ultrasonic thickness gauge for non-destructive testing to check material properties such as thickness measurement, is now regularly utilized in all areas of industrial measurements. The ability to gauge thickness measurement without requiring access to both sides of the test piece, offers this technology a multitude of possible applications. Paint thickness gauge, ultrasonic coating thickness gauge, digital thickness gauges and many more options are available to test plastics, glass, ceramics, metal and other materials.

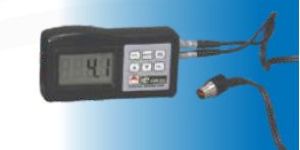

• Display:: 4 Digits, 10mm LCD Display
• Measuring range (metric/imperial):: 1.0mm to 200mm
• Operating principle:: ULTROSONIC
• Calibration:: Self Calibration. 5mm (0.197 inch) Test Block Included
• Resolution:: 0.1mm/0.001 inch
• Accuracy:: ±(0.5%+0.1)
• Velocity Range :: 1000 to 9000 m/s
• PC Interface:: RS232C Interface
• Measuring Parameters:: mm,inch
• Power supply:: 4×1.5V AA Battery
• Battery indicator:: Low Battery Indicator
• Operating Temperature & humidity:: 0⁰C to 50⁰C , ≤80%RH
• Weight:: About 164g (Not Including Battery)
• Display Size:: 47 X 29 mm
• Dimension:: 120 x 62 x 26mm (4.7 x 2.4 x 1.2 inch)
• Accessories:: Carrying case, Calibration Block 1pc, User Manual, 1pc Measurement Probe & Glycerin Bottle, RS232 Cable & Software

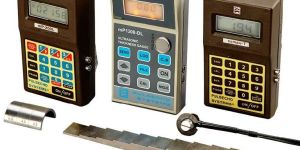

Ultrasonic Thickness measurement is non destructive method of measurement and particularly, suitable for components having access only from one side, where conventional gauge cannot be used. Applications It is especially useful in measurements of thickness of pipes, pressure vessels.We have automated systems for online thickness measurement in pipes or plates and for applications like corrosion monitoring, bond testing, lamination detection, material characterization. The testing is fast, reliable and with high accuracy. Four different models of Ultrasonic Thickness Gauge are offered to suit different areas of application. Features- Models 4503/04 & 4510/11 Light weight, easy to use. Thickness measurement possible for one side access components. On line thickness monitoring, with suitable fixtures. Microprocessor controlled with facility to store calibration and measured data. Additional features available in Model UX 4511 Metric/English Units. Auto memory (with time selectable from 1 to 10 sec.) Color mapping (with suitable software). This is suitable for large parts particularly plates where readinUltrasonic Thickness measurement is non destructive method of measurement and particularly, suitable for components having access only from one side, where conventional gauge cannot be used. Applications It is especially useful in measurements of thickness of pipes, pressure vessels.We have automated systems for online thickness measurement in pipes or plates and for applications like corrosion monitoring, bond testing, lamination detection, material characterization. The testing is fast, reliable and with high accuracy. Four different models of Ultrasonic Thickness Gauge are offered to suit different areas of application. Features- Models 4503/04 & 4510/11 Light weight, easy to use. Thickness measurement possible for one side access components. On line thickness monitoring, with suitable fixtures. Microprocessor controlled with facility to store calibration and measured data. Additional features available in Model UX 4511 Metric/English Units. Auto memory (with time selectable from 1 to 10 sec.) Color mapping (with suitable software). This is suitable for large parts particularly plates where readings are taken at various points on grid, which are represented with different colors to get quick idea about thickness variation.gs are taken at various points on grid, which are represented with different colors to get quick idea about thickness variation.

• Measuring Range: 1.5 mm
• Outline Dimensions: 150mm*74mm*32mm
• Medium: DM water
• Work piece surface temperature: - 10
• The minimum thickness value capture capacity: With a minimum thickness value capture capacity
• Standard configuration: URNDT ACCUR-1 host, 5MHz probe, 4 mm steel calibration block, coupling agent, 2 batteries (non - Aviation), Software, RS232 Connect Cable
• Measurement cycle: 4 times/SEC, scanning of single point measurement model 20 times per second.
• Weight: 238 g
• Power Source: Type AA alkaline battery 1.5 V (2)
• Optional attachments: 2 MHZ, 7 MHZ and 5 MHZ (high temperature)
• Units: Metric/Imperial unit selectable
• Sound Velocity Range: 1000m/s
• Display resolution: 0.01mm or 0.1mm(lower than 100.0mm) 0.1mm(more than 99.99mm)
• Accuracy: ±(0.5%Thickness+0.04)mm, depends on Materials and conditions
• Data Memory: 5 files(up to 100 values for each file)of stored values 5 Sound Velocity of stored values

Ultrasonic Thickness measurement is non destructive method of measurement and particularly, suitable for components having access only from one side, where conventional gauge cannot be used.

The DELTA is hand held microprocessor controlled thickness gauge specifically designed for measuring the thickness of metallic- and non-metallic materials e.g. aluminium, titanium, plastics, ceramics glass and any other good ultrasonic waveconductro as long as it has parallel top and bottom surfaces. The principle of ultrasonic wave in the thickness measurement is similar to that of optical wave. The ultrasonic wave pulses transmitted by the probe reach the object to be measured and propagate in the object and when they reach the interfaces, they are reflected back. The thickness of the object is determined by precisely measuring the time the ultrasonic wave travels in the object. To increase accuracy the DELTA is equipped with automatic gain control and Vpath error correction.

• Type: Ultrasonic Thickness Gauge
• Material: Alloy Steel
• Shape: Rectagular
• Application: Measuring Material Thickness
• Certification: ISI Certified
• Condition: New
• Automatic Grade: Automatic
• Feature: Accuracy, Easy To Fit

• Features: Durable High performance Perfect finish

Ultrasonic thickness gauge measures the round trip time of the ultrasound sent by the probe in thickness sample. The microcomputer converts this time into thickness or velocity readings displayed on the LCD. This is one of our first products which we have been manufacturing since 1976. We keep updating our product line as per industry requirements, the current product line is our latest iteration. We have 3 models of ultrasonic thickness gauges, all have auto probe setting and direct entry of thickness / velocity for calibration, thus eliminating the need for having samples of various materials

• Measuring Range: 0.152 to 584mm
• Brand Name: sonatest
• Display: 3.5" high resolution colour TFT display, 320 x 240 pixels, sunlight readable, including multiple col
• Accuracy: 0.1 mm
• Power Supply: 3 x 1.5V AA batteries
• Resolution: 0.01 mm
• Battery Life: 27h
• Working Temperature: -20 to 50 DegreeC
• Model Name / Number: Alphagage
• Least Count: 0.1 mm

• Accuracy: ±(0.5%n+0.1)
• Dimensions: 160x68x32mm

ultrasonic thickness gauge aluminum, red copper, brass, zinc, quartz glass, Thickness meter, Thickness gauge, Thickness tester, Coating thickness meter, Coating thickness gauge, Coating thickness tester.

• Material: Alloy Steel
• Shape: Rectagular
• Feature: Easy To Fit, Perfect Strength
• Automatic Grade: Automatic
• Display: Digital
• Measuring Range: 100-200mm
• Gauge Size: 4inch
• Gauge Diameter: 20-40mm

High accuracy of measurement even for small sample pieces Light-weight for portability Large back-lit LCD display Battery capacity indication Average battery operating time of 250 hours (without backlight) and 30 hours (with backlight) Hard-wearing sensor head Sensors with plug-ins for ease of exchange and  1.6 m long cable

• Range: 0.010" to 0.787" (0.25 to 20 mm) in steel
• Resolution: 0.0001", 0.001", 0.01" (0.001 mm, 0.1 mm)
• Measuring Method: Ultrasonic
• Min Velocity (m/sec): 1000
• Max Velocity (m/sec): 9999
• Memory: 500 data points
• Frequency: 4 to 25 MHz
• Depth (in): 1.25
• Width (in): 2.75
• Height (in): 5.75
• Description: Ultrasonic Thickness Gauge

• Type: Ultrasonic Thickness Gauge
• Shape: Rectagular
• Application: Measuring Material Thickness
• Certification: ISI Certified
• Condition: New
• Automatic Grade: Automatic
• Feature: Accuracy
• Display: Analog
• Measuring Range: 100-200mm
• Gauge Size: 2inch
• Gauge Diameter: 20-40mm

• Type: Ultrasonic Thickness Gauge
• Application: Measuring Material Thickness
• Condition: New, Used
• Automatic Grade: Automatic, Manual
• Feature: Accuracy, Easy To Fit, Measure Fast Reading, Perfect Strength
• Display: Analog, Digital
• Measuring Range: 100-200mm, 200-300mm, 300-400mm, 400-500mm
• Gauge Size: 2inch, 4inch, 6inch, 8inch
• Gauge Diameter: 20-40mm, 40-60mm, 60-80mm, 80-100mm
