VAISHANVI ENGINEERING Kanchpada, Mumbai, Maharashtra

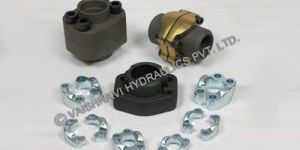

Weld Nozzle Flanges are consists of Set of Split Flanges assembled with Weld nozzle both side with O ring , Allen Bolts & Nuts. Weld Nozzle Flanges are easy for assembled, weld & ease of removal during assembly or disassembly of Piping Joints. Weld Nozzle Flanges are designed as per ISO 6162 with Static Pressure for 3000 psi & 6000 psi Series. Sizes Available - 14 " NB up to 5 " NB

Size : 1/4 " NB up to 5 " NB

Weld nipple fittings are used for very high pressure application areas such Steel plants , Shipyards.Weld nipple fittings are in Complex shapes such as elbows, tees, etc are manufactured from hot forging, which has obvious advantage over plate in extreme strength & high impact resistance.

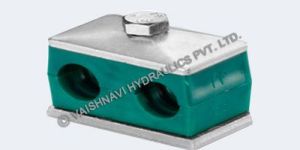

TWIN SERIES TUBE CLAMPS are designed to clamp two identical tubes to the Piping Systems. Twin Series tube clamps feature thick plates & heavy bolts to resist High Pressure Piping Application. Twin series Tube clamps are available along with Multilayer, Welding plates, Rail Nuts, etc. Twin Series Tube Clamps are available in different construction type including Rubber Inlay Types & many more

TWIN SERIES PIPE CLAMPS are designed to clamp two identical tubes to the Piping Systems. Twin Series Pipe clamps feature thick plates & heavy bolts to resist High Pressure Piping Application. Twin Series Pipe clamps are available in Plastic - PP PA with Steel & stainless steel plates & bolts. Twin series Pipe clamps consist of Top plates, Bottom weld plates, Hex bolts, Plastic or aluminium Jaws.

Twin ferrule fittings are sold completely assembled and ready for immediate use. Simply insert the tube as illustrated until it bottoms in the fitting body. (If the fitting is dis-assembled, note that the small tapered end of the ferrule (s) go into the fittings body).

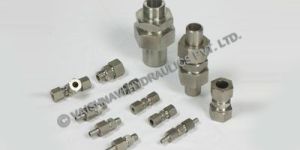

Tube Fittings are interchangeable with other mad sub parts which has unique advantage of using "Ve-Lock" products. Tube fittings are designed as per standard norms design drawings dimensions which have 100% guarantee for its application.Tube Fittings are available in various Materials of constructions like Carbon Steel, EN1A, IS1018, IS2062 grades, Stainless steel grades 304, 316 and Brass.

TUBE CLAMPS are used to prevent noise and vibration by gripping on tubes during the time of system pressure working up to 10,000 psi. VE-LOCK tube clamps are interchangeable with all other brands worldwide.Tube Clamps has Rib designed structure to provide resistance against impact and vibration dampening.Tube Clamps are as per pipe OD, working pressure. Rating, types of steel materials being used for piping, types of layout for piping, number of piping line.

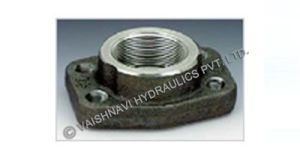

Threaded Flanges are used for Hose assembly where easy removal piping can be possible with in close area Thread Flanges are in 2 halves attached with Weld nozzle with Allen bolts , Nuts & O ring Seal.

Size : 1/4 " NB up to 5 " NB

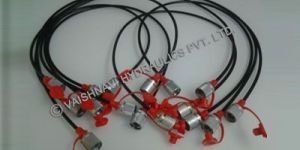

Test Hose is available in DN2 (2 mm ID & 5 mm OD)& DN4 (4 mm ID & 8 mm OD) micro bore Hose material available.Test Hose is having minimum bend radius 20 mm & Temp resistance from -20 C to +100 C. test hose is available in various lengths from 500 mm till 20 mtrs long.

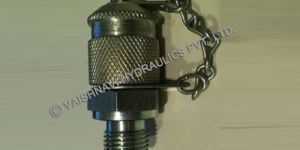

Test Couplings a uniquely simple method of accessing low or high pressure systems for the purpose of pressure testing, oil sampling or gas charging. Test couplings are found worldwide in hydraulic, process and gas systems. A lifetime guarantee and suitability with almost any fluid or gas makes Minimess the most versatile test point available.

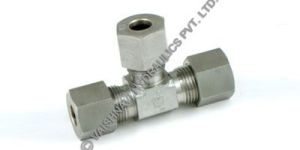

Tee fittings are mainly used where tube connections are required to place at both side 90 degree angle in the piping systems.Tee fittings are also available with weld nipple type where it can resist Very High working pressure in piping systems upto 600 bar (9000 Psi)

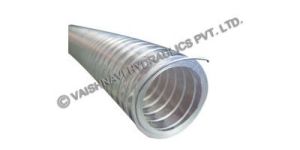

Steel Wire Hoses heavy duty construction finish and others. Some of the areas where it is used in include suitability for coolant lines, food and beverage lines, chemical transfer and conveyance of food grade material, in refineries, fertilizer industry, pharmaceutical industry, automotive industry and others.

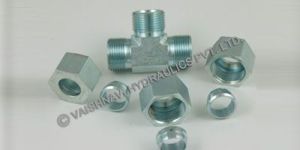

Steel fittings are widely used for Hydraulic applications such as Hydraulic Power packs, Hydraulic press, Hydraulic Jack, Hydraulic operated cranes, Hydraulic machines so such fittings are also known as hydraulic fittings.Steel fittings are available in Light duty & Heavy duty series sizes range from 6 mm od till 42 mm od.

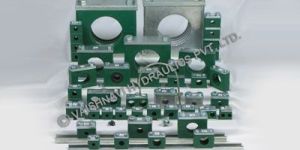

STAUFF CLAMPS widely used for supporting piping systems. VE-LOCK Tube Clamps are used to prevent noise and vibration by gripping on tubes during the time of system pressure working up to 10,000 psi. VE-LOCK tube clamps are interchangeable with all other brands worldwide. Tube Clamps will provides strength in the direction of the tube axis ensuring a high degree of sound deadening.

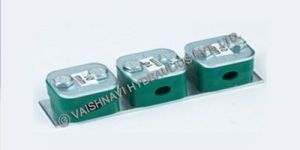

STANDARD SERIES CLAMPS are normally used for general Purpose applications. Standard series tube clamps are available along with Multilayer, Welding Plates, Rail Nuts, Construction Types, Rubber Inlay Types & many more.Standard Series Tube clamps are available in Plastic, Aluminium clamp bodies with Steel S.S. plates & bolts

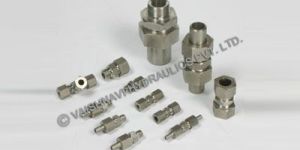

Stainless steel fittings are widely used in piping systems where there is high corrosion area , high watery areas , high chemical & highly explosive areas where temp resistance & reaction with chemicals & risk of corrosion is very high & which is to avoid so Stainless steel fittings are used.

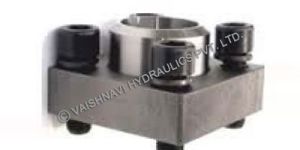

Square Flanges are now incorporated in to ISO 6162 for the 3000 psi and 6000 psi Static Pressure ranges respectively. SAE system depends on the same set of butt welding sleeves held together by a set of Split Flange and Solid Flange secured by Hex Bolts and Nut.

Pressure : 3000 psi

Split Flanges are designed as per ISO 6162 - 3000 psi series & 6000 Psi Series only.Split Flanges are used for Hose assembly where easy removal piping can be possible with in close area Split Flanges are in 2 halves attached with Weld nozzle with Allen bolts , Nuts & O ring Seal.

Pressure : 3000 psi series & 6000 Psi

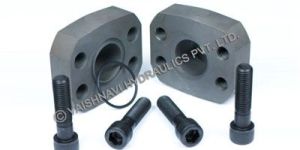

Socket Weld Flanges are used for Hose assembly where easy removal piping can be possible with in close area Socket Weld Flanges are in 2 halves attached with Weld nozzle with Allen bolts , Nuts & O ring Seal.Socket Weld Flanges are designed as per ISO 6162 with Static Pressure for 3000 psi & 6000 psi Series.

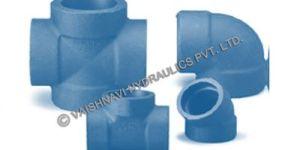

VE-LOCK, socket weld tube fittings are suitable for application in diverse industries like engineering, construction etc. Available in different shapes and sizes, these durable Socket weld fittings can withstand high temperature and pressure. The fittings weld seamlessly with respective pipe tube as per ASME standards. Designed as per ASME standards (3000 lbs 6000 lbs).

Socket weld fittings are designed as per ASME 3000 LBS 6000 LBS (3000 psi and 6000 psi). Socket weld fittings are require welding with tubes pipes at 30 degree weld angle provided in each fittings which will allow getting firm joints in the piping systems.

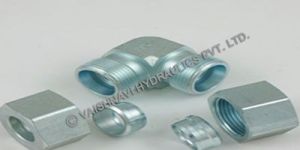

Single ferrule fittings are flarless bite type metric fittings that consist of a body, progressive ring (ferrule) and nut. On assembly, two cutting edges of the ferrule "bite" into the outer surface of the tube ensuring the necessary holding power for high operating pressures.The three components of Single Ferrule Fittings are designed to produce a strong, reliable, leak-free joint upon proper assembly.

Single ferrule Bite type fittings are the most widely used fittings in the world. Single Ferrule Bite Type Fittings are flarless bite type metric fittings that consist of a body, progressive ring (ferrule) and nut. On assembly, two cutting edges of the ferrule "bite" into the outer surface of the tube ensuring the necessary holding power for high operating pressures. Single ferrule bite type Couplings are best suited for steel, copper or stainless steel tubes where brazing, soldering, welding, flaring or threading is not possible or permissible.

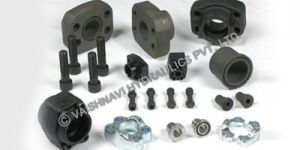

SAE Flanges is not possible due to higher in Hex section sizes & High torgue require to tightened Grip the ferrule in to the tube & lead to lose the joints at High pressure application. In such cases the usage of Flanges with Butt weld or Socket weld has been found to be more practical leading to compact piping installation. SAE Flanges can also be customized as per the drawings and specifications provided by the clients.
