Valtech Industries Saki Vihar, Mumbai, Maharashtra

We are offering y type strainer.

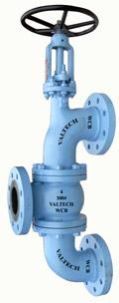

VALTECH” robust design Three-way change over Valves with safety gland packing in flange design is manufactured with reference standard BS-1873 and can be supplied in Carbon Steel (ASTM-A-216 Gr. WCB), Stainless Steel (ASTM-A-351 Gr. CF8M/CF8/CF3/CF3M) and low temperature steel or any other material as per requirement.USES ”VALTECH” change-over valves allows essential maintenance work to be carried out on a safety valve, without interruption of the plant operation, simply by changing over to the relevant stand by valve, thus protecting the plant against excessive overpressure.Plants are protected against undue excess pressure by switching over to the relevant standby safety valves. Full blow off capacity is maintained when the change-over-valve switches over from one side to the other.When using change-over-valves in tandem, both hand wheels are linked via a chain wheel in order to assure simultaneous operation. Design features Extremely low resistance coefficients due to optimal flow deflection. On account of this safety valves can be combined to the greatest extent with change-over-valves of the same nominal size Compact weight-saving construction method

“VALTECH” 150# ANSI Flanged “Y” Strainers are Available in Carbon Steel and Stainless Steel. A machined, Tapered seat ensures a perfect fit for the removable, Stainless steel screen. 2" and larger come complete with Flanged blow-off cover, gasket & plug. 1 1/2" and smaller Come complete with solid threaded cover and gasket. May Be installed in vertical or horizontal pipelines with blow-off connection at the lower end of the screen..

VALTECH” Non Slam Check Valve is a general purpose check Valve that are stronger, lighter and smaller than conventional Swing Check valves and therefore, less expensive to install and maintain. Non Slam Check Valves are designed and manufactured with reference to standard API 604 for Pipelines up to 150 NB. They are made to fit between two flanges. If required, Valves can be offered under any THIRD PARTY INSPECTION. “VALTECH” Non Slam Check Valves are available in materials Like Carbon Steel conforming to ASTM-A-216 Gr. WCB and Stainless Steel ASTM-A-351 Gr. CF8M . Size range starts from 25 NB through 100NB

We are offering jacketed valves. Valtech” jacketed gate valves are available in various materials like cast carbon steel conforming to astm-a-216 gr. Wcb, cast alloy steel like astm-a-217 gr. Wc-6 wc-9; and cast stainless steel like astm-a-351 gr. Cf-8, cf-3, cf-8m & cf-3m. Size range starts from 50 nb through 900nb and pressure rating from 150# to 600#.

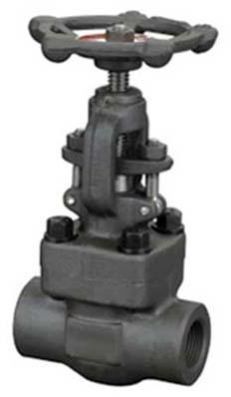

VALTECH” compact design & high pressure, Forged Steel Globe Valves are designed and manufacture with reference to standard API 602 for small Pipelines up to 50NB. They are available in Threaded as well as Socket Weld ends. Hard Faced Trim material ensures perfect Sealing and longer life. Lapped Back Seat is provided to ensure re-packing/replacing of Gland Packing in stream, when the Valve is in full open condition which ensures maximum safety, convenience and economy. If required, Valves can be offered under any THIRD PARTY INSPECTION. “VALTECH” Globe Valves are available in various materials like Forged Carbon Steel conforming to ASTM-A-105, Forged Alloy Steel like ASTM-A-182-F11, F22 and Forged Stainless Steel like ASTM-A-182 F304, F304L, F316 and F-316L. Size range starts from 15 NB through 50NB and pressure rating up to ANSI 2500#.

    VALTECH” compact design & high pressure, Forged Steel Gate Valves are designed and manufactured with reference to standard API 602 for small Pipelines up to 50NB. They are available in Threaded as well as Socket Weld ends. Hard Faced Trim material ensures perfect Sealing and longer life. Lapped Back Seat is provided to ensure re-packing/replacing of Gland Packing in stream, when the Valve is in full open condition which ensures maximum safety, convenience and economy. If required, Valves can be offered under any THIRD PARTY INSPECTION. “VALTECH” Gate Valves are available in various materials like Forged Carbon Steel conforming to ASTM-A-105, Forged Alloy Steel like ASTM-A-182-F11, F22 and Forged Stainless Steel like ASTM-A-182 F304, F304L, F316 and F-316L. Size range starts from 15 NB through 50NB and pressure rating up to ANSI 2500#.

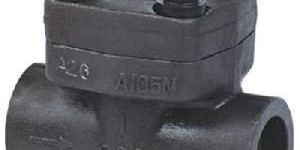

VALTECH” compact design & high pressure, Forged Steel Lift Check Valves are designed and manufacture with reference to standard API 602 for small Pipelines up to 50NB. They are available in Threaded as well as Socket Weld ends. Hard Faced Trim material ensures perfect Sealing and longer life. If required, Valves can be offered under any THIRD PARTY INSPECTION . “VALTECH” Lift Check Valves are available in various materials like Forged Carbon Steel conforming to ASTM-A-105, Forged Alloy Steel like ASTM-A-182-F11,F22; and Forged Stainless Steel like ASTM-A-182 F304, F304L, F316 and F-316L. Size range starts from 15 NB through 50NB and pressure rating up to ANSI 2500#.

We are offering check valve. Valtech” wafer check is a general purpose check valve designed to protect your gas and liquid piping systems. Wafer check valves are designed and manufactured with reference to standard api 594 for pipelines up to 600nb. Its superior performance and proven reliability, as well as an initial and maintenance cost savings, make wafer check the obvious choice over conventional swing checks or any other swing checks or any other check valve design. They are made to fit between two flanges. If required, valves can be offered under any third party inspection .

VALTECH” Wafer Check is a general purpose check valve Designed to protect your gas and liquid piping systems. Wafer Check Valves are designed and manufactured with reference to standard API 594 for Pipelines up to 600NB. Its superior performance and proven reliability, as well as an initial and maintenance cost savings, make Wafer Check the obvious choice over conventional swing checks or any other swing checks or any other check valve design. They are made to fit between two flanges. If required, Valves can be offered under any THIRD PARTY INSPECTION . “VALTECH” Wafer Check Valves are available in materials like Carbon Steel conforming to ASTM-A-216 Gr. WCB and Stainless Steel ASTM-A-351 Gr. CF8M . Size range starts from 25 NB through 600NB.

We are offering cast steel swing check valve. Valtech” robust design, cast steel swing check valves are designed and manufactured with reference to standard bs-1868 for pipelines 50nb and above. They are available in flanged and buttweld ends. Hard faced trim material ensures perfect sealing and longer life. Lapped back seat is provided to ensure re-packingreplacing of gland packing in stream, when the valve is in full open condition which ensures maximum safety, convenience and economy. If required, valves can be offered under any third party inspection .

VALTECH” robust design, Cast Steel Swing Check Valves are designed and manufactured with reference to Standard BS-1868 for Pipelines 50NB and above. They are available in Flanged and Buttweld ends. Hard Faced Trim material ensures perfect Sealing and longer life. If required, Valves can be offered under any THIRD PARTY INSPECTION. “VALTECH” Cast Steel Swing Check Valves are available in various materials like Cast Carbon Steel conforming to ASTM-A-216 Gr. WCB, Cast Alloy Steel like ASTM-A-217 Gr. WC-6 / WC-9; and Cast Stainless Steel like ASTM-A-351 Gr. CF-8, CF-3, CF-8M & CF-3M. Size range starts from 50 NB through 900NB and pressure rating from 600# to 2500#

VALTECH” robust design, Cast Steel Swing Check Valves are designed and manufactured with reference to Standard BS-1868 for Pipelines 50NB and above. They are available in Flanged and Buttweld ends. Hard Faced Trim material ensures perfect Sealing and longer life. Lapped Back Seat is provided to ensure re-packing/replacing of Gland Packing in stream, when the Valve is in full open condition which ensures maximum safety, convenience and economy. If required, Valves can be offered under any THIRD PARTY INSPECTION . “VALTECH” Cast Steel Swing Check Valves are available in various materials like Cast Carbon Steel conforming to ASTM-A-216 Gr. WCB, Cast Alloy Steel like ASTM-A-217 Gr. WC-6 / WC-9; and Cast Stainless Steel like ASTM-A-351 Gr. CF-8, CF-3, CF-8M & CF-3M. Size range starts from 50 NB through 900NB and pressure rating from 150# to 600#.

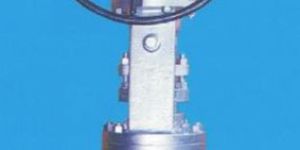

  CAST STEEL GLOBE VALVE (PRESSURE SEAL BONNET)   “VALTECH” robust design, Cast Steel Pressure Seal Globe Valves are designed and manufactured with reference to Standard BS-1873 for Pipelines 50NB and above. They are available in Flanged and Buttweld ends. Hard Faced Trim material ensures perfect Sealing and longer life. Lapped Back Seat is provided to ensure re-packing/replacing of Gland Packing in stream, when the Valve is in full open condition which ensures maximum safety, convenience and economy. If required, Valves can be offered under any THIRD PARTY INSPECTION . “VALTECH” Cast Steel Pressure Seal Globe Valves are available in various materials like Cast Carbon Steel conforming to ASTM-A-216 Gr. WCB, Cast Alloy Steel like ASTM-A-217 Gr. WC-6 / WC-9; and Cast Stainless Steel like ASTM-A-351 Gr. CF-8, CF-3, CF-8M & CF-3M. Size range starts from 50 NB through 300NB and pressure rating from 900# to 2500#.

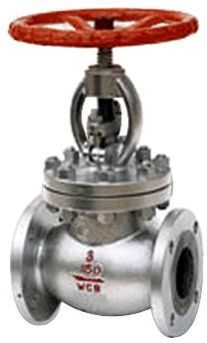

VALTECH” robust design, Cast Steel Globe Valves are designed and manufactured with reference to Standard BS-1873 for Pipelines 50NB and above. They are available in Flanged and Buttweld ends. Hard Faced Trim material ensures perfect Sealing and longer life. Lapped Back Seat is provided to ensure re-packing/replacing of Gland Packing in stream, when the Valve is in full open condition which ensures maximum safety, convenience and economy. If required, Valves can be offered under any THIRD PARTY INSPECTION. “VALTECH” Cast Steel Globe Valves are available in various materials like Cast Carbon Steel conforming to ASTM-A-216 Gr. WCB, Cast Alloy Steel like ASTM-A-217 Gr. WC-6 / WC-9; and Cast Stainless Steel like ASTM-A-351 Gr. CF-8, CF-3, CF-8M & CF-3M. Size range starts from 50 NB through 500NB and pressure rating from 150# to 600#.

“VALTECH” robust design, Cast Steel Gate Valves are designed and manufactured with reference to standard API 600 for Pipelines 50NB and above. They are available in Flanged and Buttweld ends. Hard Faced Trim material ensures perfect Sealing and longer life. Lapped Back Seat is provided to ensure re-packing/replacing of Gland Packing in stream, when the Valve is in full open condition which ensures maximum safety, convenience and economy. If required, Valves can be offered under any THIRD PARTY INSPECTION . “VALTECH” Gate Valves are available in various materials like Cast Carbon Steel conforming to ASTM-A-216 Gr. WCB, Cast Alloy Steel like ASTM-A-217 Gr. WC-6 / WC-9; and Cast Stainless Steel like ASTM-A-351 Gr. CF-8, CF-3, CF-8M & CF-3M. Size range starts from 50 NB through 900NB and pressure rating from 150# to 600#.

VALTECH” wafer design, BUTTERFLY VALVES are designed and manufactured with reference to standard API 609 for Pipelines 40NB and above. They are available in Wafer design sandwich type as well as Flanged ends. If required, Valves can be offered under any THIRD PARTY INSPECTION . “VALTECH” BUTTERFLY VALVES are available in various materials like Conforming to Cast Iron with SG Iron Disc and Nitrile Sleeve, Cast Carbon Steel ASTM-A-216 Gr. WCB, Cast Alloy Steel like ASTM-A-217 Gr. WC-6 / WC-9; and Cast Stainless Steel like ASTM-A-351 Gr. CF-8, CF-3, CF-8M & CF-3M. Size range starts from 40 NB through 900NB and pressure rating 125# & 150#.

VALTECH” Ball Valves are designed and manufactured as per ref. manufacturing standard BS-5351 considering maximum safety, performance and long life. “VALTECH” three piece design ensures online maintenance, which saves time, energy and money. “VALTECH” Ball Valves are provided with blow-out proof stem. Specially designed Stem Seal ensures Zero passing through the gland. “VALTECH” Ball Valves provide reliable operation and resist corrosion in control of liquids and gases in process industry. The best design and construction improvements are incorporated to ensure a completely reliable process isolation for valve industry.

“VALTECH” 3 Way Ball Valves are designed and manufactured as per ref. manufacturing standard BS-5351 considering maximum safety, performance and long life. “VALTECH” 3 Way Ball Valves are provided with blow-out proof stem. Specially designed Stem Seal ensures Zero passing through the gland. “VALTECH” Ball Valves provide reliable operation and resist corrosion in control of liquids and gases in process industry. The best design and construction improvements are incorporated to ensure a completely reliable process isolation for valve industry
